GRACO INC. S10595

GRACO INC. S10595 branded products

View as Grid List

Sort by

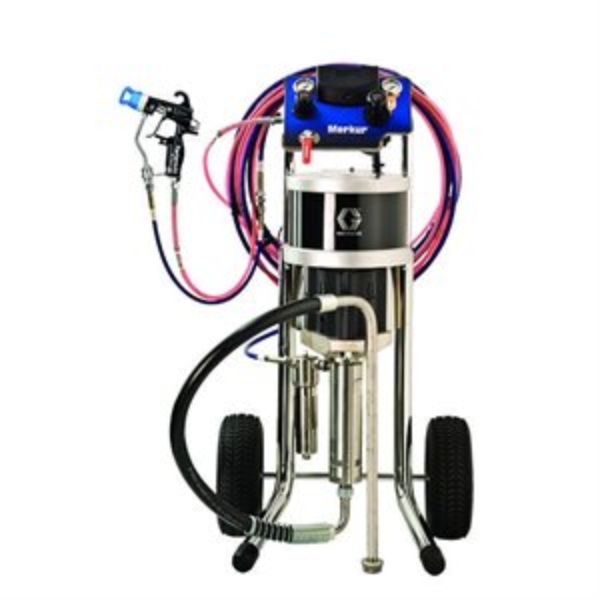

MERKUR SYSTEM PUMP 23:1 100CC CART STD

GG G23C13

MERKUR SYSTEM PUMP 23:1 100CC CART STD

23:1 Merkur AA Package, 1.6 gpm (6 lpm) fluid flow, Cart Mount, PerformAA 50 RAC Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications. Proven to outperform and outlast other pumps in their class Highest technology air motor on the market Low air consumption for increased efficiency External valve access allows for easy servicing and online replacement to minimize downtime

$8,040.00

MERKUR SYSTEM PUMP 23:01 100CC WA STD

GG G23W01

MERKUR SYSTEM PUMP 23:01 100CC WA STD

Graco G23W01 23:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Wall Mount

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.0
Maximum Working Pressure (bar): 159
Maximum Working Pressure (kPa): 15900
Maximum Working Pressure (psi): 2300
Mount Type: Wall Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 23:1
Pump Type: Pneumatic Piston Pump

$5,380.00

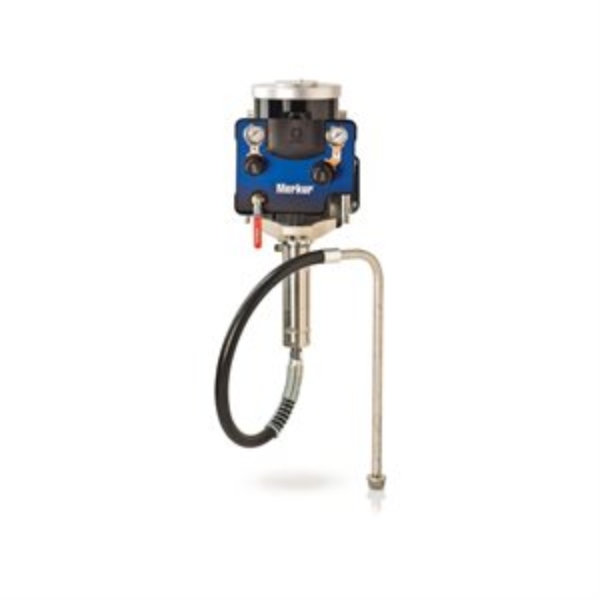

MERKUR SYSTEM PUMP 23:01 100CC WA STD

GG G23W03

MERKUR SYSTEM PUMP 23:01 100CC WA STD

Graco G23W03 23:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Wall Mount, Pump Air Controls

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Includes: Pump Only Air Controls
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.0
Maximum Working Pressure (bar): 159
Maximum Working Pressure (kPa): 15900
Maximum Working Pressure (psi): 2300
Mount Type: Wall Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 23:1
Pump Type: Pneumatic Piston Pump

$6,100.00

MERKUR SYSTEM PUMP 23:01 100CC WA STD

GG G23W07

MERKUR SYSTEM PUMP 23:01 100CC WA STD

23:1 Merkur Airless Package, 1.6 gpm (6 lpm) fluid flow, Wall Mount, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications. Proven to outperform and outlast other pumps in their class Highest technology air motor on the market Low air consumption for increased efficiency External valve access allows for easy servicing and online replacement to minimize downtime

$6,870.00

MERKUR SYSTEM PUMP 23:01 100CC WA STD

GG G23W05

MERKUR SYSTEM PUMP 23:01 100CC WA STD

Graco G23W05 23:1 Merkur Pump, 1.6 gpm (6 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Includes: Pump Only Air Controls, Suction Hose, Fluid Filter
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.0
Maximum Working Pressure (bar): 159
Maximum Working Pressure (kPa): 15900
Maximum Working Pressure (psi): 2300
Mount Type: Wall Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 23:1
Pump Type: Pneumatic Piston Pump

$6,350.00

MERKUR SYSTEM PUMP 23:1 100CC WALL STD

GG G23W09

MERKUR SYSTEM PUMP 23:1 100CC WALL STD

Graco G23W09 23:1 Merkur AA Package, 1.6 gpm (6 lpm) fluid flow, Wall Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Convertible: Non-Convertible
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 1
Gun Model: PerformAA 50 Air Assist
Gun Technology: Air-Assisted
Gun Type: Air-Assisted
Hose Inlet Diameter (cm): 0.4763
Hose Inlet Diameter (in): 0.1875
Hose Inlet Diameter (mm): 5
Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
Maximum Flow Rate (GPM): 1.6
Maximum Hose Length (ft): 25
Maximum Hose Length (m): 7.6
Maximum Working Pressure (bar): 159
Maximum Working Pressure (kPa): 15900
Maximum Working Pressure (MPa): 15.9
Maximum Working Pressure (psi): 2300
Motor Type: Pneumatic
Mount Type: Wall Mount
Number of Guns: 1
Power Source: Air
Pressure Type: High Pressure
Product Type: Spray Package
Pump Ratio: 23:1
Pump Type: Pneumatic Piston Pump

$7,430.00

MERKUR SYSTEM PUMP 23:1 100CC WALL STD

GG G23W11

MERKUR SYSTEM PUMP 23:1 100CC WALL STD

Graco G23W11 23:1 Merkur AA Package, 1.6 gpm (6 lpm) fluid flow, Wall Mount, PerformAA 50 RAC Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Convertible: Non-Convertible
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 1
Gun Model: PerformAA 50 RAC Air Assist
Gun Technology: Air-Assisted
Gun Type: Air-Assisted
Hose Inlet Diameter (cm): 0.4763
Hose Inlet Diameter (in): 0.1875
Hose Inlet Diameter (mm): 5
Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
Maximum Flow Rate (GPM): 1.6
Maximum Hose Length (ft): 25
Maximum Hose Length (m): 7.6
Maximum Working Pressure (bar): 159
Maximum Working Pressure (kPa): 15900
Maximum Working Pressure (MPa): 15.9
Maximum Working Pressure (psi): 2300
Motor Type: Pneumatic
Mount Type: Wall Mount
Number of Guns: 1
Power Source: Air
Pressure Type: High Pressure
Product Type: Spray Package
Pump Ratio: 23:1
Pump Type: Pneumatic Piston Pump

$7,430.00

MERKUR BELLOWS SYSTEM, PUMP, 150CC, STD

GG G24B01

MERKUR BELLOWS SYSTEM, PUMP, 150CC, STD

Graco G24B01 Merkur™ Bellows 24:1 Ratio Pump Package with Wall Mount & V-Packing

The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials.

Highest technology air motor on the market
Low air consumption for increased efficiency
Simple air motor design and minimal parts reduces repair time
300 series stainless steel pump construction provides long-lasting durability
Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime

Model: Merkur
Series: Bellows

Application: Supply
Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating
Fluid Inlet Size (cm): 2.5400
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4000
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
Includes: Pump Only Air Controls, Fluid Filter
Material: Stainless Steel
Maximum Flow Rate (gpm @ 60 cpm): 2.4
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (MPa): 16.5
Maximum Working Pressure (psi): 2400
Motor Type: Pneumatic
Mount Location: Wall Mount
Number of Pieces: 2

$11,630.00

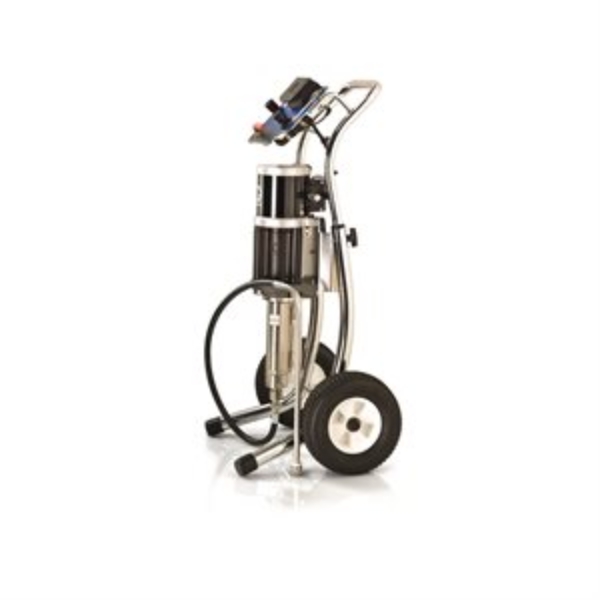

MERKUR SYSTEM, PUMP, 24:1, 150CC CT, STD

GG G24C03

MERKUR SYSTEM, PUMP, 24:1, 150CC CT, STD

Graco G24C03 24:1 Merkur Airless Package, 2.4 gpm (9 lpm) fluid flow, Cart Mount, XTR5+ Gun, Pump Air Controls, Gun Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Convertible: Non-Convertible
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: NPT
Gun Included: 1
Gun Model: XTR5+
Gun Technology: Airless
Gun Type: Airless
Hose Inlet Diameter (cm): 0.5
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 5
Includes: Pump Only Air Controls, Gun Hose, Suction Hose, Fluid Filter
Maximum Flow Rate (GPM): 2.4
Maximum Flow Rate (L/min): 9.0
Maximum Hose Length (ft): 25
Maximum Hose Length (m): 7.5
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (MPa): 16.5
Maximum Working Pressure (psi): 2400
Motor Type: Pneumatic
Mount Type: Cart Mount
Number of Guns: 1
Power Source: Air
Pressure Type: High Pressure
Product Type: Spray Package
Pump Ratio: 24:1
Pump Type: Pneumatic Piston Pump

$10,150.00

MERKUR SYSTEM PUMP 24:01 150CC CT STD

GG G24C01

MERKUR SYSTEM PUMP 24:01 150CC CT STD

Graco G24C01 24:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Cart Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 2.54
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Includes: Pump Only Air Controls, Suction Hose, Fluid Filter
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 2.4
Maximum Flow Rate (L/min): 9.0
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (psi): 2400
Mount Type: Cart Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 24:1
Pump Type: Pneumatic Piston Pump

$8,320.00

Merkur System Pump 24:1 150Cc Cart Smt

GG G24C10

Merkur System Pump 24:1 150Cc Cart Smt

Call for pricing

MERKUR SYSTEM PUMP 24:01 150CC WA STD

GG G24W01

MERKUR SYSTEM PUMP 24:01 150CC WA STD

Graco G24W01 24:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Wall Mount

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 2.54
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 2.4
Maximum Flow Rate (L/min): 9.0
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (psi): 2400
Mount Type: Wall Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 24:1
Pump Type: Pneumatic Piston Pump

$8,040.00

MERKUR SYSTEM PUMP 24:01 150CC WA STD

GG G24W03

MERKUR SYSTEM PUMP 24:01 150CC WA STD

Graco G24W03 24:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 2.54
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.91
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Includes: Pump Only Air Controls, Suction Hose, Fluid Filter
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 2.4
Maximum Flow Rate (L/min): 9.0
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kg/cm²): 168.74
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (psi): 2400
Mount Type: Wall Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 24:1
Pump Type: Pneumatic Piston Pump

$7,790.00

MERKUR SYSTEM PUMP 24:01 150CC WA SMT

GG G24W02

MERKUR SYSTEM PUMP 24:01 150CC WA SMT

Graco G24W02 24:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Wall Mount, Pump Air Controls, DataTrak

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 2.54
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Includes: Pump Only Air Controls, DataTrak Monitor
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 2.4
Maximum Flow Rate (L/min): 9.0
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (psi): 2400
Mount Type: Wall Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 24:1
Pump Type: Pneumatic Piston Pump

$8,200.00

MERKUR SYSTEM PUMP 24:01 150CC WA SMT

GG G24W04

MERKUR SYSTEM PUMP 24:01 150CC WA SMT

Graco G24W04 24:1 Merkur Pump, 2.4 gpm (9 lpm) fluid flow, Wall Mount, Pump Air Controls, Suction Hose, Fluid Filter, DataTrak

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 2.54
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Includes: Pump Only Air Controls, Suction Hose, Fluid Filter, DataTrak Monitor
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 2.4
Maximum Flow Rate (L/min): 9.0
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (psi): 2400
Mount Type: Wall Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 24:1
Pump Type: Pneumatic Piston Pump

Call for pricing

MERKUR SYSTEM PUMP 24:1 150CC WALL STD

GG G24W07

MERKUR SYSTEM PUMP 24:1 150CC WALL STD

Graco G24W07 24:1 Merkur AA Package, 2.4 gpm (9 lpm) fluid flow, Wall Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Convertible: Non-Convertible
Fluid Inlet Size (cm): 2.54
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: NPT
Gun Included: 1
Gun Model: PerformAA 50 Air Assist
Gun Technology: Air-Assisted
Gun Type: Air-Assisted
Hose Inlet Diameter (cm): 0.4763
Hose Inlet Diameter (in): 0.1875
Hose Inlet Diameter (mm): 5
Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
Maximum Flow Rate (GPM): 2.4
Maximum Hose Length (ft): 25
Maximum Hose Length (m): 7.6
Maximum Working Pressure (bar): 165
Maximum Working Pressure (kPa): 16500
Maximum Working Pressure (MPa): 16.5
Maximum Working Pressure (psi): 2400
Motor Type: Pneumatic
Mount Type: Wall Mount
Number of Guns: 1
Power Source: Air
Pressure Type: High Pressure
Product Type: Spray Package
Pump Ratio: 24:1
Pump Type: Pneumatic Piston Pump

$10,370.00

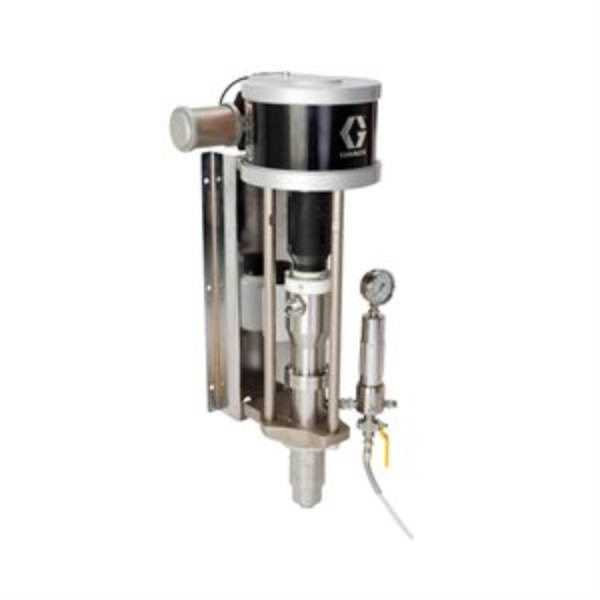

MERKUR BELLOWS SYSTEM, PUMP, 50CC, STD

GG G25B09

MERKUR BELLOWS SYSTEM, PUMP, 50CC, STD

Graco G25B09 Merkur™ Bellows 25:1 Ratio Pump Package with Wall Mount & V-Packing

The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials.

Highest technology air motor on the market
Low air consumption for increased efficiency
Simple air motor design and minimal parts reduces repair time
300 series stainless steel pump construction provides long-lasting durability
Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime

Model: Merkur
Series: Bellows

Application: Supply
Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating
Fluid Inlet Size (in): 3/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.53
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
Includes: Pump Only Air Controls
Material: Stainless Steel
Maximum Flow Rate (gpm @ 60 cpm): 0.8
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 172
Maximum Working Pressure (kPa): 17200
Maximum Working Pressure (MPa): 17.2
Maximum Working Pressure (psi): 2500
Motor Type: Pneumatic
Mount Location: Wall Mount
Number of Pieces: 1

Call for pricing

MERKUR SYSTEM PUMP 28:01 125CC CT STD

GG G28C01

MERKUR SYSTEM PUMP 28:01 125CC CT STD

Graco G28C01 28:1 Merkur Pump, 2 gpm (7.5 lpm) fluid flow, Cart Mount, Pump Air Controls, Suction Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Compatible Material: Waterborne, Solvent borne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating
Fluid Inlet Size (cm): 2.54
Fluid Inlet Size (in): 1
Fluid Inlet Size (mm): 25.4
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.27
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Type: NPT
Gun Included: 0
Gun Model: No Applicator
Gun Technology: Bare Package
Gun Type: No Applicator
Hose Inlet Diameter (cm): 0.476
Hose Inlet Diameter (in): 3/16
Hose Inlet Diameter (mm): 4.76
Includes: Pump Only Air Controls, Suction Hose, Fluid Filter
Maximum Air Inlet Pressure (bar): 7
Maximum Air Inlet Pressure (kPa): 700
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 2
Maximum Flow Rate (L/min): 7.5
Maximum Working Pressure (bar): 193
Maximum Working Pressure (kg/cm²): 196.86
Maximum Working Pressure (kPa): 19300
Maximum Working Pressure (psi): 2800
Mount Type: Cart Mount
Power Source: Air
Pressure Type: High Pressure
Product Type: Bare Package
Pump Ratio: 28:1
Pump Type: Pneumatic Piston Pump

$8,080.00

Fitting, Coupling, Reducing

GG C38457

Fitting, Coupling, Reducing

$474.00

Spring

GG C34041

Spring

$66.25

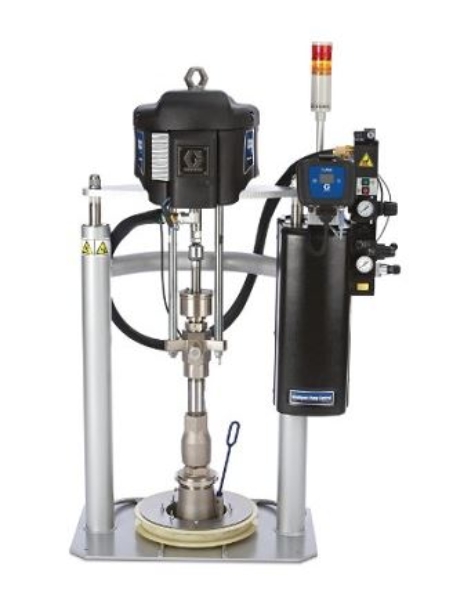

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

GG CM114G

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

Graco CM114G 40:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco D60 - Provides higher down-force and 60-liter pail capacity
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D60

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Control Panel Material: N/A
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.1
Maximum Fluid Pressure (bar): 275.8
Maximum Fluid Pressure (kPa): 27580
Maximum Fluid Pressure (psi): 4000
Maximum Fluid Pressure (bar): 275.8
Maximum Fluid Pressure (kPa): 27580
Maximum Fluid Pressure (psi): 4000
Maximum Height (cm): 226.06
Maximum Height (ft): 7.42
Maximum Height (in): 89
Maximum Height (m): 2.26
Maximum Height (mm): 2260.6
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 280
Maximum Working Pressure (kPa): 28000
Maximum Working Pressure (MPa): 28
Maximum Working Pressure (psi): 4000
Minimum Height (cm): 149.86
Minimum Height (ft): 4.92
Minimum Height (in): 59
Minimum Height (m): 1.5
Minimum Height (mm): 1498.6
Overall Depth (cm): 45.72
Overall Depth (in): 18
Overall Depth (mm): 457.2
Overall Width (cm): 71.12
Overall Width (in): 28
Overall Width (mm): 711.2
Power Type: Pneumatic
Pump Ratio: 40:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$18,170.00

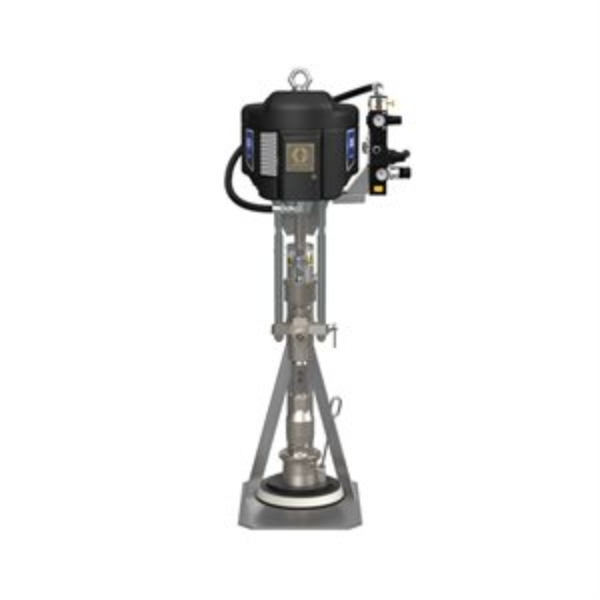

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, S20, 20L

GG CM153B

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, S20, 20L

Graco CM153B 63:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials

20 liter (5-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco S20 - For low-volume applications of medium to high-viscosity materials
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: S20

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kg/cm²): 8.79
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.1
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Height (cm): 150.6
Maximum Height (ft): 4.94
Maximum Height (in): 59.3
Maximum Height (m): 1.51
Maximum Height (mm): 1506
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 441
Maximum Working Pressure (kPa): 44100
Maximum Working Pressure (MPa): 44.1
Maximum Working Pressure (psi): 6300
Minimum Height (cm): 90.9
Minimum Height (ft): 2.98
Minimum Height (in): 35.8
Minimum Height (m): 0.91
Minimum Height (mm): 909
Overall Depth (cm): 48.26
Overall Depth (in): 19
Overall Depth (mm): 482.6
Overall Width (cm): 43.18
Overall Width (in): 17
Overall Width (mm): 431.8
Power Type: Pneumatic
Pump Ratio: 63:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$15,290.00

Probe

GG C32325

Probe

$561.00

CHECK-MATE D200 63:1 Ratio 200 L 3.0 RAM Supply Unit

GG CM165A

CHECK-MATE D200 63:1 Ratio 200 L 3.0 RAM Supply Unit

Call for pricing

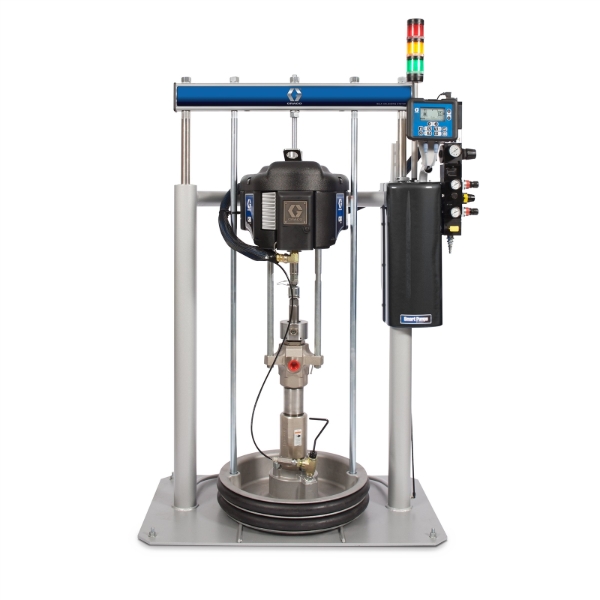

CHECK-MATE SUPPLY UNIT, 23:1, 6.5 RAM, 200L

GG CM2179

CHECK-MATE SUPPLY UNIT, 23:1, 6.5 RAM, 200L

23:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. For large drums up to 200 liter (55 gal) Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime

$55,010.00

CHECK-MATE SUPPLY UNIT, 36:1, 3.0 RAM, 200L

GG CM2F59

CHECK-MATE SUPPLY UNIT, 36:1, 3.0 RAM, 200L

Graco CM2F59 36:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 248.2
Maximum Fluid Pressure (kPa): 24820
Maximum Fluid Pressure (psi): 3600
Maximum Fluid Pressure (bar): 248.2
Maximum Fluid Pressure (kPa): 24820
Maximum Fluid Pressure (psi): 3600
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 252
Maximum Working Pressure (kPa): 25200
Maximum Working Pressure (MPa): 25.2
Maximum Working Pressure (psi): 3600
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 36:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$34,930.00

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

GG CM155A

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

Graco CM155A 63:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.1
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 441
Maximum Working Pressure (kPa): 44100
Maximum Working Pressure (MPa): 44.1
Maximum Working Pressure (psi): 6300
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 63:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$21,650.00

CHECK-MATE SUPPLY UNIT, 68:1, 6.5 RAM, 200L

GG CM2L79

CHECK-MATE SUPPLY UNIT, 68:1, 6.5 RAM, 200L

Graco CM2L79 68:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200s

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kg/cm²): 8.79
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 427.5
Maximum Fluid Pressure (kPa): 42750
Maximum Fluid Pressure (psi): 6200
Maximum Fluid Pressure (bar): 427.5
Maximum Fluid Pressure (kPa): 42750
Maximum Fluid Pressure (psi): 6200
Maximum Height (cm): 266.5
Maximum Height (ft): 8.74
Maximum Height (in): 104.9
Maximum Height (m): 2.66
Maximum Height (mm): 2665
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 434
Maximum Working Pressure (kPa): 43400
Maximum Working Pressure (MPa): 43.4
Maximum Working Pressure (psi): 6200
Minimum Height (cm): 178.5
Minimum Height (ft): 5.86
Minimum Height (in): 70.3
Minimum Height (m): 1.79
Minimum Height (mm): 1785
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 121.9
Overall Width (in): 48
Overall Width (mm): 1219
Power Type: Pneumatic
Pump Ratio: 68:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$26,900.00

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

GG CM154B

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

63:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors Graco D60 - Provides higher down-force and 60-liter pail capacity Industry-first controls give you immediate and important information at the touch of a button Quick placement of pail Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime

$19,300.00

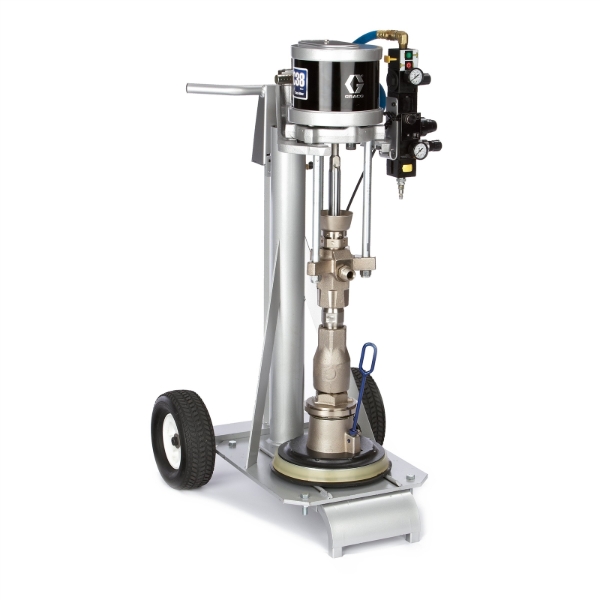

CHECK-MATE SUPPLY UNIT, 63:1, 0 V, S20 CART, 20L

GG CM1T2F

CHECK-MATE SUPPLY UNIT, 63:1, 0 V, S20 CART, 20L

Graco CM1T2F Supply Unit, Check-Mate, 63:1, S/S, Severe Duty, 3 in. S20c Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco S20c - Same as the S20, but includes a cart
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: S20c

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kg/cm²): 8.79
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.1
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Height (cm): 228.6
Maximum Height (ft): 7.5
Maximum Height (in): 90
Maximum Height (m): 2.29
Maximum Height (mm): 2286
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 441
Maximum Working Pressure (kPa): 44100
Maximum Working Pressure (MPa): 44.1
Maximum Working Pressure (psi): 6300
Minimum Height (cm): 165.1
Minimum Height (ft): 5.42
Minimum Height (in): 65
Minimum Height (m): 1.65
Minimum Height (mm): 1651
Overall Depth (cm): 66.1
Overall Depth (in): 26
Overall Depth (mm): 661
Overall Width (cm): 56.2
Overall Width (in): 22.1
Overall Width (mm): 562
Power Type: Pneumatic
Pump Ratio: 63:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$22,500.00

CHECK-MATE SUPPLY UNIT, 68:1, 6.5 RAM, 200L

GG CM2M79

CHECK-MATE SUPPLY UNIT, 68:1, 6.5 RAM, 200L

Graco CM2M79 68:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200s

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kg/cm²): 8.79
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 427.5
Maximum Fluid Pressure (kPa): 42750
Maximum Fluid Pressure (psi): 6200
Maximum Fluid Pressure (bar): 427.5
Maximum Fluid Pressure (kPa): 42750
Maximum Fluid Pressure (psi): 6200
Maximum Height (cm): 266.5
Maximum Height (ft): 8.74
Maximum Height (in): 104.9
Maximum Height (m): 2.66
Maximum Height (mm): 2665
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 434
Maximum Working Pressure (kPa): 43400
Maximum Working Pressure (MPa): 43.4
Maximum Working Pressure (psi): 6200
Minimum Height (cm): 178.5
Minimum Height (ft): 5.86
Minimum Height (in): 70.3
Minimum Height (m): 1.79
Minimum Height (mm): 1785
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 121.9
Overall Width (in): 48
Overall Width (mm): 1219
Power Type: Pneumatic
Pump Ratio: 68:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

Call for pricing

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

GG CM1T4F

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

Graco CM1T4F Supply Unit, Check-Mate, 63:1, S/S, Severe Duty, 3 in. D60 Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco D60 - Provides higher down-force and 60-liter pail capacity
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D60

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Control Panel Material: N/A
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.1
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Height (cm): 226.06
Maximum Height (ft): 7.42
Maximum Height (in): 89
Maximum Height (m): 2.26
Maximum Height (mm): 2260.6
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 441
Maximum Working Pressure (kPa): 44100
Maximum Working Pressure (MPa): 44.1
Maximum Working Pressure (psi): 6300
Minimum Height (cm): 149.86
Minimum Height (ft): 4.92
Minimum Height (in): 59
Minimum Height (m): 1.5
Minimum Height (mm): 1498.6
Overall Depth (cm): 45.72
Overall Depth (in): 18
Overall Depth (mm): 457.2
Overall Width (cm): 71.12
Overall Width (in): 28
Overall Width (mm): 711.2
Power Type: Pneumatic
Pump Ratio: 63:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$25,990.00

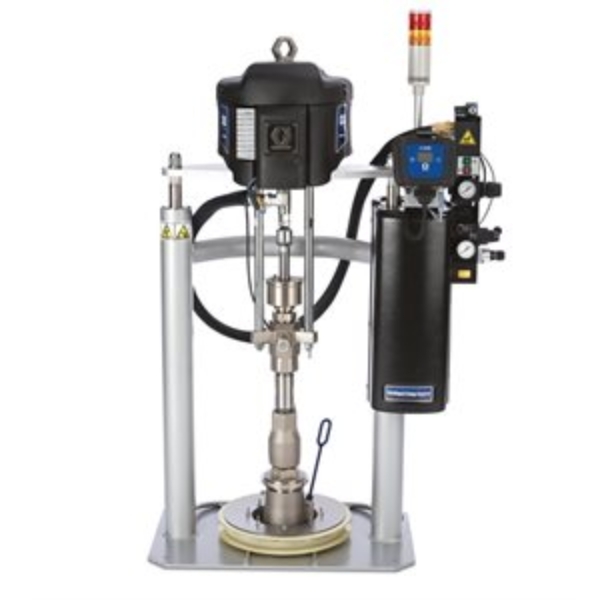

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

GG CM3959

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. For large drums up to 200 liter (55 gal) Graco D200 - For high-volume in-plant applications Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime

$25,740.00

CHECK-MATE SUPPLY UNIT, 36:1, 0 VOLT, D60, 20L

GG CM2A4B

CHECK-MATE SUPPLY UNIT, 36:1, 0 VOLT, D60, 20L

Graco CM2A4B 36:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco D60 - Provides higher down-force and 60-liter pail capacity
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D60

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Control Panel Material: N/A
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 248.2
Maximum Fluid Pressure (kPa): 24820
Maximum Fluid Pressure (psi): 3600
Maximum Fluid Pressure (bar): 248.2
Maximum Fluid Pressure (kPa): 24820
Maximum Fluid Pressure (psi): 3600
Maximum Height (cm): 226.06
Maximum Height (ft): 7.42
Maximum Height (in): 89
Maximum Height (m): 2.26
Maximum Height (mm): 2260.6
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 252
Maximum Working Pressure (kPa): 25200
Maximum Working Pressure (MPa): 25.2
Maximum Working Pressure (psi): 3600
Minimum Height (cm): 149.86
Minimum Height (ft): 4.92
Minimum Height (in): 59
Minimum Height (m): 1.5
Minimum Height (mm): 1498.6
Overall Depth (cm): 45.72
Overall Depth (in): 18
Overall Depth (mm): 457.2
Overall Width (cm): 71.12
Overall Width (in): 28
Overall Width (mm): 711.2
Power Type: Pneumatic
Pump Ratio: 36:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

Call for pricing

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

GG CM395A

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

Graco CM395A 55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 385
Maximum Working Pressure (kPa): 38500
Maximum Working Pressure (MPa): 38.5
Maximum Working Pressure (psi): 5500
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 55:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$26,980.00

CHECK-MATE SUPPLY UNIT, 55:1, 6.5 RAM, 200L

GG CM3979

CHECK-MATE SUPPLY UNIT, 55:1, 6.5 RAM, 200L

Graco CM3979 55:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200s

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kg/cm²): 8.79
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Height (cm): 266.5
Maximum Height (ft): 8.74
Maximum Height (in): 104.9
Maximum Height (m): 2.66
Maximum Height (mm): 2665
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 385
Maximum Working Pressure (kPa): 38500
Maximum Working Pressure (MPa): 38.5
Maximum Working Pressure (psi): 5500
Minimum Height (cm): 178.5
Minimum Height (ft): 5.86
Minimum Height (in): 70.3
Minimum Height (m): 1.79
Minimum Height (mm): 1785
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 121.9
Overall Width (in): 48
Overall Width (mm): 1219
Power Type: Pneumatic
Pump Ratio: 55:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$28,630.00

CHECK-MATE SUPPLY UNIT, 36:1, 0 VOLT, D60, 20L

GG CM2F4F

CHECK-MATE SUPPLY UNIT, 36:1, 0 VOLT, D60, 20L

Graco CM2F4F 36:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco D60 - Provides higher down-force and 60-liter pail capacity
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D60

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Control Panel Material: N/A
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 248.2
Maximum Fluid Pressure (kPa): 24820
Maximum Fluid Pressure (psi): 3600
Maximum Fluid Pressure (bar): 248.2
Maximum Fluid Pressure (kPa): 24820
Maximum Fluid Pressure (psi): 3600
Maximum Height (cm): 226.06
Maximum Height (ft): 7.42
Maximum Height (in): 89
Maximum Height (m): 2.26
Maximum Height (mm): 2260.6
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 252
Maximum Working Pressure (kPa): 25200
Maximum Working Pressure (MPa): 25.2
Maximum Working Pressure (psi): 3600
Minimum Height (cm): 149.86
Minimum Height (ft): 4.92
Minimum Height (in): 59
Minimum Height (m): 1.5
Minimum Height (mm): 1498.6
Overall Depth (cm): 45.72
Overall Depth (in): 18
Overall Depth (mm): 457.2
Overall Width (cm): 71.12
Overall Width (in): 28
Overall Width (mm): 711.2
Power Type: Pneumatic
Pump Ratio: 36:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$32,750.00

CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L

GG CM2T58

CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L

Graco CM2T58 68:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 427.5
Maximum Fluid Pressure (kPa): 42750
Maximum Fluid Pressure (psi): 6200
Maximum Fluid Pressure (bar): 427.5
Maximum Fluid Pressure (kPa): 42750
Maximum Fluid Pressure (psi): 6200
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 434
Maximum Working Pressure (kPa): 43400
Maximum Working Pressure (MPa): 43.4
Maximum Working Pressure (psi): 6200
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 68:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

Call for pricing

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D200, 20L

GG CM155B

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D200, 20L

Graco CM155B 63:1 Ratio 20 L D200 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Control Panel Material: N/A
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 1.6
Maximum Flow Rate (L/min): 6.1
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Fluid Pressure (bar): 434.4
Maximum Fluid Pressure (kPa): 43440
Maximum Fluid Pressure (psi): 6300
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 441
Maximum Working Pressure (kPa): 44100
Maximum Working Pressure (MPa): 44.1
Maximum Working Pressure (psi): 6300
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 63:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$20,630.00

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

GG CM2159

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

Graco CM2159 23:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 158.8
Maximum Fluid Pressure (kPa): 15880
Maximum Fluid Pressure (psi): 2300
Maximum Fluid Pressure (bar): 158.8
Maximum Fluid Pressure (kPa): 15880
Maximum Fluid Pressure (psi): 2300
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 161
Maximum Working Pressure (kPa): 16100
Maximum Working Pressure (MPa): 16.1
Maximum Working Pressure (psi): 2300
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 23:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$23,710.00

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

GG CM1F4F

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

Graco CM1F4F Supply Unit, Check-Mate, 40:1, S/S, Severe Duty, 3 in. D60 Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco D60 - Provides higher down-force and 60-liter pail capacity
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D60

Call for pricing

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

GG CM1559

CHECK-MATE SUPPLY UNIT, 63:1, 3.0 RAM, 200L

63:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

$22,120.00

CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L

GG CM2L59

CHECK-MATE SUPPLY UNIT, 68:1, 3.0 RAM, 200L

68:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

$24,560.00

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

GG CM2558

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

Graco CM2558 23:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3.2
Maximum Flow Rate (L/min): 12.1
Maximum Fluid Pressure (bar): 158.8
Maximum Fluid Pressure (kPa): 15880
Maximum Fluid Pressure (psi): 2300
Maximum Fluid Pressure (bar): 158.8
Maximum Fluid Pressure (kPa): 15880
Maximum Fluid Pressure (psi): 2300
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 161
Maximum Working Pressure (kPa): 16100
Maximum Working Pressure (MPa): 16.1
Maximum Working Pressure (psi): 2300
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 23:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

Call for pricing

CHECK-MATE SUPPLY UNIT, 36:1, 3.0 RAM, 200L

GG CM2959

CHECK-MATE SUPPLY UNIT, 36:1, 3.0 RAM, 200L

36:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

$23,940.00

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

GG CM3A5A

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

Graco CM3A5A 55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 385
Maximum Working Pressure (kPa): 38500
Maximum Working Pressure (MPa): 38.5
Maximum Working Pressure (psi): 5500
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 55:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

Call for pricing

Check-Mate Supply Unit, 55:1, 3.0 Ram, 200L

GG CM3958

CHECK-MATE SUPPLY UNIT,55:1,3.0 RAM,200L

Graco CM3958 55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button Quick placement of drum
Platen wipers can be replaced in seconds
Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

Call for pricing

Check-Mate Supply Unit, 55:1, 3.0 Ram, 200L

GG CM3A58

CHECK-MATE SUPPLY UNIT,55:1,3.0 RAM,200L

Model: Check-Mate

Call for pricing

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

GG CM7A3C

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials. 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors Graco S20 - For low-volume applications of medium to high-viscosity materials Industry-first controls give you immediate and important information at the touch of a button Quick placement of pail Platen wipers can be replaced in seconds Pump's quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram High-quality, durable parts reduce maintenance time, maximize uptime

$11,970.00

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

GG CM3F59

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

Graco CM3F59 55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

For large drums up to 200 liter (55 gal)
Graco D200 - For high-volume in-plant applications
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: D200

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Drum
Material Container Volume (gal): 52.8
Material Container Volume (l): 200
Maximum Air Inlet Pressure (bar): 10.34
Maximum Air Inlet Pressure (kg/cm²): 10.55
Maximum Air Inlet Pressure (kPa): 1034
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.1
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Fluid Pressure (bar): 379.2
Maximum Fluid Pressure (kPa): 37920
Maximum Fluid Pressure (psi): 5500
Maximum Height (cm): 259.9
Maximum Height (ft): 8.53
Maximum Height (in): 102.3
Maximum Height (m): 2.6
Maximum Height (mm): 2599
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 385
Maximum Working Pressure (kPa): 38500
Maximum Working Pressure (MPa): 38.5
Maximum Working Pressure (psi): 5500
Minimum Height (cm): 164.6
Minimum Height (ft): 5.4
Minimum Height (in): 64.8
Minimum Height (m): 1.65
Minimum Height (mm): 1646
Overall Depth (cm): 63.5
Overall Depth (in): 25
Overall Depth (mm): 635
Overall Width (cm): 106.7
Overall Width (in): 42
Overall Width (mm): 1067
Power Type: Pneumatic
Pump Ratio: 55:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$36,840.00

CHECK-MATE SUPPLY UNIT, 11:1, 0 VOLT, S20, 20L

GG CM6C3F

CHECK-MATE SUPPLY UNIT, 11:1, 0 VOLT, S20, 20L

11:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

$15,470.00

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, L20C, 20L

GG CM7A1B

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, L20C, 20L

Graco CM7A1B 20:1 Ratio 20 L L20C Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

Application: Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials.

20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
Graco L20c - A lightweight, elevator ram on a cart
Industry-first controls give you immediate and important information at the touch of a button
Platen wipers can be replaced in seconds
Pump&prime, s quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
High-quality, durable parts reduce maintenance time, maximize uptime

Model: Check-Mate
Series: L20c

Ambient/Warm Melt/Hot Melt: Ambient
Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
Container Type: Pail
Control Panel Material: N/A
Material Container Volume (gal): 5.3
Material Container Volume (l): 20
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kg/cm²): 7.03
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 0.9
Maximum Flow Rate (L/min): 3.4
Maximum Fluid Pressure (bar): 137.9
Maximum Fluid Pressure (kPa): 13790
Maximum Fluid Pressure (psi): 2000
Maximum Fluid Pressure (bar): 137.9
Maximum Fluid Pressure (kPa): 13790
Maximum Fluid Pressure (psi): 2000
Maximum Height (cm): 175.26
Maximum Height (ft): 5.75
Maximum Height (in): 69
Maximum Height (m): 1.75
Maximum Height (mm): 1752.6
Maximum Operating Temperature (°C): 49
Maximum Operating Temperature (°F): 120
Maximum Working Pressure (bar): 138
Maximum Working Pressure (kPa): 13800
Maximum Working Pressure (MPa): 13.8
Maximum Working Pressure (psi): 2000
Minimum Height (cm): 111.76
Minimum Height (ft): 3.67
Minimum Height (in): 44
Minimum Height (m): 1.12
Minimum Height (mm): 1117.6
Overall Depth (cm): 53.34
Overall Depth (in): 21
Overall Depth (mm): 533.4
Overall Width (cm): 55.88
Overall Width (in): 22
Overall Width (mm): 558.8
Power Type: Pneumatic
Pump Ratio: 20:1
Pump Type: Priming Piston
Ram Material: Carbon Steel

$11,660.00

Fitting, Elbow, 90, Jic04Xsae06, Mm, S

GG 94/0148-S/25

Fitting, Elbow, 90, Jic04Xsae06, Mm, S

$180.00

Kit, Repair

GG 918536

Kit, Repair

Call for pricing

Filter, Drop Line, Graco In-Line

GG 915700

Filter, Drop Line, Graco In-Line

$486.00

Kit, Repair, Wiper

GG 918241

KIT, REPAIR, WIPER

Graco 918241 Wiper Repair Kit- for 300 gallon Ram Plates

KIT INCLUDES: HOSE, WIPER [QTY. 2], STRIP, CARBON STEEL [QTY. 24 ], CLAMP, BANDING [QTY. 2], SCREW, SET, SOCKET HEAD [QTY. 2]

$1,425.00

Fitting, Elbow, 90, Jic06Xsae06, Mm, S

GG 94/0149-S/25

Fitting, Elbow, 90, Jic06Xsae06, Mm, S

$155.00

Kit, Follower Hose (Epdm)

GG 918312

Kit, Follower Hose (Epdm)

$1,060.00

Fitting, Conn, Qc, 5/16-24X10-32, Fxm

GG 94/0170/99

Fitting, Conn, Qc, 5/16-24X10-32, Fxm

$31.50

Bushing, 3/4Nptx1/2Npt, Mf, Ss, 2.5K

GG 94/0567/98

Bushing, 3/4Nptx1/2Npt, Mf, Ss, 2.5K

$82.50

Fitting, Elbow, 1/8NPT, F, 90DEG, BRS

GG 94/0642/96

Fitting, Elbow, 1/8NPT, F, 90DEG, BRS

$12.00

Connector, Connector, 1/4Tubex10-32, C

GG 94/0740-B/99

Connector, Connector, 1/4Tubex10-32, C

$18.00

Fitting, Elbow, Swvl, 1/4Tubex10-32

GG 94/0740-A/99

Fitting, Elbow, Swvl, 1/4Tubex10-32

$28.50

VALVE, BALL, 2W, 1/8NPT, M, LP, BRS

GG 94/0809/96

VALVE, BALL, 2W, 1/8NPT, M, LP, BRS

$475.00

Adapter, Ndl, Ll, 10-32, M, Chrome Pl

GG 94/0860/96

Adapter, Ndl, Ll, 10-32, M, Chrome Pl

$48.00

Kit, Repair, Htd Snuff-Back

GG 918520

Kit, Repair, Htd Snuff-Back

$397.00

SHROUD MIXER 1/4X24EL 7/8-9

GG 94/0880-C/98

SHROUD MIXER 1/4X24EL 7/8-9

Call for pricing

Adapter, Elbow, Jic04X1/4Npt, Mm

GG 94/1020/98

Adapter, Elbow, Jic04X1/4Npt, Mm

$105.00

Adapter, Jic06X3/8Npt, Mm, Ss, 6K, 316

GG 94/1007/98

Adapter, Jic06X3/8Npt, Mm, Ss, 6K, 316

$91.50

Hose, Coupled, 25' Moist-Lok

GG 947084

Hose, Coupled, 25' Moist-Lok

$474.00

Kit, Repair

GG 946761

Kit, Repair

$419.00

Hose, Coupled, 50' Moist-Lok

GG 947085

Hose, Coupled, 50' Moist-Lok

$720.00

Hose, Coupled, 25'Moist-Lok

GG 947089

Hose, Coupled, 25'Moist-Lok

$592.00

Hose, Coupled, 72in Moist-Lok

GG 947091

Hose, Coupled, 72in Moist-Lok

$490.00

Valve, Injector #40 1/4 Npt

GG 947937

Valve, Injector #40 1/4 Npt

$1,400.00

Mixer, Hose

GG 948208

Mixer, Hose

Call for pricing

Kit, Rebuild 2K2

GG 949634

KIT, REBUILD 2K2

KIT INCLUDES: BEARING, SLEEVE 1/4, 3/8, 1/4NYL [QTY. 2], PACKING, O-RING [QTY. 2], PIN, DOWEL 1/8 X 1.25 18-8 SST [QTY. 1], NUT, LOCK [QTY. 2], PACKING, O-RING, BUNA-N [QTY. 2], PACKING, O-RING [QTY. 2], PACKING, U-CUP URT 1/4, 1/2, 1/8 UR [QTY. 2], BEARING, LUBE 2K2 [QTY. 2], SEAL, U-CUP POLYMT 1/4, 1/2, 1/4 [QTY. 2], NEEDLE, 2K2 SST HARDENED [QTY. 2], GASKET, AIR MANIFOLD [QTY. 1], LUBRICANT, SYNTHETIC, GREASE, 3 OZ [QTY. 1], PACKING, O-RING [QTY. 2], INSERT, SUFF-BACK, 2K2 [QTY. 2], RESTRICTOR, 2K2 3/64 I.D. [QTY. 3], RESTRICTOR, 2K2 1/8 I.D. [QTY. 3], PIN, DOWEL 3/32 X 3/8 18-8 SST [QTY. 4 ], PACKING, O-RING [QTY. 3], PACKING, O-RING [QTY. 2], GASKET, SEAT [QTY. 2], SEAT, VALVE [QTY. 2]

$1,050.00

Valve, Color Change SST 2-CLR

GG 949796

Valve, Color Change SST 2-CLR

$4,770.00

G1 STANDARD PUMP, G-24NC-2L0A00-LD000000

GG 94G039

G1 STANDARD PUMP, G-24NC-2L0A00-LD000000

Graco 94G039 G1™ Standard Grease Lubrication Pump, 24 VDC, 2 Liter, DIN, Wiper, Low Level

Simple solution. Sophisticated results. Choose the user friendly Graco G1 Pump when you need a reliable, simple alternative to manual lubrication. Work smarter and get better productivity from your equipment with G1 Series lubrication pumps.

Application: Automatic Lubrication for Series Progressive Metering Systems

G1 Standard has no internal controller for a low cost solution.
2 liter reservoir
Connect to 24 VDC
Hard Working Pump - G1 comes with one pump element installed that reliably delivers lubricant when you need it.
Achieve Uninterrupted Material Flow - With its advanced flow dynamics the contoured base flows lubricants directly to the pump inlet, significantly reducing stagnant areas where grease can separate.
Experience Our Long Life Design - Engineered offset drive design minimizes load and stress on the motor and pump element.

Model: G1
Series: Standard

Application: On-Road Vehicles, Off-Road Equipment
Compatible Material: Grease
Compatible Metering Device: Series Progressive, Single Line Parallel
Control Options: Standard
Fluid Outlet Size (in): 0.25
Fluid Outlet Size (mm): 6.3500
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPSF
Includes: Wiper Arm, External Low Level
IP Rating: IP69K
Maximum Flow Rate (ci/min): 0.25
Maximum NLGI Grade: #2
Maximum Run Time (min): 30
Maximum Voltage (V dc): 32
Maximum Working Pressure (bar): 351.6
Maximum Working Pressure (kPa): 35160
Maximum Working Pressure (MPa): 35.1
Maximum Working Pressure (psi): 5100
Minimum Voltage (V dc): 18
Number of Pump Elements: 1
Overall Depth (cm): 22.9
Overall Depth (in): 9
Overall Depth (mm): 229
Overall Height (cm): 33.7
Overall Height (in): 13.25
Overall Height (mm): 337
Overall Width (cm): 20.3
Overall Width (in): 8
Overall Width (mm): 203
Power Connection Type: DIN
Power Type: Electric

Call for pricing

O-Ring

GG 95/0005/02

O-Ring

$6.00

O-Ring

GG 95/0110/00

O-Ring

$6.00

O-ring, Viton

GG 95/0223/02

O-ring, Viton

$7.50

U Cup Seal

GG 95/0605/01

U Cup Seal

$6.00

O-Ring, EP, 210, 70A

GG 95/0806/02

O-Ring, EP, 210, 70A

$6.00

O-Ring, Vit, 137, 75

GG 95/0811/00

O-Ring, Vit, 137, 75

$4.50

Posipak, 1/4 Id x 1/2 Od, Std, P/Vit

GG 95/0850/11

Posipak, 1/4 Id x 1/2 Od, Std, P/Vit

$58.50

Posipak, 3/8 Id x 5/8 OD, Std, P/Vit

GG 95/0849/11

Posipak, 3/8 Id x 5/8 OD, Std, P/Vit

$67.50

SEAL, POSPK, 1/16ID X 5/16OD, STD, P

GG 95/0893/11

SEAL, POSPK, 1/16ID X 5/16OD, STD, P

$79.50

O-Ring, Vit, 010, 75A

GG 95/0904/00

O-Ring, Vit, 010, 75A

$4.50

O-Ring, EP, 010, 70A

GG 95/0904/02

O-Ring, EP, 010, 70A

$4.50

O-Ring

GG 95/0972/87

O-Ring

$78.00

Posipak, .250Idx.437Od, Zap

GG 95/0985/92Z

Posipak, .250Idx.437Od, Zap

$96.00

Repair Kit

GG 95/1661/50

REPAIR KIT,TWINMIXER3,STD ACT,

KIT INCLUDES: SEAL, POSPK, 1/4IDX1/2OD, STD, P/V [QTY. 2], SEAL, POSIPAK, .250IDX.437OD, ZAP [QTY. 4 ], O-RING, QUAD, BUNA, 218, 70A [QTY. 1], O-RING, TES, 015, 70A [QTY. 6 ], O-RING, BUNA, 126, 70A [QTY. 1], O-RING, BUNA, 007, 70A [QTY. 1], O-RING, QUAD, BUNA, 010, 70A [QTY. 2], GASKET, 10-32 FITTING [QTY. 2], LUBRICANT, GREASE, KRYTOX [QTY. 1]

$835.00

SEAL ASSY, SPOOL, PD, 1.5B, 1/8DIA, LOW, P/VIT

GG 95/2865-11/25

SEAL ASSY, SPOOL, PD, 1.5B, 1/8DIA, LOW, P/VIT

$320.00

Seal Assy, Cylinder, Drive, PD3

GG 95/2980-01/25

Seal Assy, Cylinder, Drive, PD3

$115.00

HUSKY PUMP, 2150A-PA01AA1SSBNBNPT

GG DF3377

HUSKY PUMP, 2150A-PA01AA1SSBNBNPT

Graco DF3377 Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SS Seats, BN Balls & BN Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Buna-N
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Buna
Diaphragm Material: Buna-N
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

Call for pricing

HUSKY PUMP, 2150A-PA01AA1TPACTP

GG DF3525

HUSKY PUMP, 2150A-PA01AA1TPACTP

Graco DF3525 Husky 2150 AL Air Operated Double Diaphragm Metal Pump, TPE/AC

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient)
Highest fluid flow rate in its class
Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
2 in. (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Model: Husky
Series: 2150

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Acetal
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: TPE
Diaphragm Material: TPE (Hytrel)
Fluid Inlet Size (cm): 5.08
Fluid Inlet Size (in): 2
Fluid Inlet Size (mm): 50.8
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 5.08
Fluid Outlet Size (in): 2
Fluid Outlet Size (mm): 50.8
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Material: Aluminum
Maximum Air Consumption (SCFM): 175
Maximum Air Pressure (bar): 8.27
Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 145
Maximum Flow Rate (GPM): 150
Maximum Flow Rate (L/min): 568
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.635
Maximum Solid Size (in): 0.25
Maximum Solid Size (mm): 6.35
Power Source: Air

$2,530.00

HUSKY PUMP, 2150A-PA01AA1TPTPTP

GG DF3555

HUSKY PUMP, 2150A-PA01AA1TPTPTP

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, TPE Seats, TPE Balls & TPE Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Overall improved efficiency (up to 40% more efficient) Highest fluid flow rate in its class Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump 2 in. (51 mm) ANSI end-porting Fluid flow up to 150 gpm (568 lpm) Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Epoxy-coated air section for tough environmental conditions Available in aluminum, 316 stainless steel, ductile iron and polypropylene

$2,530.00

HUSKY PUMP, 2150A-PA01AA1SPPTSPPT

GG DF3616

HUSKY PUMP, 2150A-PA01AA1SPPTSPPT

Husky 2150 AL 2 in. (51 mm) NPT Standard Pump, AL Center Section, SP Seats, PTFE Balls & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,730.00

HUSKY PUMP, 2150A-PA01AA1SPSPSPPT

GG DF3666

HUSKY PUMP, 2150A-PA01AA1SPSPSPPT

Husky 2150 AL AODD Metal Pump with NPT Standard Air Valve, SP Seat, SP Ball, & SP Diaphragm

The Husky 2150 air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

$2,530.00
