GRACO INC. S10595
REACTOR E-10HP SPRAYER, 120V
GG 24T100
REACTOR E-10HP SPRAYER, 120V
Reactor E-10HP Sprayer, 120 VExpand your business with polyurea applications. The Reactor E-10hp sprayer is a smart, affordable investment that will help grow your business. Even though it's an entry level system, it packs plenty of power and uses standard residential electrical outlets - no generator is needed.
Entry-level system for pure and hybrid polyurea coatings.Digital heat controls
- Allows you to enter the exact temperatures you need
- Uses the same circuit boards as a standard Reactor
Motor
- Offers 50% more power than the Reactor E-10
- Provides improved spray performance with reduced pressure drop
Low Level Sensors
- Indicates when material is low (1 gal/3.8 L remaining)
- No contact with materials - prevents buildup
Boost Heat
- Directs unused power from the motor circuit to additional heater rods
- Additional heater power brings material to desired temperatures faster during recirculation mode
Insulated Tanks
- Double-wall insulated to retain heat
- Smooth interior lining for easy cleaning
- Improved seal design on lid for better moisture control
Quick knockdown Lower Pumps
- Easy disassembly and maintenance
Robust Hybrid Heater
- More power, faster material handling means more uptime
Temperature Guages in Y-strainers
- Provides accurate tank temperature readings

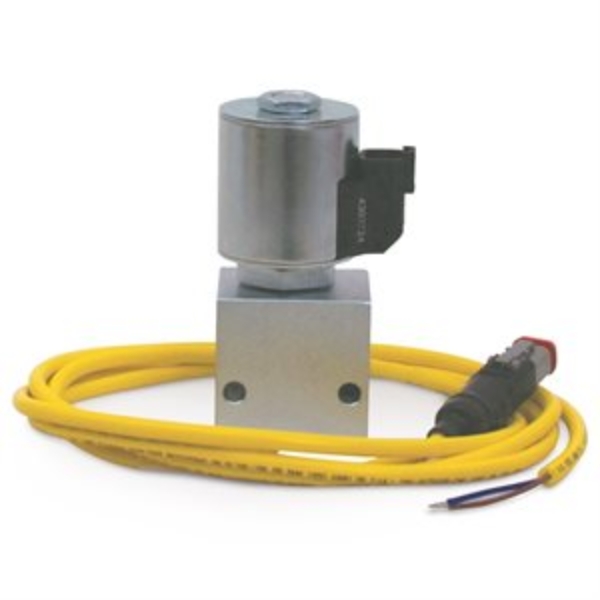

KIT, ZONE VALVE, 24VDC NC
GG 24T296
KIT, ZONE VALVE, 24VDC NC
Graco 24T296 General Accessories - Two-Way Valve, 24 VDC, Normally Closed, Deutsch Cable, 3500 psi
- Designed to custom fit lubrication systems and control when sections or zones of the system will receive lubricant
- Normally Closed
- DC models meet typical application requirements
- Amperage (A): 0.8
- Compatible Material: Grease
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Type: NPT
- IP Rating: IP69K
- Maximum NLGI Grade: #2
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Type: NPT
- Overall Height (cm): 9.779
- Overall Height (in): 3.85
- Overall Height (mm): 97.79
- Overall Width (cm): 5.08
- Overall Width (in): 2
- Overall Width (mm): 50.8
- Power Connection Type: Deutsch DT Series 2 Pin
- Power Rating (W): 18.2
Kit, Lp Circ Valve
GG 24T442
KIT, LP CIRC VALVE
Graco 24T442 Low Pressure Circulating Valve for ProMix PD2K Electronic Proportioning System
Kit, Lp Non-Circ Valve
GG 24T441
KIT, LP NON-CIRC VALVE
Graco 24T441 Low Pressure Non-Circulating Valve, 100 psi max air working pressure, 300 psi max fluid working pressure, Series A
Kit, 3 Valve, Non-Circ, Valve
GG 24T648
KIT,3 VALVE, NON-CIRC, VALVE
Graco 24T648 3 Valve SST High Pressure Non-Circulating Valve
Kit, 2 Valve, Non-Circ, Valve
GG 24T647
KIT,2 VALVE, NON-CIRC, VALVE
Graco 24T647 2 Valve SST High Pressure Non-Circulating Valve
Kit, Repair, Ball
GG 24T752
KIT, REPAIR, BALL
Graco 24T752 Ball Repair Kit for ProMix PD2K Proportioner Mix Manifold
- Catalyst Inlet Size (in): 1/4
- Catalyst Inlet Thread Gender: Female
- Catalyst Inlet Thread Type: NPT
Kit, Transducer, Lp
GG 24T786
KIT, TRANSDUCER, LP
Graco 24T786 Fluid Outlet Pressure Sensor, for Isolated Pump Expansion Kits 24W159 and 24W160
Kit, Solvent Flow Switch
GG 24T787
KIT, SOLVENT FLOW SWITCH
Graco 24T787 Solvent Flow Switch Kit
Kit, Pump Assy, 35Cc, Lp
GG 24T788
KIT, PUMP ASSY, 35CC, LP
Graco 24T788 35 ccl Low Pressure Dosing Pump, 300 psi max fluid working pressure, Series A
Kit, Pump Assy, 70Cc, Lp
GG 24T790
KIT, PUMP ASSY, 70CC, LP
Graco 24T790 ProMix PD2K Dosing Pump, 70cc low pressure, 300 psi Maximum Fluid Working Pressure
Kit, Fluid Pump, 35Cc
GG 24T792
KIT, FLUID PUMP, 35CC
Graco 24T792 35 cc Lower for ProMix PD2K Electronic Positivie Displacement Proportioning System Dosing Pumps
Kit, Fluid Pump, 70Cc
GG 24T793
KIT, FLUID PUMP, 70CC
Graco 24T793 70 cc Lower for ProMix PD2K Electronic Positive Displacement Proportioning System Dosing Pumps
Kit, Rebuild, Hp Valve, Acid
GG 24T817
KIT, REBUILD, HP VALVE, ACID
Graco 24T817 Acid Valve Rebuild Kit for valve 24T785 (PEEK seat retainer)

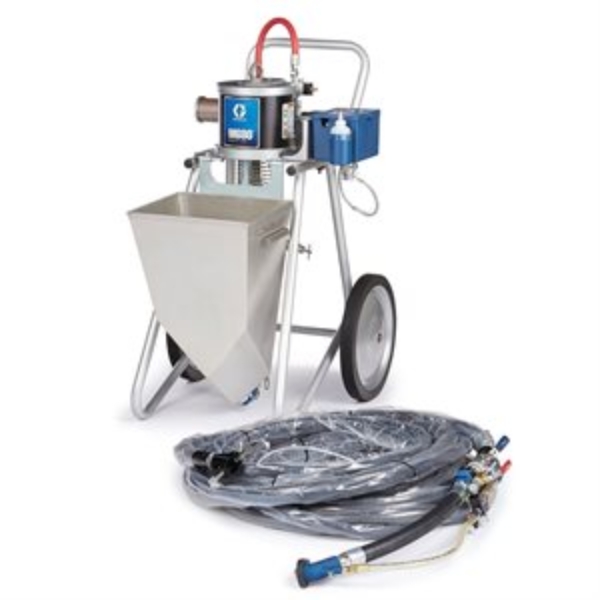

TOUGHTEK SPRAYER, MORTAR, HOPPER, FLEX APP
GG 24T834
TOUGHTEK SPRAYER, MORTAR, HOPPER, FLEX APP
Graco 24T834 ToughTek M680a Piston Pump Package, Flex Hose Applicator, Stainless Steel Hopper
The ToughTek M680a piston pump handles abrasive materials such as epoxy mortars, non-skid coatings (bridges and marine industry – solvent based coatings) or cementitious materials, and tackles difficult polymers with fillers such as glass flake, silica or sand. The all stainless design makes cleanup of epoxy mortars easy and worry-free.
Application: Portable sprayer for mortar, cementitious and heavily filled materials- Primary features:
- Flex Hose Applicator
- Pole Applicator
- Large Capacity Hopper
25 gal (95 L) hopper kit
Ideal for materials that require more than 10 gal/38 liter capacity, such as fireproofing
Boost productivity by minimizing refills
Easily connects to ToughTek M680a
Easy to connect and maneuver
Order part number 24W889
- Model: ToughTek
- Series: M680a
- Application: Industrial
- Compatible Material: Cementitious Material
- Fluid Inlet Thread Gender: Male
- Fluid Outlet Size (cm): 2.54
- Fluid Outlet Size (in): 1
- Fluid Outlet Size (mm): 25.4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Material: Stainless Steel
- Maximum Flow Rate (GPM): 10.88
- Maximum Operating Temperature (°F): 120
- Maximum Working Pressure (bar): 70
- Maximum Working Pressure (kPa): 7000
- Maximum Working Pressure (MPa): 7
- Maximum Working Pressure (psi): 1000
- Motor Type: Pneumatic
For hard to reach areas
Best for heavily filled materials that easily pack out
Includes Round Nozzle, provides a rough finish texture
Simple design, easy to clean
Order part number 24T946
- Large Capacity Hopper
Best for heavily filled materials that easily pack out
Includes Round Nozzle, provides a rough finish texture
Simple design, easy to clean
Order part number 24T947
- Pole Applicator
Low pressure pumping (200 to 500 psi/13.7 to 34.5 bar) reduces wear on pump lower
Less material waste and more consistent finish than hand-trowling
Fast, easy cleaning with high velocity flush
Can be quickly disassembled for hand cleaning
Explosion-proof for hazardous spray areas
One convenient air source to run pump and atomize air
- Flex Hose Applicator
Kit, Seal, 35Cc
GG 24T840
KIT, SEAL, 35CC
Graco 24T840 35 cc Lower Pump Seal Repair Kit. Includes 24T303 Throat Seal Installation Tool
Kit, Seal, 70Cc
GG 24T841
KIT, SEAL, 70CC
Graco 24T841 70 cc Lower Pump Seal Repair Kit for ProMix PD2K Electronic Positive Displacement Proportioning System Dosing Pumps
Kit, Valve Restrictor, As
GG 24T304
KIT, VALVE RESTRICTOR, AS
Graco 24T304 Atomizing Air Restrictor Valve Assembly
- Bleed Type: Non-Bleeder
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
Kit, Repair, Pump Seal
GG 277360
KIT, REPAIR, PUMP SEAL
Graco 277360 3 in. Piston Seal Repair Kit- UHMWPE
HOSE, CPLD, 3/8"X3', 4000WPR
GG 277351
HOSE, CPLD, 3/8"X3', 4000WPR
Graco 277351 BlueMax II HP Airless Whip Hose, 3/8 in x 3 ft, 4000 psi
The BlueMax II HP Whip Hose provides more flexibility and increased operator control at the gun. This BlueMax II Whip Hose has a 3/8 inch diameter and is 3 feet long and rated for up to 4000 psi.
- Lighter Weight
Over 10% lighter weight and increased hose flexibility improves under pressure
- Highest Safety Standards
Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs
- Minimal Hose Coil Memory
BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling
- Model: BlueMax II
- Series: Whip Hose
- Connection Type: Male x Female
- Hose Diameter (in): 3/8
- Hose Length (cm): 91
- Hose Length (ft): 3
- Hose Length (in): 36
- Hose Length (m): 0.9
- Hose Length (mm): 912
- Inside Diameter (cm): 0.9525
- Inside Diameter (in): 3/8
- Inside Diameter (mm): 9.525
- Material: Nylon
- Maximum Working Pressure (bar): 276
- Maximum Working Pressure (kPa): 27600
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
Meter, Helical Gear w/Is Sensor
GG 280560
METER,HELICAL GEAR W/IS SENSOR
Graco 280560 HG6000 Helical Gear Fluid Flow Meter, 6000 psi (410 bar) max, 190 - 22, 700 cc/min flow range
- Accuracy (%): +/- 0.25
Kit, Repair, Pump Seal
GG 277362
KIT, REPAIR, PUMP SEAL
Graco 277362 3.5 in. Piston Seal Repair Kit- UHMWPE
RAC 5 TIP, SPRAY
GG 286109
RAC 5 TIP, SPRAY
Graco 286109 RAC 5 SwitchTip, 109
The Reverse-A-Clean (RAC) 109 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 109 SwitchTip has a 0.009 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.09
- Maximum Flow Rate (L/min): 0.34
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.009
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
RAC 5 TIP, SPRAY
GG 286121
RAC 5 TIP, SPRAY
Graco 286121 RAC 5 SwitchTip, 121
The Reverse-A-Clean (RAC) 121 RAC 5 SwitchTip is designed for narrower surfaces. The 121 SwitchTip has a 0.021 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.021
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
RAC 5 TIP, SPRAY
GG 286207
RAC 5 TIP, SPRAY
Graco 286207 RAC 5 SwitchTip, 207
The Reverse-A-Clean (RAC) 207 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 207 SwitchTip has a 0.007 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Clear Coating, Lacquer, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.05
- Maximum Flow Rate (L/min): 0.19
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.007
PUMP, FTB100, 1:1, 200L DRUM, METL
GG 279037
PUMP, FTB100, 1:1, 200L DRUM, METL
Graco 279037 Fast-Ball 100 55 Gallon Drum, Universal Pump, Steel Tube
Application:
- In-line design with fewer parts for less pump wear
- Double-acting pump provides reliable fluid flow
- Differential air motor ensures smooth pumping
- Model: Fast-Ball
- Series: 100
- Air Inlet Size (in): 1/4
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Compatible Material: ATF, Gear Lube, Oil
- Cycles Per Gallon: 31
- Fluid Inlet Size (in): 1
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 0.75
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Maximum Air Inlet Pressure (psi): 150
- Maximum Continuous Cycle Rate (CPM): 170
- Maximum Working Pressure (psi): 150
- Power Type: Pneumatic
- Pump Ratio: 1:1
Control Box, Promix 2Ks Easykey Repl.
GG 277869
CONTROL BOX, PROMIX 2KS EASYKEY REPL.
Kit, Repair, Pump Seal
GG 277358
KIT, REPAIR, PUMP SEAL
Graco 277358 4 in. Piston Seal Repair Kit- UHMWPE
RAC 5 TIP, SPRAY
GG 286211
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 211 The Reverse-A-Clean (RAC) 211 RAC 5 SwitchTip is designed for narrower surfaces and thin materials. The 211 SwitchTip has a 0.011 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics. Most Widely Used Reversible Spray Tip on the Market (Black Handle)- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286111
RAC 5 TIP, SPRAY
Graco 286111 RAC 5 SwitchTip, 111
The Reverse-A-Clean (RAC) 111 RAC 5 SwitchTip is designed for narrower surfaces and thin materials. The 111 SwitchTip has a 0.011 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.
- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Lacquer to Mastic, Latex Paint
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 10.2
- Maximum Fan Width (in): 2
- Maximum Fan Width (mm): 102
- Maximum Flow Rate (GPM): 0.12
- Maximum Flow Rate (L/min): 0.45
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 2
- Minimum Fan Width (mm): 51
- Orifice Diameter (in): 0.011
- Pattern Size (in): 2 to 4
- Pattern Size (mm): 50.8 to 101.6
RAC 5 TIP, SPRAY
GG 286209
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 209 The Reverse-A-Clean (RAC) 209 RAC 5 SwitchTip is designed for narrower surfaces and thinner materials. The 209 SwitchTip has a 0.009 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
- Used for residential and commercial applications
- Includes OneSeal for most common coatings
- Large selection of tip sizes available
- Easy to identify laser stamped tip size
- Solvent seal available when using extremely hot solvents
RAC 5 TIP, SPRAY
GG 286113
RAC 5 TIP, SPRAY
RAC 5 SwitchTip, 113 The Reverse-A-Clean (RAC) 113 RAC 5 SwitchTip is designed for narrower surfaces. The 113 SwitchTip has a 0.013 inch orifice and produces a 2 to 4 inch fan. Reverse the SwitchTip to easily clear clogs.Most Widely Used Reversible Spray Tip on the Market (Black Handle)
RAC 5 TIP, SPRAY
GG 286213
RAC 5 TIP, SPRAY
Graco 286213 RAC 5 SwitchTip, 213
The Reverse-A-Clean (RAC) 213 RAC 5 SwitchTip is designed for narrower surfaces. The 213 SwitchTip has a 0.013 inch orifice and produces a 4 to 6 inch fan. Reverse the SwitchTip to easily clear clogs.
Application: Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.- Most Widely Used Reversible Spray Tip on the Market (Black Handle)
Used for residential and commercial applications
Includes OneSeal for most common coatings
Large selection of tip sizes available
Easy to identify laser stamped tip size
Solvent seal available when using extremely hot solvents
- Model: RAC 5
- Series: SwitchTip
- Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain
- For Use With: RAC 5 HandTite Tip Guard
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 4
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.013
KING SPRAYER, CONTRACTOR, 70:1, B150
GG 279022
KING SPRAYER, CONTRACTOR, 70:1, B150
Graco 279022 Contractor King 70:1 Air Powered Airless Sprayer, Big 150 (2-F Gun)
Introducing the newest member of the King family &Prime, The Contractor King 70:1&Prime, . Designed around single-person mobility and high performance, this affordable line of air-powered sprayers is the perfect addition to every Contractor&prime, s fleet.
Application: The Contractor King is available in many hose and gun configurations. These units feature a &Prime, just the essentials design&Prime, allowing users to customize the sprayer by adding only the accessories that they need. Perfect for for high-volume and high-pressure waterproofing, fireproofing and protective coatings applications. These proven and durable sprayers offer the ultimate in convenience and value for every contractor.- Proven King quality with Anti-icing technology
Field-proven design virtually eliminates icing to keep you spraying
Durable aluminum, steel and composite construction for years of service
Delivers superior finish with no pulsation, even with multiple guns
Simple design for easy serviceability
Oversized porting for maximum air flow
- Easy to move and transport
Nearly 38 kg lighter than comparable models for easy, one-person handling
Chrome-plated, welded-steel frame for years of service
Integrated lifting points for easy positioning on any jobsite
Flat proof tires resist jobsite debris for maximum convenience
- Simple maintenance with proven design and performance
QuickChange Endurance pump, for quick and for easy on-the-job pump removal and maintenance
Chromex Rod and Stainless Steel cylinder for maximum life and performance
Fleet-friendly design uses the same wear parts as your other King sprayers
Xtreme Seal UHMWPE & Leather packings for ultimate durability with most materials
QuickAccess intake valve for easy access to lower ball check
- Big 150 package includes:
2-Finger Silver Plus HP Gun
XHD 417 and XHD 519 SwitchTips with XHD guard
1/4&Prime, x 1.8m Extreme Duty Airless whip hose
3x 3/8&Prime, x 15m Extreme Duty Airless hose (45m in total)
- Big 150 Package Includes:
Silver Plus Gun OR Silver Plus HP Gun (2 Finger Model)
XHD 417, XHD 519 SwitchTips and Guard
1/4 in x 6 ft Extreme Duty Airless Whip Hose
3 - 3/8 in x 50 ft Extreme Duty Airless Hose (150 ft total)
- Model: Contractor King
- Series: 70:1
- Product Series: Big 150
- Approved for Hazardous Locations: Yes
- Gun Included: 1
- Gun Model: Silver Plus HP Gun
- Includes: Silver Plus HP Airless Spray Gun, 3 - 3/8 in x 50 ft Xtreme-Duty Airless Hose, 1/4 in x 6 ft Xtreme-Duty Airless Whip Hose, XHD RAC 417 SwitchTip, XHD RAC 519 SwitchTip, XHD RAC Tip Guard, Hose Fittings
- Maximum Flow Rate (GPM): 2.9
- Maximum Working Pressure (psi): 7250
- Package Options: Big 150
- Package Pressure Ratio (Motor/Lower): 70:1 XL6500 motor/180cc Lower
- Pump Ratio: 70:1 (7250 psi)
- Pump Type: Endurance
Cylinder, Pump
GG 166368
CYLINDER, PUMP
Graco 166368 Cylinder for Displacement Pump 247599, Series A
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
LUBRICANT, OIL, HYDRAULIC
GG 169236
LUBRICANT, OIL, HYDRAULIC
Hydraulic Oil, 5 gallon (18 liter) sizeGraco fluids and protectants keep your equipment in top performing condition and are approved for use in all airless pumps.
