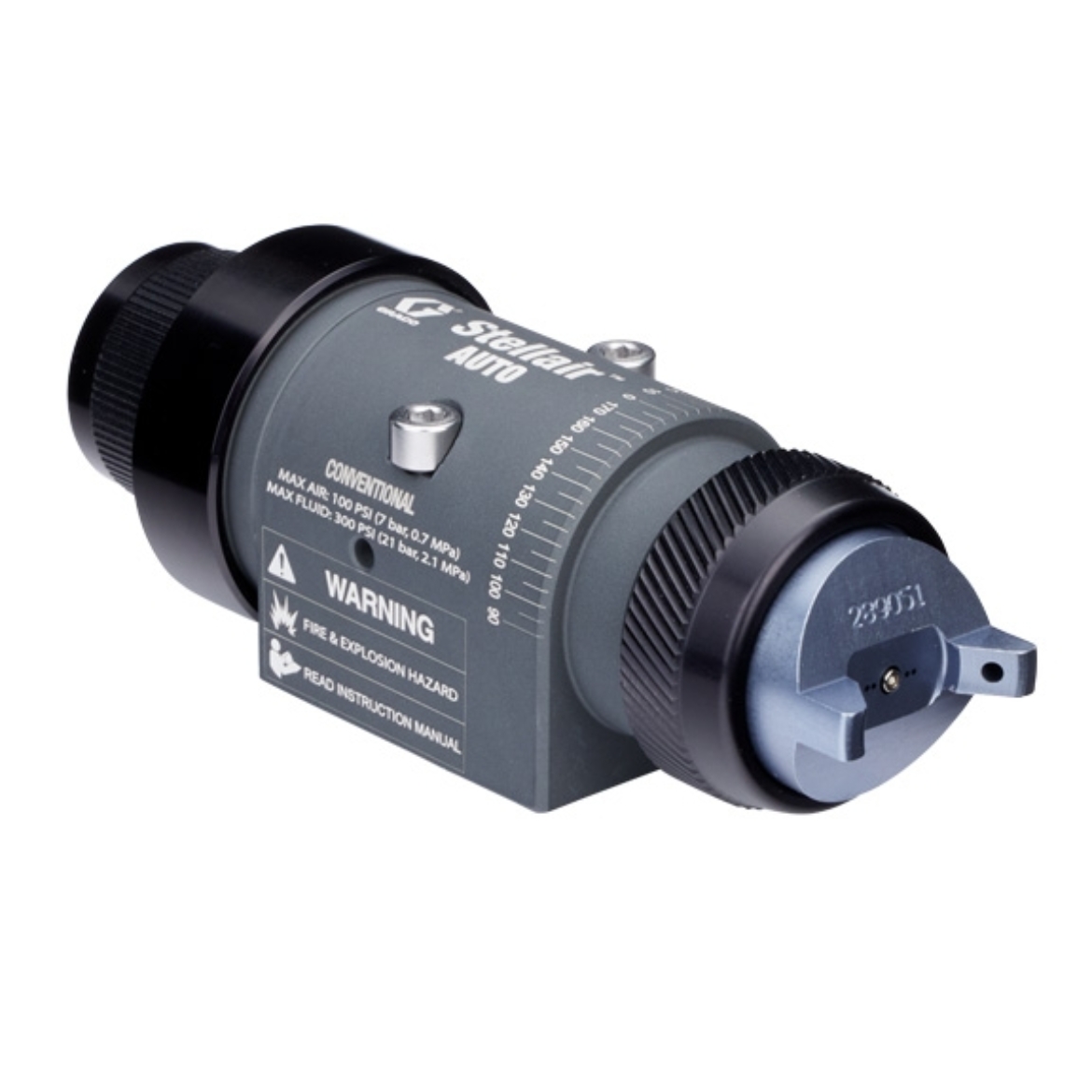

Stellair Auto Air Spray Gun, Conventional, 0.051 in (1.3mm) Nozzle

GG 25F210

GUN, AUTO, ADHESIVE .051

Graco 25F210 Stellair Automatic Air Spray Gun, Conventional, 0.051 in (1.3 mm) Nozzle for Adhesive applications

Conventional air spray gun delivers stellar results when applying adhesive material as part of a robotic, reciprocator, flat line or other automated finishing system.

• Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
• Adhesive air cap is designed for spraying waterborne and solvent borne adhesives and sealants.
• Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
• Small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
• Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Application: Adhesive
• Applicator Type: Automatic

• Body Material: Metal

• Compatible Material: Ceramics, Fast-Set, Solventborne Paints, Stain, UV Coating, Waterborne

• Fluid Adjustment Knob: N/A
• Fluid Orifice Size (in): 0.051
• Fluid Orifice Size (mm): 1.3

• Gun Model: Stellair
• Gun Series: Automatic
• Gun Type: Conventional Gun
• Gun Weight (g): 430
• Gun Weight (lb): 1

• Manifold Type: Not Included

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (oz/min): 18

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Working Pressure (bar): 21
• Maximum Fluid Working Pressure (MPa): 2.1
• Maximum Fluid Working Pressure (psi): 300

• Minimum Air Inlet Pressure (bar): 3.4
• Minimum Air Inlet Pressure (MPa): 0.34
• Minimum Air Inlet Pressure (psi): 50

• Needle Tip Material: PEEK
• Nozzle Size (in): 0.051
• Nozzle Size (mm): 1.3

• Overall Height (in): 1.9
• Overall Height (mm): 48.3
• Overall Length (in): 5.10
• Overall Length (mm): 129.5
• Overall Width (in): 1.63
• Overall Width (mm): 41.4
