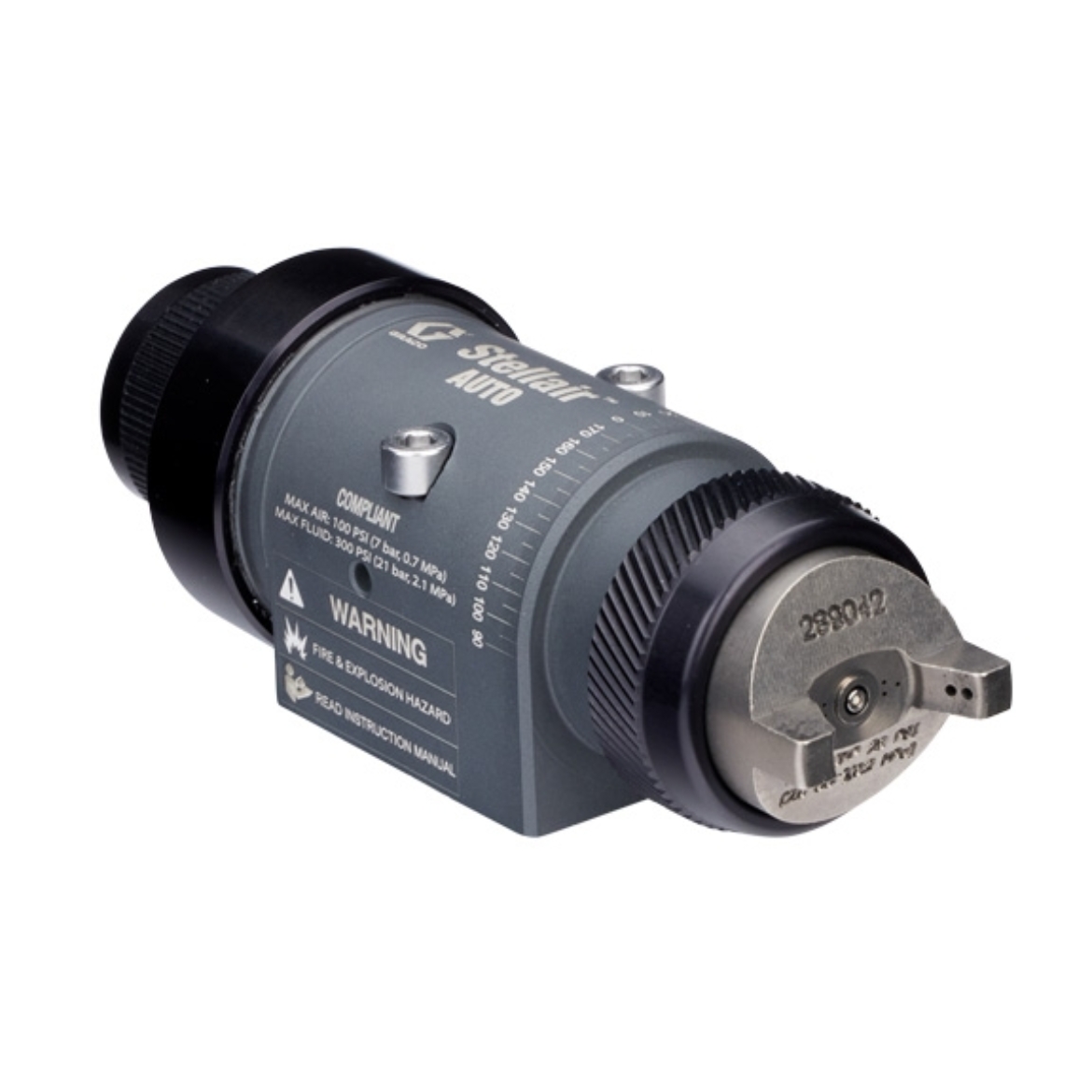

Stellair Auto Air Spray Gun, Compliant, 0.030 in (0.8mm) Nozzle

GG 25F177

GUN, AUTO, COMP, .030

Graco 25F177 Stellair Automatic Air Spray Gun, Compliant, 0.030 in (0.8 mm) Nozzle for General Industry

Compliant air spray gun produces stellar results for general industry applications using robots, reciprocators, flat line machines or other automated finishing technologies.

• Compliant air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.
• General industry air caps and nozzles produce a uniform, high quality spray pattern with low atomizing pressure.
• Patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
• Small and light size does not weigh down or wear out robot arms, reciprocators or flat line machines.
• Direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

• Application: General Industry
• Applicator Type: Automatic

• Body Material: Metal

• Compatible Material: Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stain, UV Coating, Waterborne

• Fluid Adjustment Knob: N/A
• Fluid Orifice Size (in): 0.030
• Fluid Orifice Size (mm): 0.8

• Gun Model: Stellair
• Gun Series: Automatic
• Gun Type: Compliant Gun
• Gun Weight (g): 430
• Gun Weight (lb): 1

• Manifold Type: Not Included

• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Flow Rate (oz/min): 10

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 49
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Working Pressure (bar): 21
• Maximum Fluid Working Pressure (MPa): 2.1
• Maximum Fluid Working Pressure (psi): 300

• Minimum Air Inlet Pressure (bar): 3.4
• Minimum Air Inlet Pressure (MPa): 0.34
• Minimum Air Inlet Pressure (psi): 50

• Needle Tip Material: PEEK
• Nozzle Size (in): 0.03
• Nozzle Size (mm): 0.8

• Overall Height (in): 1.9
• Overall Height (mm): 48.3
• Overall Length (in): 5.10
• Overall Length (mm): 129.5
• Overall Width (in): 1.63
• Overall Width (mm): 41.4
