GRACO INC. S10595
MERKUR SPRAYER, ES, AA, 30:1, CS, STAND
GG 24F157
MERKUR SPRAYER, ES, AA, 30:1, CS, STAND
30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 gun, suction hose, and plated steel The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation. Quick flush system requires less than 1 minute to flush 45% less material to fill the system than the leading competitors Delivers a superior, consistent spray finish Low profile spray package makes it easy to transport Easily set and monitor air control, plus an integrated carrying handle for transport Air motor provides consistent finishes with smooth, rapid changeover Suction hose and strainer leaves less material in the supply container Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
MERKUR SPRAYER, ES, AA, 15:1, SST, STAND
GG 24F159
MERKUR SPRAYER, ES, AA, 15:1, SST, STAND
Graco 24F159 15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 15 gun, suction hose, and stainless steel
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
- Model: Merkur
- Series: ES
- Convertible: Non-Convertible
- Fluid Outlet Size (cm): 0.635
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Fluid Outlet Thread Type: NPSM
- Gun Included: 1
- Gun Model: G15
- Gun Technology: Air-Assisted
- Gun Type: Air-Assisted
- Hose Inlet Diameter (cm): 0.3175
- Hose Inlet Diameter (in): 0.125
- Hose Inlet Diameter (mm): 3
- Includes: G15 Gun, Suction Hose, Stand Mount
- Maximum Flow Rate (GPM): 0.4
- Maximum Hose Length (ft): 25
- Maximum Hose Length (m): 7.6
- Maximum Sound Pressure Level (dB(A)): 76.5
- Maximum Tip Size (cm): 0.0483
- Maximum Tip Size (in): 0.019
- Maximum Tip Size (mm): 0.4826
- Maximum Working Pressure (bar): 103
- Maximum Working Pressure (kPa): 10300
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Motor Type: Pneumatic
- Mount Type: Stand Mount
- Number of Guns: 1
- Power Source: Air
- Pressure Type: High Pressure
- Product Type: Spray Package
- Pump Ratio: 15:1
- Pump Sleeve Material: Stainless Steel
- Pump Type: Pneumatic Piston Pump
MERKUR SPRAYER, ES, AA, 15:1, SST, WAL
GG 24F158
MERKUR SPRAYER, ES, AA, 15:1, SST, WAL
Graco 24F158 15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, wall mount, with PerformAA 15 gun, suction hose, and stainless steel
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
- Quick flush system requires less than 1 minute to flush
- 45% less material to fill the system than the leading competitors
- Delivers a superior, consistent spray finish
- Easily set and monitor air control, plus an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leaves less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
- Model: Merkur
- Series: ES
- Convertible: Non-Convertible
- Fluid Outlet Size (cm): 0.635
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Fluid Outlet Thread Type: NPSM
- Gun Included: 1
- Gun Model: G15
- Gun Technology: Air-Assisted
- Gun Type: Air-Assisted
- Hose Inlet Diameter (cm): 0.3175
- Hose Inlet Diameter (in): 0.125
- Hose Inlet Diameter (mm): 3
- Includes: G15 Gun, Suction Hose, Wall Mount
- Maximum Flow Rate (GPM): 0.4
- Maximum Hose Length (ft): 25
- Maximum Hose Length (m): 7.6
- Maximum Sound Pressure Level (dB(A)): 76.5
- Maximum Tip Size (cm): 0.0483
- Maximum Tip Size (in): 0.019
- Maximum Tip Size (mm): 0.4826
- Maximum Working Pressure (bar): 103
- Maximum Working Pressure (kPa): 10300
- Maximum Working Pressure (MPa): 10.3
- Maximum Working Pressure (psi): 1500
- Motor Type: Pneumatic
- Mount Type: Wall Mount
- Number of Guns: 1
- Power Source: Air
- Pressure Type: High Pressure
- Product Type: Spray Package
- Pump Ratio: 15:1
- Pump Sleeve Material: Stainless Steel
- Pump Type: Pneumatic Piston Pump
Kit, Hose, Fluid, 25Ft, Cs
GG 24F165
KIT, HOSE, FLUID, 25FT, CS
Graco 24F165 Fluid Hose, 1/8" ID, 25 ft (7.5 m), plated steel
Kit, Hose, Fluid, 25Ft, Sst
GG 24F166
KIT, HOSE, FLUID, 25FT, SST
Graco 24F166 Fluid Hose, 1/8" ID, 25 ft (7.5 m), stainless steel
SANIFORCE PISTON PUMP, 5:1 DB DL
GG 24F195
SANIFORCE PISTON PUMP, 5:1 DB DL
Graco 24F195 5:1 Ratio SaniForce Double Ball Stubby Piston Pump with 4 in Inlet
The SaniForce 5:1 transfer piston pump is constructed of 300 series stainless steel, with a 2 inch (50.8 mm) sanitary tube flange outlet and can be fitted into open-head drums or directly inserted into a 4.5 inch (114 mm) closed-head drum bung. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications- Available in double-ball and priming piston designs
- Fluid transfer and supply of low to medium viscosity fluids
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
- Model: SaniForce
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 12.7
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, & Pharmaceutical
- Maximum Air Consumption (SCFM): 75
- Maximum Air Inlet Pressure (bar): 5.5
- Maximum Air Inlet Pressure (kPa): 550
- Maximum Air Inlet Pressure (psi): 80
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 14
- Maximum Flow Rate (L/min): 53
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 28.3
- Maximum Working Pressure (kPa): 2830
- Maximum Working Pressure (MPa): 2.8
- Maximum Working Pressure (psi): 410
- Pump Ratio: 5:1

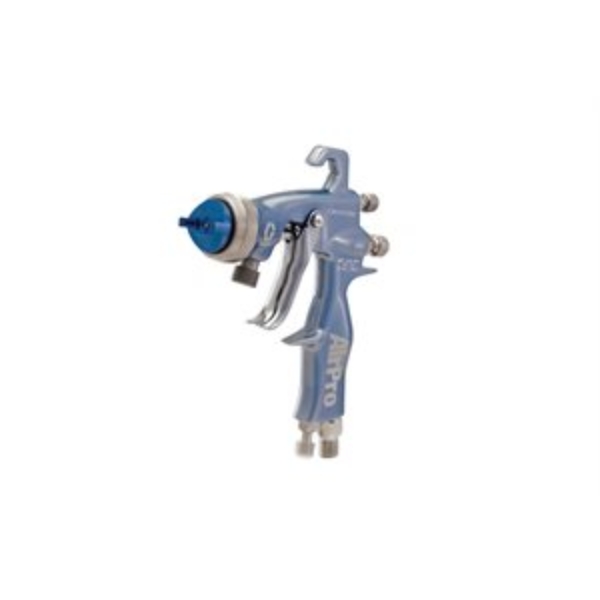

AIRPRO GUN, PRESSURE, CONV
GG 24F202
AIRPRO GUN, PRESSURE, CONV
Graco 24F202 AirPro Air Spray Pressure Feed Gun, Conventional, 0.042 inch (1.1 mm) Nozzle, Air Brush Applications
The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you’re a custom shop or a high volume manufacturing facility.
- Even material distribution through the spray pattern for optimum coverage
- Improved transfer efficiency through reduced air consumption
- Enhanced atomization through material-specific aircaps
- Ultra-light trigger pull reduces operator muscle stress
- Ergonomic gun handle provides a comfortable grip
- Rounded control knobs for operator comfort
- Optimize spray performance with our cutting edge aircap and nozzle design
- Choose from a wide range of gun models to meet the needs of your specific application
- Model: AirPro
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Application: Air Brush
- Applicator Type: Manual
- Bleed Type: Non-Bleeder
- Compatible Material: Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne
- Feed Type: Pressure Feed
- Fluid Inlet Size (cm): 0.9525
- Fluid Inlet Size (in): 3/8
- Fluid Inlet Size (mm): 9.525
- Fluid Inlet Thread Type: NPSM
- Fluid Orifice Size (cm): 0.11
- Fluid Orifice Size (in): 0.042
- Fluid Orifice Size (mm): 1.1
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Conventional Gun
- Gun Weight (g): 410
- Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 109
- Maximum Fluid Pressure (bar): 21
- Maximum Fluid Pressure (kPa): 2100
- Maximum Fluid Pressure (MPa): 2.1
- Maximum Fluid Pressure (psi): 300
- Maximum Fluid Temperature (°C): 43
- Maximum Fluid Temperature (°F): 109
- Product Type: Spray Gun
Kit, Repair, Throat, Uhmwpe/Leat
GG 24F245
KIT,REPAIR,THROAT,UHMWPE/LEAT
Graco 24F245 Standard Throat Packing Kit for 4-Ball Lowers
- Chop Gun Type: Without Cutter
- Compatible Material: Polyester Resin, Gel-Coat
Inline Fluid Filter, Stainless Steel
GG 24F271
Inline Fluid Filter, Stainless Steel
KIT, DIAPHRAGM-F1 PS
GG 24F398
KIT, DIAPHRAGM-F1 PS
PTFE/Santoprene 2-Piece Diaphragm Kit for 1.5-inch Pump
Kit, Repair, Seat
GG 24F140
KIT, REPAIR, SEAT
Graco 24F140 Seat Repair Kit for Low Flow Fluid Regulator
- Compatible Material: Gel Coat, Polyester Resin
KIT, DIAPHRAGM-H1 PS
GG 24F399
KIT, DIAPHRAGM-H1 PS
PTFE/Santoprene 2-Piece Diaphragm Kit for 2-inch Pump
Kit, Checks
GG 24F404
KIT, CHECKS
Graco 24F404 TSL Check Valve Repair Kit for 4-Ball Lowers
Valve, ASSY, Spool, PD44, HV, SS, A
GG 24F456
Valve, ASSY, Spool, PD44, HV, SS, A
Valve, ASSY, Spool, PD44, LV, B Sid
GG 24F458
Valve, ASSY, Spool, PD44, LV, B Sid

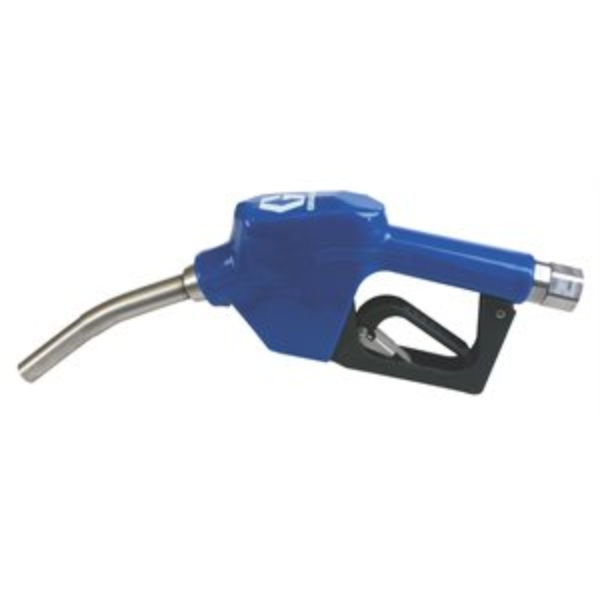

NOZZLE, W/SWIVEL, DEF
GG 24F529
NOZZLE, W/SWIVEL, DEF
Graco 24F529 SD™ Automatic Shut-Off SST Blue Nozzle with Swivel - 3/4 in. - BSPP
Designed to perform in heavy-equipment shops, fleet maintenance
shops, municipal garages and higher-volume in-plant applications
with longer plumbing runs and larger fluid usage.
Application: Typical applications include automotive and heavy-duty dealerships, agriculture, service and fast lube centers, and fleet service facilities.
- Heavy-duty design
- Automatic shut-off valve with stainless steel nozzle
- 11 gpm (41.6 lpm) flow rate
- 3/4 in BSPP inlet
- Model: SD
- Compatible Material: Diesel Exhaust Fluid
- Extension Type: Rigid
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: BSPP
- Maximum Working Pressure (bar): 3.5
- Maximum Working Pressure (kPa): 35
- Maximum Working Pressure (psi): 50
- Outlet Size (cm): 1.27
- Outlet Size (in): 1/2
- Outlet Size (mm): 12.7
- Outlet Thread Type: BSPP
PLATE, BASE, 4 SECTION, MHH
GG 24F597
PLATE, BASE, 4 SECTION, MHH
Graco 24F597 Manzel® MHH Divider Valve - 4 Section Base Plate Assemblies - NPSF
Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.
Application: For compressors, industrial equipment, and where high-pressure lubrication in required.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Manzel
- Series: MHH
- Application: In-Plant Machinery, Compressor Equipment
- Compatible Material: Oil, Grease
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MHH
- Inlet Thread Type: NPSF
- Material: Steel
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 517
- Maximum Working Pressure (kPa): 51700
- Maximum Working Pressure (psi): 7500
- Number of Outlets: 8
- Outlet Thread Type: NPSF

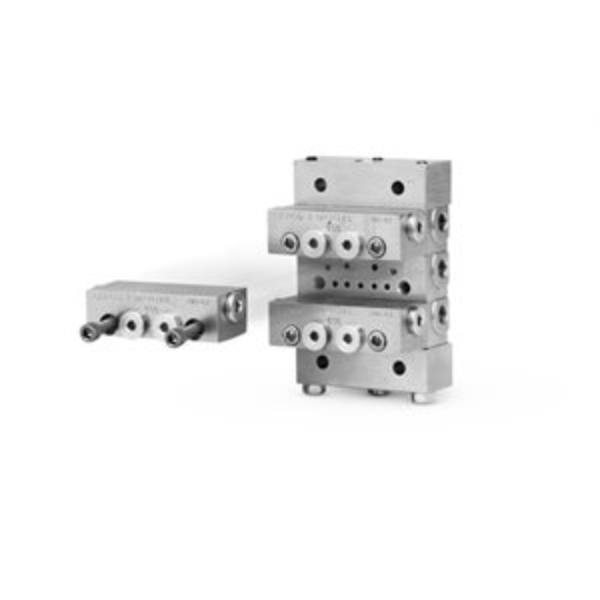

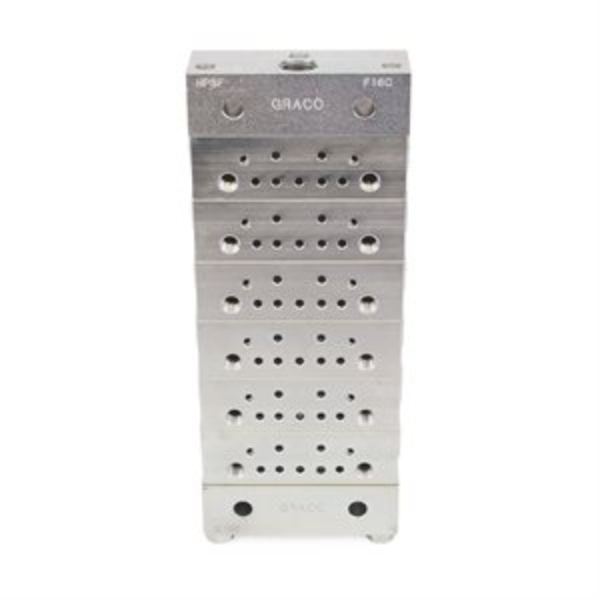

PLATE, BASE, 6 SECTION, MHH
GG 24F599
PLATE, BASE, 6 SECTION, MHH
Graco 24F599 Manzel® MHH Divider Valve - 6 Section Base Plate Assemblies - NPSF
Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances. The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.
Application: For compressors, industrial equipment, and where high-pressure lubrication in required.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Manzel
- Series: MHH
- Application: In-Plant Machinery, Compressor Equipment
- Compatible Material: Oil, Grease
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MHH
- Inlet Thread Type: NPSF
- Material: Steel
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 517
- Maximum Working Pressure (kPa): 51700
- Maximum Working Pressure (psi): 7500
- Number of Outlets: 12
- Outlet Thread Type: NPSF
Kit, Repair, Mini Pump Seals
GG 24F617
KIT, REPAIR, MINI PUMP SEALS
Graco 24F617 TSL Pump Repair Kit for 4-Ball Lower Pumps
SANIFORCE PISTON PUMP, 12:1 PP ST
GG 24F625
SANIFORCE PISTON PUMP, 12:1 PP ST
Graco 24F625 SaniForce 12:1 Stubby Piston Pump
Graco&prime, s sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications- Quick knockdown lower
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
- Product highlights:
Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Most advanced air motor on the market
- Model: SaniForce
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, & Pharmaceutical
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 128
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 8.5
- Maximum Flow Rate (L/min): 32.18
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 100.4
- Maximum Working Pressure (kPa): 10040
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1450
- Portable: Non-Portable
- Pump Ratio: 12:1
SANIFORCE PISTON PUMP, 12:1 PPC ST
GG 24F626
SANIFORCE PISTON PUMP, 12:1 PPC ST
Graco 24F626 SaniForce 12:1 Stubby Piston Pump for Sticky Viscous Material
Graco&prime, s sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications- Quick knockdown lower
- Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies
- Product highlights:
Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Most advanced air motor on the market
- Model: SaniForce
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 2
- Fluid Outlet Size (mm): 50.8
- For Use With: Food, Personal Care, & Pharmaceutical
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 128
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 8.5
- Maximum Flow Rate (L/min): 32.18
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 100
- Maximum Working Pressure (kPa): 10000
- Maximum Working Pressure (MPa): 10
- Maximum Working Pressure (psi): 1450
- Portable: Non-Portable
- Pump Ratio: 12:1
Kit, Repair, Seal, 750 Cc
GG 24F660
KIT, REPAIR, SEAL, 750 CC
Graco 24F660 Complete Pump Repair Kit for 750 cc Lower Pumps
Application: For 750cc Lowers: Includes part numbers 24F413, 24F414, 24F415, 24F416, 24F417, 24F418, 24F420, 24F421, 24F422, and 24F423.
Kit, Repair, Seal, 1000 Cc
GG 24F661
KIT, REPAIR, SEAL, 1000 CC
Graco 24F661 Complete Pump Repair Kit for 1000 cc Lower Pumps
Application: Pump Repair Kit for 1000 cc Lower Pumps, includes part numbers 24F424, 24F425, 24F426, 24F427, 24F428, 24F429, and 24F431.
Kit, Repair, Seal, 1500 Cc
GG 24F662
KIT, REPAIR, SEAL, 1500 CC
Graco 24F662 Complete Pump Repair Kit for 1500 cc Lower Pumps

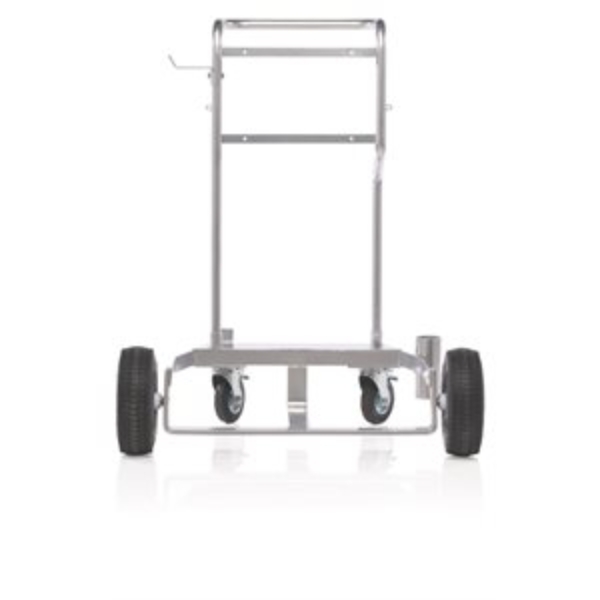

CART, 180 KG
GG 24F915
CART, 180 KG
Graco 24F915 LD Series 50:1 Grease Pump Drum Cart with Pneumatic Wheels for 400 lb. Drums, Includes Chain for Securing Drum to Cart
- Drum cart with pneumatic wheels for 400 lb drums
- Includes chain for securing drum to cart
LD SERIES OIL PUMP, 5:1, UNIVERSAL, NPT
GG 24G588
LD SERIES OIL PUMP, 5:1, UNIVERSAL, NPT
LD Series 5:1 Universal Oil Pump with Bung Adapter - NPTThe LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Three Inch Air Motor - Provides more power to create better flow. Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime. Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution. Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations. Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow. Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications. Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.

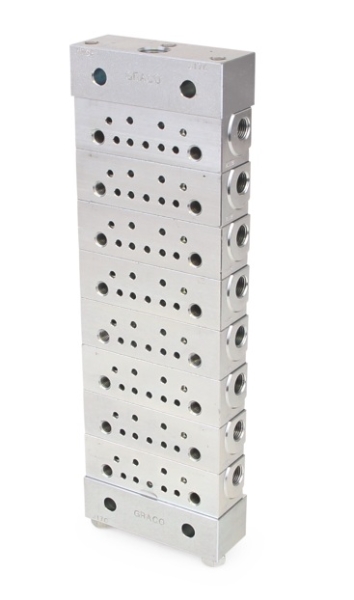

PLATE, BASE, 8 SECTION, MSP NPSF
GG 24G490
PLATE, BASE, 8 SECTION, MSP NPSF
Trabon® MSP Divider Valve - 8 Section Base Plate Assemblies - NPSFThe Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!
For use with mobile, industrial, food and beverage, wind, and many more applications. Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime. Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting. Built-in outlet check valves ensure accurate lube delivery every time
KIT, REPAIR, PUMP, 5:1 SANITARY
GG 24G551
KIT, REPAIR, PUMP, 5:1 SANITARY
Lower Repair Kit 5:1 Double Ball
LD SERIES OIL PUMP, ASSEMBLY, 5:1, NPT
GG 24G594
LD SERIES OIL PUMP, ASSEMBLY, 5:1, NPT
Graco 24G594 LD™ 5:1 Oil Pump with 55 Gallon (200 Liter) Steel Down Tube and Bung Adapter - NPT
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
- Three Inch Air Motor - Provides more power to create better flow.
- Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
- Includes 200L (55gal) drum down tube
- Model: LD
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Application: Oil
- Compatible Material: Oil
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Working Pressure (bar): 51.7
- Maximum Working Pressure (kPa): 5170
- Maximum Working Pressure (MPa): 5.2
- Maximum Working Pressure (psi): 750
- Power Type: Pneumatic
- Pump Ratio: 5:1
LD SERIES OIL PUMP, 3:1, UNIVERSAL, NPT
GG 24G576
LD SERIES OIL PUMP, 3:1, UNIVERSAL, NPT
LD Series 3:1 Universal Oil Pump with Bung Adapter - NPTThe LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Three Inch Air Motor - Provides more power to create better flow. Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime. Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution. Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations. Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow. Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications. Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
PLATE, BASE, 6 SECTION, MSP NPSF
GG 24G488
PLATE, BASE, 6 SECTION, MSP NPSF
Graco 24G488 Trabon® MSP Divider Valve - 6 Section Base Plate Assemblies - NPSF
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!
Application: For use with mobile, industrial, food and beverage, wind, and many more applications.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: None
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MSP
- Inlet Size (in): 1/4
- Inlet Thread Gender: Female
- Inlet Thread Type: NPSF
- Material: Carbon Steel
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Number of Outlets: 12
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF
PLATE, BASE, 4 SECTION, MSP NPSF
GG 24G486
PLATE, BASE, 4 SECTION, MSP NPSF
Graco 24G486 Trabon® MSP Divider Valve - 4 Section Base Plate Assemblies - NPSF
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!
Application: For use with mobile, industrial, food and beverage, wind, and many more applications.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: None
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MSP
- Inlet Size (in): 1/4
- Inlet Thread Gender: Female
- Inlet Thread Type: NPSF
- Material: Carbon Steel
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Number of Outlets: 8
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF

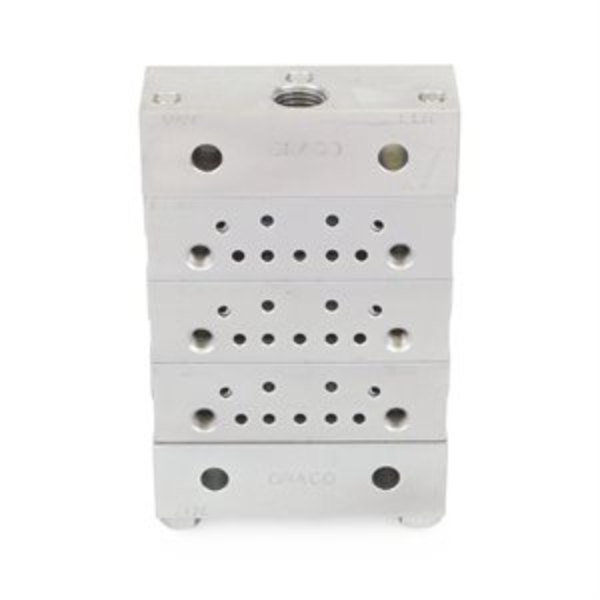

PLATE, BASE, 3 SECTION, MSP NPSF
GG 24G485
PLATE, BASE, 3 SECTION, MSP NPSF
Graco 24G485 Trabon® MSP Divider Valve - 3 Section Base Plate Assemblies - NPSF
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!
Application: For use with mobile, industrial, food and beverage, wind, and many more applications.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: None
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MSP
- Inlet Size (in): 1/4
- Inlet Thread Gender: Female
- Inlet Thread Type: NPSF
- Material: Carbon Steel
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Number of Outlets: 6
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF

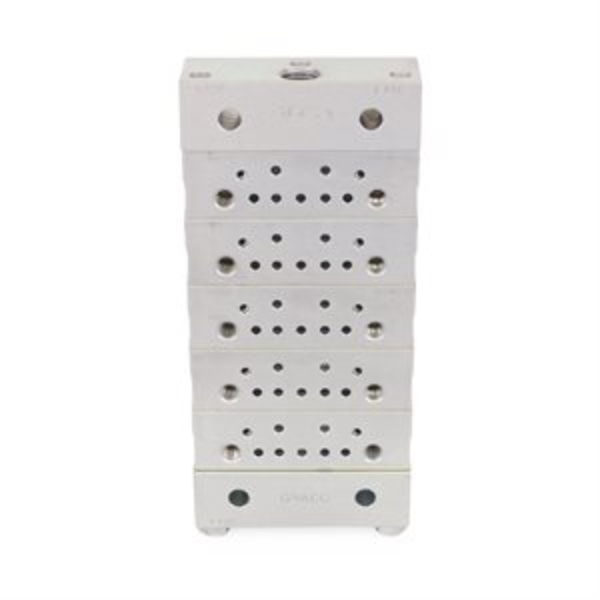

PLATE, BASE, 5 SECTION, MSP NPSF
GG 24G487
PLATE, BASE, 5 SECTION, MSP NPSF
Graco 24G487 Trabon® MSP Divider Valve - 5 Section Base Plate Assemblies - NPSF
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve–and is still the best!
Application: For use with mobile, industrial, food and beverage, wind, and many more applications.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime.
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: None
- Discharge Per Piston Stroke (in³): N/A
- Divider Valve Series: MSP
- Inlet Size (in): 1/4
- Inlet Thread Gender: Female
- Inlet Thread Type: NPSF
- Material: Carbon Steel
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Number of Outlets: 10
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPSF
LD SERIES OIL PUMP, ASSEMBLY, 5:1, NPT
GG 24G597
LD SERIES OIL PUMP, ASSEMBLY, 5:1, NPT
Graco 24G597 LD™ 5:1 Oil Pump with 275 Gallon (1040 Liter) Steel Down Tube and Bung Adapter - NPT
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
- Three Inch Air Motor - Provides more power to create better flow.
- Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
- Includes 1040 liter (275gal) tote down tube
- Model: LD
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Application: Oil
- Compatible Material: Oil
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Working Pressure (bar): 51.7
- Maximum Working Pressure (kPa): 5170
- Maximum Working Pressure (MPa): 5.2
- Maximum Working Pressure (psi): 750
- Power Type: Pneumatic
- Pump Ratio: 5:1
SANIFORCE PISTON PUMP, 6:1 DB BL
GG 24F942
SANIFORCE PISTON PUMP, 6:1 DB BL
Graco 24F942 6:1 Ratio SaniForce Bin Length Double Ball Piston Pump
Graco&prime, s SaniForce 6:1 quick knockdown piston pumps are constructed of 300 series stainless steel. The air motor improves serviceability, increases efficiency and offers a lower cost of ownership. Our sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.
Application: Quick Knockdown Sanitary Piston Pumps for Food and Personal Care Applications- Most advanced air motor on the market
- Available in double-ball and priming piston designs
- Fluid transfer and supply of low to medium viscosity fluids
- FDA-Compliant Shroud:
Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime
Quick knockdown lowers are made with 300 series stainless steel for long-lasting durability
- Model: SaniForce
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPSM
- Application: Sanitary
- Compatible Material: Food, Personal Care
- Fluid Outlet Size (in): 1-1/2
- Fluid Outlet Size (mm): 38.1
- For Use With: Food, Personal Care, & Pharmaceutical
- Material: Stainless Steel
- Maximum Air Consumption (SCFM): 29
- Maximum Air Inlet Pressure (bar): 6.9
- Maximum Air Inlet Pressure (kPa): 690
- Maximum Air Inlet Pressure (psi): 100
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 4
- Maximum Flow Rate (L/min): 15.14
- Maximum Intermittent Cycle Rate (CPM): 60
- Maximum Working Pressure (bar): 44.8
- Maximum Working Pressure (kPa): 4480
- Maximum Working Pressure (MPa): 4.5
- Maximum Working Pressure (psi): 650
- Portable: Non-Portable
- Pump Ratio: 6:1
LD SERIES OIL PUMP, 3:1, UNIVERSAL, BSPT
GG 24G578
LD SERIES OIL PUMP, 3:1, UNIVERSAL, BSPT
LD Series 3:1 Universal Oil Pump with Bung Adapter - BSPTThe LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Three Inch Air Motor - Provides more power to create better flow. Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime. Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution. Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations. Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow. Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications. Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT
GG 24G585
LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT
LD™ 3:1 Oil Pump with 275 Gallon (1040 Liter) Steel Down Tube and Bung Adapter - NPTThe LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Three Inch Air Motor - Provides more power to create better flow.
Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
Modular Air Valve - Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
Includes 1040 liter (275gal) tote down tube
LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT
GG 24G579
LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT
Graco 24G579 LD™ 3:1 Oil Pump with Cut-to-Length PVC Downtube and Bung Adapter - NPT
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
- Three Inch Air Motor - Provides more power to create better flow.
- Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
- Includes cut-to-length downtube
- Model: LD
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Application: Oil
- Compatible Material: Oil
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Working Pressure (bar): 51.7
- Maximum Working Pressure (kPa): 5170
- Maximum Working Pressure (MPa): 5.2
- Maximum Working Pressure (psi): 750
- Power Type: Pneumatic
- Pump Ratio: 3:1
LD SERIES GREASE PUMP, 50:1, 16 KG, NPT
GG 24G600
LD SERIES GREASE PUMP, 50:1, 16 KG, NPT
Graco 24G600 LD Series 50:1 Pump for 35 lb (16 kg). Pail - NPT
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
- Three Inch Air Motor - Provides more power to create better flow.
- Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
- 35 lb (16 kg) Grease Pump - 50:1
- Model: LD
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Application: Grease
- Compatible Material: Grease
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Size (mm): 6.35
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Working Pressure (bar): 517
- Maximum Working Pressure (kPa): 51700
- Maximum Working Pressure (MPa): 51.7
- Maximum Working Pressure (psi): 7500
- Power Type: Pneumatic
- Pump Ratio: 50:1
KIT, REPAIR, PUMP, 5:1 SANITARY
GG 24G552
KIT, REPAIR, PUMP, 5:1 SANITARY
Lower Repair Kit 5:1 Priming Piston
LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT
GG 24G582
LD SERIES OIL PUMP, ASSEMBLY, 3:1, NPT
Graco 24G582 LD™ 3:1 Oil Pump with 55 Gallon (200 Liter) Down Tube and Bung Adapter - NPT
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
- Three Inch Air Motor - Provides more power to create better flow.
- Innovative Air Valve - Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability - Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Pilot Valve - Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included - Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer - Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
- Includes 200L (55gal) drum down tube
- Model: LD
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Application: Oil
- Compatible Material: Oil
- Fluid Inlet Size (in): 1
- Fluid Inlet Size (mm): 25.4
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Maximum Air Inlet Pressure (bar): 10.34
- Maximum Air Inlet Pressure (kPa): 1034
- Maximum Air Inlet Pressure (psi): 150
- Maximum Working Pressure (bar): 51.7
- Maximum Working Pressure (kPa): 5170
- Maximum Working Pressure (MPa): 5.2
- Maximum Working Pressure (psi): 750
- Power Type: Pneumatic
- Pump Ratio: 3:1

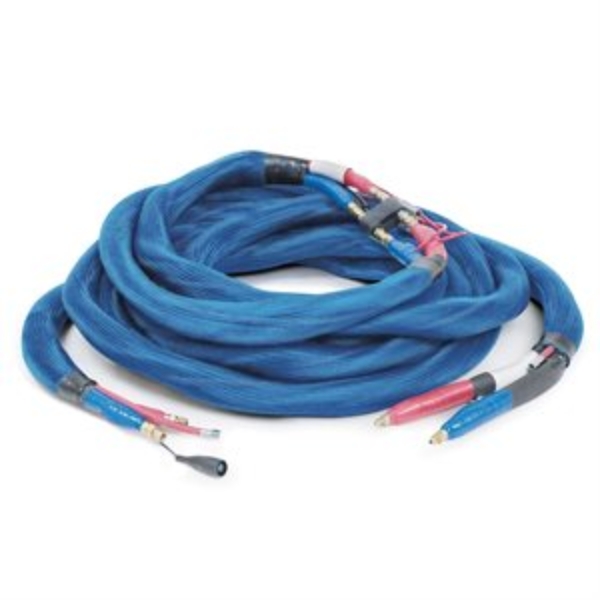

REACTOR HEATED HOSE, 50', 3/8, W/O CBL, 3500P
GG 249588
REACTOR HEATED HOSE, 50', 3/8, W/O CBL, 3500P
50 ft x 3/8 in Heated Hose, 3500 psi, Without Cable, No Scuff, Reactor 1 & 2Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
Gun, Hotmelt Bottom w/Switch
GG 249512
THERM-O-FLOW GUN,HOTMELT,BOTTOM W/SWITCH
Graco 249512 Precision Hot Melt Dispense Gun with Switch
Perfect for high pressure, high flow sealant and adhesive applications, Therm-O-Flow Guns are available with electric switches so they can be used in conjunction with automated equipment.
Application:
For applying hot melt materials.
Provides accurate dispense control for Therm-O-Flow Systems
- Provides precise proportional control and variable dispense volume with unique tapered needle valve design
- Dual heaters offer rapid warm-up during initial start-up and maintain uniform temperature control
- Rugged construction - durable, lightweight anodized aluminum body
- Ergonomic, easy-trigger actuation
- Designed for easy service - minimal maintenance and downtime
- Rated for high-pressure Therm-O-Flow Systems up to 3500 psi (24.1 MPa, 241 bar)
Precise temperature control from PID control panel
Piston-actuated ball and seat design for positive shut off
Light trigger pull
Rugged all metal construction
- Model: Therm-O-Flow

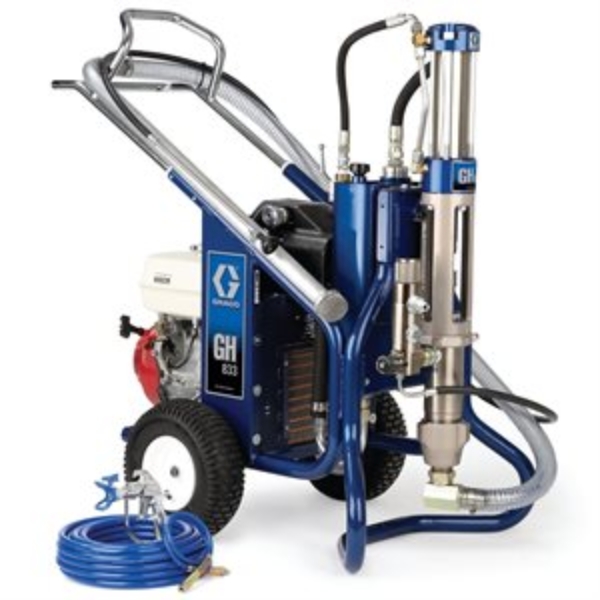

GH SPRAYER, 833, COMPLETE
GG 249617
GH SPRAYER, 833, COMPLETE
Graco 249617 GH 833 Gas Hydraulic Sprayer, Complete
The GH 833 is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
- Honda® Engine
390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
Contractor preferred engine with Oil Alert
- Heavy-Duty Hydraulic System
Faster, more responsive changeover
O-ring sealed to eliminate leaks
High-precision pressure control
No hydraulic reset button needed
Durable hydraulic lines for long life
- Heavy-Duty Cooling System
Large 4 gallon hydraulic reservoir
Return line hydraulic filter extends life
No special hydraulic fluid needed
Proven cooler and blower system
Easy to use drain plug
- MaxLife Endurance Pump
Proven design and performance
Only 16 cycles per gallon (4.2 cycles per liter)
Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
- Flow-Through Filter System
Inside/out design eliminates clogged filters
Eliminates tip clogs
- Ready-To-Spray Complete System
Configured with 50 feet of pressure-rated hose, gun, tips, and all the fittings you will need
- Model: GH
- Series: 833
- Compatible Material: Acrylics, Block Filler, Coal Tar, Contact Cement, Elastomerics, Enamel, Epoxies, Fibered Aluminum Emulsion, Fibered Asphalt Emulsion, Mastics, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Paint, Polyester, Polyurethane, Primer, Texture Mud, Waterproofing
- Compatible Replacement Pump: 287834
- Control Type: N/A
- Engine Brand: Honda
- Engine Size (HP): 13
- Fluid Inlet Size (in): 1-1/2 to 11-1/2
- Fluid Inlet Thread Type: MNPT
- Fluid Outlet Size (in): 1 to 11-1/2
- Fluid Outlet Thread Type: FNPT
- Frame Configuration: Cart
- Includes: Silver Plus Gun, RAC X 517 Spray Tip, RAC X 655 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II HP Airless Hose, 1/4 in x 3 ft BlueMax II HP Airless Whip Hose
- Material Application: Paints, Primers
- Maximum Flow Rate (GPM): 4.0
- Maximum Flow Rate (L/min): 15.1
- Maximum Hose Length (ft): 50
- Maximum Hose Length (m): 15
- Maximum Sound Pressure Level (dB(A)): 91
- Maximum Tip Size (in): 0.065
- Maximum Tip Size Gun 2 (in): 0.046
- Maximum Tip Size Gun 3 (in): 0.037
- Maximum Tip Size Gun 4 (in): 0.032
- Maximum Tip Size Gun 5 (in): 0.029
- Maximum Tip Size Gun 6 (in): 0.026
- Maximum Working Pressure (bar): 275.8
- Maximum Working Pressure (kPa): 27580
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
- M
Control, Flow, Regulator
GG 249849
CONTROL, FLOW, REGULATOR
Graco 249849 Flow Control Module with Integrated Air-Operated Fluid Regulator
- Compatible Material: Solventborne

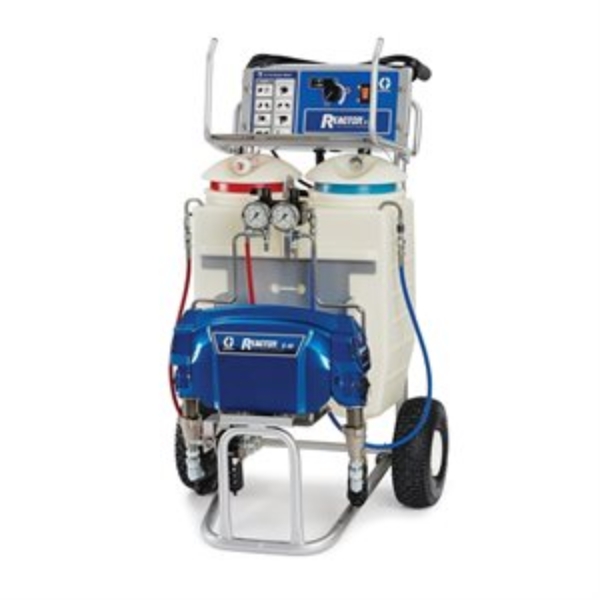

REACTOR E-10 PROPORTIONER, CMPLT, 240V, 2X10A, HTD
GG 249571
REACTOR E-10 PROPORTIONER, CMPLT, 240V, 2X10A, HTD
Graco 249571 Reactor E-10 Heated Proportioner with (2) 10 A Circuits, 240 V
Graco&prime, s Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.
- Small size
Ideal for on-site portability and hard-to-reach areas
- Cost Savings
One-person operation saves time and money
- Extent your spray business
Use as an add-on to your existing spray business
- Material savings
Saves 30% on material costs compared to disposable foam systems
- Electric power
Low draw and plugs into standard outlets
- Single Knob Operation
Intuitive start, stop and digital temperature display with single knob operation
- Easily balancing
Pressure balance valves give you quick and easy balancing of system pressures
Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern
- Easy-to-service fluid section
Reduces maintenance and increases productivity
- Electric motor
Improves performance and reduces operating costs
- Spray on-ratio
Self-contained translucent material tanks show you that you are spraying on-ratio
- Pre-heat material
Heaters and hose give you up to 2000 watts to pre-heat circulating material
- Model: Reactor
- Series: E-10
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Outlet Size (cm): 0.635
- Air Outlet Size (in): 1/4
- Air Outlet Size (mm): 6.35
- Air Outlet Thread Type: NPSM
- Amperage (A): 10
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: No Gun
- Hose Package: No Hose
- Material Application: Polyurethane Foam
- Maximum Flow Rate (kg/min): 5.44
- Maximum Flow Rate (lb/min): 12
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Hose Length (ft): 35
- Maximum Hose Length (m): 94.5
- Maximum Mix Ratio: 1:1
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa):
Kit, Repair, Shaft And Bearing
GG 24A155
KIT,REPAIR,SHAFT AND BEARING
Graco 24A155 Shaft and Bearing Repair Kit- for Triton 308 Diaphragm Pumps
Kit, Repair, Vee, 75Cc
GG 24A253
KIT, REPAIR,VEE, 75CC
Graco 24A253 Standard Seal Repair Kit for Merkur LW075A
Kit, Repair, Vee, 100Cc
GG 24A254
KIT, REPAIR,VEE, 100CC
Graco 24A254 Standard Seal Repair Kit for Merkur LW100A
Kit, Repair, Vee, 125Cc
GG 24A255
KIT, REPAIR,VEE, 125CC
Graco 24A255 Standard Seal Repair Kit for Merkur LW125A
Kit, Repair, Vee, 150Cc
GG 24A256
KIT, REPAIR,VEE, 150CC
Graco 24A256 Standard Seal Repair Kit for Merkur LW150A
Kit, Fluid Filter
GG 24A587
KIT, FLUID FILTER
Graco 24A587 Pump Outlet Fluid Filter, Stainless Steel, 60 mesh (250 micron), 5000 psi (350 bar)
Kit, Rod, Displ, Wetcup, 25Cc
GG 24A643
KIT, ROD,DISPL,WETCUP,25CC
Graco 24A643 Merkur Piston Rob Assembly Kit for Merkur Displacement Pump

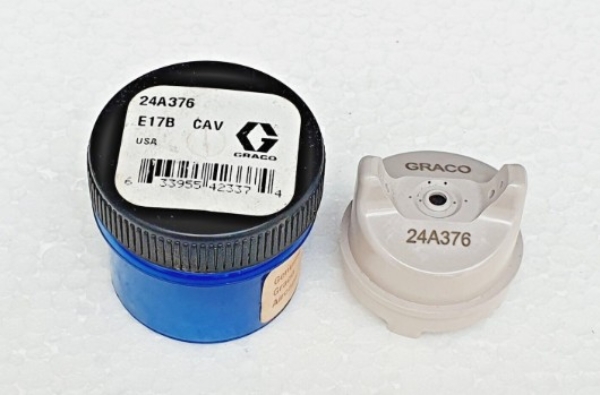

Kit, Air Cap, Gray
GG 24A376
KIT,AIR CAP,GRAY
Graco 24A376 Gray Aircap Color Kit- Pattern Width 17-19 in.
PRO Xs Electrostatic Aircaps A complete range of PRO Xs Aircaps to fit the precise need of a wide variety of applications
- Improve spray performance
- Deliver better atomization
- Stay cleaner longer Deliver wider spray patterns

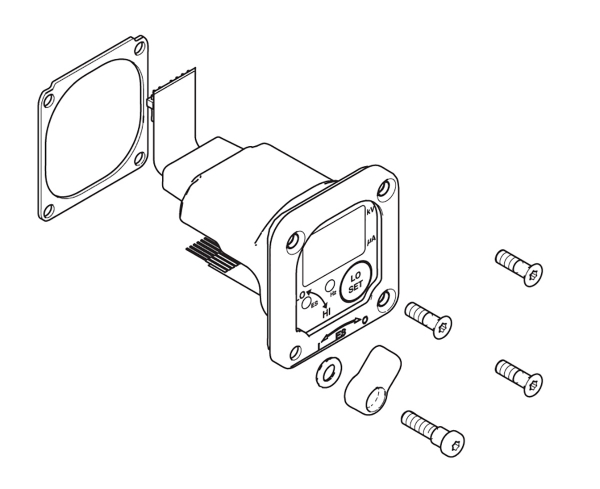

KIT, MODULE, SMART
GG 24N756
KIT, MODULE, SMART
Graco 24N756 Smart Module Assembly Kit
Application: Smart Module Assembly includes a cartridge, screw, pivot screw, 24P433 gasket, 24N787 ES Hi/Lo switch and 112319 o-ring
