GRACO INC. S10595
Gasket
GG 117571
GASKET
Graco 117571 Santoprene Gasket for Low Pressure Stainless Steel Tanks
Tube, Outlet
GG 118823
TUBE, OUTLET
Graco 118823 U-Tube used with ProMix II and ProMix Auto (Wall Mount) Proportioners
FUSE, 16 AMP, TIME LAG, 5 X 20
GG 119277
FUSE, 16 AMP, TIME LAG, 5 X 20
Pro210ES Replacement Fuse Replace your sprayers fuse with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility Graco's dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Replaceable fuse protects the circuit board When the continuity is broken, the sprayer will not turn on Graco tech support can further assist with troubleshooting sprayer operation For use with Pro210ES airless paint sprayer stand, 16D163 or cart 17C305 Genuine Graco parts includes fuseRECEIVER, OIL
GG 119577
RECEIVER, OIL
24 gal (90 l) Steel-Tank Pressurized Oil DrainDrain, evacuate and transfer used oil (and other used fluids) reliably, quickly and in the most cost-effective manner.
For shops requiring flexibility, use Graco’s multi-purpose used oil evacuation system when fluid drain plugs are either not easily accessible or not available. Ensures peak performance with easy-to-read vacuum gauge Includes vacuum probes with a variety of suction attachments and adapters Features a 24-gallon (90 L) capacity receiver Includes optional large offset collection pan to prevent splashing Uses shop air to pressurize for easy oil evacuation and draining Includes optional sight glass, which allows for oil quality inspection with clear evacuation chamber and easy-to-read evacuation measurementsSwitch
GG 119159
SWITCH, AIR FLOW
Graco 119159 Air Flow Switch for ProMix 2KS and ProMix 2KE Electronic Proportioners Air Flow Switch Kit
VALVE, EVAC, 4-WAY, 1 IN
GG 120581
VALVE, EVAC, 4-WAY, 1 IN
1 in. Female NPT 4-Way Evacuation Valve The 4-way evacuation valve is a directional control valve used to simplify the filling and emptying of tanks. Typical applications include filling and emptying waste containers on lube trucks and transferring fluids from bulk supply tanks to operational day tanks. Typical fluids handled include petroleum and synthetic-based oils, fuels, anti-freeze and windshield wash fluid.Simplifies installation by eliminating need for multiple valves
Unrestricted flow - no pressure or volume loss
Two position tank fill and emptying control
Tapered, self-seating valve spool for superior sealing performance
Four (4) 5/16 inch threaded bolt holes for flush mount installation
Monark Pump, 23:1 (Chrome)
GG 223596
MONARK PUMP,23:1 (CHROME)
Graco 223596 Series B 23:1 Ratio Monark Pump
- Reliable, low maintenance air motor
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids Drum and stubby length models available for mounting and application flexibility
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
Coupler, Twist Lock
GG 223624
COUPLER, TWIST LOCK
Graco 223624 Stainless Steel Twist Lock Coupler
Stainless steel construction
Quickly change between guns, regulators, and lines to reduce setup, changeover, and maintenance time
Don't flush through guns tips, disconnect and flush through quick connects. Reduce flushing time and avoid premature tip wear.
Provide flexibility for operators, especially those that own or maintain their own guns. Promote daily maintenance.
Compatible with Graco Gun Regulators and Restrictors
Quick couplers automatically seal once disconnected
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
Pump Fluid Section
GG 223842
PUMP, DISPL, RECIP
Graco 223842 Severe Duty Stainless Steel Displacement Pump, Series B
- Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers
Housing, Valve, Intake
GG 223593
HOUSING, VALVE, INTAKE
Graco 223593 Intake Housing Valve, Stainless Steel with Tungsten Carbide Seat
TANK, PRESSURE, 2.5 GAL
GG 223833
TANK, PRESSURE, 2.5 GAL
Graco 223833 2.5 Gallon Pressure Pot. Aluminum construction, up to 50 psi, with dual regulators for fluid and air control.
- Painted aluminum tank ideal for adhesives or other coatings
- Dual regulators for pulsation-free fluid delivery
- Built-in handle for easy movement
- Includes: Dual Regulator
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Male
- Inlet Thread Type: NPT
- Maximum Volume Capacity (gal): 2.5
- Maximum Volume Capacity (L): 9
- Maximum Working Pressure (bar): 3.5
- Maximum Working Pressure (kPa): 350
- Maximum Working Pressure (MPa): 0.4
- Maximum Working Pressure (psi): 50
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPSM
- Overall Height (cm): 53.3
- Overall Height (in): 21
- Overall Height (mm): 533
- Overall Width (cm): 28.6
- Overall Width (in): 11.25
- Overall Width (mm): 286
Monark Pump, 15-1 (Sst)
GG 223844
MONARK PUMP,15-1 (SST)
Graco 223844 15:1 Ratio Monark Pump, Series A, 2700 psi max fluid working pressure, 180 psi max air input pressure
Kit, Repair, Sst
GG 223675
KIT, REPAIR, SST
Graco 223675 Pump Repair Kit for Graco President 30:1 with Severe Duty Pump Lower
Fluid Section
GG 223587
PUMP, DISP, RECIP
Graco 223587 Displacement Pump Assembly for 30:1 President, 15:1 Monark and Viscount I 3000 Pumps
REGULATOR, PRESS, FLUID
GG 223623
REGULATOR, PRESS, FLUID
Graco 223623 Gun Mounted Fluid Regulator, 3/8 twistlock inlet/outlet, 200 max inbound fluid psi (14 bar), SST wetted parts
- Stainless steel materials are compatible with catalyst and waterborne materials
- Easy and accurate pressure adjustment at the gun to fine tune pressure settings during production
- Connects quickly to spray guns using twistlock connector
- Includes: Regulator Only
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Type: NPSM
- Maximum Regulated Pressure (bar): 2.4
- Maximum Regulated Pressure (kPa): 240
- Maximum Regulated Pressure (MPa): 0.24
- Maximum Regulated Pressure (psi): 35
- Maximum Working Pressure (bar): 13.8
- Maximum Working Pressure (kPa): 1380
- Maximum Working Pressure (MPa): 1.4
- Maximum Working Pressure (psi): 200
- Minimum Regulated Pressure (bar): 0.34
- Minimum Regulated Pressure (kPa): 34
- Minimum Regulated Pressure (MPa): 0.034
- Minimum Regulated Pressure (psi): 5
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
KIT, REPAIR
GG 223654
KIT, REPAIR
Graco 223654 Repair Kit for Viscount II Hydraulic Motor
Fitting, Coupler (Twist Lock)
GG 223628
FITTING, COUPLER (TWIST LOCK)
Graco 223628 1.3 oz Twist Lock Coupler Stem 3/8 npsm, 300 psi maximum inbound fluid pressure
Stainless steel construction
Quickly change between guns, regulators, and lines to reduce setup, changeover, and maintenance time
Don't flush through guns tips, disconnect and flush through quick connects. Reduce flushing time and avoid premature tip wear.
Provide flexibility for operators, especially those that own or maintain their own guns. Promote daily maintenance.
Compatible with Graco Gun Regulators and Restrictors
Quick couplers automatically seal once disconnected
HOSE, COUPLED, 1/4" X 15'
GG 223756
HOSE, COUPLED, 1/4" X 15'
BlueMax II Airless Hose, 1/4 in x 15 ft To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer. Lighter Weight- Over 10% lighter weight and increased hose flexibility improves usability while spraying under pressure
- Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs
- BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling
- Plated spring guards are more corrosion resistant
HOSE, CPLD, 1/4" X 100'
GG 223771
HOSE, CPLD, 1/4" X 100'
BlueMax II Airless Hose, 1/4 in x 100 ft (30.5 m) To maximize performance, choose BlueMax II high performance airless hose. With superior flexibility and durability, BlueMax II is designed to ensure you get the best results from your airless sprayer. Lighter Weight- Over 10% lighter weight and increased hose flexibility improves under pressure
- Conductive core meets the highest worldwide safety standards unlike competitive ground wire hose designs
- BlueMax II Hose has superior flexibility and reduced coil memory providing ease of use during coiling and uncoiling
- Plated spring guards are more corrosion resistant
PRESIDENT PUMP, 30-1
GG 223843
PRESIDENT PUMP, 30-1
President 30:1 Pneumatic 2-Ball Piston Pump, 304 SST, Stubby Length 2-ball pneumatic piston pumps for a wide range of applications. Reliable President air motor designed for low maintenance operation and long life Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids, including catalyzed materialsFitting, Coupler (Twist Lock)
GG 223627
FITTING, COUPLER (TWIST LOCK)
Graco 223627 Fluid Adaptor, Coupler Stem, 200 psi (14 bar) max, Twistlock (f) inlet, 3/8 npsm(m) outlet, SST
Stainless steel construction
Quickly change between guns, regulators, and lines to reduce setup, changeover, and maintenance time
Don't flush through guns tips, disconnect and flush through quick connects. Reduce flushing time and avoid premature tip wear.
Provide flexibility for operators, especially those that own or maintain their own guns. Promote daily maintenance.
Compatible with Graco Gun Regulators and Restrictors
Quick couplers automatically seal once disconnected
PUMP, DISPL, RECIP.
GG 224344
PUMP, DISPL, RECIP.
Graco 224344 Viscount I Displacement Pump

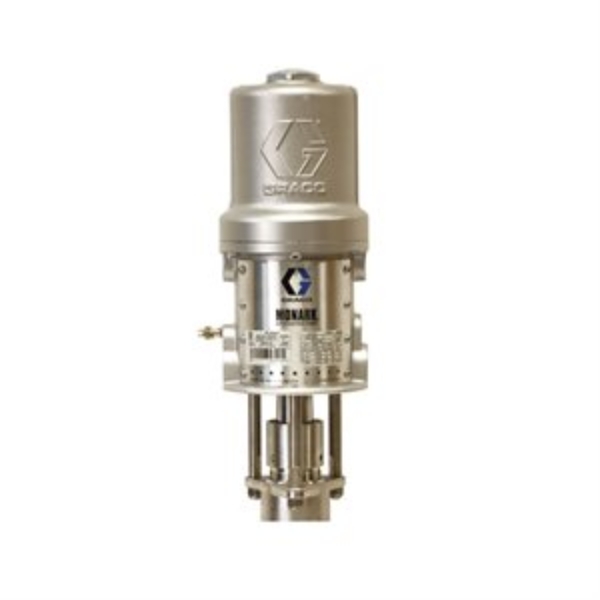

MONARK PUMP, 5:1
GG 224343
MONARK PUMP, 5:1
Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/PTFE Packings Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluidsPump Displ, Recip
GG 224341
PUMP, DISPL, RECIP
Graco 224341 Severe-Duty, UHMWPE/PTFE Packed Stainless Steel Displacement Pump
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
MONARK PUMP, 5:1
GG 224345
MONARK PUMP, 5:1
Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, UHMWPE/Neoprene Packings Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluidsPRESIDENT PUMP, 10:1
GG 224342
PRESIDENT PUMP, 10:1
President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby 2-ball pneumatic piston pumps for a wide range of applications. Reliable President air motor designed for low maintenance operation and long life Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids, including catalyzed materialsPresident 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby with Riser Tube, UHMWPE/Neoprene Packings
GG 224347
PRESIDENT PUMP, 10:1
Graco 224347 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby with Riser Tube, UHMWPE/Neoprene Packings
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
- Model: President
- Series: 2-Ball
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
- Fluid Outlet Size (in): 3/4
- Fluid Outlet Size (mm): 19.05
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stubby Length
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Operating Temperature ( degree C): 82
- Maximum Operating Temperature ( degree F): 180
- Maximum Working Pressure (bar): 25
- Maximum Working Pressure (kPa): 2500
- Maximum Working Pressure (MPa): 2.5
- Maximum Working Pressure (psi): 360
- Portable: Non-Portable
- Pump Ratio: 10:1
PRESIDENT PUMP, 10:1
GG 224346
PRESIDENT PUMP, 10:1
Graco 224346 President 10:1 Pneumatic 2-Ball Piston Pump, SST, Stubby, UHMWPE/Neoprene Packings
2-ball pneumatic piston pumps for a wide range of applications.
- Reliable President air motor designed for low maintenance operation and long life
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials
- Model: President
- Series: 2-Ball
- Air Inlet Size (in): 0.5
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Application: Supply
- Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
- Fluid Outlet Size (in): 1/2
- Fluid Outlet Size (mm): 12.7
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Fluid Section Type: 2-Ball
- Includes: Stubby Length
- Material: Stainless Steel
- Maximum Air Inlet Pressure (bar): 12.41
- Maximum Air Inlet Pressure (kPa): 1241
- Maximum Air Inlet Pressure (psi): 180
- Maximum Continuous Cycle Rate (CPM): 60
- Maximum Flow Rate (GPM): 3
- Maximum Flow Rate (L/min): 11.36
- Maximum Operating Temperature (°C): 82
- Maximum Operating Temperature (°F): 180
- Maximum Working Pressure (bar): 25
- Maximum Working Pressure (kPa): 2500
- Maximum Working Pressure (MPa): 2.5
- Maximum Working Pressure (psi): 360
- Portable: Non-Portable
- Pump Ratio: 10:1
Pump Fluid Section
GG 224349
PUMP, DISPL, RECIP
Graco 224349 Displacement Pump for 10:1 Ratio President Pump, Series A and Series C
- Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers, Waterborne
MONARK PUMP, 5:1
GG 224350
MONARK PUMP, 5:1
Monark 5:1 Pneumatic 2-Ball Piston Pump, SST, Drum Length, UHMWPE/PTFE Packings Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes. Drum and stubby length models available for mounting and application flexibility Positive displacement, 2-ball piston design provides uniform and easily controlled delivery Stainless steel or carbon steel models available to handle various fluids Fluid return stanchion for circulation back to the pump Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluidsKIT, UNION, SWIVEL, 45 DEG
GG 224399
KIT, UNION, SWIVEL, 45 DEG
45 Degree Adapter Connects to most airless spray guns or any Graco tip extension and can be used with a Pressure Roller or JetRoller.Kit, Repair
GG 224402
KIT, REPAIR
Graco 224402 Packing Repair Kit for Viscount I 1000 Pump
KIT, FILTER, 100 MESH
GG 224453
KIT, FILTER, 100 MESH
Graco 224453 Fluid Filter Kit, 5 pack, 100 mesh (.005 gap spacing) replacement fluid filters
Genuine Graco Fluid Filter. Refer to the parts manual for your sprayer to ensure part compatibility
Application: Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.- Graco Tech Support can further assist with troubleshooting sprayer operation
Kit, Repair
GG 224443
KIT, REPAIR
Graco 224443 Carbon Steel 1000 cc Lower Repair Kit for Model L10XCS
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish
KIT, FILTER, 60 MESH
GG 224454
KIT, FILTER, 60 MESH
G40 Gun Filter, 60 Mesh- 5-Pack Genuine Graco Filter. Refer to the parts manual for your sprayer to ensure part compatibility Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come. Graco Tech Support can further assist with troubleshooting sprayer operationKIT, STRAIGHT SWIVEL HIGH PRES
GG 224457
KIT, STRAIGHT SWIVEL HIGH PRES
Gun Swivel Attach this gun swivel to any airless spray gun providing a swiveling joint between gun and hose for improved maneuverability. 1/4 in npsm (m), 1/4 in npsm (f), Maximum Working Pressure of 3600 psi.Kit, Filter, 60 Mesh
GG 224459
Kit, Filter, 60 Mesh
Manifold Filter, Long, 60 mesh, 2 pk Using a standard pump manifold filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 60 mesh for materials such as latex primer, latex paints, and latex enamels.Kit, Filter, 30 Mesh
GG 224458
Kit, Filter, 30 Mesh
Manifold Filter, Long, 30 mesh, 2 pk Using a standard pump manifold filter is the easiest way to maximize spray performance while also saving time and money by extending the life of your equipment and reducing down time. Use 30 mesh for materials such as heavy latex, block filler, or elastomeric.Valve, Runway
GG 224040
Valve, Runway
3/4 in NPT Pump Runaway Valve Prevents pump damage by automatically closing the air line to stop the pump when a runaway pump condition occurs due to an empty barrel or hose leakREGULATOR BACK PRESSURE
GG 224486
REGULATOR BACK PRESSURE
Graco 224486 Corrosion Resistant Fluid Back Pressure Regulator, 300 Max psi, SST, Acetal & PTFE Wetted Parts, 1-1/4 (f) x 1-1/4 (f), with Gauge
Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand
- Stainless steel membrane diaphragm is highly wear resistant while maintaining accurate responsiveness
- Low Shear diaphragm valve has minimal restriction to reduce material degradation and color matching issues, especially with metallic paint
- Stainless steel wetted materials are compatible with catalyst and waterborne materials
- Compatible Material: Catalyst, Waterborne
- Gauge Port Size (cm): 0.635
- Gauge Port Size (in): 1/4
- Gauge Port Size (mm): 6.35
- Gauge Port Type: NPT
- Includes: Gauge
- Inlet Size (cm): 3.81
- Inlet Size (in): 1-1/2
- Inlet Size (mm): 38.1
- Inlet Thread Type: NPT
- Maximum Flow Rate (GPM): 20
- Maximum Flow Rate (L/min): 75
- Maximum Regulated Pressure (bar): 14
- Maximum Regulated Pressure (kPa): 1400
- Maximum Regulated Pressure (psi): 200
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 21
- Maximum Working Pressure (kPa): 2100
- Maximum Working Pressure (psi): 300
- Minimum Regulated Pressure (bar): 1
- Minimum Regulated Pressure (kPa): 100
- Minimum Regulated Pressure (MPa): 0.1
- Minimum Regulated Pressure (psi): 15
- Outlet Size (cm): 3.81
- Outlet Size (in): 1-1/2
- Outlet Size (mm): 38.1
- Outlet Thread Type: NPT
