GRACO INC. S10595

GG 215393

GG 215336

KIT, REPAIR, PUMP, SST

Graco 215336 Stainless Steel Displacement Repair Kit

• Compatible Material: Solventborne

GG 215622

GG 215637

GG 217072

GG 217382

HOSE, COUPLED, 10 FT

Graco 217382 Coupled Fluid Hose, 3/4 npt, 3/4 in ID, 10 ft, Nylon

GG 215946

GG 215906

GG 217297

GG 215947

GG 21675-00

VALVE, CHECK, 3/8NPT

Graco 21675-00 3/8 in NPT Resin Check Valve

• Compatible Material: Resin

• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

GG 215932

GG 217102

VALVE, INTAKE

Graco 217102 Intake Valve for Displacement Pump 215956, Series C

• Color: Grey

GG 217430

GG 217189

ROD, DISPLACEMENT

Graco 217189 Displacement Rod for 1:1 Ratio Fast-Flo Pumps

GG 217367

GG 21664-00

VALVE, CHECK

Graco 21664-00 Solvent/Air Purge Check Valve

• Compatible Material: Solvent Purge, Air Purge

GG 217476

GG 21660-00

GG 217478

ROD, DISPLACEMENT

Graco 217478 Displacement Rod

GG 217531

KIT, REPAIR

Graco 217531 10:1 Ratio Monark Pump Repair Kit

GG 217520

GG 217540

GG 217576

REGULATOR, PRESSURE

Graco 217576 High Pressure Fluid Regulator, 3000 Max psi, 200-1000 psi Range, 3.5 GP (m), SST, Spring Type, 3/8 (f) x 1/4 (f), 1/4 (f) Port

For use in airless spray systems to control and regulate fluid pressure to one spray gun, dispensing valve, or atomizing head

• Tungsten and carbide materials ensure low wear and long life
• Plated carbon steel housing is compatible with solvent-borne materials
• Laser-marked indication lines for easy pressure adjustment and process control

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3.5
• Maximum Flow Rate (L/min): 13.25

• Maximum Regulated Pressure (bar): 70
• Maximum Regulated Pressure (kPa): 7000
• Maximum Regulated Pressure (MPa): 7
• Maximum Regulated Pressure (psi): 1000

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 21
• Maximum Working Pressure (psi): 3000

• Minimum Regulated Pressure (bar): 14
• Minimum Regulated Pressure (kPa): 1400
• Minimum Regulated Pressure (MPa): 1.4
• Minimum Regulated Pressure (psi): 200

• Outlet Size (cm): 0.635
• Outlet Size (in): 1/4
• Outlet Size (mm): 6.35
• Outlet Thread Gender: Female

GG 217580

PRESIDENT PUMP, 15:1

Graco 217580 President 15:1 Pneumatic 2-Ball Piston Pump, CS, Stubby Length

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 1.8
• Maximum Flow Rate (L/min): 6.81

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 400

• Portable: Non-Portable

• Pump Ratio: 15:1

GG 218029

GG 217314

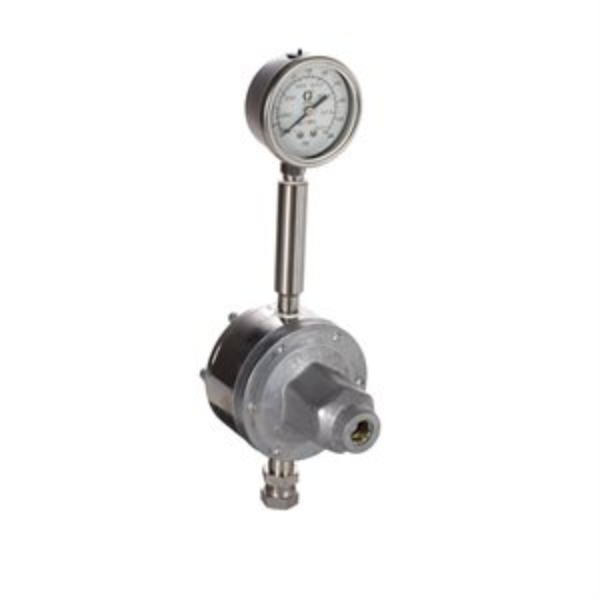

REGULATOR, PRESS, FLUID

Graco 217314 Low Pressure Fluid Regulator, 250 Max psi, 20-160 psi Range, 3.0 GP (m), SST, Spring Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 11
• Maximum Regulated Pressure (kPa): 1100
• Maximum Regulated Pressure (MPa): 1.1
• Maximum Regulated Pressure (psi): 160

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 1.4
• Minimum Regulated Pressure (kPa): 140
• Minimum Regulated Pressure (MPa): 0.14
• Minimum Regulated Pressure (psi): 20

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

GG 218122

KIT, REPAIR, MOTOR

GG 218131

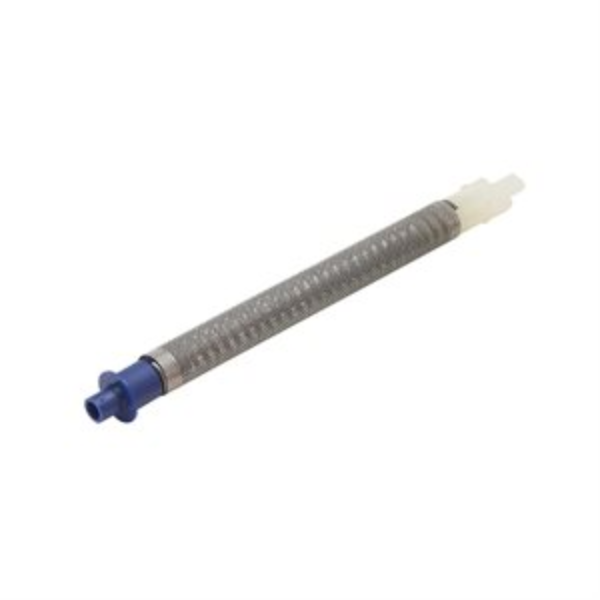

FILTER, GUN, LATEX

Graco 218131 Gun Filter Assembly, 50 mesh

The Gun Filter helps reduce tip plugging and provides a better quality finish by eliminating unwanted particles from the spray pattern. Use 50 mesh for materials such as primer and latex paint.

• Model: Graco

• For Use With: Original Contractor Gun, SG2 Spray Gun, SG3 Spray Gun

• Mesh Size: 50

• Number of Pieces: 1

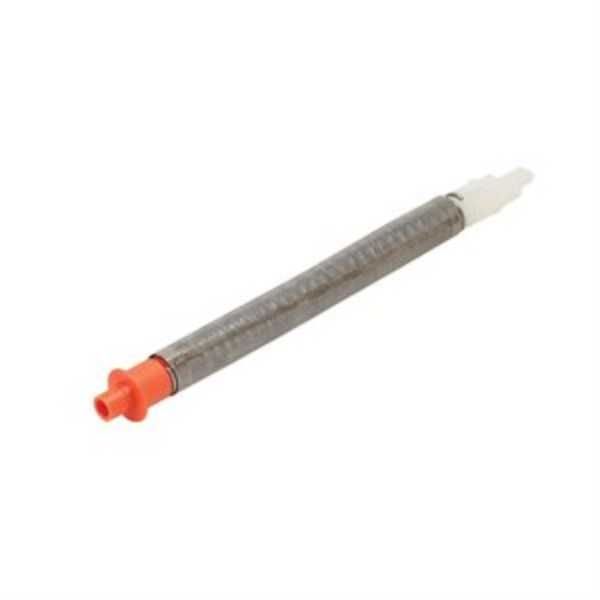

GG 218133

KIT, FILTER, GUN, CONTRT

Graco 218133 Gun Filter Assembly, 100 mesh

The Gun Filter helps reduce tip plugging and provides a better quality finish by eliminating unwanted particles from the spray pattern. Use 100 mesh for thinner materials such as stain and lacquer.

• Model: Graco

• For Use With: Original Contractor Gun, SG2 Spray Gun, SG3 Spray Gun

• Mesh Size: 100

• Number of Pieces: 1

GG 215964

GG 218135

GG 218210

GG 218316

GG 218334

BULLDOG PUMP, BOP 43:1

Graco 218334 Bulldog 43:1 Hydraulic Supply Pump

The Bulldog 43:1 air-powered pump, with its efficient, large ported air valve, is the highest-performing in its class. Downtime is minimized by an air motor design that has been developed and tested for more than 10 million cycles of operation.

• Model: Bulldog

• Air Inlet Size (in): 0.75
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Application: Industrial

• Compatible Material: Oil

• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female

• For Use With: Petroleum- and syntheticbased oils (motor, gear, hydraulic and ATF)

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 26.5
• Maximum Flow Rate (L/min): 100.31

• Maximum Working Pressure (bar): 301
• Maximum Working Pressure (kPa): 30100
• Maximum Working Pressure (MPa): 30.1
• Maximum Working Pressure (psi): 4300

• Pump Ratio: 43:1

GG 218374

KIT, ACCESSORY, COVER, GUN

Graco 218374 Gun Cover, Package of 10

• Compatible Material: Non Abrasive

GG 218670

GG 218656

GG 218560

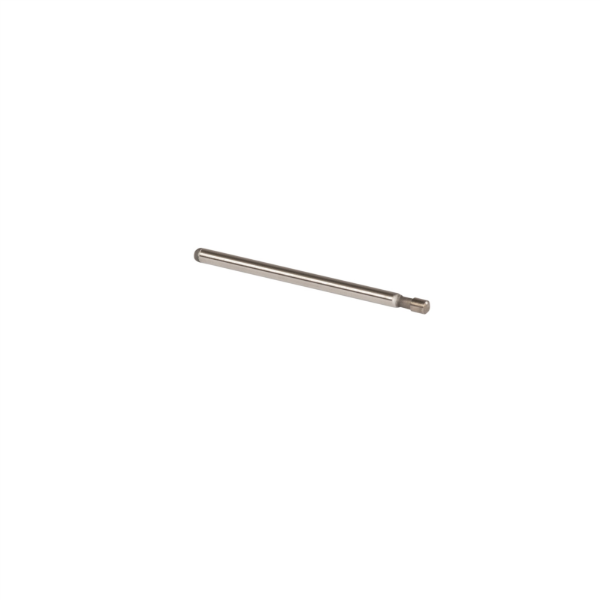

NEEDLE, FLUID

Graco 218560 Fluid Needle for Color Change Valve

GG 218741

GG 218689

GG 218675

GG 217211

GG 218747

PRESIDENT PUMP, 3:1

Graco 218747 President 3:1 Pneumatic 2-Ball Piston Pump, SST, Stubby Length

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 37.85

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 328
• Maximum Working Pressure (kPa): 32800
• Maximum Working Pressure (MPa): 32.8
• Maximum Working Pressure (psi): 4600

• Portable: Non-Portable

• Pump Ratio: 3:1

GG 218795

PRESIDENT PUMP, 3:1 (55 GAL SST)

Graco 218795 President 3:1 Pneumatic 2-Ball Piston Pump, CS, Drum Length

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Drum Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 37.85

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 124
• Maximum Working Pressure (kPa): 12400
• Maximum Working Pressure (MPa): 12.4
• Maximum Working Pressure (psi): 1800

• Portable: Non-Portable

• Pump Ratio: 3:1

GG 218956

MONARK PUMP, 5-1

Graco 218956 Monark 5:1 Pneumatic 2-Ball Piston Pump, Carbon Steel

Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, Solvent borne and waterborne fluids, stains, lacquers and varnishes.

• Drum and stubby length models available for mounting and application flexibility
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids
• Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids

• Model: Monark
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Drum Length

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 12.41
• Maximum Air Inlet Pressure (kPa): 1241
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2.1
• Maximum Flow Rate (L/min): 7.95

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 14
• Maximum Working Pressure (kPa): 1400
• Maximum Working Pressure (MPa): 1.4
• Maximum Working Pressure (psi): 200

• Portable: Non-Portable

• Pump Ratio: 5:1

GG 218966

KIT, REPAIR

Graco 218966 Color Change Valve Repair Kit, includes packing toll and packing nut tool

GG 218112

GG 21960-01

GG 220139

KIT,REPAIR,REGULATOR

Graco 220139 Repair Kit for High Pressure Fluid Regulators

GG 220135

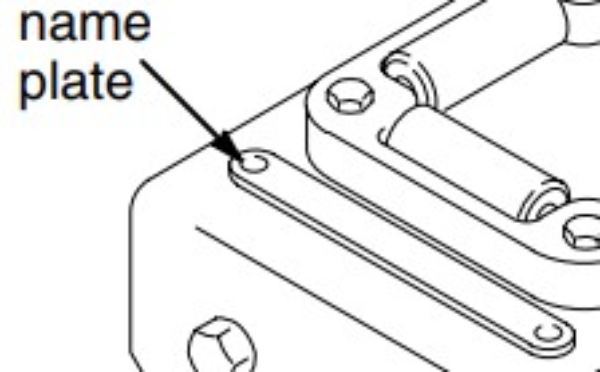

KIT, ACCESSORY

Graco 220135 Repair Kit for Carbon Steel High Pressure Regulators 206819 and 222405

GG 220157

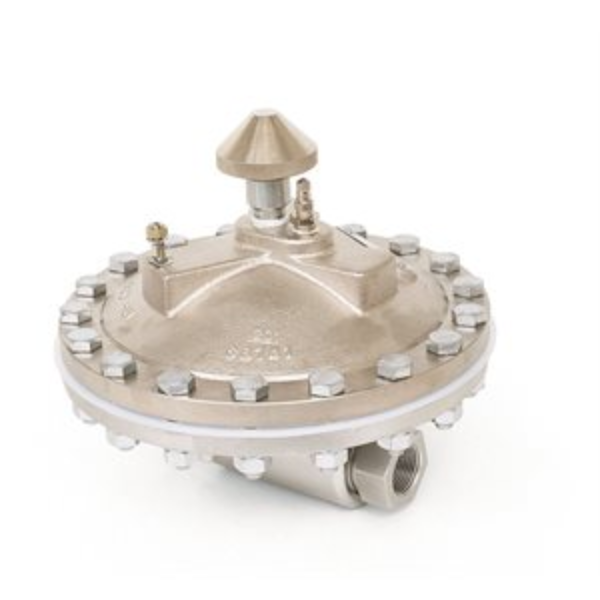

TANK, SURGE (SST)

Graco 220157 Medium Volume Surge Tank, stainless steel, inlet/outlet: 1 npt(f) x 1-1/4 npt(f)

Reduces pulsation for consistent material delivery and uniform spray pattern. Ideal for medium volume flow rate systems.

• Stainless steel and PTFE materials are compatible with a variety of finishing materials
• In-line flow configuration is easy to flush, making color changes quick and easy
• Multiple fluid connection options accommodate global system requirements

GG 220170

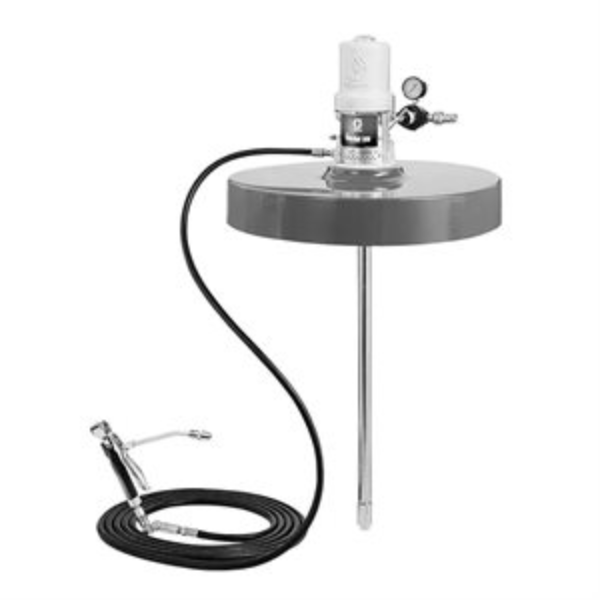

LUBRICATOR, SYS, FB, 15-1

Graco 220170 Fire-Ball 300 Series 15:1 120 lb. (54 kg) Grease Pump - Stationary Pail Dispenser Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Oil

• Container Size (lb): 120

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Dispense Kit, Cover

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (GPM): 0.7

• Maximum Fluid Working Pressure (psi): 2700

• Maximum Working Pressure (bar): 186
• Maximum Working Pressure (kPa): 18600
• Maximum Working Pressure (MPa): 18.6
• Maximum Working Pressure (psi): 2700

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 15:1
• Pump Weight (lb): 22

GG 22017-01

GG 220171

LUBRICATOR, SYS, FB, 15-1

Graco 220171 Fire-Ball 300 Series 15:1 400 lb. (181 kg) Grease Pump - Stationary Pail Dispenser Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Oil

• Container Size (lb): 400

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Dispense Kit, Cover

• Maximum Air Working Pressure: 180

• Maximum Flow Rate (GPM): 0.7

• Maximum Fluid Working Pressure (psi): 2700

• Maximum Working Pressure (bar): 186
• Maximum Working Pressure (kPa): 18600
• Maximum Working Pressure (MPa): 18.6
• Maximum Working Pressure (psi): 2700

• Motor Type: Pneumatic

• Power Type: Pneumatic

• Pump Ratio: 15:1
• Pump Weight (lb): 22

GG 22017-03

GG 220194

NEEDLE, VALVE,FLUID

Graco 220194 Needle for Air-Operated Dispensing Valves

GG 220247

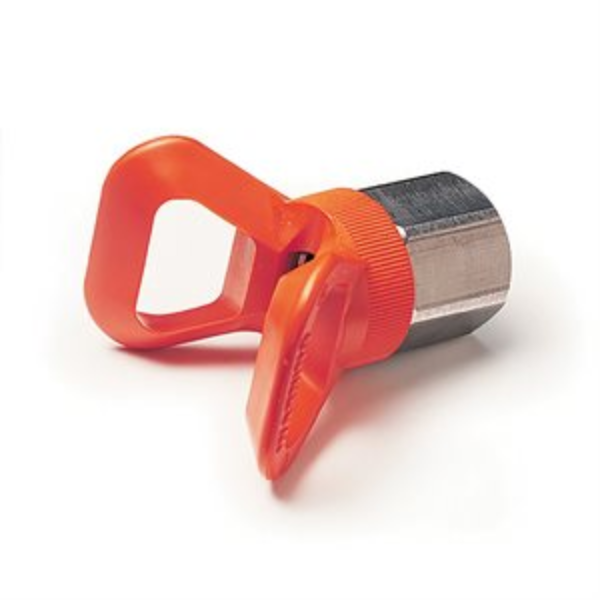

GUARD, TIP

Graco 220247 Fine Finish Flat Tip Guard

The Fine Finish Flat Tip Guard helps to eliminate paint build-up, dripping and spitting. It also helps to provide safer spraying at higher pressures. Its finger grip design makes it easy to attach or remove without the need for tools. For use with Fine Finish Flat Tips.

• Model: Graco
• Series: Flat Tip Guard

• Compatible Thread Size (in): 0.875
• Compatible Thread Size (mm): 22
• Compatible Tip Type: Flat Tip

• For Use With: Fine Finish Flat Tip

• Maximum Working Pressure (bar): 279
• Maximum Working Pressure (kPa): 27905
• Maximum Working Pressure (psi): 4050

GG 220195

NEEDLE, FLUID

Graco 220195 Needle for Hydra Spray Guns, supplied in repair kit 747096, 214841 & 214968

GG 220255

GG 22029-00

GG 220373

GG 220395

GG 220396

GG 218964

VALVE, COLOR CHANGER

Graco 218964 SST Bare Valve for Color Changer Valve Assembly

GG 220251

GUARD, TIP/7/8

Graco 220251 Flat Tip Guard

The Flat Tip Guard helps to eliminate paint build-up, dripping and spitting. It also helps to provide safer spraying at higher pressures. Its finger grip design makes it easy to attach or remove without the need for tools. For use with Contractor Flat Tips.

• Model: Flat Tip

• Compatible Thread Size (in): 0.875
• Compatible Thread Size (mm): 22
• Compatible Tip Type: Flat Tip

• For Use With: Contractor Flat Tip

• Maximum Working Pressure (bar): 345
• Maximum Working Pressure (kPa): 34450
• Maximum Working Pressure (psi): 5000

GG 220587

KIT, REPAIR, PUMP SEAL

Graco 220587 High Flo Pump UHMWPE Seal Kit

GG 220899

PISTON, REGULATOR

GG 220399

GG 220457

KIT, REPAIR

Graco 220457 Viscount II Hydraulic Motor Repair Kit for Models 210107, 217022 & 217338

GG 220588

KIT, REPAIR, PUMP SEAL

Graco 220588 UHMWPE Seal Kit for High-Flo Pumps

GG 220667

GLUTTON PUMP, (12:1 SST)

Graco 220667 Glutton 12:1 Bellows Pump, SST, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 2
• Maximum Flow Rate (L/min): 7.57

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 83
• Maximum Working Pressure (kPa): 8300
• Maximum Working Pressure (MPa): 8.3
• Maximum Working Pressure (psi): 1200

• Portable: Non-Portable

• Pump Ratio: 12:1

GG 220948

GG 221118

REGULATOR, PRESS, FLUID

Graco 221118 Low Pressure Fluid Regulator, 250 Max psi, 20-160 psi Range, 3.0 GPM, SST, Spring Type, 3/8 (f) x 3/8 (m), 1/4 (f) Port

Fluid regulators keep your system functioning more productively

• Available with mechanical control or pneumatic control
• Suitable for fluids with low and high viscosities
• Models available with wetted parts made of stainless steel

• Actuation Type: Spring

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 11
• Maximum Regulated Pressure (kPa): 110
• Maximum Regulated Pressure (MPa): 1.1
• Maximum Regulated Pressure (psi): 160

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 1.5
• Minimum Regulated Pressure (kPa): 150
• Minimum Regulated Pressure (MPa): 0.15
• Minimum Regulated Pressure (psi): 20

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525

GG 22121-4

GG 220593

GG 221075

PRESIDENT PUMP, 30-1

Graco 221075 President 30:1 Pneumatic 2-Ball Piston Pump, CS, Drum Length

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 9.525
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Drum Length

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 1
• Maximum Flow Rate (L/min): 3.79

• Maximum Operating Temperature ( degree C): 82
• Maximum Operating Temperature ( degree F): 180

• Maximum Working Pressure (bar): 25
• Maximum Working Pressure (kPa): 2500
• Maximum Working Pressure (MPa): 2.5
• Maximum Working Pressure (psi): 360

• Portable: Non-Portable

• Pump Ratio: 30:1

GG 220666

GLUTTON PUMP, (4:1 SST)

Graco 220666 Glutton 4:1 Bellows Pump, SST, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Circulation

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 5.6
• Maximum Flow Rate (L/min): 21.2

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 400

• Portable: Non-Portable

• Pump Ratio: 4:1

GG 220663

GLUTTON PUMP, (4:1 CS)

Graco 220663 Glutton 4:1 Bellows Pump, CS, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

GG 220668

GLUTTON PUMP, (25:1 SST)

Graco 220668 Glutton 25:1 Bellows Pump, SST, UHMWPE Seals

The Glutton plunger pump is ideal for air assisted and airless spray applications. It features a bellows seal that virtually eliminates the possibility of air or moisture contaminating the fluid. Pump ratios include 4:1, 12:1 and 25:1

• Bellows seal design provides low maintenance with no seals exposed to the atmosphere and eliminates conventional throat seals, providing high reliability for moisture-sensitive materials
• Designed to handle a broad range of applications, including abrasive materials
• Reversible outlet manifold simplifies plumbing installations

• Model: Glutton
• Series: Bellows

• Air Inlet Size (in): 0.5
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, Metallics, UV Coating, Stains, Varnish, CARC

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: Sealed

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.41

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 172
• Maximum Working Pressure (kPa): 17200
• Maximum Working Pressure (MPa): 17.2
• Maximum Working Pressure (psi): 2500

• Portable: Non-Portable

• Pump Ratio: 25:1

GG 220465

MONARK PUMP,5:1,LOWER

Graco 220465 Displacement Pump for 5:1 Ratio Monark Pump

GG 220586

KIT, REPAIR, THROAT PKG

Graco 220586 Throat Packing Repair Kit for High Flo Pump

GG 220862

KIT, REPAIR

Graco 220862 Repair Kit with PTFE packings for 207242 Displacement Pump used on 10:1 Bulldog and 20:1 King Pumps

GG 220927

KIT, REPAIR

Graco 220927 Displace Pump Repair Kit

• Color: Grey

GG 220491

GG 220590

GG 222019

GG 222058

GG 222061

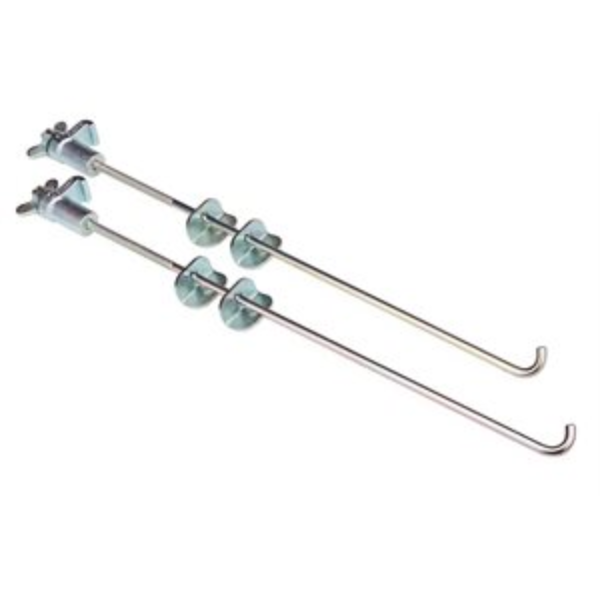

KIT, HOLD DOWN

Graco 222061 Hold Down Kit

• For Use With: Fireball Grease Pumps, King, Bulldog, and Viscount Pump Carts

• Includes: Rod, Bracket, Anchor, Wing Nut

GG 222063

GG 222062

GG 222071

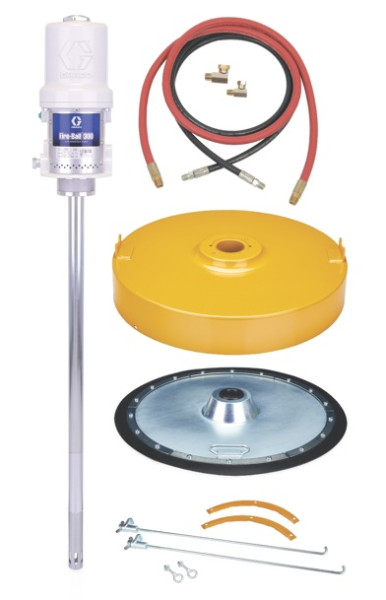

FIREBALL 300 PUMP, 50:1

Graco 222071 Fire-Ball 300 Series 50:1b 400 lb. (181 kg) Grease Pump - Lube Truck Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 400

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit

• Maximum Air Working Pressure: 180

• Maximum Working Pressure (bar): 350
• Maximum Working Pressure (kPa): 35000
• Maximum Working Pressure (MPa): 35
• Maximum Working Pressure (psi): 5000

• Motor Type: Pneumatic

• Mount Location: Drum Mount, Truck Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

GG 220656

KIT, REPAIR (AIR VALVE)

Graco 220656 Legacy Air Valve and Pilot Valve Repair Kit for 400, 1200and 2500 Series Glutton Pumps

• Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

GG 222073

FIREBALL 300 PUMP, TOPPER, 50:1

Graco 222073 Fire-Ball 300 Series 50:1 120 lb. (54 kg) Grease Pump - Stationary Supply Topper-Inductor Package

As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

• Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
• Durable - Thick cast aluminum air motor housing offers unmatched durability.
• Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
• Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
• Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated " dirty" air environments for long life without repair.
• Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
• Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

• Model: Fire-Ball
• Series: 300

• Air Inlet Size (in): 0.375
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Drum Size (gal): N/A

• Compatible Material: Grease

• Container Size (lb): 120

• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Inlet Type: Slotted

• Fluid Outlet Size (cm): 0.635
• Fluid Outlet Size (in): 1/4
• Fluid Outlet Size (mm): 6.35
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Includes: Fireball 50:1 300 Pump, Topper Unit

• Maximum Air Working Pressure: 180

• Maximum Working Pressure (bar): 579
• Maximum Working Pressure (kPa): 57876
• Maximum Working Pressure (MPa): 57.9
• Maximum Working Pressure (psi): 8400

• Motor Type: Pneumatic

• Mount Location: Drum Mount

• Power Type: Pneumatic

• Pump Ratio: 50:1
• Pump Weight (lb): 22

GG 2001999

GG 2004147

STELLAIR GUN, CONV (.042)

Graco 2004147 Stellair Air Spray Gun, Conventional, 0.040 in (1.0 mm), General Industry, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• Conventional is the traditional air spray method, producing Class A, automotive finish quality.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Ergonomically designed spray gun body, handle and finger rests comfortably fit in any painter's hand.
• One piece fluid cartridge can be

GG 2004149

STELLAIR GUN, CONV (.086)

Graco 2004149 Stellair Air Spray Gun, Conventional, 0.086 in (2.2 mm), General Industry, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• Conventional is the traditional air spray method, producing Class A, automotive finish quality.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Swivel and hose move with you at any angle, preventing tripping and injury.
• Quick release trigger and quick connect retaining ring mean

GG 2004151

STELLAIR GUN, HVLP (.042)

Graco 2004151 Stellair Air Spray Gun, HVLP, 0.042 in (1.1 mm), General Industry, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Swivel and hose move with you at any angle, preventing tripping and injury

GG 2004153

STELLAIR GUN, HVLP (.070)

Graco 2004153 Stellair Air Spray Gun, HVLP, 0.070 in (1.8 mm), General Industry, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• High volume low pressure (HVLP) air spray produces a controlled, low velocity spray pattern that reduces bounce back and overspray, while meeting environmental regulations.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Even balance, light weight, and easy trigger pull help reduce fatigue and

GG 2004155

STELLAIR GUN, COMP (.055)

Graco 2004155 Stellair Air Spray Gun, Compliant, 0.055 in (1.4 mm), General Industry, PEEK Tip

Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

• Compliant air spray reduces bounce back and overspray, while delivering high finish quality and transfer efficiency.
• General industry air cap produces a uniform, high quality spray pattern with low atomizing pressure that reduces air cap build-up.
• Polyetheretherketone (PEEK) needle tip withstands active use, increasing uptime between service intervals.
• Swivel and hose move with you at any angle, preventing tripping and injury.
• One piece fluid cartridge can be removed
