3:1 President Pump, SS, Stubby

GG 218747

PRESIDENT PUMP, 3:1

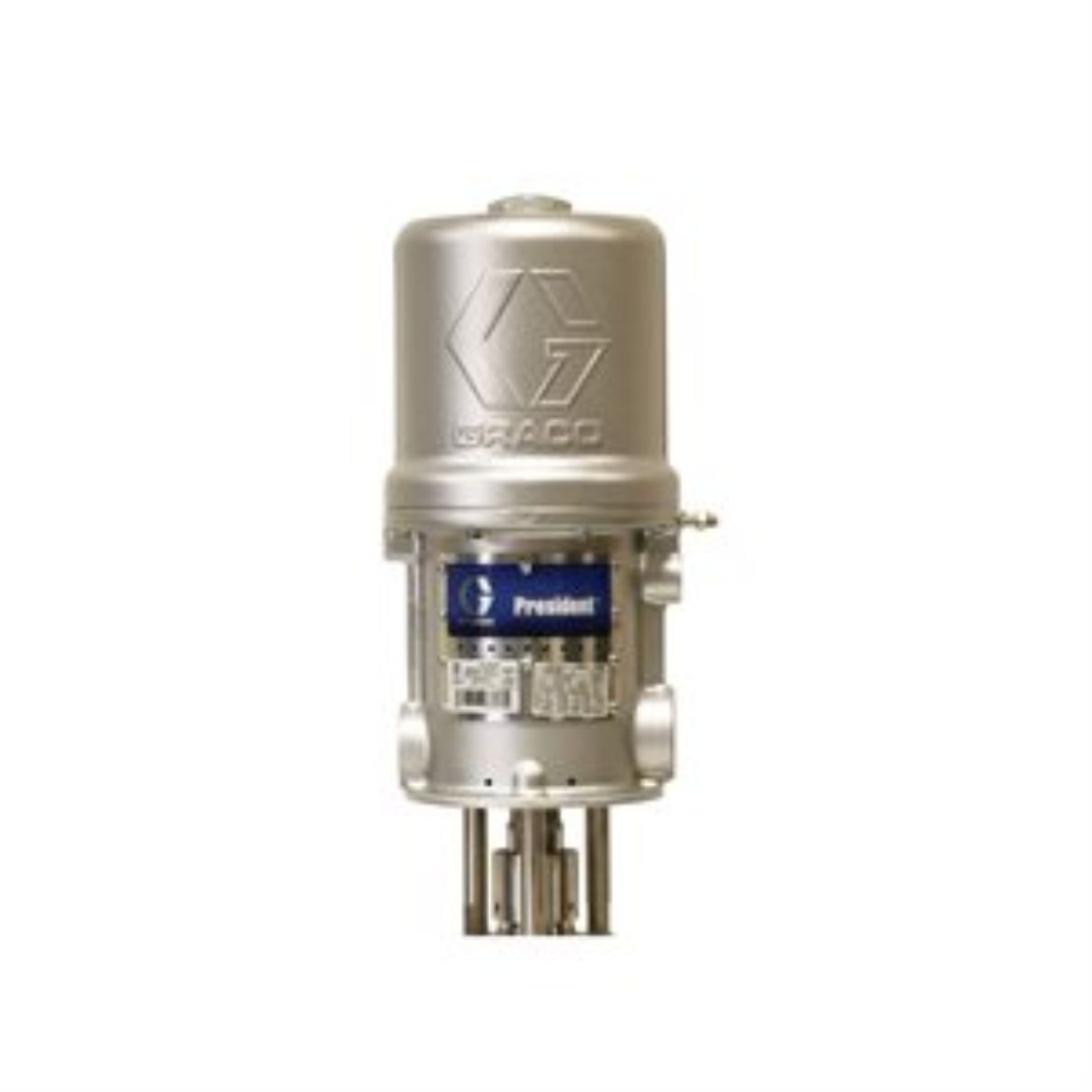

Graco 218747 President 3:1 Pneumatic 2-Ball Piston Pump, SST, Stubby Length

2-ball pneumatic piston pumps for a wide range of applications.

• Reliable President air motor designed for low maintenance operation and long life
• Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
• Stainless steel or carbon steel models available to handle various fluids, including catalyzed materials

• Model: President
• Series: 2-Ball

• Air Inlet Size (in): 3/8
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM

• Application: Supply

• Compatible Material: Waterborne, Solvent borne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stubby Length

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 8.27
• Maximum Air Inlet Pressure (kPa): 827
• Maximum Air Inlet Pressure (psi): 120

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 10
• Maximum Flow Rate (L/min): 37.85

• Maximum Operating Temperature (°C): 82
• Maximum Operating Temperature (°F): 180

• Maximum Working Pressure (bar): 328
• Maximum Working Pressure (kPa): 32800
• Maximum Working Pressure (MPa): 32.8
• Maximum Working Pressure (psi): 4600

• Portable: Non-Portable

• Pump Ratio: 3:1
