BULLDOG PUMP, BOP 43:1

GG 218334

BULLDOG PUMP, BOP 43:1

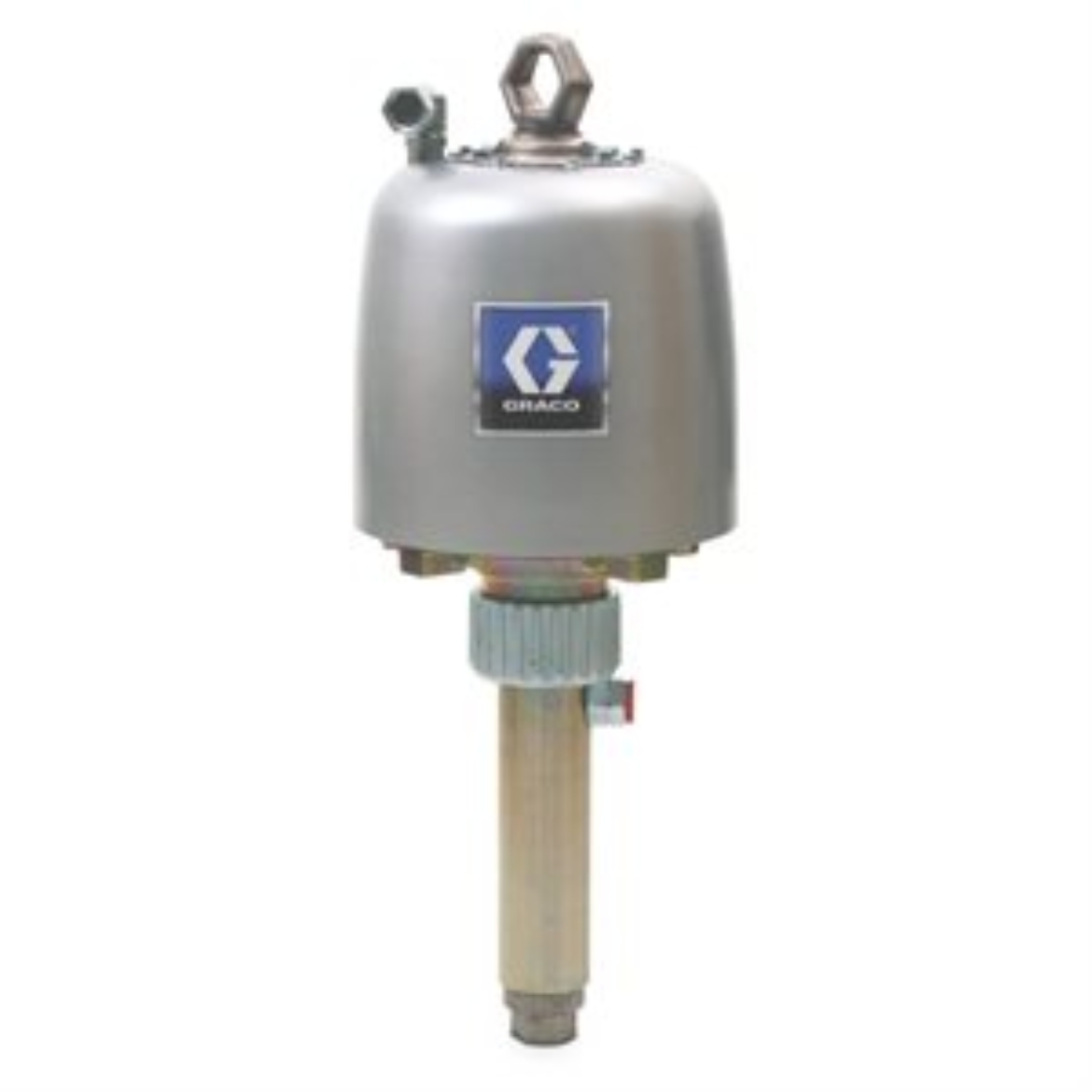

Graco 218334 Bulldog® 43:1 Hydraulic Supply Pump

The Bulldog 43:1 air-powered pump, with its efficient, large ported air valve, is the highest-performing in its class. Downtime is minimized by an air motor design that has been developed and tested for more than 10 million cycles of operation.

• Model: Bulldog
• Air Inlet Size (in): 0.75
• Air Inlet Size (mm): 12.7
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPSM
• Application: Industrial
• Compatible Material: Oil
• Fluid Inlet Size (in): 1
• Fluid Inlet Size (mm): 25.4
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: NPT
• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• For Use With: Petroleum- and syntheticbased oils (motor, gear, hydraulic and ATF)
• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100
• Maximum Flow Rate (GPM): 26.5
• Maximum Flow Rate (L/min): 100.31
• Maximum Working Pressure (bar): 301
• Maximum Working Pressure (kPa): 30100
• Maximum Working Pressure (MPa): 30.1
• Maximum Working Pressure (psi): 4300
• Pump Ratio: 43:1
