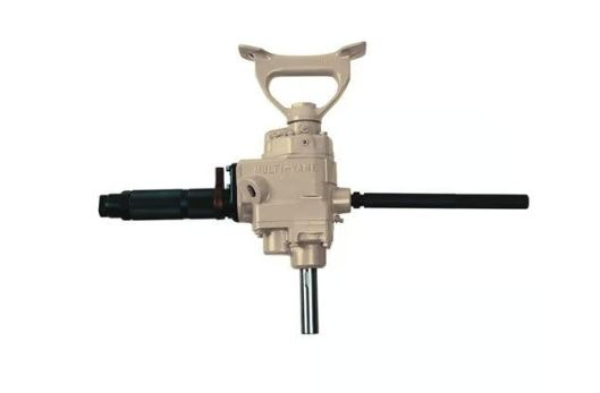

LARGE DRILL - 155 RPM
IR 44SMA
IR 44SMA
Large Air Drill, Reversible Roll Throttle, 155 RPM, 3.6HP, No. 4 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses: These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 102
Air Consumption (l/min): 2889
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 2
Capacity in Steel Reaming (in): 2
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 18.25
Length of Feed (in): 4.25
Max Free Speed (rpm): 155
Max Power (hp): 3.6
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 43.75
Reversible: Reversible
Side to Center Distance (in): 2.31
Side to Center Distance (mm): 59
Sound Pressure/Power Db(A): 96 / 107
Spindle Type: No. 4 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 551SMA
- 33SMA
$14,896.00

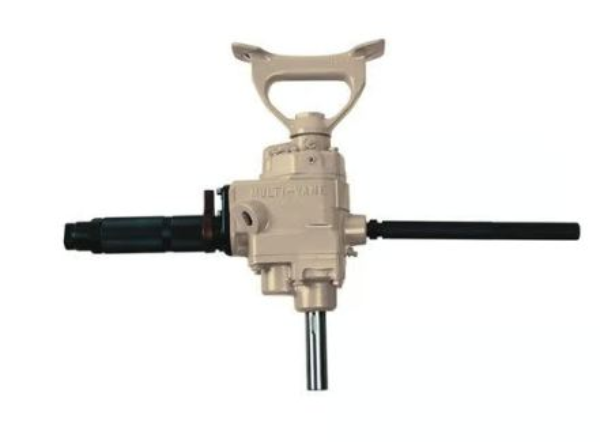

LG.DRILL-120 RPM-RL THRTL
IR 551SMA
IR 551SMA
Large Air Drill, Reversible Roll Throttle, 120 RPM, 5.6HP, No. 5 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses: These reversible multi-vane drills are designed for heavy drilling and reaming. The base mounted motors are designed for heavy duty applications requiring air power in the 5hp (3.75kW) range.
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 160
Air Consumption (l/min): 4531
Air Inlet: 1" NPT
Capacity in Steel Drilling (in): 3
Capacity in Steel Reaming (in): 2-1/2
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 21.88
Length of Feed (in): 5
Max Free Speed (rpm): 120
Max Power (hp): 5.6
Min Hose Size (in): 1
Power Source: Air Powered
Product Weight (lb): 69.5
Reversible: Reversible
Side to Center Distance (in): 2.94
Side to Center Distance (mm): 75
Sound Pressure/Power Db(A): 100.8 / 111.8
Spindle Type: No. 5 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 551S0A
- 22MA2
- 33SMA
$14,420.00

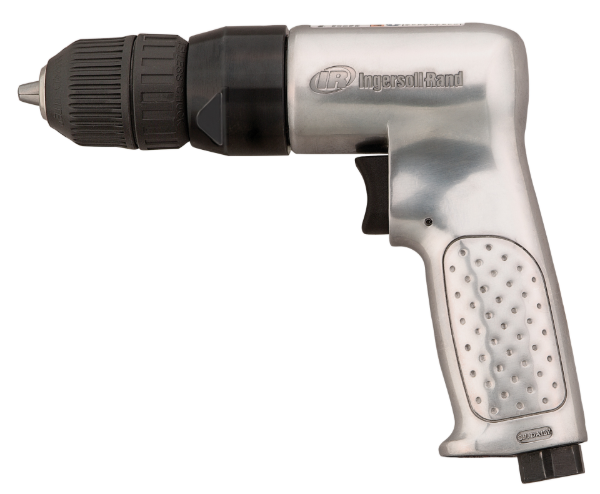

3/8" REVERSIBLE DRILL KEYLESS CHUCK, ATEX
IR 7802RAKCEX
IR 7802RAKCEX
3/8" Keyless Chuck Air Drill, 2000 RPM, 0.5 HP, 43in-lb Torque, Pistol
When it comes to getting the toughest jobs done, professionals around the world choose Ingersoll Rand for tools specifically designed to meet safety regulations for working in dangerous atmospheres. From petrochemical refineries to plastic manufacturers, Ingersoll Rand offers safe and productive solutions to meet the demands of our customers, because making tools that can’t work where our customers work is not an option. 7802RAKCEX is a classic pistol grip air drill, specifically designed to meet ATEX Zone 1 or Zone 2 requirements and is great for honing, reaming or drilling holes.Features And Benefits
- Performance: 2,000 RPM, 0.5 HP, Keyless Chuck, 2.5 lbs, and 6.4” Long.
- Reversible: The 3/8” Air Drill allows you to choose between forward and reverse.
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.
- ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
- ISO 80079-36 Certified
Includes: 3/8 Chuck
Product Application and Uses: Great For Honing, Reaming Or Drilling Holes.
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 24.3
Air Consumption @ Load (l/min): 841
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 29.7
Average Air Consumption (l/min): 841
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Atex/Hazardous Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 5.05
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 3.6
Max Torque (in-lb): 43
Max Torque (nm): 4.86
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 6.5
Product Width (in): 7.09
Product Height (in): 6
Product Weight (lb): 2.9
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.91
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36
Vibration Level (m/s2): 2.8
Warranty: 1-year
Similar IR
- 7802A
- 7802RAKC
- 7807R-A
- 6AMST6
- D3141-K22
$218.40

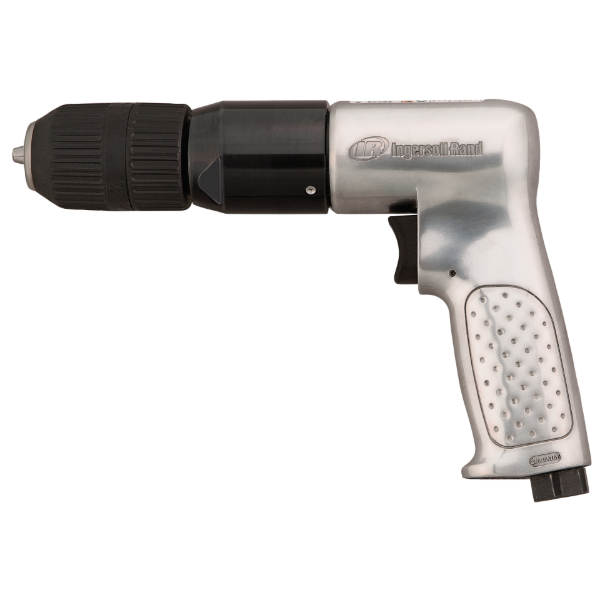

REVERSIBLE DRILL, 1/2" KEYLESS CHUCK, ATEX
IR 7803RAKCEX
IR 7803RAKCEX
1/2" Keyless Chuck Air Drill, 500 RPM, 0.5 HP, 161in-lb Torque Pistol
When it comes to getting the toughest jobs done, professionals around the world choose Ingersoll Rand for tools specifically designed to meet safety regulations for working in dangerous atmospheres. From petrochemical refineries to plastic manufacturers, Ingersoll Rand offers safe and productive solutions to meet the demands of our customers, because making tools that can’t work where our customers work is not an option. 7803RAKCEX is a classic pistol grip air drill, specifically designed to meet ATEX Zone 1 or Zone 2 requirements and is great for honing, reaming or drilling holes.Features And Benefits
- Performance: 2,000 RPM, 0.5HP, Keyless Chuck, 2.5 lbs, and 6.4” Long.
- Reversible: The 1/2” Air Drill allows you to choose between forward and reverse.
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.
- ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
- ISO 80079-36 Certified
Includes: 1/2 Chuck, 7816-A48 Side Handle
Product Application and Uses: Great For Honing, Reaming Or Drilling Holes.
Actuation/Throttle Type/Switch Type: Feather-touch Trigger
Air Consumption @ Load (cfm): 26.1
Air Consumption @ Load (l/min): 891
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 31.58
Average Air Consumption (l/min): 891
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Atex/Hazardous Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.05
Housing Material: Aluminum
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 13
Max Torque (in-lb): 161
Max Torque (nm): 18.19
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 1/4
Nominal Drilling Capabilities (Steel 1213): 3/16
Nominal Drilling Capabilities (Stnls Steel Type 34): 3/32
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 8.7
Product Width (in): 7.24
Product Height (in): 2
Product Weight (lb): 3.3
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.91
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83.0 / 94.0
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Standards/Certifications: Atex 2014/34/Eu, Ex H Iia T6 Gb X, Iso 80079-36
Vibration Level (m/s2): < 2.5
Warranty: 1-year
Similar IR
- 7803RA
- 7803RAKC
- 7803A
$401.20
