Drills

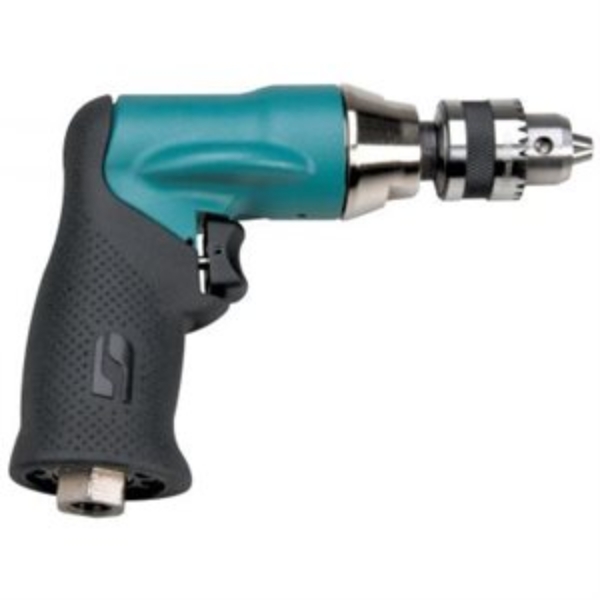

1/4in Drill .4 hp, 2400 Rpm, Pistol Grip, Geared, Rear Exhaust, DynaChuck
DY 52833
DY 52833
1/4in Drill.4 hp, 2,400 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck
.4 hp (298 W) Pistol Grip Drill offered in ergonomic Dynabrade design, with comfortable textured tactile grip. Powerful high-torque, geared air motor is ideal for countless industrial applications.
Finger platform on both sides of tool allows increased stability and comfort.
- HP: 0.4
- Max. RPM: 2400.0
- Motor RPM: 2,400
$644.40
38in Drill, 7Hp, 4500Rpm, Pistol-Grip, Geared, RE, Keyed Jacobs Chuck

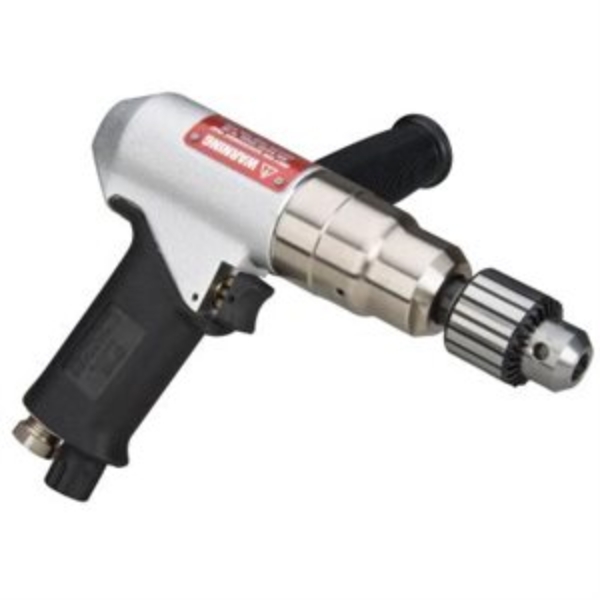

DY 53095
DY 53095
3/8in Drill.7 hp, 4,500 RPM, Pistol-Grip, Geared, Rear Exhaust, Keyed Jacobs Chuck
Includes 3/8in drill chuck and key.
High-torque air motor. slow-speed startup trigger.
- HP: 0.7
- Max. RPM: 4500.0
- Motor RPM: 4500
$998.10
LARGE DRILL - 350 RPM
IR 22MA2
IR 22MA2
Large Air Drill, Reversible Roll Throttle, 350 RPM, 1.75HP, No. 2 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
- Lightweight: The 22 Series large drills are strong but lightweight for increased ease of use.
- Balling bearing support for long life and efficient operation
Product Application and Uses: These air drills are designed for heavy duty drilling and reaming up to ⅞ inch (22mm) holes.
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 55
Air Consumption (l/min): 1558
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 7/8
Capacity in Steel Reaming (in): 5/8
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 18.63
Length of Feed (in): 2.5
Max Free Speed (rpm): 350
Max Power (hp): 1.75
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 14.25
Reversible: Reversible
Side to Center Distance (in): 1.44
Side to Center Distance (mm): 37
Sound Pressure/Power Db(A): 96.1 / 97.1
Spindle Type: No. 2 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 22JA1

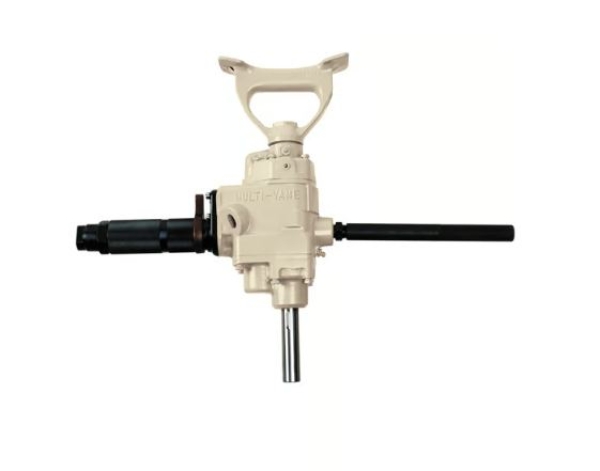

- 22KA1
- 22KWA1
$5,432.00
LARGE DRILL - 185 RPM

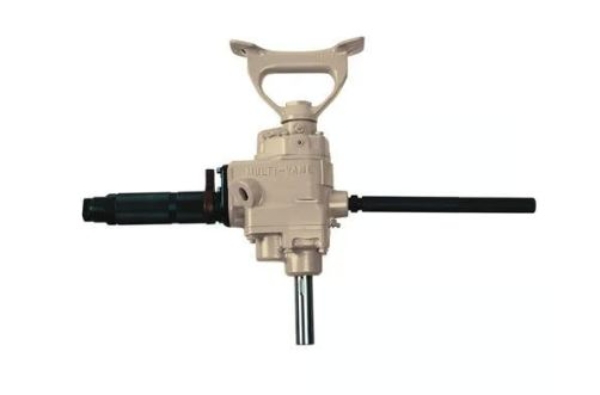

IR 33SMA
IR 33SMA
Large Air Drill, Reversible Roll Throttle, 185 RPM, 2.9HP, No. 3 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses: These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 85
Air Consumption (l/min): 2407
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 1-1/4
Capacity in Steel Reaming (in): 1-1/4
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 16.81
Length of Feed (in): 4.25
Max Free Speed (rpm): 185
Max Power (hp): 2.9
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 31
Reversible: Reversible
Side to Center Distance (in): 1.94
Side to Center Distance (mm): 49
Sound Pressure/Power Db(A): 96.1 / 97.1
Spindle Type: No. 3 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 33SJA
- 33SKA
- 44SMA
- 22MA2
$20,950.00

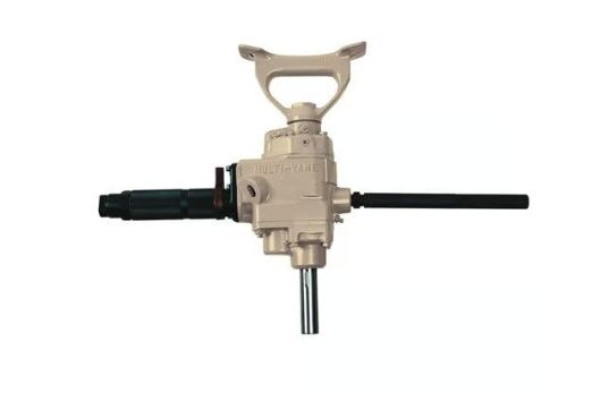

LARGE DRILL - 155 RPM
IR 44SMA
IR 44SMA
Large Air Drill, Reversible Roll Throttle, 155 RPM, 3.6HP, No. 4 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses: These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 102
Air Consumption (l/min): 2889
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 2
Capacity in Steel Reaming (in): 2
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 18.25
Length of Feed (in): 4.25
Max Free Speed (rpm): 155
Max Power (hp): 3.6
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 43.75
Reversible: Reversible
Side to Center Distance (in): 2.31
Side to Center Distance (mm): 59
Sound Pressure/Power Db(A): 96 / 107
Spindle Type: No. 4 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 551SMA
- 33SMA
$14,588.00
LG.DRILL-120 RPM-RL THRTL
IR 551SMA
IR 551SMA
Large Air Drill, Reversible Roll Throttle, 120 RPM, 5.6HP, No. 5 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses: These reversible multi-vane drills are designed for heavy drilling and reaming. The base mounted motors are designed for heavy duty applications requiring air power in the 5hp (3.75kW) range.
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 160
Air Consumption (l/min): 4531
Air Inlet: 1" NPT
Capacity in Steel Drilling (in): 3
Capacity in Steel Reaming (in): 2-1/2
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 21.88
Length of Feed (in): 5
Max Free Speed (rpm): 120
Max Power (hp): 5.6
Min Hose Size (in): 1
Power Source: Air Powered
Product Weight (lb): 69.5
Reversible: Reversible
Side to Center Distance (in): 2.94
Side to Center Distance (mm): 75
Sound Pressure/Power Db(A): 100.8 / 111.8
Spindle Type: No. 5 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 551S0A
- 22MA2
- 33SMA
$14,112.00
