Drills

DC 15LF283-92

DC 15LN281-62

DC 15LS281-62

DC 15LS282-62

DY 52775

.5 hp, 1,800 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck

.5 hp (373 W) Pneumatic Drill, in both forward and reverse drive directions, is available in four speeds (450, 950, 1,800 and 3,700 RPM)

Control drive torque by feathering trigger, or use Flow Control 95745.

• HP: 0.5
• Max. RPM: 1800.0
• Motor RPM: 1,800

DY 52833

.4 hp, 2,400 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck

.4 hp (298 W) Pistol Grip Drill offered in ergonomic Dynabrade design, with comfortable textured tactile grip. Powerful high-torque, geared air motor is ideal for countless industrial applications.

Finger platform on both sides of tool allows increased stability and comfort.

• HP: 0.4
• Max. RPM: 2400.0
• Motor RPM: 2,400

DY 52836

DY 53090

.7 hp, 950 RPM, Pistol Grip, Geared, Rear Exhaust, Keyed Jacobs Chuck

Includes 1/2in drill chuck and key.

High-torque air motor. slow-speed startup trigger.

• HP: 0.7
• Max. RPM: 950.0
• Motor RPM: 950

DY 53093

.7 hp, 1,800 RPM, Pistol-Grip, Geared, Rear Exhaust, Keyed Jacobs Chuck

Includes 3/8in drill chuck and key.

High-torque air motor. slow-speed startup trigger.

• HP: 0.7
• Max. RPM: 1800.0
• Motor RPM: 1,800

DY 53095

.7 hp, 4,500 RPM, Pistol-Grip, Geared, Rear Exhaust, Keyed Jacobs Chuck

Includes 3/8in drill chuck and key.

High-torque air motor. slow-speed startup trigger.

• HP: 0.7
• Max. RPM: 4500.0
• Motor RPM: 4500

DY 53096

DY 53103

.7 hp, Pistol Grip, 3,400 RPM, Rear Exhaust, Jacobs Chuck

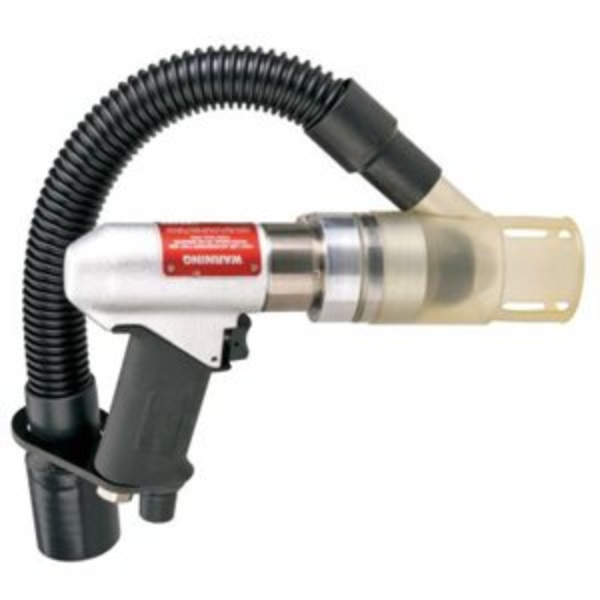

.7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.

Pistol Grip design includes slow-speed start-up trigger.

• HP: 0.7
• Max. RPM: 3400.0
• Motor RPM: 3,400

DY 53104

.7 hp, Pistol Grip, 4,500 RPM, Rear Exhaust, Jacobs Chuck

.7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.

Pistol Grip design includes slow-speed start-up trigger.

• HP: 0.7
• Max. RPM: 4500.0
• Motor RPM: 4,500

DY 53106

.7 hp, 950 RPM, Pistol-Grip, Geared, Rear Exhaust, Jacobs Chuck

.7 hp (522 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.

Pistol Grip design includes slow-speed start-up trigger.

• HP: 0.7
• Max. RPM: 950.0
• Motor RPM: 950

IR 1AL1

IR 1S30MF4

IR 22KWA1

IR 22MA2

Large Air Drill, Reversible Roll Throttle, 350 RPM, 1.75HP, No. 2 Morse Taper

Description: We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits:

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you're interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
• Lightweight: The 22 Series large drills are strong but lightweight for increased ease of use.
• Balling bearing support for long life and efficient operation

Product Application and Uses:

These air drills are designed for heavy duty drilling and reaming.

• Actuation/Throttle Type/Switch Type: Reversible, Roll
• Air Consumption (cfm): 55
• Air Consumption (l/min): 1558
• Air Inlet: 1/2in NPT

• Capacity in Steel Drilling (in): 7/8
• Capacity in Steel Reaming (in): 5/8

• Color: Beige
• Configuration/Handle Type: T-handle
• Duty Rating: Super Duty

• Exhaust Location: Side

• Height Over Spindle (in): 18.63
• Length of Feed (in): 2.5

• Max Free Speed (rpm): 350
• Max Power (hp): 1.75
• Min Hose Size (in): 3/4

• Power Source: Air Powered

• Product Weight (lb): 14.25
• Reversible: Reversible

• Side to Center Distance (in): 1.44
• Side to Center Distance (mm): 37

• Sound Pressure/Power Db(A): 96.1 / 97.1
• Spindle Type: No. 2 Morse Taper

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Lubrication: 50P

IR 33SJA

IR 33SKA

Large Air Drill, Reversible Roll Throttle, 300 RPM, 3HP, No. 3 Morse Taper

Description: We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits:

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you're interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.

Product Application and Uses:

These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).

• Actuation/Throttle Type/Switch Type: Reversible, Roll
• Air Consumption (cfm): 85
• Air Consumption (l/min): 2407
• Air Inlet: 1/2in NPT

• Capacity in Steel Drilling (in): 1-1/4
• Capacity in Steel Reaming (in): 1

• Color: Beige
• Configuration/Handle Type: T-handle
• Duty Rating: Super Duty

• Exhaust Location: Side

• Height Over Spindle (in): 14
• Length of Feed (in): 4.25

• Max Free Speed (rpm): 300
• Max Power (hp): 3
• Min Hose Size (in): 3/4

• Power Source: Air Powered

• Product Weight (lb): 25.75
• Reversible: Reversible

• Side to Center Distance (in): 1.88
• Side to Center Distance (mm): 48

• Sound Pressure/Power Db(A): 98.8 / 109.8
• Spindle Type: No. 3 Morse Taper

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Lubrication: 50P

IR 33SMA

Large Air Drill, Reversible Roll Throttle, 185 RPM, 2.9HP, No. 3 Morse Taper

Description: We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits:

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you're interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.

Product Application and Uses:

These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).

• Actuation/Throttle Type/Switch Type: Reversible, Roll
• Air Consumption (cfm): 85
• Air Consumption (l/min): 2407
• Air Inlet: 1/2in NPT

• Capacity in Steel Drilling (in): 1-1/4
• Capacity in Steel Reaming (in): 1-1/4

• Color: Beige
• Configuration/Handle Type: T-handle
• Duty Rating: Super Duty

• Exhaust Location: Side

• Height Over Spindle (in): 16.81
• Length of Feed (in): 4.25

• Max Free Speed (rpm): 185
• Max Power (hp): 2.9
• Min Hose Size (in): 3/4

• Power Source: Air Powered

• Product Weight (lb): 31
• Reversible: Reversible

• Side to Center Distance (in): 1.94
• Side to Center Distance (mm): 49

• Sound Pressure/Power Db(A): 96.1 / 97.1
• Spindle Type: No. 3 Morse Taper

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Lubrication: 50P

IR 44SMA

Large Air Drill, Reversible Roll Throttle, 155 RPM, 3.6HP, No. 4 Morse Taper

Description: We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits:

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you're interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.

Product Application and Uses:

These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).

• Actuation/Throttle Type/Switch Type: Reversible, Roll
• Air Consumption (cfm): 102
• Air Consumption (l/min): 2889
• Air Inlet: 1/2in NPT

• Capacity in Steel Drilling (in): 2
• Capacity in Steel Reaming (in): 2

• Color: Beige
• Configuration/Handle Type: T-handle
• Duty Rating: Super Duty

• Exhaust Location: Side

• Height Over Spindle (in): 18.25
• Length of Feed (in): 4.25

• Max Free Speed (rpm): 155
• Max Power (hp): 3.6
• Min Hose Size (in): 3/4

• Power Source: Air Powered

• Product Weight (lb): 43.75
• Reversible: Reversible

• Side to Center Distance (in): 2.31
• Side to Center Distance (mm): 59

• Sound Pressure/Power Db(A): 96 / 107
• Spindle Type: No. 4 Morse Taper

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Lubrication: 50P

IR 551SMA

Large Air Drill, Reversible Roll Throttle, 120 RPM, 5.6HP, No. 5 Morse Taper

Description: We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits:

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you're interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.

Product Application and Uses:

These reversible multi-vane drills are designed for heavy drilling and reaming. The base mounted motors are designed for heavy duty applications requiring air power in the 5hp (3.75kW) range.

• Actuation/Throttle Type/Switch Type: Reversible, Roll
• Air Consumption (cfm): 160
• Air Consumption (l/min): 4531
• Air Inlet: 1" NPT

• Capacity in Steel Drilling (in): 3
• Capacity in Steel Reaming (in): 2-1/2

• Color: Beige
• Configuration/Handle Type: T-handle
• Duty Rating: Super Duty

• Exhaust Location: Side

• Height Over Spindle (in): 21.88
• Length of Feed (in): 5

• Max Free Speed (rpm): 120
• Max Power (hp): 5.6
• Min Hose Size (in): 1

• Power Source: Air Powered

• Product Weight (lb): 69.5
• Reversible: Reversible

• Side to Center Distance (in): 2.94
• Side to Center Distance (mm): 75

• Sound Pressure/Power Db(A): 100.8 / 111.8
• Spindle Type: No. 5 Morse Taper

• Vibration Level (m/s2): <2.5
• Warranty: 1-year

• Lubrication: 50P

IR 5A/5L-TK1

IR 5A-49
