Drills

IR 7AH-303

THROTTLE VALVE SEAT

IR 7AH-701

GREASE SHIELD

IR 7AK-8

SPINDLE

IR 7L2A-682

REAR THRUST BEARING SEA

IR 7L3A4-791

SPINDLE

IR 7LH-A37A

GEAR CASE

IR 7LK-A8

SPINDLE

IR 7LL-A8

SPINDLE

IR-551SMA REBUILT

DRILL LARGE 5MT

MP 1457-51

Drill 3/8 Non Reversible

MPT MP-5150DP-400B

Drill, 1/2in HD Non-Rev 400RPM

MPT MP-7803-ST

Drill, 1/2, 500Rpm, Pistol

MPT MP-RD62-78314

Rock Drill 7/8 x 3-1/4

MPT NRD-28RLWB

DRILL 1-1/8IN LEVER THROTTLE 350 RPM

SX 3T2303

T-Handle Drill

SX SDR10P3R4

Drill, Reversing, 1/2 In, 300 Rpm

SX SDR10P40R3

Drill, Pistol Grip, Reversing, 3/8 In

SX SDR10P60NK3

Drill, 6000Rpm, 3/8 Keyless Chuck

TAM H1424

1" X 4 1/4" SHANK H THREAD DRILL STEEL

DY 52833

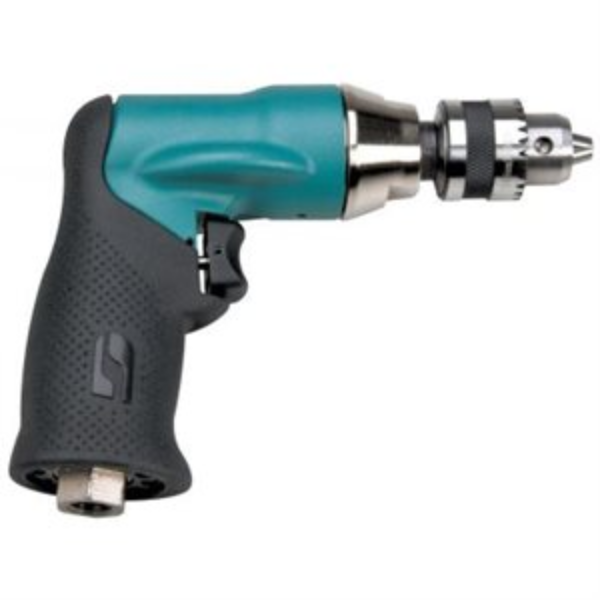

1/4in Drill

.4 hp, 2,400 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck

.4 hp (298 W) Pistol Grip Drill offered in ergonomic Dynabrade design, with comfortable textured tactile grip. Powerful high-torque, geared air motor is ideal for countless industrial applications.

Finger platform on both sides of tool allows increased stability and comfort.

• HP: 0.4
• Max. RPM: 2400.0
• Motor RPM: 2,400

DY 53095

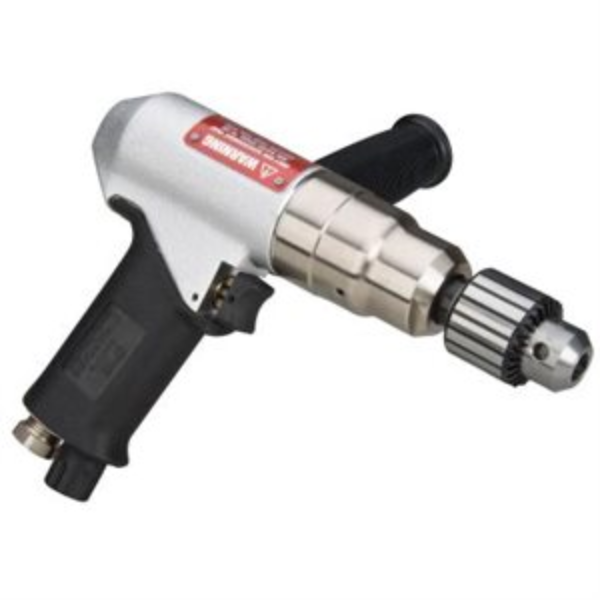

3/8in Drill

.7 hp, 4,500 RPM, Pistol-Grip, Geared, Rear Exhaust, Keyed Jacobs Chuck

Includes 3/8in drill chuck and key.

High-torque air motor. slow-speed startup trigger.

• HP: 0.7
• Max. RPM: 4500.0
• Motor RPM: 4500

IR 22KWA1

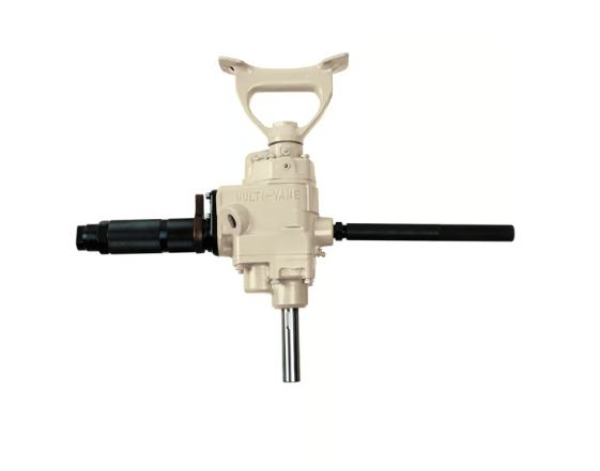

LARGE DRILL - 725 RPM

IR 22MA2

Large Air Drill, Reversible Roll Throttle, 350 RPM, 1.75HP, No. 2 Morse Taper

We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
• Lightweight: The 22 Series large drills are strong but lightweight for increased ease of use.
• Balling bearing support for long life and efficient operation

Product Application and Uses: These air drills are designed for heavy duty drilling and reaming up to ⅞ inch (22mm) holes.
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 55
Air Consumption (l/min): 1558
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 7/8
Capacity in Steel Reaming (in): 5/8
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 18.63
Length of Feed (in): 2.5
Max Free Speed (rpm): 350
Max Power (hp): 1.75
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 14.25
Reversible: Reversible
Side to Center Distance (in): 1.44
Side to Center Distance (mm): 37
Sound Pressure/Power Db(A): 96.1 / 97.1
Spindle Type: No. 2 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 22JA1
• 22KA1
• 22KWA1

IR 33SJA

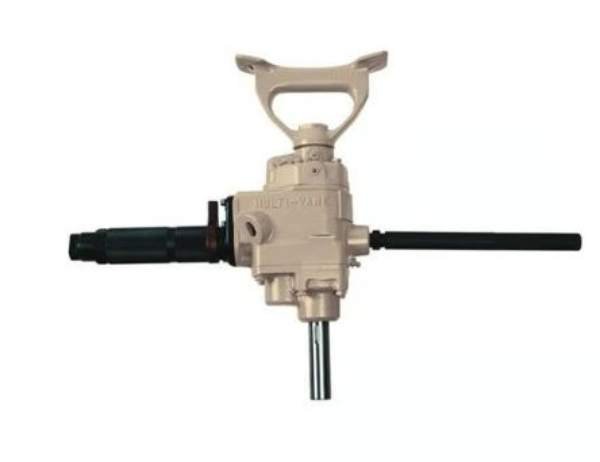

LARGE DRILL - 450 RPM

IR 33SMA

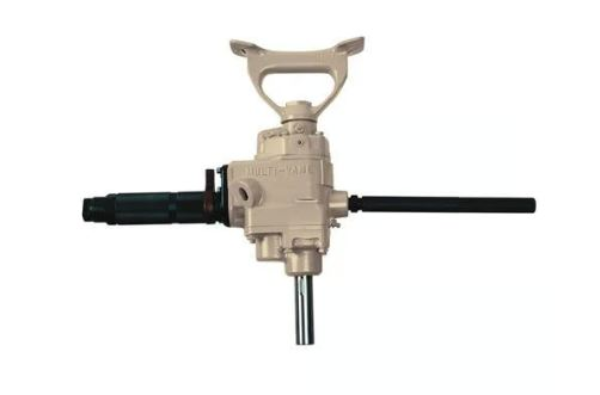

Large Air Drill, Reversible Roll Throttle, 185 RPM, 2.9HP, No. 3 Morse Taper

We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).

Features And Benefits

• Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
• Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.

Product Application and Uses: These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 85
Air Consumption (l/min): 2407
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 1-1/4
Capacity in Steel Reaming (in): 1-1/4
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 16.81
Length of Feed (in): 4.25
Max Free Speed (rpm): 185
Max Power (hp): 2.9
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 31
Reversible: Reversible
Side to Center Distance (in): 1.94
Side to Center Distance (mm): 49
Sound Pressure/Power Db(A): 96.1 / 97.1
Spindle Type: No. 3 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• 33SJA
• 33SKA
• 44SMA
• 22MA2
