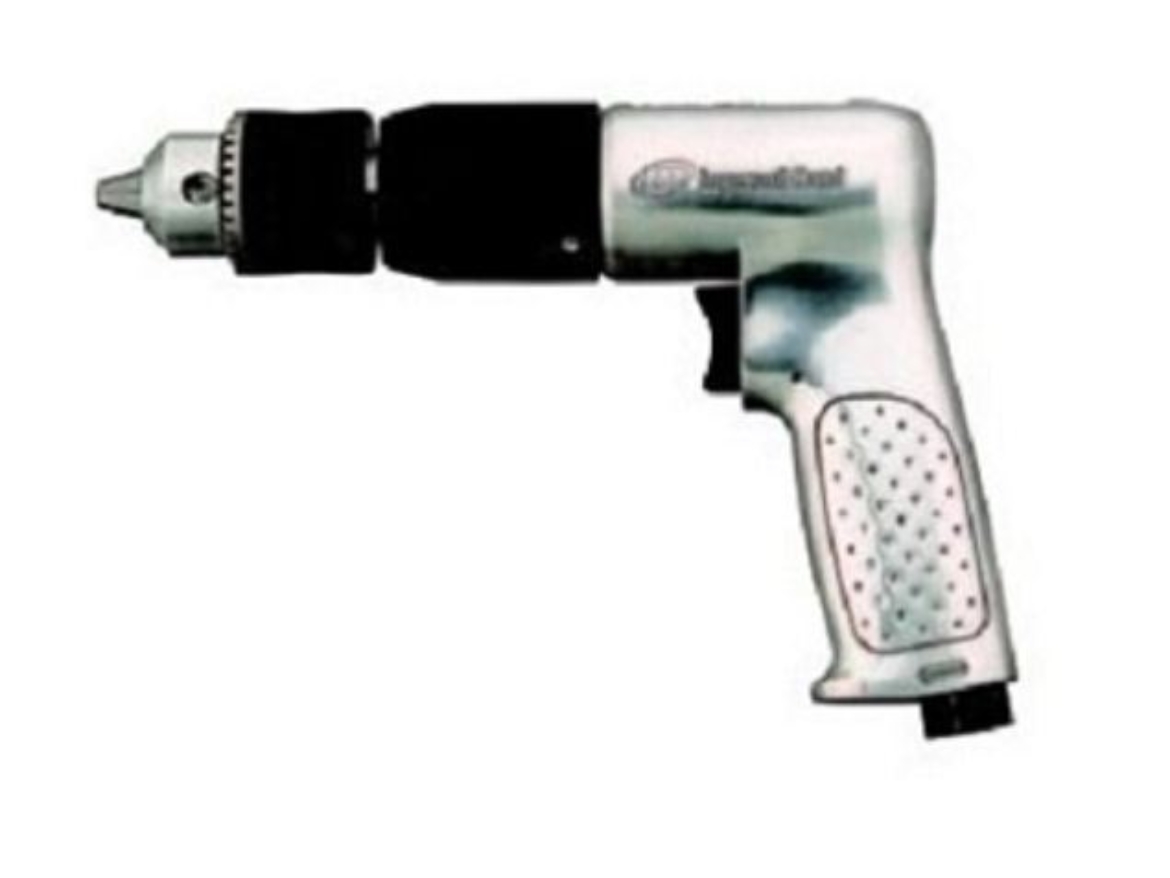

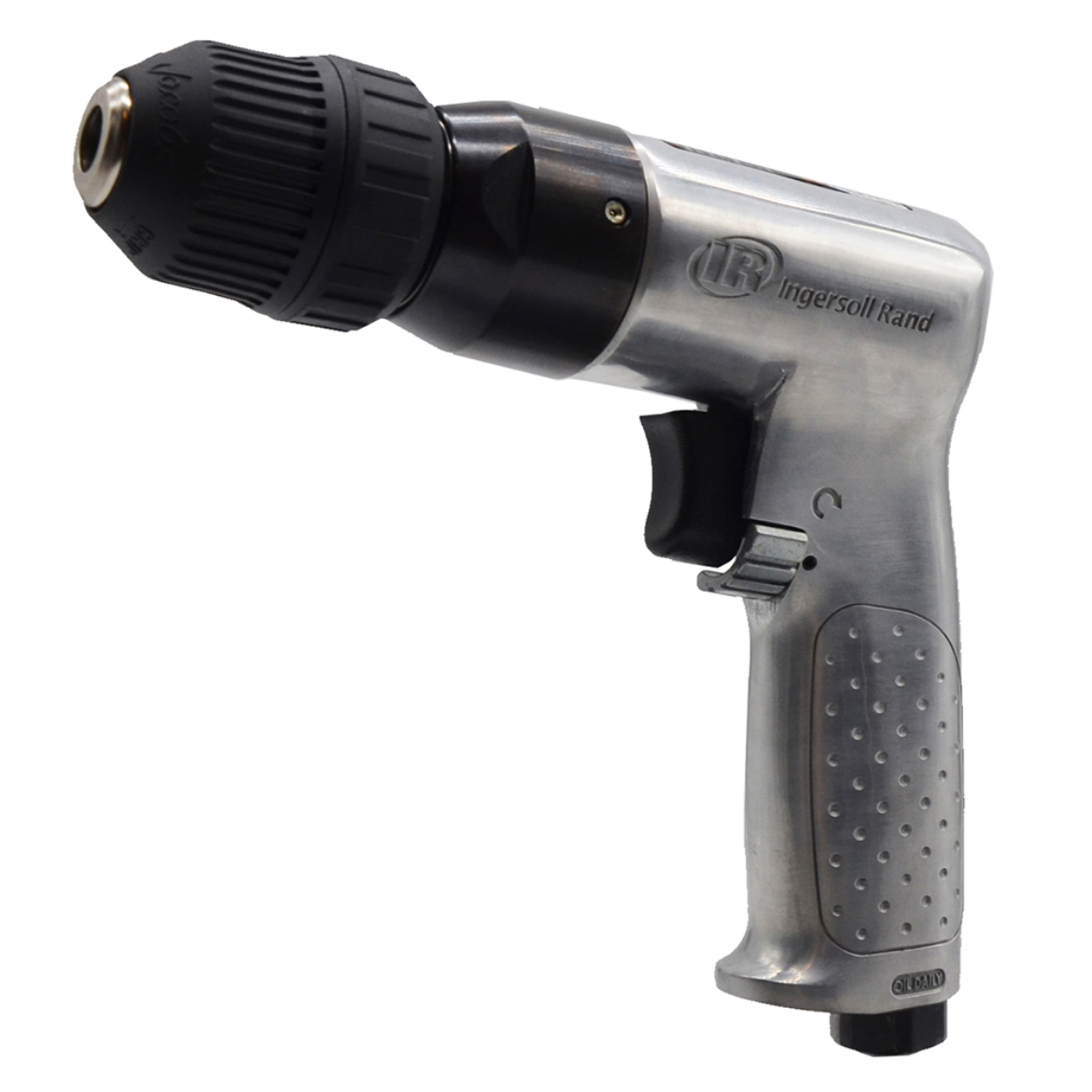

3/8 Inch Reversible Drill Keyless Chuck, Atex

IR 7802RAKCEX

3/8" Keyless Chuck Air Drill, 2000 RPM, 0.5 HP, 43in-lb Torque, Pistol

Description: When it comes to getting the toughest jobs done, professionals around the world choose Ingersoll Rand for tools specifically designed to meet safety regulations for working in dangerous atmospheres. From petrochemical refineries to plastic manufacturers, Ingersoll Rand offers safe and productive solutions to meet the demands of our customers, because making tools that can't work where our customers work is not an option. 7802RAKCEX is a classic pistol grip air drill, specifically designed to meet ATEX Zone 1 or Zone 2 requirements and is great for honing, reaming or drilling holes.

Features And Benefits:

• Performance: 2,000 RPM, 0.5 HP, Keyless Chuck, 2.5 lbs, and 6.4" Long.
• Reversible: The 3/8" Air Drill allows you to choose between forward and reverse.
• Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you'll be able to control your tool and trust that it'll perform the way you want it to.
• ATEX Markings: ATEX 2014/34/EU and Ex h IIA T6 Gb X
• ISO 80079-36 Certified

Product Application and Uses:

Great For Honing, Reaming Or Drilling Holes.

• Includes: 3/8 Chuck
• Actuation/Throttle Type/Switch Type: Feather-touch Trigger
• Air Consumption @ Load (cfm): 24.3
• Air Consumption @ Load (l/min): 841
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 3/8" -24 Thread
• Average Air Consumption (cfm): 29.7
• Average Air Consumption (l/min): 841

• Bearing Type: Ball & Roller

• Chuck Capacity/Bit Capacity (in): 3/8
• Chuck Type: Keyless Chuck
• Color: Silver
• Configuration/Handle Type: Pistol Grip
• Duty Rating: Atex/Hazardous Duty

• Exhaust Location: Handle
• Gear Train: Planetary

• Handle Material: Aluminum
• Height Over Spindle (in): 5.05
• Housing Material: Aluminum

• Max Free Speed (rpm): 2000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 3.6
• Max Torque (in-lb): 43
• Max Torque (nm): 4.86
• Min Hose Size (in): 3/8
• Nominal Drilling Capabilities (Alum 2024t4): 15/64
• Nominal Drilling Capabilities (Steel 1213): 1/4
• Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8

• Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
• Power Source: Air Powered
• Product Length (in): 6.5

• Product Width (in): 7.09
• Product Height (in): 6
• Product Weight (lb): 2.9
• Rated Power (hp): 0.5
• Reversible: Reversible

• Side to Center Distance (in): 0.91
• Side to Center Distance (mm): 23

• Sound Pressure/Power Db(A): 83.0 / 94.0
• Speed Setting: Variable Speed
• Spindle Attachment: Drill Chuck
• Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36

• Vibration Level (m/s2): 2.8
• Warranty: 1-year

• Accessories: 7802-BOOT

• Lubrication: 10G
• Lubrication: 10P
