Drills

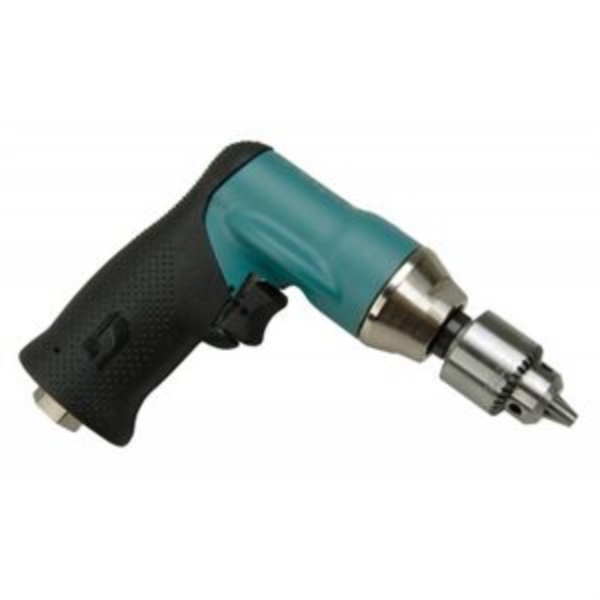

1/4in Drill, Pistol Grip, 5500 rpm
DY 52935
DY 52935
1/4in Drill.4 hp, 5,500 RPM, Pistol-Grip, Geared, Rear Exhaust, Jacobs Chuck
.4 hp (298 W) Pistol Grip Drill offered in ergonomic Dynabrade design, with comfortable textured tactile grip. Powerful high-torque, geared air motor is ideal for countless industrial applications.
Finger platform on both sides of tool allows increased stability and comfort.
- HP: 0.4
- Max. RPM: 5500.0
- Motor RPM: 5,500
$755.10

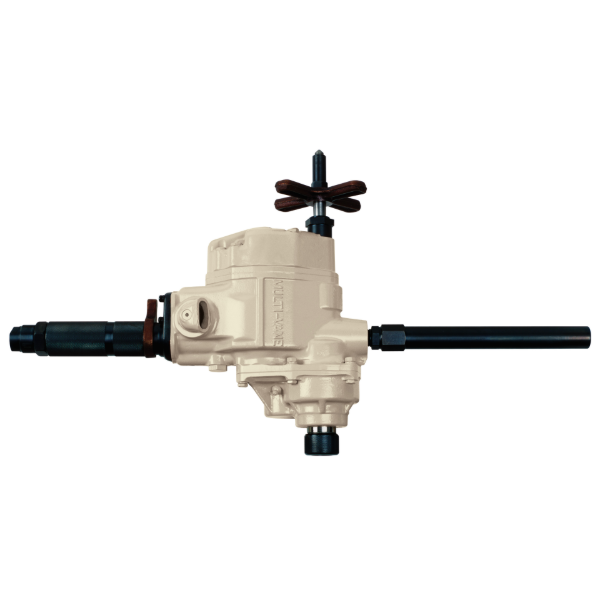

LARGE DRILL - 300 RPM
IR 33SKA
IR 33SKA
Large Air Drill, Reversible Roll Throttle, 300 RPM, 3HP, No. 3 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses: These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 85
Air Consumption (l/min): 2407
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 1-1/4
Capacity in Steel Reaming (in): 1
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 14
Length of Feed (in): 4.25
Max Free Speed (rpm): 300
Max Power (hp): 3
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 25.75
Reversible: Reversible
Side to Center Distance (in): 1.88
Side to Center Distance (mm): 48
Sound Pressure/Power Db(A): 98.8 / 109.8
Spindle Type: No. 3 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 33SJA
- 33SMA
$9,604.00

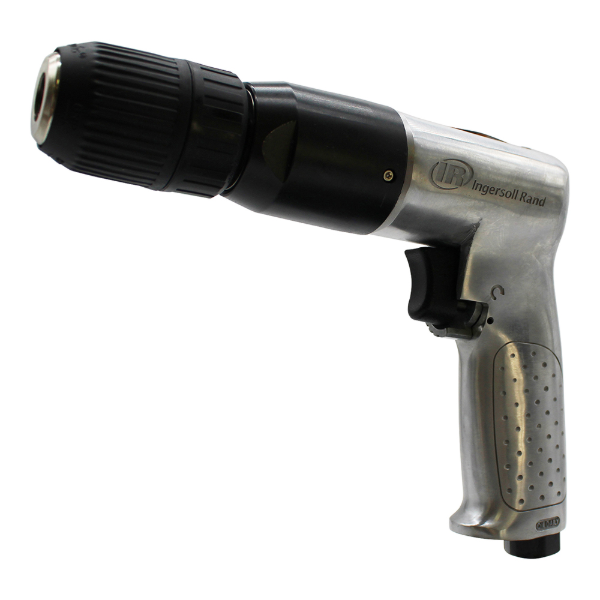

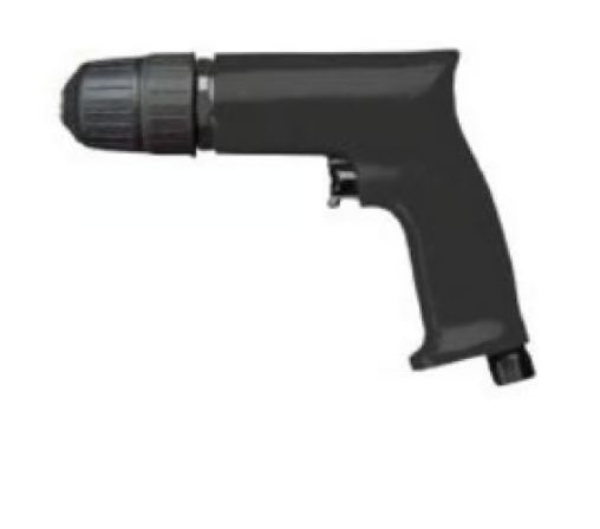

REVERSIBLE DRILL, 1/2" KEYLESS CHUCK
IR 7803RAKC
IR 7803RAKC
1/2" Keyless Chuck Air Drill, 500 RPM, 0.5 HP, 10.6in-lb Torque, Pistol
A classic pistol-shaped 1/2” reversible air drill with a keyless chuck great for honing, reaming or drilling holes.Features And Benefits
- Reversible: Allows you to choose between forward and reverse
- Reliable: With the durability of its aluminum housing, you can count on this tool to be reliable and work well time after time. Comes with a 1-year warranty.
Includes: 1/2" Chuck, 7816-A48 Side Handle
Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 27
Air Consumption @ Load (l/min): 765
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 8.7
Housing Material: Aluminum
Max Free Speed (rpm): 500
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.9
Max Torque (in-lb): 11
Max Torque (nm): 1.2
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 1/4
Nominal Drilling Capabilities (Steel 1213): 3/16
Nominal Drilling Capabilities (Stnls Steel Type 34): 3/32
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 8.7
Product Width (in): 7.24
Product Height (in): 6
Product Weight (lb): 3.3
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 83
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 7803RAKCEX
$285.60

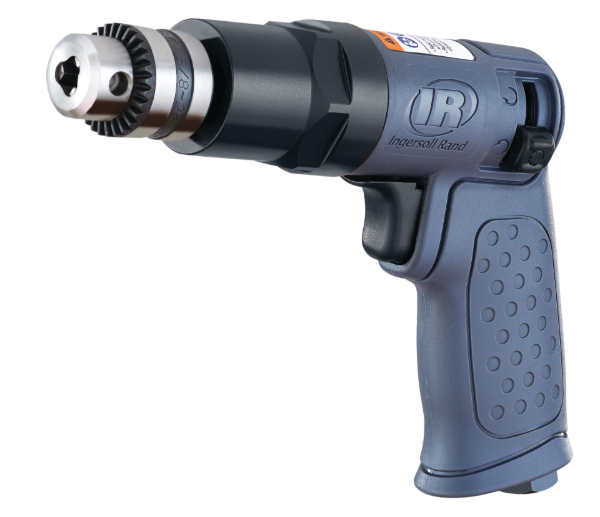

1/4" MINI DRILL/DRIVER
IR 7804XPA
IR 7804XPA
1/4" Keyed Chuck Air Drill, 1875 RPM, 0.25 HP, Pistol
This 1/4" reversible mini air drill/driver is an extremely compact and lightweight tool packed with power. It easily fits in the palm of the hand and is great for automotive services or working in tight spaces and for fine-detailing jobs. Featuring a keyed chuck for a secure connection and an adjustable speed setting to provide variability for a broad range of applications.Features And Benefits
- Performance: 1875 RPM, .25 HP, 16.2 CFM, Variable Speed Trigger
- Access: This compact air drill/driver measures 7.6" in length and is great for working in tight spaces.
- Comfort: With a composite housing that insulates from the cold air, you can use this tool for prolonged periods of time without getting fatigued or uncomfortable.
- Also available in the 7804KA 22-piece kit which includes Drill bits, Phillips bits, Slotted bits, Hex bits, Torx bits, 3/8" socket adaptor and a magnetic bit extender.
Product Application and Uses: Great for automotive services or working in tight spaces and for fine-detailing jobs.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 16.2
Average Air Consumption (l/min): 459
Chuck Capacity/Bit Capacity (in): 1/4
Chuck Type: Keyed Chuck
Color: Grey
Configuration/Handle Type: Pistol Grip
Exhaust Location: Handle
Handle Material: Composite
Housing Material: Composite
Max Free Speed (rpm): 1875
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Number of Power Settings: 2
Power Source: Air Powered
Product Length (in): 7.6
Product Width (in): 7.24
Product Height (in): 6.4
Product Weight (lb): 1.8
Rated Power (hp): 0.25
Reversible: Reversible
Sound Pressure/Power Db(A): 84.3 / 95.3
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.9
Vibration Uncertainy K* (m/s2): .8
Warranty: 1-year
$133.28
