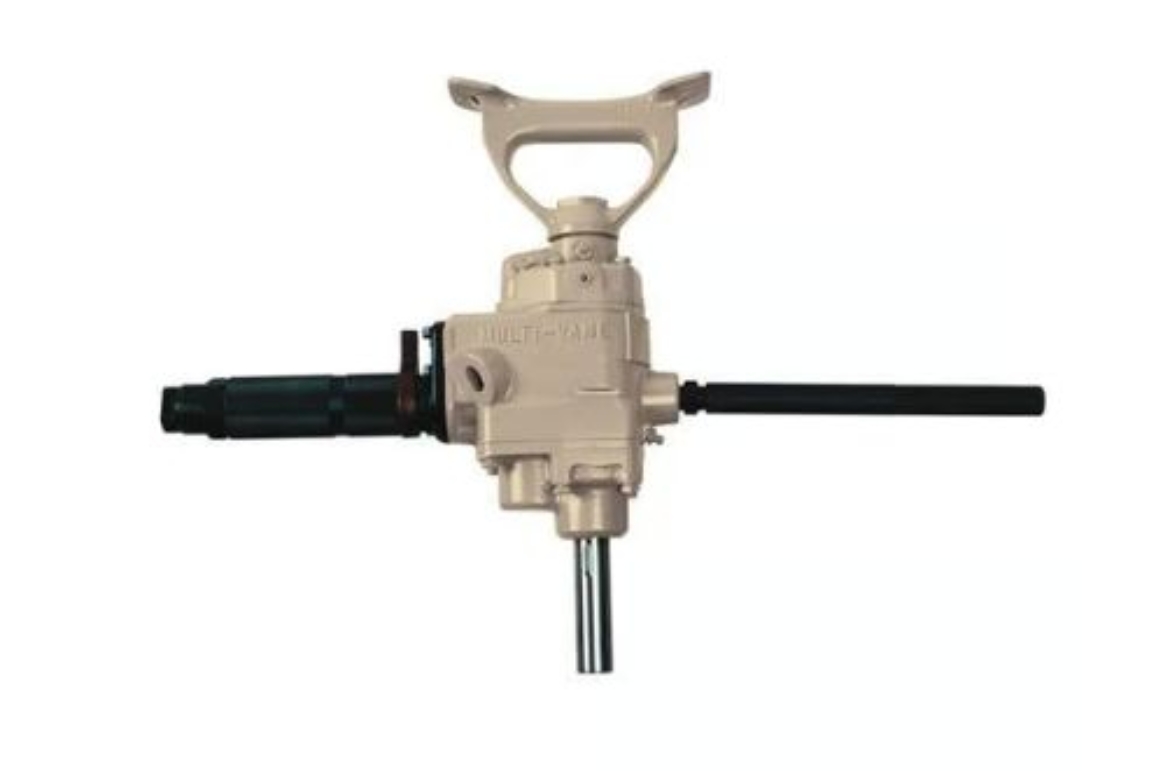

IR 33SMA
Large Air Drill, Reversible Roll Throttle, 185 RPM, 2.9HP, No. 3 Morse Taper
We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications up to ⅞ inch (22mm) holes, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).
Features And Benefits
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you’re interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses: These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).
Actuation/Throttle Type/Switch Type: Reversible, Roll
Air Consumption (cfm): 85
Air Consumption (l/min): 2407
Air Inlet: 1/2" NPT
Capacity in Steel Drilling (in): 1-1/4
Capacity in Steel Reaming (in): 1-1/4
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Super Duty
Exhaust Location: Side
Height Over Spindle (in): 16.81
Length of Feed (in): 4.25
Max Free Speed (rpm): 185
Max Power (hp): 2.9
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Weight (lb): 31
Reversible: Reversible
Side to Center Distance (in): 1.94
Side to Center Distance (mm): 49
Sound Pressure/Power Db(A): 96.1 / 97.1
Spindle Type: No. 3 Morse Taper
Vibration Level (m/s2): <2.5
Warranty: 1-year
