Drills

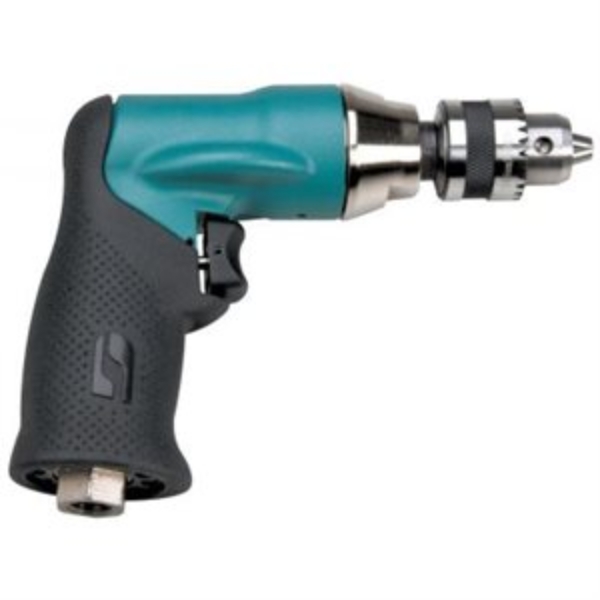

1/4in Drill .4 hp, 3600 RPM, Pistol Grip
DY 52834
DY 52834
1/4in Drill.4 hp, 3,600 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck
.4 hp (298 W) Pistol Grip Drill offered in ergonomic Dynabrade design, with comfortable textured tactile grip. Powerful high-torque, geared air motor is ideal for countless industrial applications.
Finger platform on both sides of tool allows increased stability and comfort.
- HP: 0.4
- Max. RPM: 3600.0
- Motor RPM: 3,600
$644.40
Drill, Straight, 3/8In., 20000 Rpm
FP FP-3501
FP FP-3501
Drill, Straight, 3/8In., 20000 Rpm
Call for pricing
3/8" REVERSIBLE DRILL KEYLESS CHUCK
IR 7802RAKC
IR 7802RAKC
3/8" Keyless Chuck Air Drill, 2000 RPM, 0.5 HP, 2.65in-lb Torque, Pistol
A classic reversible pistol-shaped 3/8" air drill with a keyed chuck and is great for honing, reaming or drilling holes.Features And Benefits
- Reversible Motor: The quick reverse lever allows you to choose between forward and reverse on the .5 HP motor.
- Reliable: With a sturdy aluminum housing and variable speed throttle, you can be sure you’ll be able to control your tool and trust that it’ll perform the way you want it to.
Includes: 3/8 Chuck
Product Application and Uses: These drills are designed for drilling, valve guide reaming and cylinder honing operations.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Double Row Ball
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyless Chuck
Color: Silver
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Height Over Spindle (in): 7.4
Housing Material: Aluminum
Max Free Speed (rpm): 2000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 0.2
Max Torque (in-lb): 2.7
Max Torque (nm): 0.3
Min Hose Size (in): 3/8
Nominal Drilling Capabilities (Alum 2024t4): 15/64
Nominal Drilling Capabilities (Steel 1213): 1/4
Nominal Drilling Capabilities (Stnls Steel Type 34): 1/8
Nominal Drilling Capabilities (Wood Med or Frp): 5/16"
Power Source: Air Powered
Product Length (in): 7.4
Product Width (in): 7.09
Product Height (in): 6
Product Weight (lb): 2.9
Rated Power (hp): 0.5
Reversible: Reversible
Side to Center Distance (in): 0.9
Side to Center Distance (mm): 23
Sound Pressure/Power Db(A): 82
Speed Setting: Variable Speed
Spindle Attachment: Drill Chuck
Vibration Level (m/s2): 2.8
Warranty: 1-year
Similar IR
- 7802RAKCEX
$193.20
AIR ANGLE DRILL
IR 7807R-A
IR 7807R-A
3/8" Keyed Chuck Angle Air Drill, 1800 RPM, 0.33 HP
The 3/8" Right Angle Air Drill is a durable, reliable tool that’s great for drilling in all types of materials, including sheet metal, wood and composites.Features And Benefits
- Performance: .33HP and 1,800 RPM
- Precision: With an angle configuration that allows easier reach and access with an easy-to-control speed lever, you’ll be able to use this air drill with precision and get every job done right.
- Durability: With aluminum housing, this tool is sturdy and durable, and can withstand repeated drops and harsh environments with ease.
- Reliability: You can count on this drill to work time and time again.
Includes: 3/8 Chuck
Product Application and Uses: Great for drilling in all types of materials, including sheet metal, wood and composites.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 26
Air Consumption @ Load (l/min): 736
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Bearing Type: Ball & Roller
Chuck Capacity/Bit Capacity (in): 3/8
Chuck Type: Keyed Chuck
Color: Silver
Configuration/Handle Type: Right Angle
Duty Rating: General Duty
Exhaust Location: Handle
Gear Train: Planetary
Handle Material: Aluminum
Housing Material: Aluminum
Max Free Speed (rpm): 1800
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 8.06
Product Width (in): 1.65
Product Height (in): 4.12
Product Weight (lb): 2.5
Rated Power (hp): 0.33
Rated Power (kW): 0.25
Reversible: Reversible
Sound Pressure/Power Db(A): 87 / 98
Speed Setting: Variable Speed
Vibration Level (m/s2): <2.5
Warranty: 1-year
Similar IR
- 7LM3A43
- 7AKST6
- 7802A
- 6AMST6
- D3141-K22
- 7802RAKCEX
Supersedes
- 7807R
- 7807R-EU
$241.00
