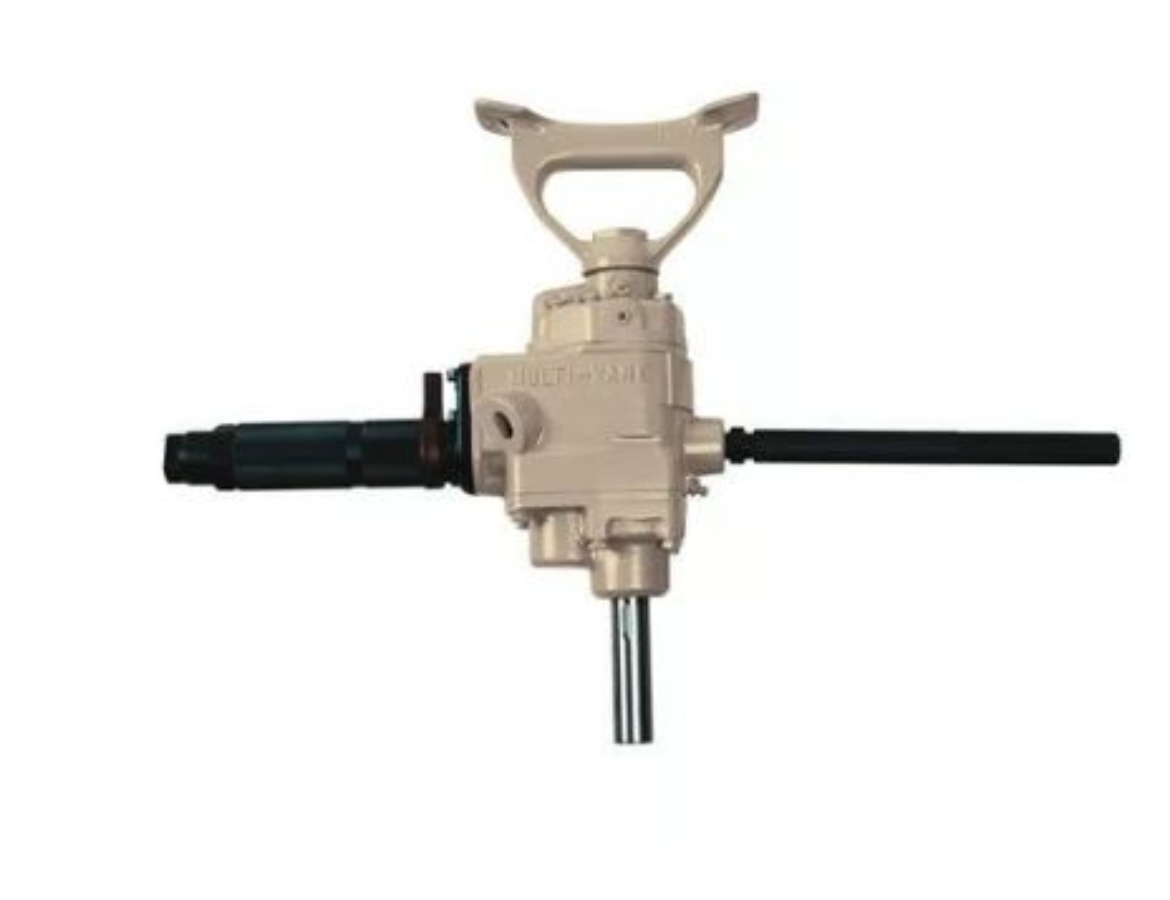

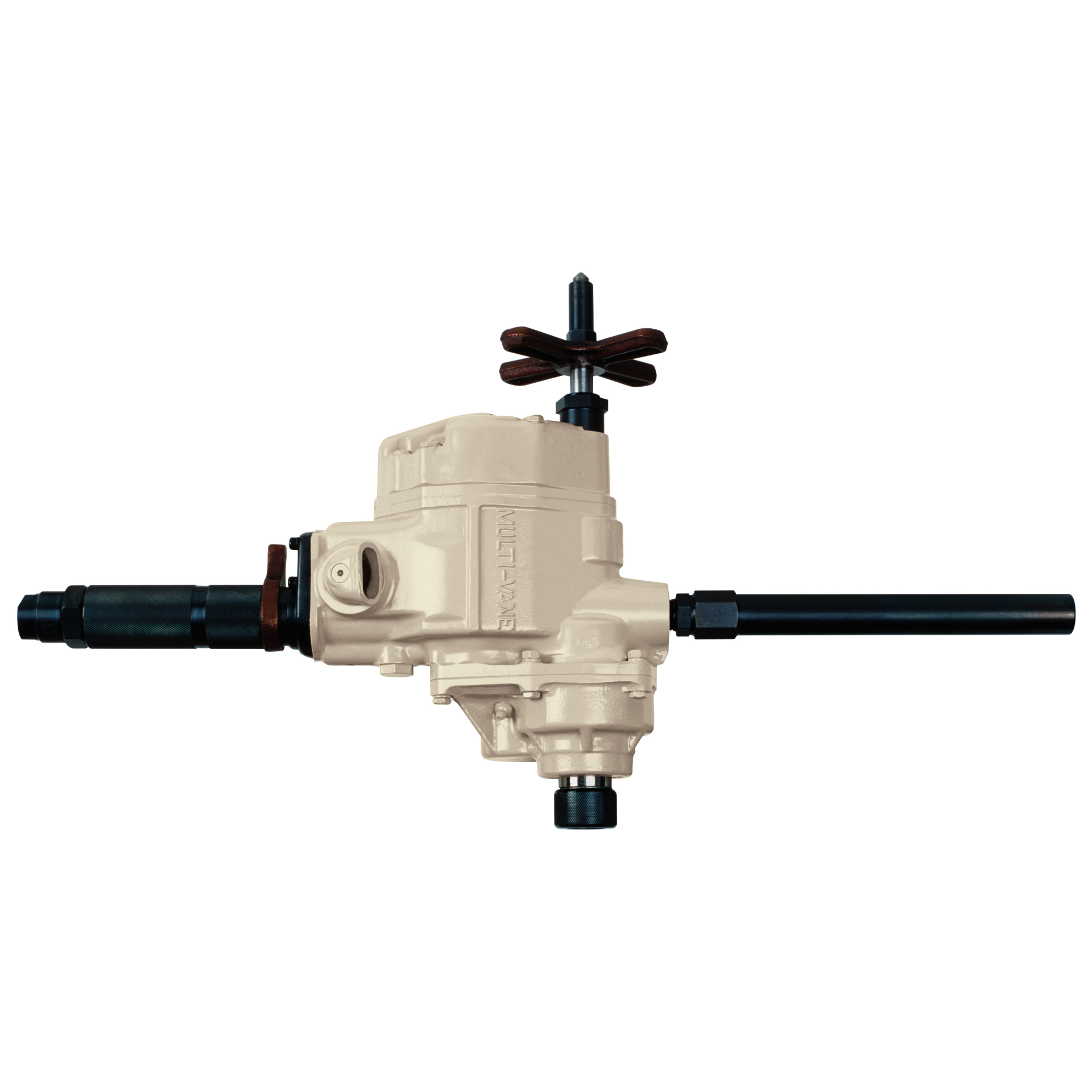

IR 33SKA
Large Air Drill, Reversible Roll Throttle, 300 RPM, 3HP, No. 3 Morse Taper
Description: We have several series of large drills to meet your construction and industrial needs. The 22 Series works best for general applications, while the 33, 44, and 551 Series are better suited for opening and closing large valves, or for drilling larger holes between 1 inch (25mm) and 3 inches (76mm).
Features And Benefits:
- Side Exhaust: All the Ingersoll Rand large drills come with side exhaust to keep exhaust air pointed away from you and away from your work.
- Governed Motor: No matter which Ingersoll rand large drill series you're interested in, you can expect a governed motor that regulates air intake to keep these drills working at the peak of their power curve.
Product Application and Uses:
These air drills are designed for heavy duty drilling and reaming between 1 inch (25mm) and 3 inches (76mm).
- Actuation/Throttle Type/Switch Type: Reversible, Roll
- Air Consumption (cfm): 85
- Air Consumption (l/min): 2407
- Air Inlet: 1/2in NPT
- Capacity in Steel Drilling (in): 1-1/4
- Capacity in Steel Reaming (in): 1
- Color: Beige
- Configuration/Handle Type: T-handle
- Duty Rating: Super Duty
- Height Over Spindle (in): 14
- Length of Feed (in): 4.25
- Max Free Speed (rpm): 300
- Max Power (hp): 3
- Min Hose Size (in): 3/4
- Power Source: Air Powered
- Product Weight (lb): 25.75
- Reversible: Reversible
- Side to Center Distance (in): 1.88
- Side to Center Distance (mm): 48
- Sound Pressure/Power Db(A): 98.8 / 109.8
- Spindle Type: No. 3 Morse Taper
- Vibration Level (m/s2): <2.5
- Warranty: 1-year
