QX Bluetooth Only, No Display, 80Nm, ETS Sq. 1/2"

IR QXBN5AT080ES08

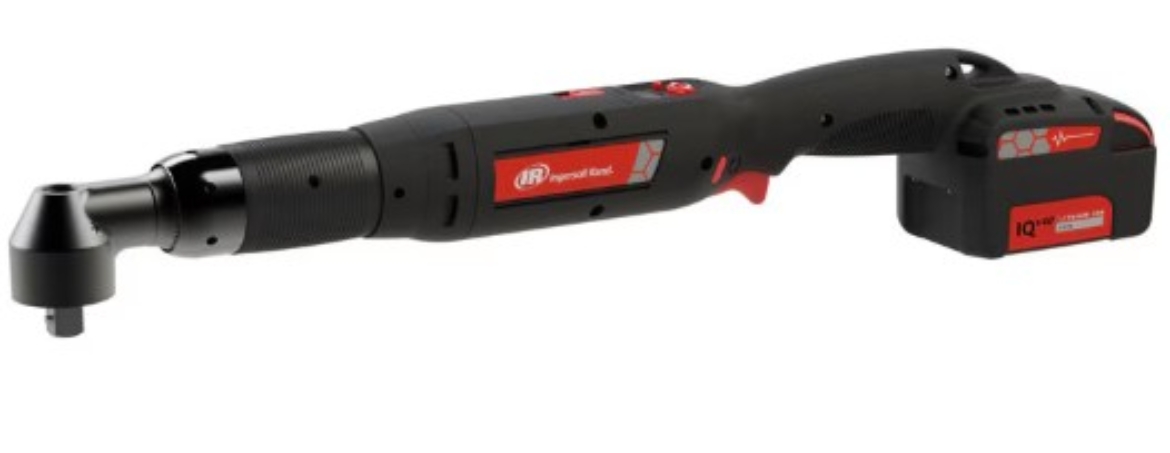

1/2" 40V Cordless QX Precision Fastening Torque ETS Angle Wrench, 708 in-lb, 375 RPM

Description: Increase the productivity of your assembly line with the added length and improved ergonomics of the 40V High Torque Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn't have to be complicated with the QX Series Ergonomic Tightening System. The QXBN models also offer users the Bluetooth connectivity option to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator. Visit QX ETS to learn more.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 375
• Max Torque (ft-lb): 59
• Max Torque (in-lb): 708
• Max Torque (nm): 80
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Height (in): 3.94
• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 8.9-59
• Recommended Forward Torque Range (in-lb): 106-708
• Recommended Forward Torque Range (nm): 12.0-80
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: No Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C
