Cordless Tools

IR QXWD2AT005PQ04

1/4" Hex 20V, Cordless Angle QX Limitless Precision Fastening, 44 in-lb, 1213 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 1213
• Max Torque (ft-lb): 3.7
• Max Torque (in-lb): 44
• Max Torque (nm): 5
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 21.73

• Product Weight (lb): 2.5
• Recommended Forward Torque Range (ft-lb): 0.7-3.7
• Recommended Forward Torque Range (in-lb): 8.9-44
• Recommended Forward Torque Range (nm): 1.0-5
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 0.36
• Side to Center Distance (mm): 9

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

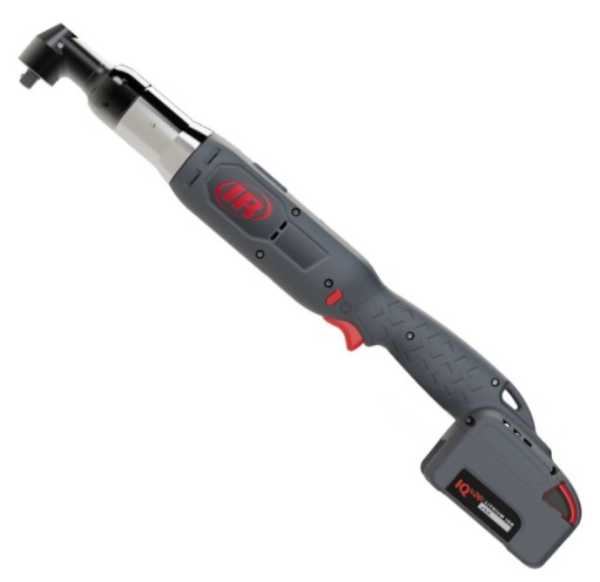

IR QXWD2AT018PQ04

1/4" Hex 20V, Cordless Angle QX Limitless Precision Fastening, 159 in-lb, 500 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 24.34

• Product Weight (lb): 2.8
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 0.51
• Side to Center Distance (mm): 13

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD2PT004PS04

1/4" 20V, Cordless QX Limitless Precision Fastening, 35 in-lb, 1500 RPM, Pistol

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 1500
• Max Torque (ft-lb): 3.0
• Max Torque (in-lb): 35
• Max Torque (nm): 4
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 0.6-3.0
• Recommended Forward Torque Range (in-lb): 7.1-35
• Recommended Forward Torque Range (nm): 0.8-4
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 8.2
• Side to Center Distance (mm): 208

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD2PT004PS06

3/8" 20V, Cordless QX Limitless Precision Fastening, 35 in-lb, 1500 RPM, Pistol

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1500
• Max Torque (ft-lb): 3.0
• Max Torque (in-lb): 35
• Max Torque (nm): 4
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 0.6-3.0
• Recommended Forward Torque Range (in-lb): 7.1-35
• Recommended Forward Torque Range (nm): 0.8-4
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 8.35
• Side to Center Distance (mm): 212

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD2PT008EQ04

1/4" Hex 20V, Cordless ETS QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.13

• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD2PT008PS04

1/4" 20V, Cordless QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.8
• Side to Center Distance (mm): 20

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD2PT008PS06

3/8" 20V, Cordless QX Limitless Precision Fastening, 70 in-lb, 1150 RPM, Pistol

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.8
• Side to Center Distance (mm): 20

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD2PT018EQ04

1/4" Hex 20V, Cordless ETS QX Limitless Precision Fastening, 159 in-lb, 500 RPM, Pistol

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.13

• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD5AT020PS06

3/8" 40V, Cordless Angle QX Limitless Precision Fastening, 177 in-lb, 1045 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1045
• Max Torque (ft-lb): 15
• Max Torque (in-lb): 177
• Max Torque (nm): 20
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 22.74

• Product Weight (lb): 4.5
• Recommended Forward Torque Range (ft-lb): 3.0-15
• Recommended Forward Torque Range (in-lb): 35-177
• Recommended Forward Torque Range (nm): 4.0-20
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.52
• Side to Center Distance (mm): 13

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD5AT030PS08

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 266 in-lb, 775 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 775
• Max Torque (ft-lb): 22
• Max Torque (in-lb): 266
• Max Torque (nm): 30
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 22.91

• Product Weight (lb): 4.8
• Recommended Forward Torque Range (ft-lb): 4.4-22
• Recommended Forward Torque Range (in-lb): 53-266
• Recommended Forward Torque Range (nm): 6.0-30
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.68
• Side to Center Distance (mm): 17

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD5AT035PS06

3/8" 40V, Cordless Angle QX Limitless Precision Fastening, 310 in-lb, 640 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 640
• Max Torque (ft-lb): 26
• Max Torque (in-lb): 310
• Max Torque (nm): 35
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 22.91

• Product Weight (lb): 4.8
• Recommended Forward Torque Range (ft-lb): 5.2-26
• Recommended Forward Torque Range (in-lb): 62-310
• Recommended Forward Torque Range (nm): 7.0-35
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.68
• Side to Center Distance (mm): 17

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD5AT035PS08

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 310 in-lb, 640 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 640
• Max Torque (ft-lb): 26
• Max Torque (in-lb): 310
• Max Torque (nm): 35
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 22.91

• Product Weight (lb): 4.8
• Recommended Forward Torque Range (ft-lb): 5.2-26
• Recommended Forward Torque Range (in-lb): 62-310
• Recommended Forward Torque Range (nm): 7.0-35
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.68
• Side to Center Distance (mm): 17

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD5AT040ES08

1/2" 40V, Cordless Angle ETS QX Limitless Precision Fastening, 354 in-lb, 545 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle-ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 545
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 354
• Max Torque (nm): 40
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.1

• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 5.9-30
• Recommended Forward Torque Range (in-lb): 71-354
• Recommended Forward Torque Range (nm): 8.0-40
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD5AT040PS08

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 354 in-lb, 545 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 545
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 354
• Max Torque (nm): 40
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 5.9-30
• Recommended Forward Torque Range (in-lb): 71-354
• Recommended Forward Torque Range (nm): 8.0-40
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXWD5AT080PS08

1/2" 40V, Cordless Angle QX Limitless Precision Fastening, 708 in-lb, 375 RPM

Description: QX Connected Series has been instrumental in helping more organizations take control of their fastening processes through its simple, flexible, and capable performance. With the QX Limitless platform we're adding ‘connected, controlled, and compliant' to the bottom line. Dual-band communication technology delivers a seamless, uninterrupted connection—and across a greater communication rage than other cordless fastening systems can offer. QX Limitless can accommodate more tools in a single system, too—up to 10 tools on INSIGHTqcx controllers. Plus, it keeps unwanted connections at bay, meeting more of today's stringent corporate cybersecurity regulations to ensure greater data protection. Add in speedy data transfer and multiple programming methods, and there's simply no limit to the impact the QX Limitless system can have on your fastening projects and applications.

Features And Benefits:

• CONNECTIVITY: The QX-Limitless platform enhances seamless, plant-wide connectivity across a broader range where access points share the same SSID and password. Incorporating dual band communication technology, the system helps to eliminate communication breakdowns in high-traffic work zones to ensure no loss in production.
• Dual Band Communication Seamlessly Switches Between 2.4 and 5 Ghz Bands
• Industry-Leading Communication Range for Plant-Wide Connectivity Up to 65 Meters
• Reduces Limitation of Communications Distance Between Tools and Controller
• COMPLETE CONTROL: The QX-Limitless limits your hardware footprint by connecting more tools on a single platform. This fast, reliable system delivers greater control over more tools, delivering quick, complete data transfer between devices and reducing installation costs. Plus, your tools are ready for the next cycle much sooner, ensuring increased production efficiency.
• Connects Up to 10 Tools with INSIGHTqcx Controllers
• Limits Hardware Footprint
• Up to 40% Reduction in Initial Hardware Investments
• Transfers End of Run Fastening Data Quickly
• Tools Are Ready for the Next Cycle 50% Faster

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 375
• Max Torque (ft-lb): 59
• Max Torque (in-lb): 708
• Max Torque (nm): 80
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): -
• Recommended Forward Torque Range (in-lb): -
• Recommended Forward Torque Range (nm): 12.0–80
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: 2.4 GHz Wi-Fi
• Wireless Tool Tracking: 5 GHz Wi-Fi
• Wireless Tool Tracking: USB-C
• Wireless Tool Tracking: 802.15.4
• Wireless Tool Tracking: Bluetooth

IR QXX2PT200NPS12

QX Cordless Pistol Torque Multiplier, 30-148 ft-lbs. Torque, 8 RPM, Wireless Enabled Communication

The innovative QX Series Cordless Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar® gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier offers proven quality, control and programmable configurations to maximize your productivity.

Features and Benefits:

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Multi-function display module with cycle status alert and audible alarm offers instant feedback and easy setup
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available
• Ingersoll Rand's ICS software provides operators the ability to access and program basic fastening strategies, as well as more advanced options to adapt to the most complicated bolting applications

IR QXXD2PT10CPM12

3/4" 20V Cordless Torque Wrench, Bare Tool, Bluetooth/802.15.4, Pistol

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 7
• Max Torque (ft-lb): 738
• Max Torque (in-lb): 8851
• Max Torque (nm): 1000
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

IR QXXD2PT10CPM12-K2

3/4" 20V Cordless Torque Wrench 2 Battery Kit, Bluetooth/802.15.4, Pistol

• Includes: (2) 20V 5Ah BL2022 Batteries, 20V Battery Charger
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 7
• Max Torque (ft-lb): 738
• Max Torque (in-lb): 8851
• Max Torque (nm): 1000
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

IR QXXD2PT200PM12

3/4" 20V Cordless Torque Wrench, 17701 in-lb, Bare Tool, Bluetooth/802.15.4, Pistol

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 39
• Max Torque (ft-lb): 148
• Max Torque (in-lb): 1770
• Max Torque (nm): 200
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 30-148
• Recommended Forward Torque Range (in-lb): 354-1770
• Recommended Forward Torque Range (nm): 40-200
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

IR QXXD2PT200PM12-K2

3/4" 20V Cordless Torque Wrench 2 Battery Kit, 17701 in-lb, Bluetooth/802.15.4, Pistol

• Includes: (2) 20V 5Ah BL2022 Batteries, 20V Battery Charger
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 39
• Max Torque (ft-lb): 148
• Max Torque (in-lb): 1770
• Max Torque (nm): 200
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 30-148
• Recommended Forward Torque Range (in-lb): 354-1770
• Recommended Forward Torque Range (nm): 40-200
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

IR QXXD2PT500PM12

3/4" 20V Cordless Torque Wrench, Bare Tool, Bluetooth/802.15.4, Pistol

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 13
• Max Torque (ft-lb): 369
• Max Torque (in-lb): 4425
• Max Torque (nm): 500
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

IR QXXD2PT500PM12-K2

3/4" 20V Cordless Torque Wrench 2 Battery Kit, Bluetooth/802.15.4, Pistol

• Includes: (2) 20V 5Ah BL2022 Batteries, 20V Battery Charger
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Heavy Duty

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 13
• Max Torque (ft-lb): 369
• Max Torque (in-lb): 4425
• Max Torque (nm): 500
• Motor: Brushless Motor

• Power Source: Battery Powered

• Reaction Bar: Yes
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011

• Parts: NSP-299-CIR72
• Parts: NSP-299-M5X45

• Parts: NSP-766-W2222
• Parts: NSP-A48
• Parts: VP2-364
• Parts: VP2-377A
• Parts: VP2-400-T
• Parts: VP2-405
• Parts: VP2-405-2
• Parts: VP2-49
• Parts: VP2-49-2
• Parts: VP2-667
• Parts: VP2-78
• Parts: VP2-981
• Parts: VP2-A48

IR QXXD2TT13CPM16

QX 20V 1" Cordless 2-Speed Torque Multiplier, 996 ft-lb Torque, 25 RPM, Display, Pistol, Bluetooth

Description: The QX Series 2-Speed Cordless Torque Multiplier consists of an automatically shifting two-speed gearbox that provides 5x faster run-down speeds and then automatically shifting down to a high torque speed for final torque. Designed with a premium Norbar gearbox and an efficient, time-tested closed-loop transducer, this tool will fasten the bolt, validate, and record each result, managing your total operation.

Features And Benefits:

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1
• Drive Type: Square

• Max Free Speed (rpm): 25
• Max Torque (ft-lb): 996
• Max Torque (in-lb): 11949
• Max Torque (nm): 1350
• Motor: Brushless Motor

• Power Source: Battery Powered

• Recommended Forward Torque Range (ft-lb): 249-996
• Recommended Forward Torque Range (in-lb): 2992-11949
• Recommended Forward Torque Range (nm): 338-1350
• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

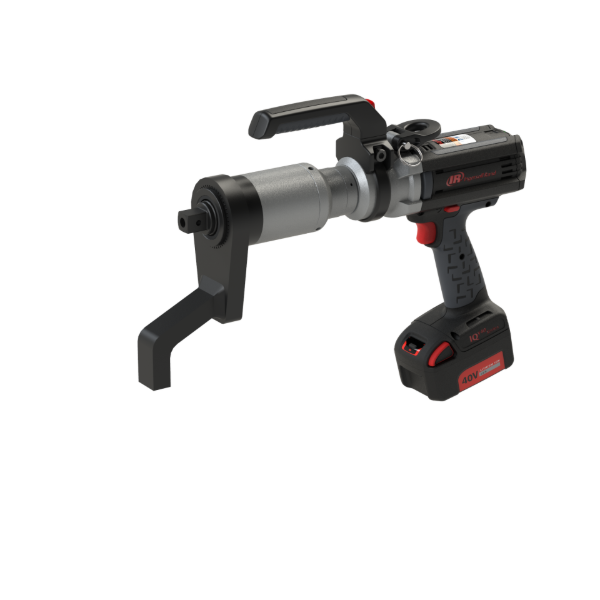

IR QXXD5PT012PM00

QX No Com Power Unit Only 40V Display Pistol

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Type: Square

• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered

• Retainer Type: Thru-hole
• Reversible: Reversible

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

IR QXXD5PT01KPW16

1" 40V Cordless Torque Wrench, Bare Tool, 8851 in-lb Torque, Bluetooth/802.15.4, Pistol

Description: The Ingersoll Rand QX Series 40V Cordless Torque Multiplier is built with one vital industry in mind: Heavy trucking and transportation. With a custom reaction arm optimized for commercial truck tires, programmable torque up to 750 ft-lbs, and torque recording that helps you maintain real-time records of service and proof of performance, the QX Series 40V Cordless Torque Multiplier helps increase efficiency, safety, and power on the shop floor. Even when the job is tough, our tools are tougher.

Features And Benefits:

• Power: The brushless motor and premium Norbar gearbox provide up to 750 ft-lbs of torque.
• Accuracy and Efficiency: Digitally traceable tightening provides consistent, reliable torque within 5% accuracy and reduces the need for manual torqueing and torque wrench confirmation.
• Connectivity: Real-time digital torque recording automatically generates a record of service via Wi-Fi or Bluetooth Access via the Ingersoll Rand INSIGHT Connect Mobile App whenever you need it.
• Comfort: Reaction arm crafted specifically for truck tires and an articulating top handle that moves two axes allows for mounting and maneuvering in almost any configuration.
• Durability: Chemical resistant housing reinforced with an IP5X rating for increased protection in harsh environments. Backed by a 1-year warranty and rigorously tested to ensure peak performance during tough jobs.
• Also available in the QXXD5PT01KPW16K2 kit which includes the QXXD5PT01KPW16 Torque Wrench, (2) 40V 2.5 Ah BL4011 Batteries, BC1161 40V Universal Charger, 33mm socket and retainer.

Product Application and Uses:

Designed for the heavy trucking and transportation industry in applications requiring precise torque control, accuracy, consistency and repeatability and are recommended for tightening requirements.

• Includes: 33mm socket and retainer. Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Clutch Type: None
• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Heavy Duty

• Gearbox Width (in): 2.8

• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame

• Max Free Speed (rpm): 15
• Max Torque (ft-lb): 738
• Max Torque (in-lb): 8851
• Max Torque (nm): 1000
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 16.5

• Product Weight (lb): 20
• Product Weight (lb) (with Battery): 21.5
• Reaction Bar: Yes
• Recommended Forward Torque Range (ft-lb): 148-738
• Recommended Forward Torque Range (in-lb): 1770-8851
• Recommended Forward Torque Range (nm): 200 - 1000
• Retainer Type: Thru-hole
• Reversible: Reversible

• Speed Setting: Variable Speed
• Standards/Certifications: UL/CSA/CE/IP5X

• Tether Style: Tether Included
• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4

• Accessories: BC1161
• Accessories: BL4011
