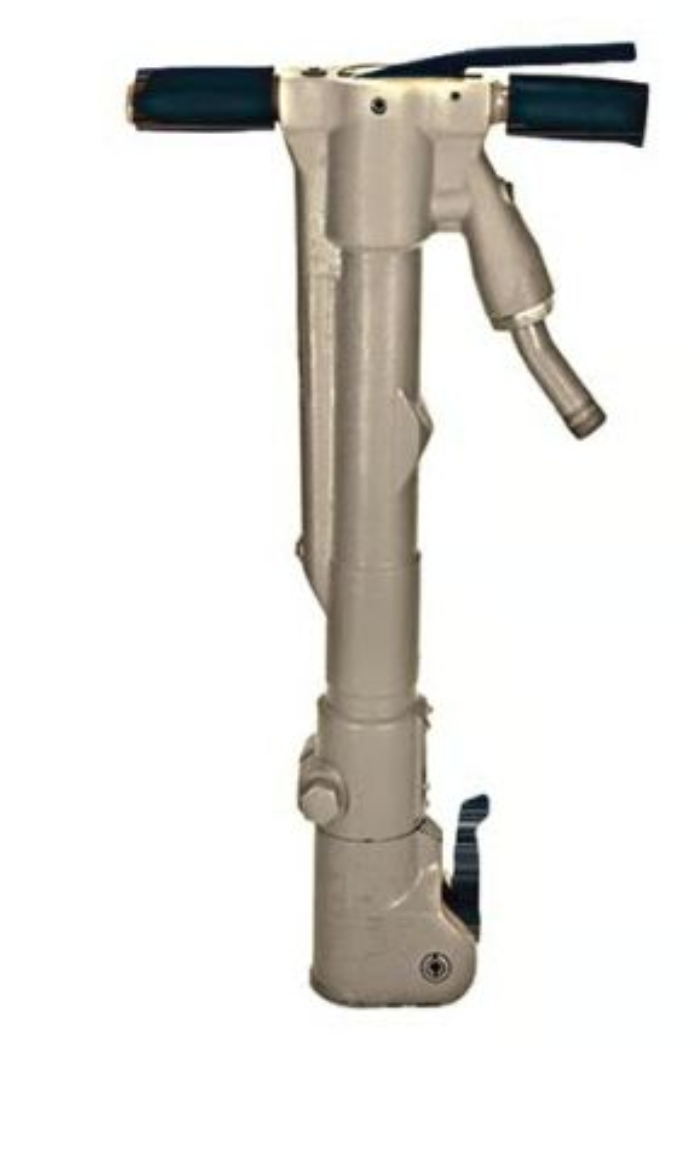

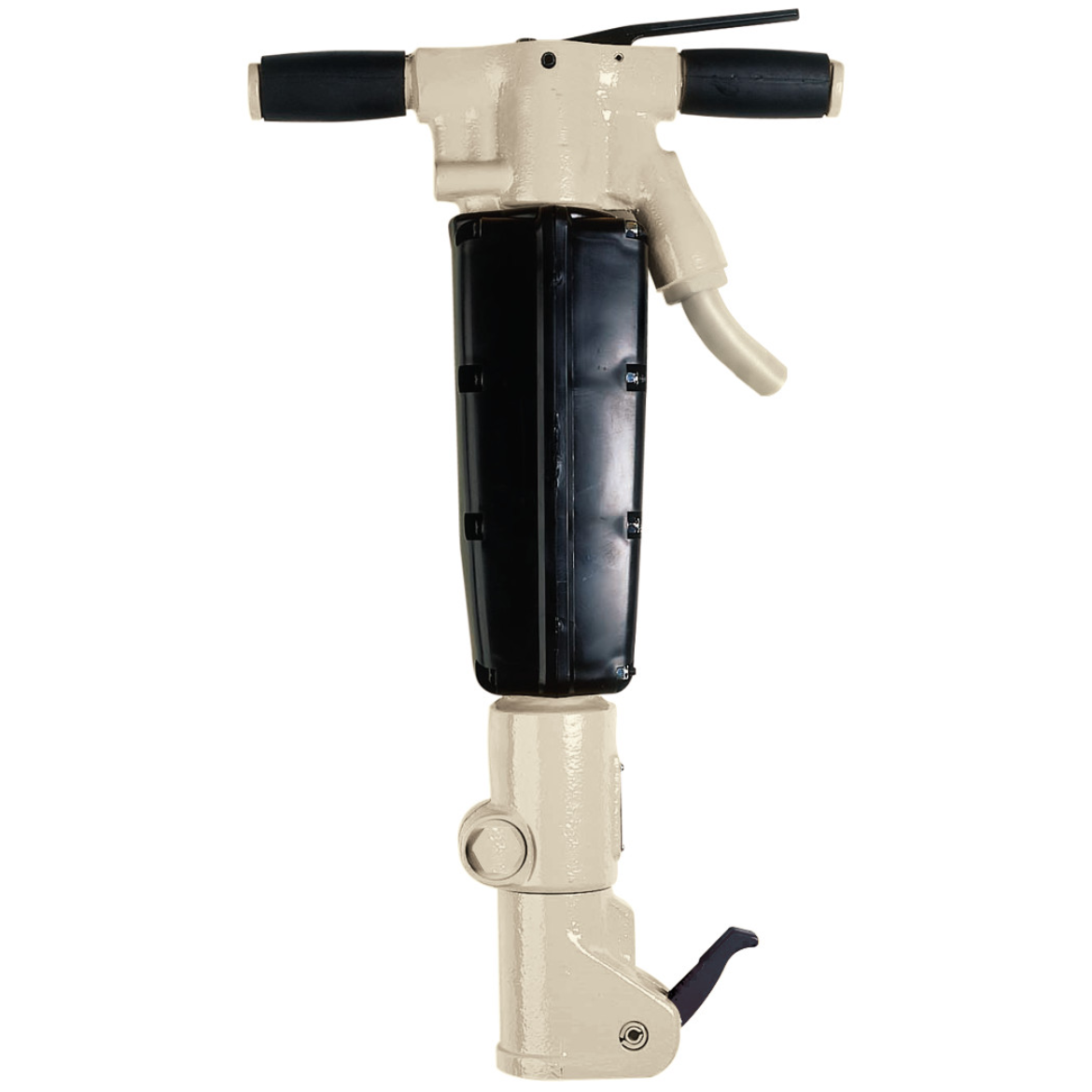

Paving Breaker Pb50As1

IR PB50AS1

Pavement Breaker, 1-1/8 X 6" Hex Shank, 6.25" Stroke Length, 1150 BPM, 1-3/4" Bore

Description: Ingersoll Rand has a unique heritage in construction that dates back to the company's founding in 1871. Simon Ingersoll invented the world's first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB50 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.

Features And Benefits:

• Power: With 1150 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
• Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
• Built-in lubricator helps ensure adequate lubrication.
• Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
• 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
• Muffler Reduces Noise

Product Application and Uses:

These paving breakers are suitable for breaking concrete, asphalt and stone paving in road construction work, breaking large boulders in mines, quarries and general demolition work.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 58
• Air Consumption @ Load (l/min): 1643
• Air Inlet: 3/4" NPT
• Air Pressure (psi): 90

• Blows per Min: 1150
• Bore Diameter (in): 1 3/4
• Bushing: Spring Loaded Anvil

• Collar Type: Round
• Color: Beige
• Configuration/Handle Type: T-handle
• Duty Rating: Industrial Duty

• Exhaust Location: Side

• Housing Material: Steel
• Inline Oilers: Yes

• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/4
• Muffler: Yes

• Power Source: Air Powered
• Product Length (in): 27.5

• Product Weight (lb): 55
• Retainer Type: Latch

• Shank SIze (in): 1-1/8 X 6
• Shank Type: Hex

• Steels: Yes
• Stroke Length (in): 6.25

• Warranty: 1-year

• Accessories: 22040471
• Accessories: 22040596
• Accessories: 45510393
• Accessories: 45510500
• Accessories: 50050475
• Accessories: 50055524
• Accessories: 50055540
• Accessories: 50055565
• Accessories: 50055581
• Accessories: 50055599
• Accessories: 50114883
• Accessories: 50185982
• Accessories: 50187848
• Accessories: 50193747
• Accessories: 50193754
• Accessories: 50197904
• Accessories: 50197912
• Accessories: 50197938
• Accessories: 50197979
• Accessories: 50197987
• Accessories: 51298107

• Lubrication: 10G
• Lubrication: 10P
