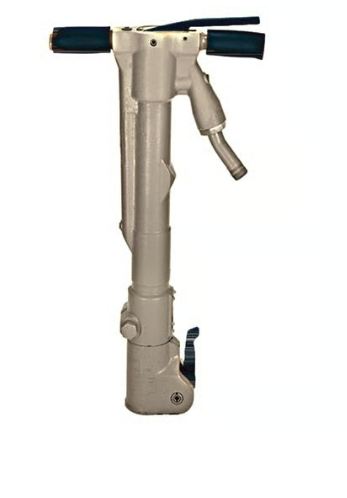

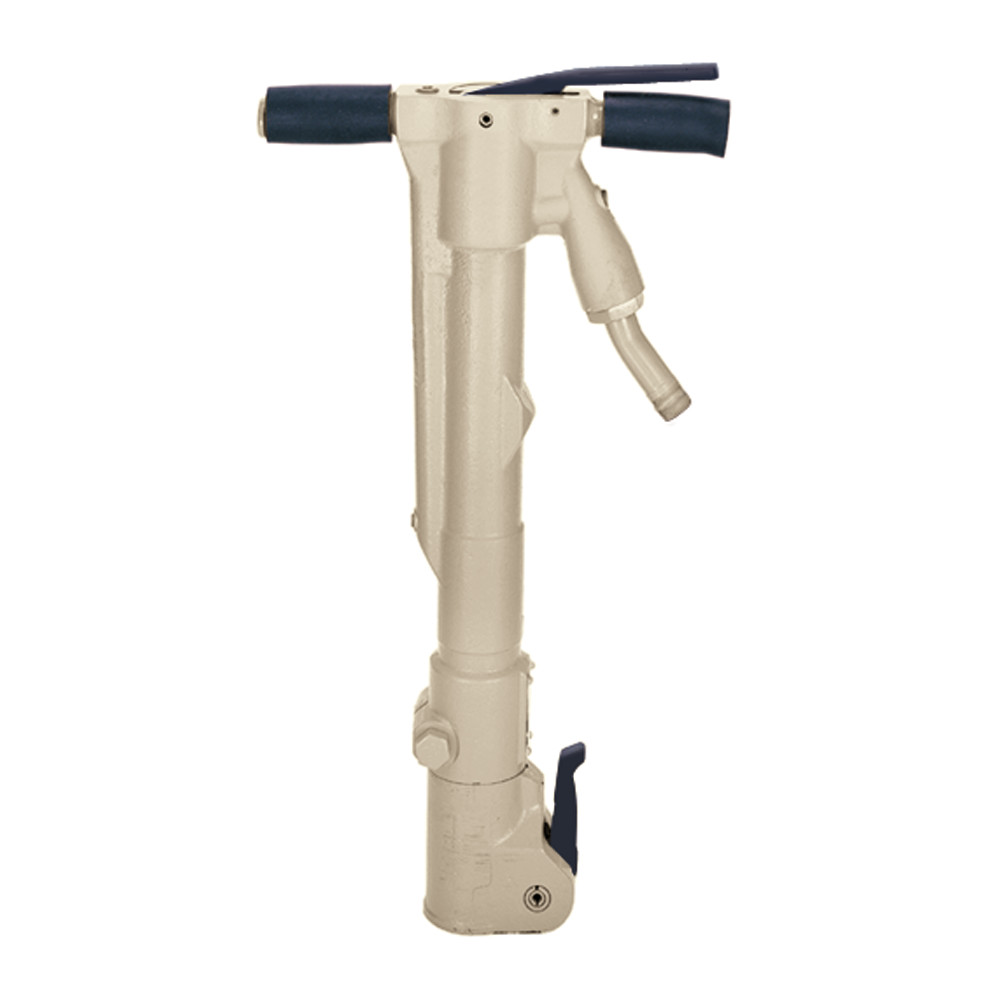

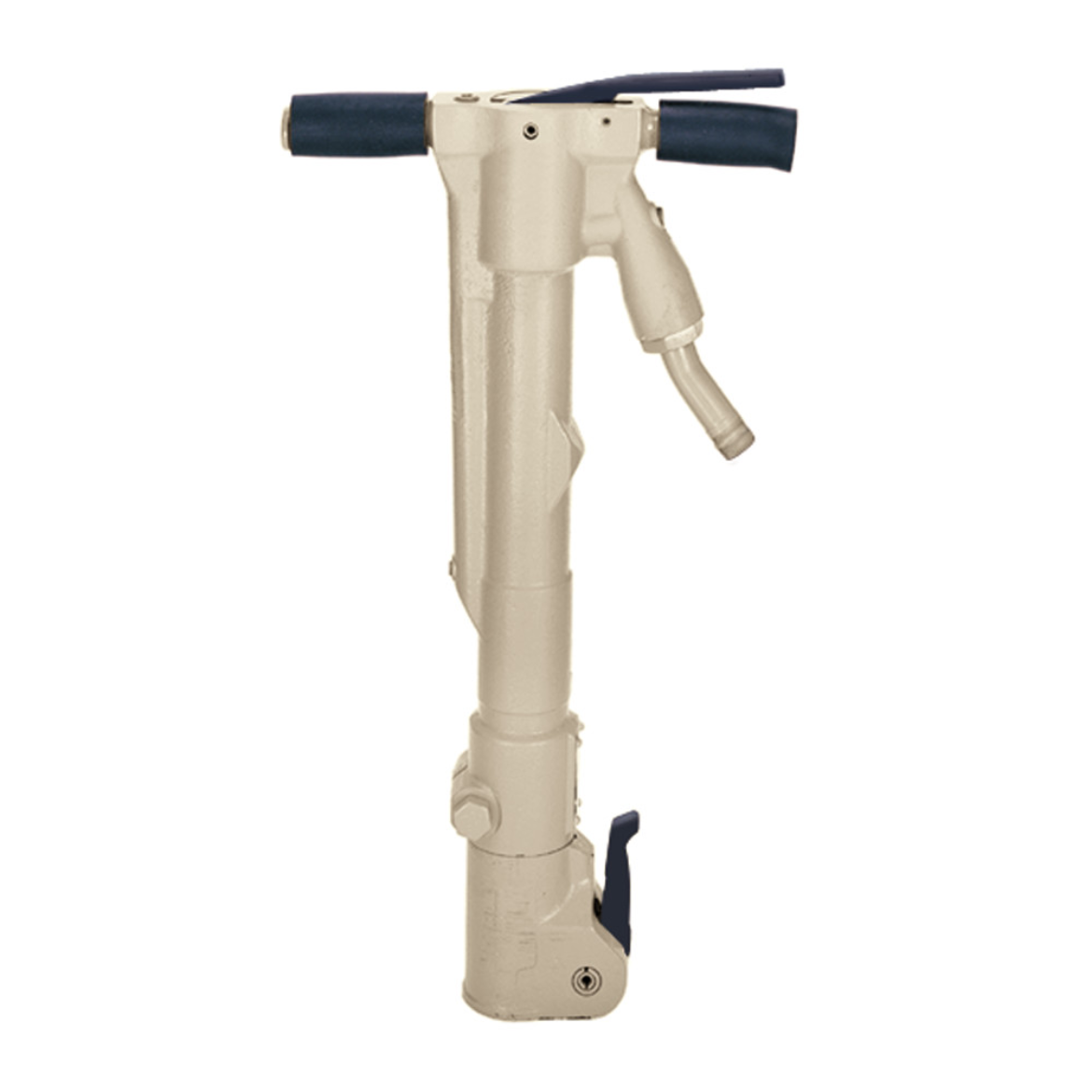

IR PB35AL8
Pavement Breaker, 1 X 4-1/4" Hex Shank, 6.25" Stroke Length, 1250 BPM, 1-3/4" Bore
Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB35 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.
Features And Benefits
- Power: With 1250 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
- Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
- Built-in lubricator helps ensure adequate lubrication.
- Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
- 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
Product Application and Uses: Ideal for a variety of projects, from bridge deck resurfacing to general demolition
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 49
Air Consumption @ Load (l/min): 1388
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Height Over Spindle (in): 25
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: No
Power Source: Air Powered
Product Length (in): 25
Product Width (in): 19
Product Weight (lb): 40
Retainer Type: Latch
Shank SIze (in): 1 X 4-1/4
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year
