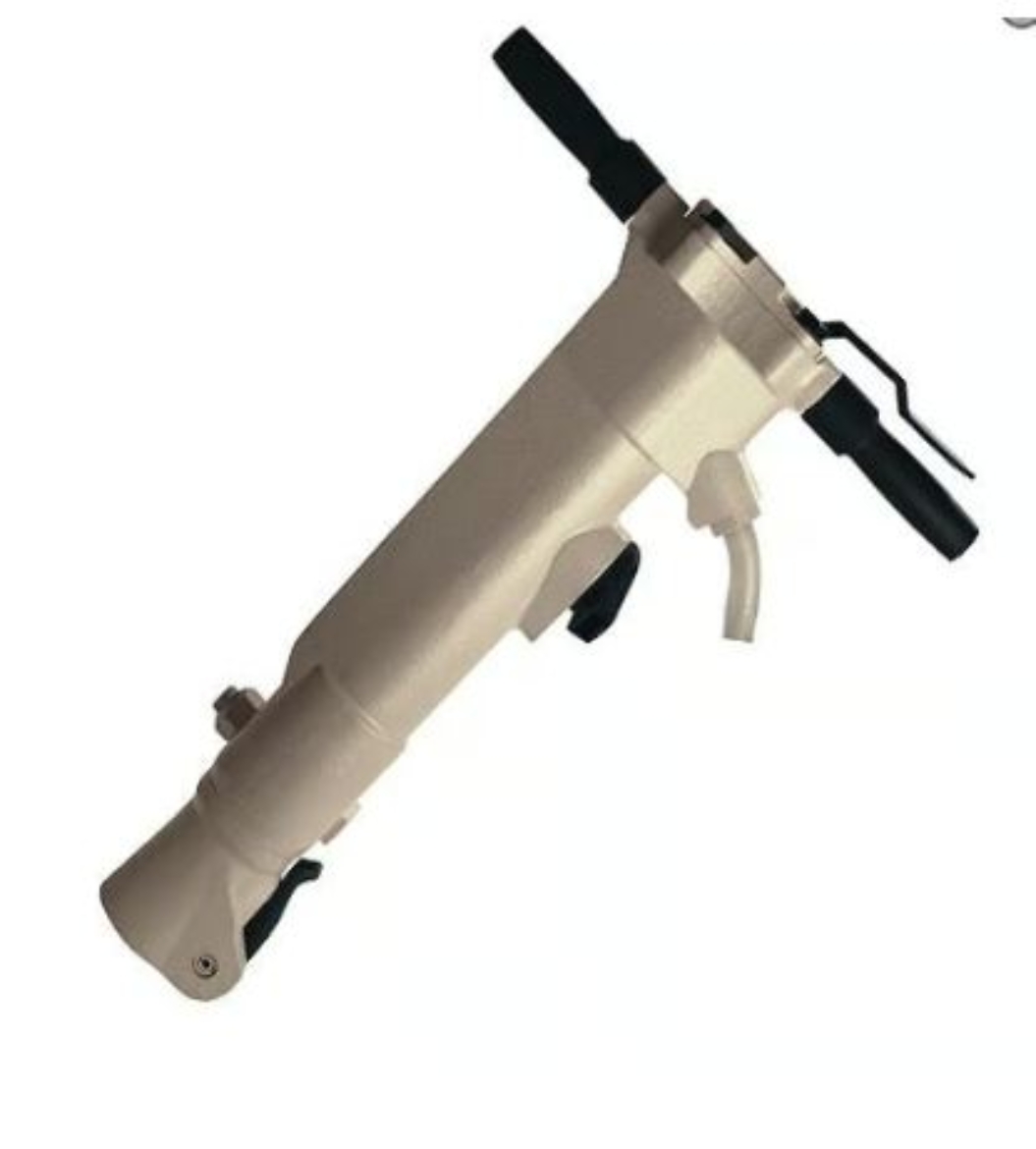

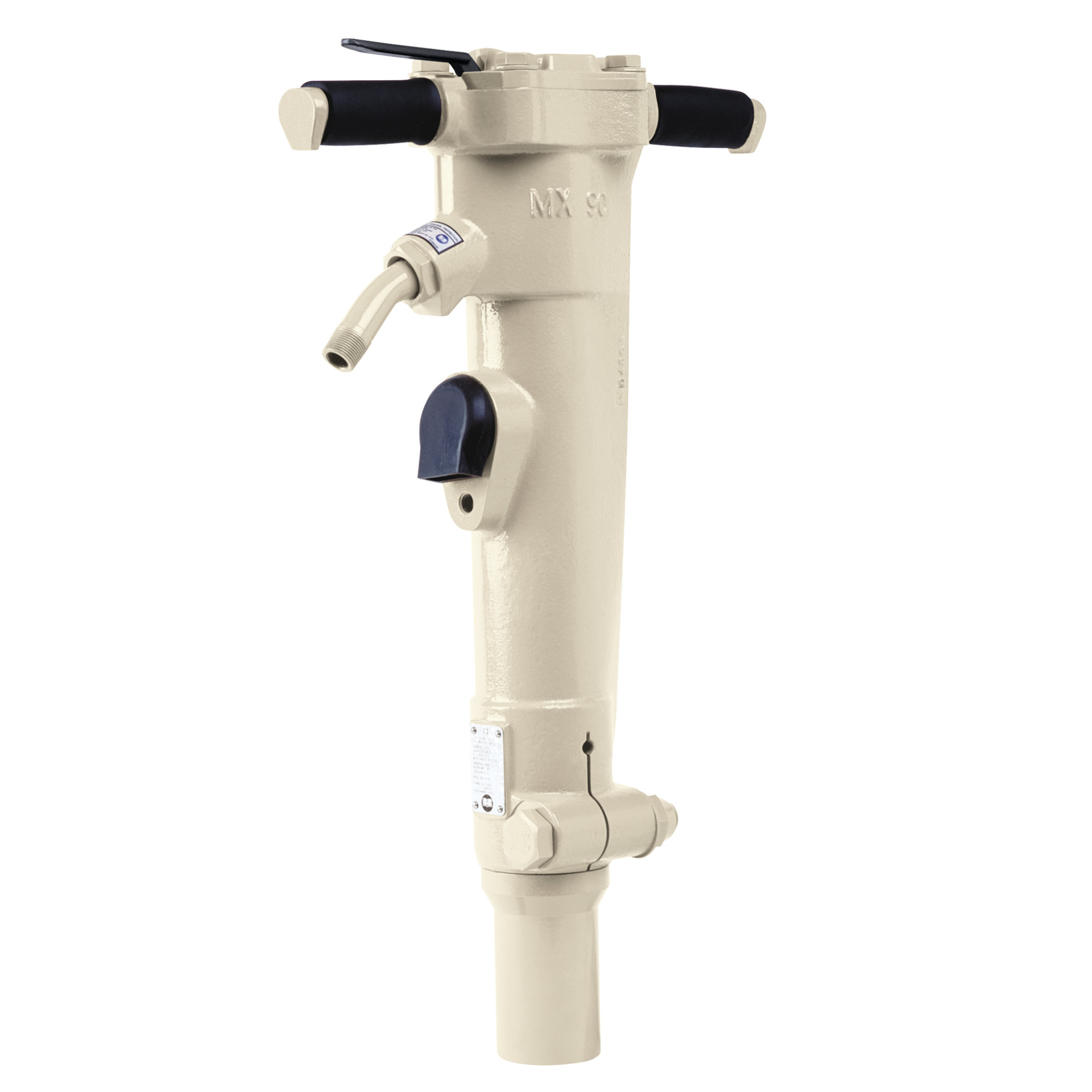

IR MX90F-SD
Spike Driver, Vibration Reduced Flex T-Handle, 5.75" Stroke, 1250 BPM, 2.62" Bore
The MX90 Series spike drivers deliver more blow energy to each spike than you’ll find anywhere else thanks to our Power-Strok™ piston technology. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
Features And Benefits
- Powerful: The MX Series spike drivers are powerful, but still easy to handle.
- Variable Exhaust Deflector: Choose where you want the exhaust air to flow with the MX Series’ 360-degree directional exhaust capabilities.
- Vibration-Reduced Flex Handle: The flex handles of the MX Series provide vibration dampening in a full 360-degree range of movement, increasing maximum operator comfort and productivity.
- Durable: The Ingersoll Rand MX Series spike drivers are rugged enough to tackle any job you throw their way.
Product Application and Uses: The spike driver is designed for driving cut spikes in the construction of new track and the relaying of old track with new rails.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Exhaust Location: Side - Adjustable
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 86
Stroke Length (in): 5.75
Warranty: 1-year
