Agitator,In-Drum, 1.5 Bung,

GG 25N881

AGITATOR, IN-DRUM, 1.5 BUNG,

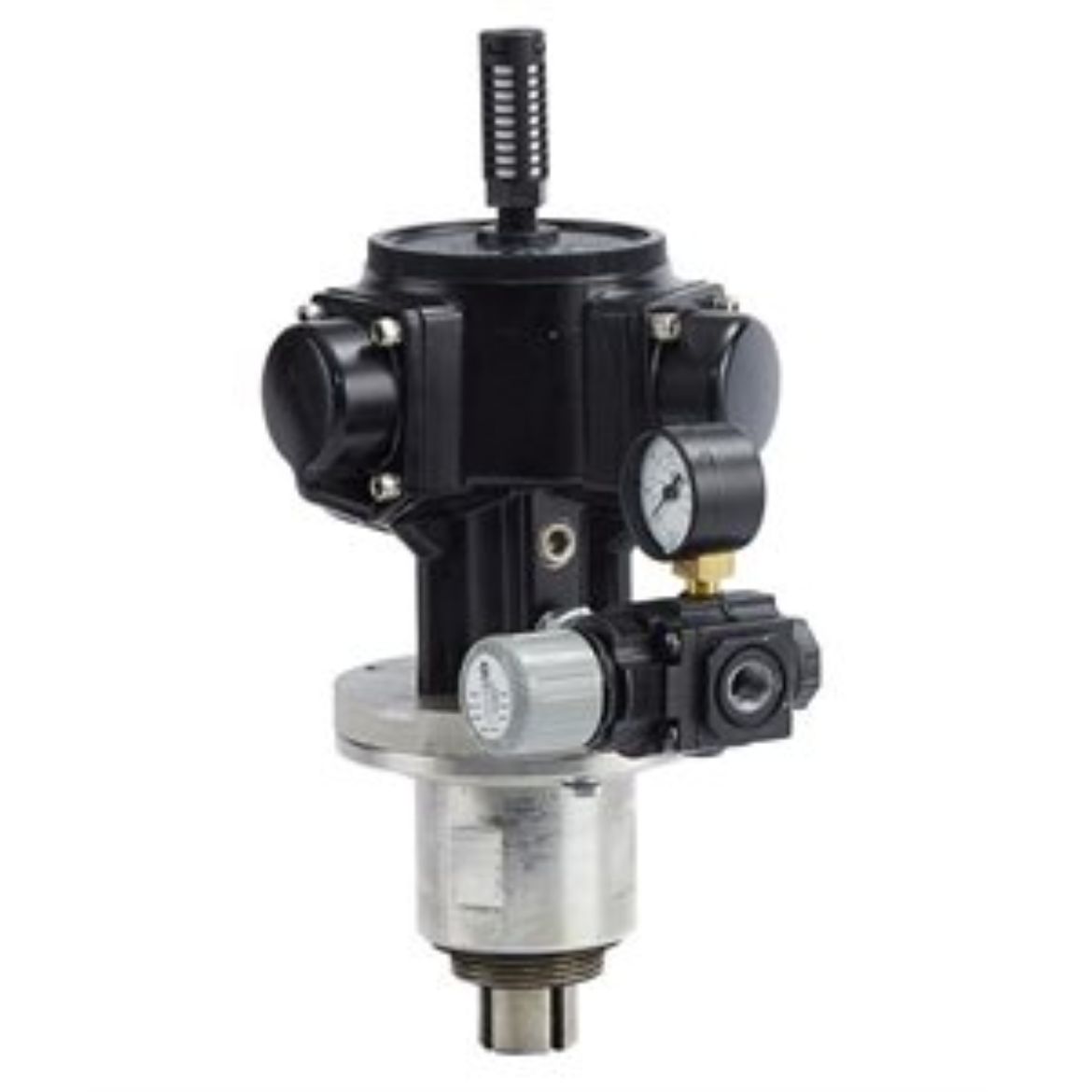

Graco 25N881 In-Drum, 1.5-inch (3.8 cm) Bung Mount

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Recommended agitator rotation: Clockwise
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
• Maximum allowable process fluid temperature: 194° F (90° C)

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Maximum Speed (RPM): 100

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston
