AGITATOR, HEAVY DUTY, SST

Manufacturer: GRACO INC. S10595

GG 24C522

AGITATOR, HEAVY DUTY, SST

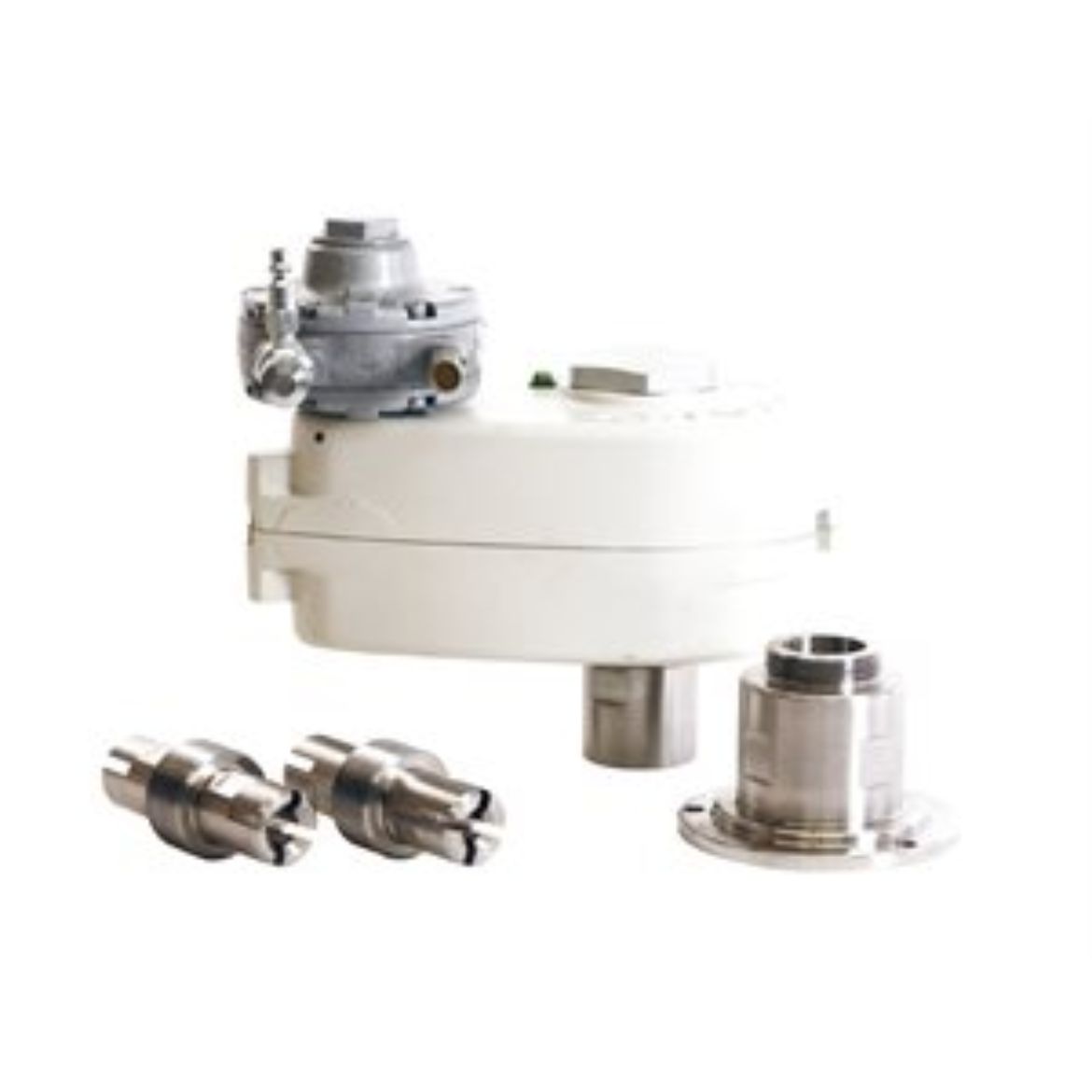

Graco 24C522 Heavy-Duty In-Drum Back-Geared Agitator, Stainless Steel, 2 inch Bung Adapter, 7/16 inch Shaft Adapter

  • Corrosion resistant materials for high quality and long life
  • Leak-free gearbox eliminates material contamination common with oil filled units
  • Installs easily onto in-drum agitators
  • Includes 7/16 in shaft adapter
  • ATEX approval for hazardous locations


  • Air Inlet Size (cm): 0.635
  • Air Inlet Size (in): 1/4
  • Air Inlet Size (mm): 6.35
  • Air Inlet Thread Type: NPT
  • For Use With: 55 Gallon (208 Liter) Drum
  • Includes: Heavy Duty Agitator Drive, 2 Adapters
  • Maximum Air Inlet Pressure (bar): 7
  • Maximum Air Inlet Pressure (kPa): 700
  • Maximum Air Inlet Pressure (psi): 100
  • Maximum Speed (RPM): 1200
  • Maximum Viscosity (cP): 3000
  • Maximum Working Pressure (bar): 7
  • Maximum Working Pressure (kPa): 700
  • Maximum Working Pressure (psi): 100
  • Motor Type: Pneumatic - Rotary Vane
  • Power Rating (HP): 0.25
SKU: GG 24C522
Availability:
Price: $2,660.00
