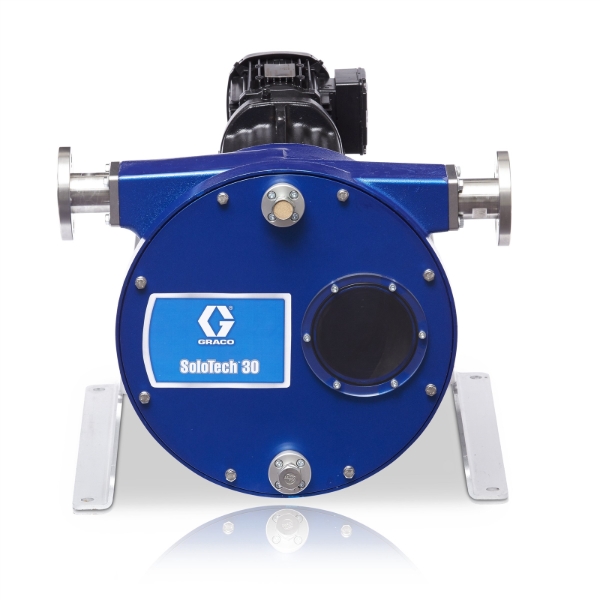

SOLOTECH ST30 PUMP, HAC/CS/SS/A1/A1/0/

GG 19Z114

SOLOTECH ST30 PUMP, HAC/CS/SS/A1/A1/0/

SoloTech™ i30 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, 316 Stainless Steel Barb

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

Cast aluminum housing reduces pump weight
Improved mounting flexibility with adjustable feet

Electric Motor

Choose between AC and Brushless DC models
Multiple gearbox offerings to meet your exact flow rate needs
Hazardous location motors available

Brushless DC Motor

Batch dispense mode
Wider turndown ratio allows for larger flow range
Maintenance reminders

Single Roller Design

Single roller design improves hose life by reducing the number of compressions, temperature and friction
Metallic roller with bearings provides constant compression and flow

Removable Cover

Aluminum covers with larger sight window makes it easy to access and see internal parts
Optional leak detector kit mounts on cover

Hose Barb Assembly

Easy to install or remove – no special tools needed
Available with PVDF and SST barbs options
Floating flange for easy installation

More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

$14,720.00

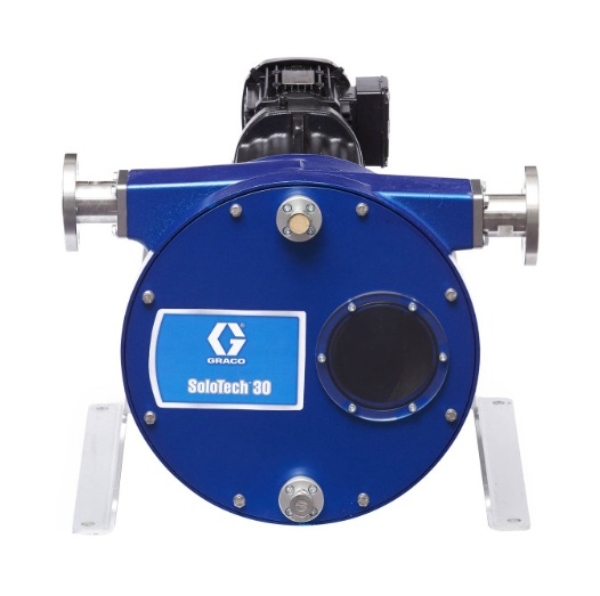

SOLOTECH ST30 PUMP, HAC/EP/SS/A1/A1/0/

GG 19Z115

SOLOTECH ST30 PUMP, HAC/EP/SS/A1/A1/0/

SoloTech™ i30 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Pump Construction

Cast aluminum housing reduces pump weight
Improved mounting flexibility with adjustable feet

Electric Motor

Choose between AC and Brushless DC models
Multiple gearbox offerings to meet your exact flow rate needs
Hazardous location motors available

Brushless DC Motor

Batch dispense mode
Wider turndown ratio allows for larger flow range
Maintenance reminders

Single Roller Design

Single roller design improves hose life by reducing the number of compressions, temperature and friction
Metallic roller with bearings provides constant compression and flow

Removable Cover

Aluminum covers with larger sight window makes it easy to access and see internal parts
Optional leak detector kit mounts on cover

Hose Barb Assembly

Easy to install or remove – no special tools needed
Available with PVDF and SST barbs options
Floating flange for easy installation

$14,270.00

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, STND

GG EC1241

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, STND

Graco EC1241 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings
Minimal pulsation at changeover provides a more consistent finish
Electric motor eliminates icing – giving you smoother pump operation and better finished product

Model: E-Flo
Series: DC 4-Ball

Application: Circulation
Compatible Material: Solvent borne, High Solids, Xirallic, Metallics, Varnish, CARC
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Section Type: Sealed
Includes: Advanced Control Input, Stand
Input Voltage (V ac): 250
Material: Stainless Steel
Maximum Continuous Cycle Rate (CPM): 20
Maximum Flow Rate (GPM): 4
Maximum Flow Rate (L/min): 15.14
Maximum Input Amperage (A): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Working Pressure (bar): 20.7
Maximum Working Pressure (kPa): 2070
Maximum Working Pressure (MPa): 2.1
Maximum Working Pressure (psi): 300
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Motor Type: AC
Portable: Non-Portable
Power Rating (HP): 1

$20,270.00

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, WALL

GG EC1B42

E-FLO PUMP, 1HP, 750, ADV, TRI, SLD, WALL

Graco EC1B42 E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Wall

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Quiet electric motor exceeds OSHA sound regulations, meaning happier operators and better results.
Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
Meets requirements of these approval agencies: ATEX, FM, IECEx
Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: Tri-Clamp
Fluid Inlet Type: Tri-Clamp

Fluid Outlet Size (in): 1.5
Fluid Outlet Size (mm): 3.81
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: Tri-Clamp
Fluid Section Type: 4-Ball, Sealed Bellows
Includes: Advanced Control Input, Wall Mount
Maximum Continuous Cycle Rate (CPM): 20
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Voltage (V ac): 480
Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Minimum Voltage (V ac): 380
Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505
Overall Height (cm): 138.5
Overall Height (in): 54.53
Overall Height (mm): 1385
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432

$21,710.00

E-FLO PUMP, 1HP, 1000, ADV, TRI, SLD, STND

GG EC2241

E-FLO PUMP, 1HP, 1000, ADV, TRI, SLD, STND

E-Flo DC 4-Ball Electric Circulation Pump, 1000cc, 1 HP, Advanced, ATEX/FM/IECEx, Sealed, Ultralife Rod/Cylinder, Tri-Clamp, Stand E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility. Sealed lower has longer maintenance cycles, plus it can be used for every pumping application in your mix room, including catalyzed coatings Minimal pulsation at changeover provides a more consistent finish Electric motor eliminates icing – giving you smoother pump operation and better finished product Quiet electric motor improves your work environment allowing you to remain near the pump for longer periods of time

$20,370.00

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, WALL

GG EC3D42

E-FLO PUMP, 2HP, 1500, ADV, TRI, SLD, WALL

Graco EC3D42 E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Wall

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Integrated runaway protection prevents pump from premature wear and costly material loss.
Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.
Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: Tri-Clamp
Fluid Inlet Type: Tri-Clamp

$32,040.00

E-FLO PUMP, 2HP, 1500, ADV, NPT, OPN

GG EC3D50

E-FLO PUMP, 2HP, 1500, ADV, NPT, OPN

Graco EC3D50 E-Flo DC 4-Ball Electric Circulation Pump, 1500cc, 2 HP, 480V, Advanced, ATEX/FM/IECEx, Open Wet Cup Lower, Ultralife Rod/Cylinder, NPT

Advanced model lets you easily connect and manage multiple pumps with a single control module.
Minimal pulsation at changeover provides a more consistent finish.
Open wet cup lower includes Ultralife ceramic coating for improved durability.
Installation simply requires 220 volt single phase power. No VFD (variable frequency drive) needed.
Meets requirements of these approval agencies: ATEX, FM, IECEx

Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Inlet Type: NPT

Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 2.54
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 4-Ball, Open Wet Cup
Includes: Advanced Control Input, No Mounting
Maximum Continuous Cycle Rate (CPM): 12
Maximum Operating Temperature (°C): 40
Maximum Operating Temperature (°F): 104
Maximum Voltage (V ac): 480
Maximum Working Pressure (bar): 26
Maximum Working Pressure (kPa): 2600
Maximum Working Pressure (MPa): 2.6
Maximum Working Pressure (psi): 377
Minimum Operating Temperature (°C): 0
Minimum Operating Temperature (°F): 32
Minimum Voltage (V ac): 380
Overall Depth (cm): 50.5
Overall Depth (in): 19.88
Overall Depth (mm): 505
Overall Height (cm): 115.6
Overall Height (in): 45.51
Overall Height (mm): 1156
Overall Width (cm): 43.2
Overall Width (in): 17
Overall Width (mm): 432

$29,810.00

DURA-FLO PUMP, 3400/1000

GG P06DSG

DURA-FLO PUMP, 3400/1000

Graco P06DSG Dura-Flo NXT 2-Ball Piston Pump, 6:1, De-Icing Exhaust Motor, SST, PTFE/PTFE Packings

Graco’s Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost

Model: Dura-Flo
Series: 2-Ball

Application: Supply
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 25.4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 2-Ball
Includes: Stainless Steel Pump, De-Icing Exhaust Motor, PTFE / PTFE Packings
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 17.4
Maximum Flow Rate (L/min): 65.87
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 43
Maximum Working Pressure (kPa): 4300
Maximum Working Pressure (MPa): 4.3
Maximum Working Pressure (psi): 620
Motor Type: De-Icing NXT
Mount Type: Wall or Stand Mount
Portable: Non-Portable
Pump Ratio: 6:1

$12,820.00

DURA-FLO PUMP, 6500/1000

GG P10LCK

DURA-FLO PUMP, 6500/1000

Graco P10LCK Dura-Flo NXT 2-Ball Piston Pump, 10:1, Low Noise Exhaust Motor, CS, UHM with Leather Packings

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost

Model: Dura-Flo
Series: 2-Ball

Application: Supply
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 2-Ball
Includes: Carbon Steel Pump, Low Noise Exhaust Motor, UHMW / Leather Packings
Material: Carbon Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 17.4
Maximum Flow Rate (L/min): 65.87
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 82
Maximum Working Pressure (kPa): 8200
Maximum Working Pressure (MPa): 8.2
Maximum Working Pressure (psi): 1190
Motor Type: Low Noise NXT
Mount Type: Wall or Stand Mount
Portable: Non-Portable
Pump Ratio: 10:1

$15,750.00

DURA-FLO PUMP, 3400/580

GG P12ESA

DURA-FLO PUMP, 3400/580

Dura-Flo NXT 2-Ball Piston Pump, 12:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 PTFE Packings

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery High pump pressure and flow performance to handle a broad range of paints and coatings Improved serviceability with fewer parts, faster repairs and lower ownership cost Monitor and protect your pump with DataTrak

$17,690.00

XTREME PUMP, 2200/290, NF

GG P16DC1

XTREME PUMP, 2200/290, NF

Graco P16DC1 Xtreme NXT 2-Ball Piston Pump, 16:1, De-Icing Exhaust Motor, CS

Graco&prime, s Xtreme pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost

Model: Xtreme
Series: 2-Ball

Air Inlet Size (in): 3/4
Air Inlet Size (mm): 19.05
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Supply
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 25.4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 2-Ball
Includes: Carbon Steel Pump, De-Icing Exhaust Motor
Material: Carbon Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.41
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Working Pressure (bar): 105
Maximum Working Pressure (kPa): 10500
Maximum Working Pressure (MPa): 10.5
Maximum Working Pressure (psi): 1520
Motor Type: De-Icing NXT
Mount Type: Wall or Stand Mount
Portable: Non-Portable
Pump Ratio: 16:1

$8,240.00

XTREME PUMP, 3400/290, NF, AC

GG P25DC3

XTREME PUMP, 3400/290, NF, AC

Graco P25DC3 Xtreme NXT 2-Ball Piston Pump, 25:1, De-Icing Exhaust Motor, CS, Air Controls

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost

Model: Xtreme
Series: 2-Ball

Air Inlet Size (in): 3/4
Air Inlet Size (mm): 19.05
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Supply
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 25.4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 2-Ball
Includes: Carbon Steel Pump, De-Icing Exhaust Motor, Air Controls
Material: Carbon Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.41
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Working Pressure (bar): 209
Maximum Working Pressure (kPa): 20900
Maximum Working Pressure (MPa): 20.9
Maximum Working Pressure (psi): 3030
Motor Type: De-Icing NXT
Mount Type: Wall or Stand Mount
Portable: Non-Portable
Pump Ratio: 25:1

$9,870.00

DURA-FLO PUMP, 3400/290

GG P25LSE

DURA-FLO PUMP, 3400/290

Graco P25LSE Dura-Flo NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust Motor, SST, 4 Leather / 1 PTFE Packings

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost

Model: Dura-Flo
Series: 2-Ball

Application: Supply
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Outlet Size (in): 1
Fluid Outlet Size (mm): 25.4
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Type: 2-Ball
Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 4 Leather/1 PTFE Packings
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 4.6
Maximum Flow Rate (L/min): 17.41
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 314
Maximum Working Pressure (kPa): 31400
Maximum Working Pressure (MPa): 31.4
Maximum Working Pressure (psi): 4550
Motor Type: Low Noise NXT
Mount Type: Wall or Stand Mount
Portable: Non-Portable
Pump Ratio: 25:1

$13,950.00

DURA-FLO PUMP, 6500/430

GG P32LSB

DURA-FLO PUMP, 6500/430

Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 Tuffstack Packings

$19,270.00

DURA-FLO PUMP, 6500/430

GG P32MSB

DURA-FLO PUMP, 6500/430

Graco P32MSB Dura-Flo NXT 2-Ball Piston Pump, 32:1, Low Noise Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack Packings

Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
High pump pressure and flow performance to handle a broad range of paints and coatings
Improved serviceability with fewer parts, faster repairs and lower ownership cost

Model: Dura-Flo
Series: 2-Ball

Air Inlet Size (in): 0.7506
Air Inlet Size (mm): 19.05
Application: Supply
Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
Fluid Section Type: 2-Ball
Includes: Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 3 UHMWPE/2 Tuff-Stack Packings
Material: Stainless Steel
Maximum Air Inlet Pressure (bar): 6.9
Maximum Air Inlet Pressure (kPa): 690
Maximum Air Inlet Pressure (psi): 100
Maximum Continuous Cycle Rate (CPM): 60
Maximum Flow Rate (GPM): 6.9
Maximum Flow Rate (L/min): 26.12
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Working Pressure (bar): 164
Maximum Working Pressure (kPa): 16400
Maximum Working Pressure (MPa): 16.4
Maximum Working Pressure (psi): 2380
Motor Type: Low Noise NXT with DataTrak
Mount Type: Wall or Stand Mount
Portable: Non-Portable
Pump Ratio: 32:1

$20,520.00

DURA-FLO PUMP, 6500/290

GG P45LSS

DURA-FLO PUMP, 6500/290

Graco P45LSS 45:1 - 290cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.

Application: Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer

NXT 6500 Air Motor
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
290cc Dura-Flo Lower
Severe Duty coatings on rods and cylinder Extends production time
Standard Threaded Coupler -
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- Optional DataTrak™ Control
  Ambient/Warm Melt/Hot Melt: Ambient
  Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
  Compatible Material: CARC, High Solids, Metallics, Solvent borne, Stains, Varnish, Xirallic
  Fluid Inlet Size (in): 2
  Fluid Inlet Size (mm): 50.8000
  Fluid Inlet Thread Gender: Female
  Fluid Inlet Thread Type: NPT
  Fluid Outlet Size (in): 1
  Fluid Outlet Size (mm): 25.4000
  Fluid Outlet Thread Gender: Female
  Fluid Outlet Thread Type: NPT
  Includes: Motor, Lower, Rod Tie, Collar Coupling, Adaptor, Nut Coupling, Nut Hex, Wrench
  Material: Stainless Steel
  Maximum Working Pressure (bar): 314
  Maximum Working Pressure (kPa): 31400
  Maximum Working Pressure (MPa): 31.4
  Maximum Working Pressure (psi): 4550
  Power Type: Pneumatic
  Pump Ratio: 45:1

$15,460.00

DURA-FLO PUMP, 6500/220

GG P57LSS

DURA-FLO PUMP, 6500/220

57:1 - 220cc Dura-Flo Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.

Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer NXT 6500 Air Motor

Modular design for easier maintenance
Rugged body armor won't rust or dent
Highest technology air motor on the market

220cc Dura-Flo Lower

Severe Duty coatings on rods and cylinder Extends production time

Standard Threaded Coupler -

1"-11 1/2 NPT Female outlet

Replaceable Seat

Minimizes service costs

Cast Outlet and Inlet Housing

Improves structural integrity

Optional DataTrak™ Control

Runaway protection
Pump diagnostics
Material usage

$15,140.00

CHECK-MATE PUMP, 68:1 6500/200 SS SD

GG P68LSS

CHECK-MATE PUMP, 68:1 6500/200 SS SD

Graco P68LSS 68:1 - 200cc Check-Mate Pump with NXT 6500 Air Motor, Severe Duty Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plant&prime, s production capacity.

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

NXT 6500 Air Motor
Low Noise
Modular design for easier maintenance
Rugged body armor won&prime, t rust or dent
Highest technology air motor on the market
200cc Check-Mate Lower
Severe Duty coatings on rods and cylinder Extends production time
Xtreme Coupler - No tool connection
Quick-disconnect coupler for easy maintenance
Replaceable Seat
Minimizes service costs
Cast Outlet and Inlet Housing
- NEW Xtreme® Coupler
  - Replaceable Outlet Fitting
    - Piston Valve with Floating Piston Seal
      - Replaceable Seat
        Minimizes service costs
        Floating Priming Plate
        Provides uniform flow
        Cast Outlet and Inlet Housing
        Improves structural integrity
        NEW Cartridge Throat Packings
        Allows for easy servicing without removing from ram
        Modular Air Valve
        De-icing controls
        Up to 50% quieter than previous models
        Modular air valve - eliminates stalling, easy-to-repair
        Hard Part Coatings
        Standard Severe Duty™ coating on rods and cylinder maximizes wear life

        Model: Check-Mate
        Ambient/Warm Melt/Hot Melt: Ambient
        Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
        Fluid Outlet Size (in): 1
        Fluid Outlet Size (mm): 25.4000
        Fluid Outlet Thread Gender: Female
        Fluid Outlet Thread Type: NPT
        Includes: Motor, Displacement Pump, Rod Tie, Adaptor Rod, Coupling Assembly, Cover Coupler, Clip Hairpin With Lanyard
        Material: Stainless Steel
        Maximum Working Pressure (bar): 434
        Maximum Working Pressure (kPa): 43400
        Maximum Working Pressure (MPa): 43.4
        Maximum Working Pressure (psi): 6200
        Power Type: Pneumatic
        Pump Ratio: 68:1
