Transfer

GG 19Z051

SOLOTECH ST23 PUMP, I23-MAC-EP-SS-A1-A1-0

SoloTech™ i23 Mid Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z052

SOLOTECH ST23 PUMP, I23-MAC-BN-SS-A1-A1-0

SoloTech™ i23 Mid Speed Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z053

SOLOTECH ST23 PUMP, I23-MAC-CS-PV-A1-A1-0

SoloTech™ i23 Mid Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z054

SOLOTECH ST23 PUMP, I23-MAC-EP-PV-A1-A1-0

SoloTech™ i23 Mid Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z057

SOLOTECH ST23 PUMP, I23-HAC-NR-SS-A1-A1-0

SoloTech™ i23 High Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z058

SOLOTECH ST23 PUMP, I23-HAC-CS-SS-A1-A1-0

SoloTech™ i23 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z059

SOLOTECH ST23 PUMP, I23-HAC-EP-SS-A1-A1-0

SoloTech™ i23 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z060

SOLOTECH ST23 PUMP, I23-HAC-BN-SS-A1-A1-0

SoloTech™ i23 High Speed Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

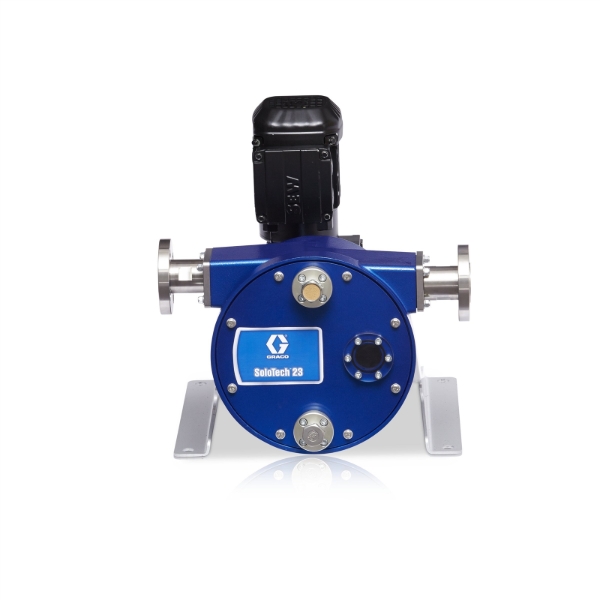

GG 19Z061

SOLOTECH ST23 PUMP, I23-HAC-CS-PV-A1-A1-0

SoloTech™ i23 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z062

SOLOTECH ST23 PUMP, I23-HAC-EP-PV-A1-A1-0

SoloTech™ i23 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 23 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

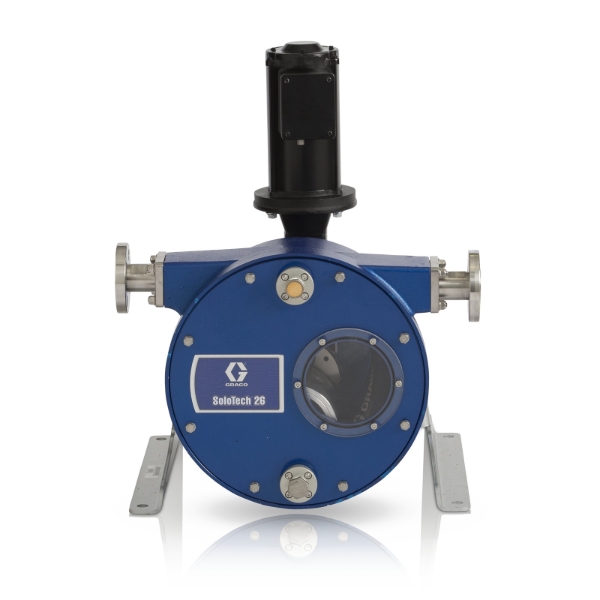

GG 19Z065

SOLOTECH ST26 PUMP, I26-0-BN-SS-A1-A1-M

SoloTech™ i26 Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & BLDC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z066

SOLOTECH ST26 PUMP, I26-0-NR-PV-A1-A1-M

SoloTech™ i26 Hypalon Peristaltic Hose Pump with CSM Hose, 316 Stainless Steel Barb & BLDC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z068

SOLOTECH ST26 PUMP, I26-MPM-EP-SS-A1-A1-0

Graco 19Z068 SoloTech i26 EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel & BLDC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Application: Peristaltic Hose Pumps for Industrial Metering and Transfer

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 10.2

• Gear Ratio: 38.23:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 0.257

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: Brushless DC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 41
• Overall Height (in): 16
• Overall Height (mm): 406
• Overall Length (cm): 93
• Overall Length (in): 36.8
• Overall Length (mm): 935
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 350
• Power Rating (kW): 261
• Power Rating (W): 260995

• Pump Speed (RPM): 2-94

GG 19Z070

SOLOTECH ST26 PUMP, I26-MPM-BN-SS-A1-A1-0

SoloTech™ i26 Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & BLDC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z073

SOLOTECH ST26 PUMP, I26-HAC-NR-SS-A1-A1-0

SoloTech™ i26 High Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

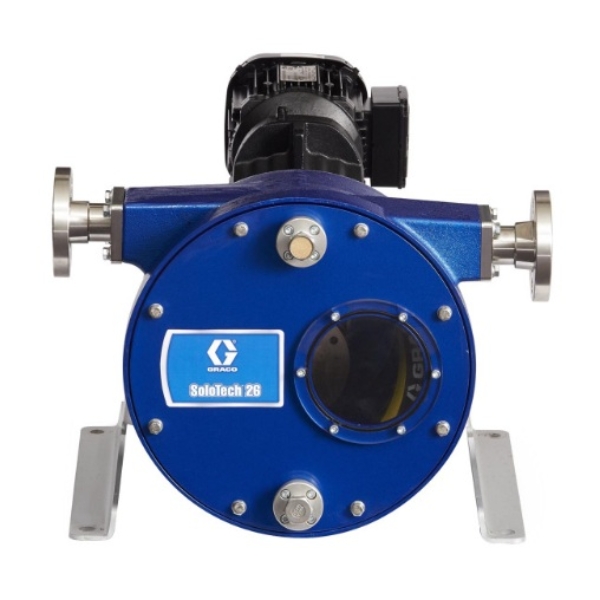

GG 19Z075

SOLOTECH ST26 PUMP, I26-HAC-EP-SS-A1-A1-0

Graco 19Z075 SoloTech i26 High Speed EPDM Peristaltic Hose Pump with EPDM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Application: Peristaltic Hose Pumps for Industrial Metering and Transfer

• More flow per revolution than conventional designs
• Inexpensive to maintain - no valves, seals or glands
• Pumps are reversible and can be used to empty lines or clear blockages

• Model: SoloTech
• Series: i26

• Application: Industrial

• Barb Material: Stainless Steel

• Flow Rate (GPM): 10.175

• Gear Ratio: 19.50:1

• Hose Diameter (cm): 2.6
• Hose Diameter (in): 1
• Hose Diameter (mm): 26
• Hose Material: EPDM

• Housing Material: Powder Coated Aluminum
• Inlet Size (cm): 2.5
• Inlet Size (in): 1
• Inlet Size (mm): 25

• Inlet Thread Type: Flange

• Maximum Flow Rate (GPM): 9.8
• Maximum Flow Rate (L/min): 37.1

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Fluid Pressure (bar): 9
• Maximum Fluid Pressure (kPa): 900
• Maximum Fluid Pressure (psi): 125

• Maximum Storage Temperature (°C): 40
• Maximum Storage Temperature (°F): 104

• Minimum Flow Rate (GPM): 1.7

• Minimum Storage Temperature (°C): -10
• Minimum Storage Temperature (°F): 14

• Motor Type: High Speed AC

• Outlet Size (cm): 2.5
• Outlet Size (in): 1
• Outlet Size (mm): 25

• Overall Height (cm): 42
• Overall Height (in): 16.5
• Overall Height (mm): 419
• Overall Length (cm): 92
• Overall Length (in): 36.1
• Overall Length (mm): 917
• Overall Width (cm): 55
• Overall Width (in): 21.7
• Overall Width (mm): 551

• Power Rating (HP): 2
• Power Rating (kW): 1.49
• Power Rating (W): 1491

• Pump Speed (RPM): 16-93

GG 19Z077

SOLOTECH ST26 PUMP, I26-HAC-CS-PV-A1-A1-0

SoloTech™ i26 High Speed Hypalon Peristaltic Hose Pump with CSM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

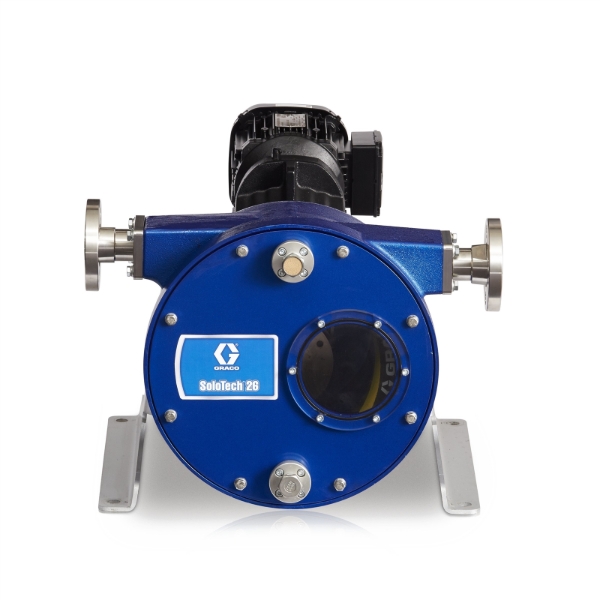

GG 19Z086

SOLOTECH ST26 PUMP, I26-LAC-EP-PV-A1-A1-0

SoloTech™ i26 Low Speed EPDM Peristaltic Hose Pump with EPDM Hose, PVDF Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z089

SOLOTECH ST26 PUMP, I26-MAC-NR-SS-A1-A1-0

SoloTech™ i26 Mid Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber, 316 Stainless Steel Barb

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z092

SOLOTECH ST26 PUMP, I26-MAC-BN-SS-A1-A1-0

SoloTech™ i26 Mid Speed Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 26 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Peristaltic Hose Pumps for Industrial Metering and Transfer More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

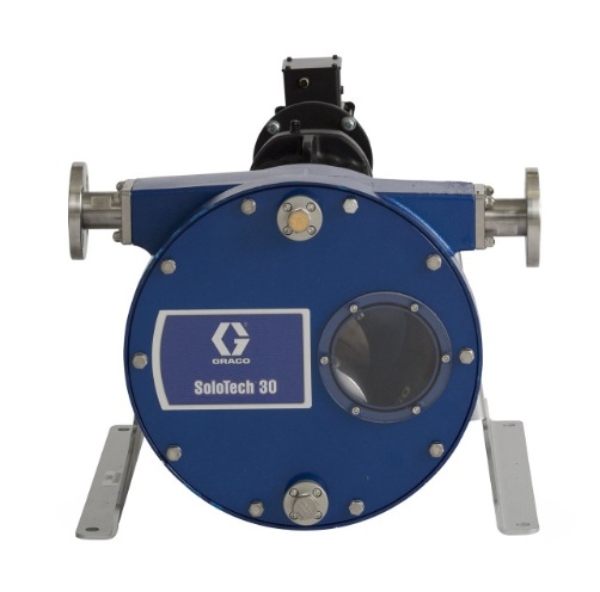

GG 19Z097

SOLOTECH ST30 PUMP, MPM/NR/SS/A1/A1/0/

SoloTech™ i30 Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & BLDC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

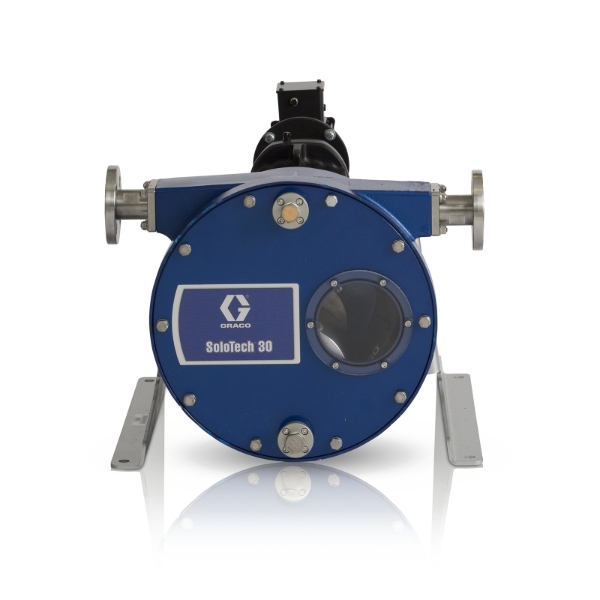

GG 19Z100

SOLOTECH ST30 PUMP, MPM/BN/SS/A1/A1/0/

SoloTech™ i30 Buna-N Peristaltic Hose Pump with Nitrile Hose, 316 Stainless Steel Barb & BLDC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z105

SOLOTECH ST30 PUMP, MAC/NR/SS/A1/A1/0/

SoloTech™ i30 Mid Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z106

SOLOTECH ST30 PUMP, MAC/CS/SS/A1/A1/0/

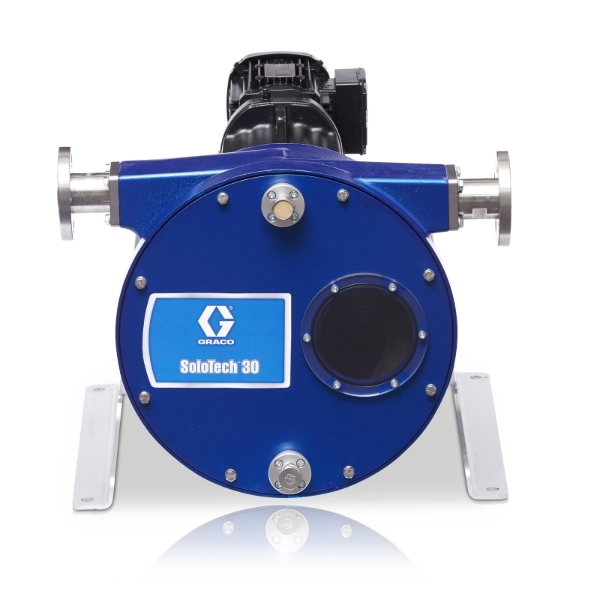

SoloTech™ i30 Mid Speed Hypalon Peristaltic Hose Pump with CSM Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution

GG 19Z113

SOLOTECH ST30 PUMP, HAC/NR/SS/A1/A1/0/

SoloTech™ i30 High Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor

Graco’s SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

Pump Construction

• Cast aluminum housing reduces pump weight
• Improved mounting flexibility with adjustable feet

Electric Motor

• Choose between AC and Brushless DC models
• Multiple gearbox offerings to meet your exact flow rate needs
• Hazardous location motors available

Brushless DC Motor

• Batch dispense mode
• Wider turndown ratio allows for larger flow range
• Maintenance reminders

Single Roller Design

• Single roller design improves hose life by reducing the number of compressions, temperature and friction
• Metallic roller with bearings provides constant compression and flow

Removable Cover

• Aluminum covers with larger sight window makes it easy to access and see internal parts
• Optional leak detector kit mounts on cover

Hose Barb Assembly

• Easy to install or remove – no special tools needed
• Available with PVDF and SST barbs options
• Floating flange for easy installation

More flow per revolution than conventional designs Inexpensive to maintain - no valves, seals or glands Pumps are reversible and can be used to empty lines or clear blockages Extended hose life - only one hose compression per revolution
