Pump, ST30, HAC, NR, SS

GG 19Z113

SOLOTECH ST30 PUMP, HAC/NR/SS/A1/A1/0/

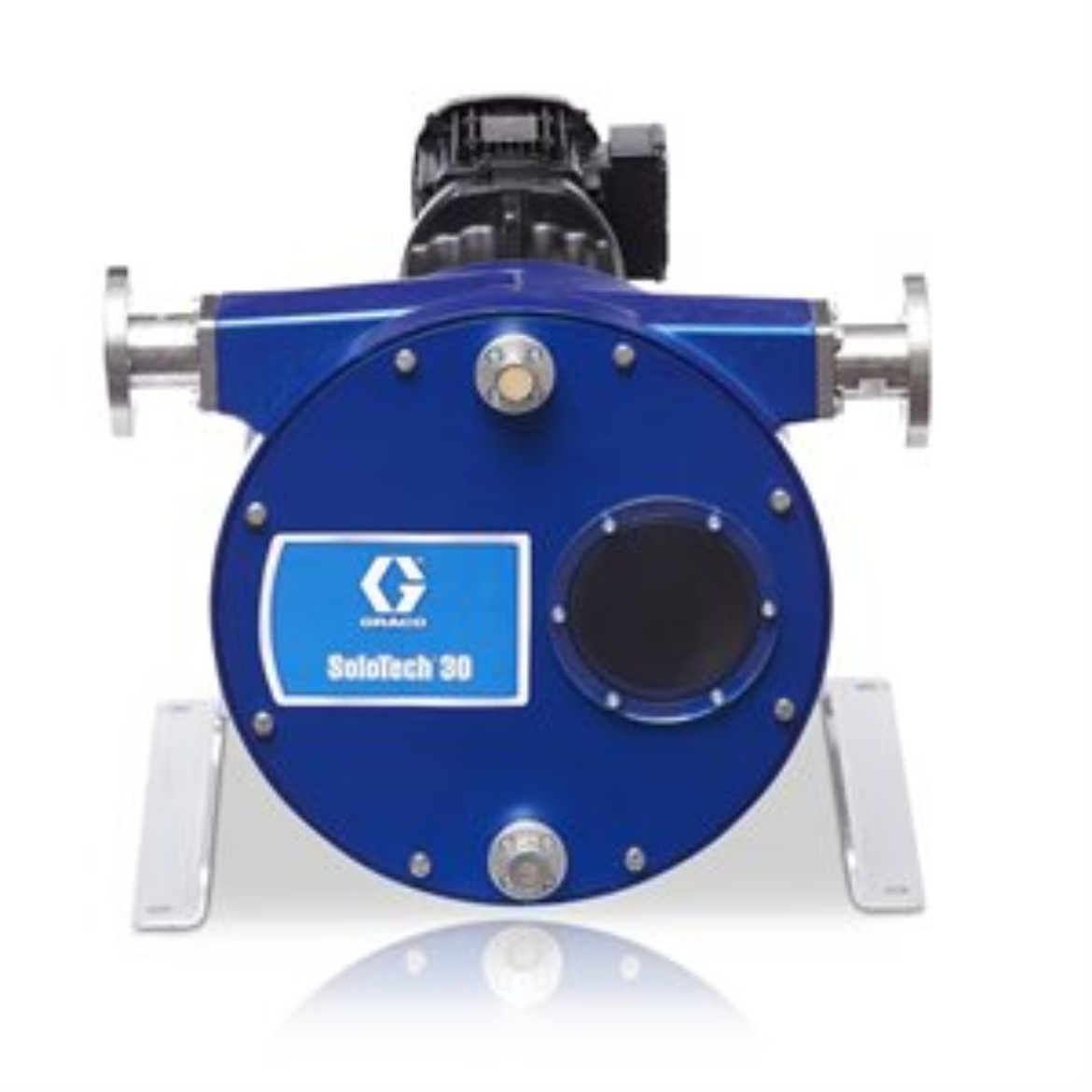

Graco 19Z113 SoloTech i30 High Speed Natural Rubber Peristaltic Hose Pump with Natural Rubber Hose, 316 Stainless Steel Barb & AC Motor

Graco's SoloTech 30 Hose pump design utilizes a single roller that compresses an engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.

• Pump Construction

  Cast aluminum housing reduces pump weight

  Improved mounting flexibility with adjustable feet

  • Electric Motor

    Choose between AC and Brushless DC models

    Multiple gearbox offerings to meet your exact flow rate needs

    Hazardous location motors available

    • Brushless DC Motor

      Batch dispense mode

      Wider turndown ratio allows for larger flow range

      Maintenance reminders

      • Removable Cover

        Aluminum covers with larger sight window makes it easy to access and see internal parts

        Optional leak detector kit mounts on cover

        • Hose Barb Assembly

          Easy to install or remove - no special tools needed

          Available with PVDF and SST barbs options

          Floating flange for easy installation

          • More flow per revolution than conventional designs
          • Inexpensive to maintain - no valves, seals or glands
          • Pumps are reversible and can be used to empty lines or clear blockages
          • Extended hose life - only one hose compression per revolution




          • Model: SoloTech
          • Series: i30
          • Application: Industrial
          • Barb Material: Stainless Steel
          • Flow Rate (GPM): 16
          • Gear Ratio: 19.5:1
          • Hose Diameter (cm): 3
          • Hose Diameter (in): 1.2
          • Hose Diameter (mm): 30
          • Hose Material: Rubber
          • Housing Material: Powder Coated Aluminum
          • Inlet Size (cm): 3.2
          • Inlet Size (in): 1-1/4
          • Inlet Size (mm): 32
          • Inlet Thread Type: Flange
          • Maximum Flow Rate (GPM): 15.8
          • Maximum Flow Rate (L/min): 59.8
          • Maximum Fluid Pressure (bar): 9
          • Maximum Fluid Pressure (kPa): 900
          • Maximum Fluid Pressure (psi): 125
          • Maximum Fluid Pressure (bar): 9
          • Maximum Fluid Pressure (kPa): 900
          • Maximum Fluid Pressure (psi): 125
          • Maximum Storage Temperature ( degree C): 40
          • Maximum Storage Temperature ( degree F): 104
          • Minimum Flow Rate (GPM): 2.675
          • Minimum Storage Temperature ( degree C): -10
          • Minimum Storage Temperature ( degree F): 14
          • Motor Type: High Speed AC
          • Outlet Size (cm): 12.5
          • Outlet Size (in): 4.92
          • Outlet Size (mm): 125
          • Overall Height (cm): 77
          • Overall Height (in): 30.3
          • Overall Height (mm): 770
          • Overall Length (cm): 67
          • Overall Length (in): 26.5
          • Overall Length (mm): 673
          • Overall Width (cm): 59
          • Overall Width (in): 23.3
          • Overall Width (mm): 592
          • Power Rating (HP): 3
          • Power Rating (kW): 2.24
          • Power Rating (W): 2237
          • Pump Speed (RPM): 15-91
