Transfer

GG K45NH1

KING SPRAYER, 45:1, H-P, NF, HD, COMP

Graco K45NH1 King 45:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-5+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Approved for Hazardous Locations: Yes
    • Compatible Material: Protective Coating
    • Control Type: Fixed Ratio
    • Convertible: Non-Convertible
    • Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1
    • Fluid Outlet Size (mm): 25.4
    • Fluid Outlet Thread Type: NPT
    • Frame Configuration: Heavy-Duty Cart
    • Gun Model: XTR-5
    • Includes: Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun
    • Lower Type: Non-Filter
    • Material Application: Paints, Primers
    • Maximum Air Inlet Pressure (psi): 150
    • Maximum Fluid Working Pressure (psi): 4500
    • Maximum Sound Pressure Level (dB(A)): 81.48
    • Maximum Tip Size (in): Variable
    • Maximum Working Pressure (bar): 310
    • Maximum Working Pressure (kPa): 31000
    • Maximum Working Pressure (MPa): 31
    • Maximum Working Pressure (psi): 4500
    • Motor Type: XL High Performance
    • Number of Guns: 1
    • Package Options: Air Controls, Siphon Kit, Hose, Gun
    • Package Pressure Ratio (Motor/Lower): 45:1 XL6500 / 290cc
    • Power Source: Air
    • Product Type: Single Leg
    • Pump Mount Type: Heavy-Duty Cart
    • Pump Rod Type: MaxLife

GG P12LSA

DURA-FLO PUMP, 3400/580

Graco P12LSA Dura-Flo NXT 2-Ball Piston Pump, 12:1, Low Noise Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stainless Steel Pump, Low Noise Exhaust Motor, 3 UHMWPE/2 PTFE Packings

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 9.2
• Maximum Flow Rate (L/min): 34.83

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 82
• Maximum Working Pressure (kPa): 8200
• Maximum Working Pressure (MPa): 8.2
• Maximum Working Pressure (psi): 1190

• Motor Type: Low Noise NXT

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 12:1

GG P15CSS

DURA-FLO PUMP, 3400/430

Graco P15CSS 15:1 - 430cc Dura-Flo Pump with NXT 34000 Air Motor, Severe Duty Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

• Model: Dura-Flo

GG P23ESA

DURA-FLO PUMP, 6500/580

Graco P23ESA Dura-Flo NXT 2-Ball Piston Pump, 23:1, Low Noise Exhaust Motor, DataTrak, SST, 3 UHMW / 2 PTFE Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stainless Steel Pump, De-Icing Exhaust Motor, DataTrak Monitor, 3 UHMWPE/2 PTFE Packings

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 9.2
• Maximum Flow Rate (L/min): 34.83

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 168
• Maximum Working Pressure (kPa): 16800
• Maximum Working Pressure (MPa): 16.8
• Maximum Working Pressure (psi): 2430

• Motor Type: Low Noise NXT with DataTrak

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 23:1

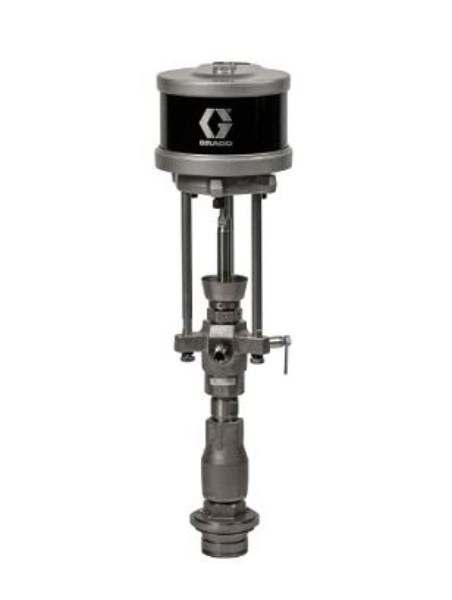

GG P61LCS

CHECK-MATE PUMP, 61:1 1800/060 CS SD

Graco P61LCS 61:1 - 60cc Check-Mate Pump with NXT 1800 Air Motor, Severe Duty Carbon Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems. Maximize your plants production capacity.

Application: Long-lasting durability - Check-Mate pumps are a time-tested, proven performer

• NXT 1800 Air Motor


  Low Noise

  Modular design for easier maintenance

  Highest technology air motor on the market

• 60cc Check-Mate Lower


  Severe Duty coatings on rods and cylinder Extends production time

• Standard Threaded Coupler -

• Replaceable Seat

  Minimizes service costs

• Cast Outlet and Inlet Housing

  Improves structural integrity

  • NEW Xtreme Coupler

    Quick-disconnect coupler for easy maintenance

    • Replaceable Outlet Fitting

      Reduces repair costs

      • Piston Valve with Floating Piston Seal

        For maximum pressure balance over a range of material viscosities

        • Replaceable Seat

          Minimizes service costs

          • Floating Priming Plate

            Provides uniform flow

            • Cast Outlet and Inlet Housing

              Improves structural integrity

              • NEW Cartridge Throat Packings

                Allows for easy servicing without removing from ram

                • Modular Air Valve

                  De-icing controls

                  Up to 50% quieter than previous models

                  Modular air valve - eliminates stalling, easy-to-repair

                  • Hard Part Coatings

                    Standard Severe Duty coating on rods and cylinder maximizes wear life




                    • Model: Check-Mate
                    • Ambient/Warm Melt/Hot Melt: Ambient
                    • Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill
                    • Fluid Outlet Size (in): 3/4
                    • Fluid Outlet Thread Gender: Male
                    • Fluid Outlet Thread Type: NPT
                    • Includes: Motor, Displacement Pump, Washer Lock (6), Screw
                    • Material: Carbon Steel
                    • Maximum Working Pressure (bar): 421
                    • Maximum Working Pressure (kPa): 42100
                    • Maximum Working Pressure (MPa): 42.1
                    • Maximum Working Pressure (psi): 6100
                    • Power Type: Pneumatic
                    • Pump Ratio: 61:1

BB 98-3215

Gemini Ii Wall Mount Pkg

GG 02/0706-02/50

Valve Assy, Non-Drip, 5/8, EP

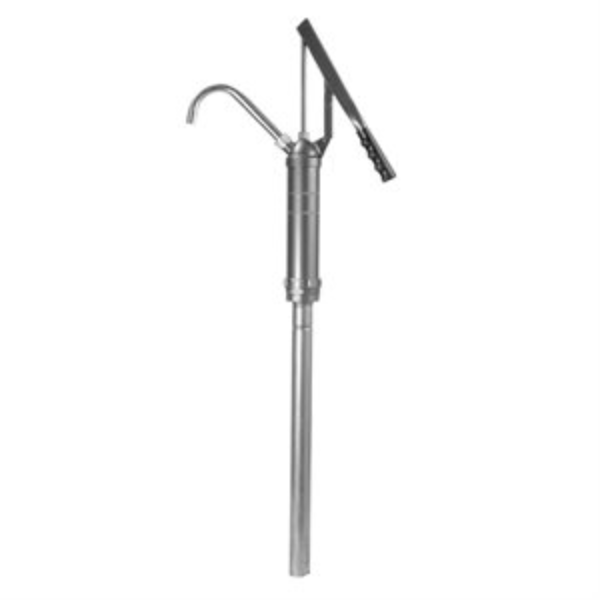

GG 114829

MANUAL PUMP, LEVER

Graco 114829 Lever Pump for 16 Gallon (60 Liter) or 55 Gallon (200 Liter) Drums - 0.1 Gallon (0.4 Liter) per Downstroke

Application: For transferring petroleum-based and synthetic oils, antifreeze, and non-corrosive chemicals

• Application: Industrial

• Compatible Material: Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze, Non-Corrosive Chemicals

GG 16U917

Lower,Assy, 75Cc

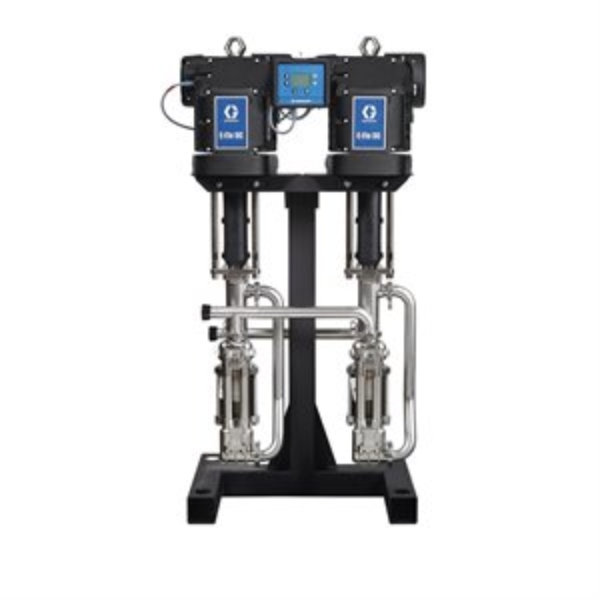

GG EC6J41

E-FLO PUMP, DC, X2, 4000CC, SEALED

Graco EC6J41 E-Flo DC 4-Ball Electric Circulation Pump, 4000cc, 2 x 2 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand

E-Flo DC (Dual Control) electric pumps are up to five times more efficient than pneumatic pumps, lowering energy bills and saving money. Unique 4-ball lower minimizes pulsation while increasing flow rates. Advanced control module improves performance with Intelligent Paint Kitchen (IPK) compatibility.

• Advanced model lets you easily connect and manage multiple pumps with a single control module.
• Minimal pulsation at changeover provides a more consistent finish.
• Sealed lower does not require throat seal liquid (TSL), reducing maintenance costs and unplanned downtime.
• Lower operates independently, allowing the pump to adjust to varying pressure and flow rate demands thousands of times per second.
• Pump can run alone to keep production running, if lower maintenance is required.

• Fluid Inlet Size (in): 1.5
• Fluid Inlet Size (mm): 38.1
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: Tri-Clamp
• Fluid Inlet Type: Tri-Clamp

• Fluid Outlet Size (in): 1.5
• Fluid Outlet Size (mm): 3.81
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: Tri-Clamp
• Fluid Section Type: 4-Ball, Sealed Bellows

• Includes: Advanced Control Input, Stand

• Maximum Continuous Cycle Rate (CPM): 20

• Maximum Operating Temperature ( degree C): 40
• Maximum Operating Temperature ( degree F): 104

• Maximum Voltage (V ac): 480

• Maximum Working Pressure (bar): 19
• Maximum Working Pressure (kPa): 1900
• Maximum Working Pressure (MPa): 1.9
• Maximum Working Pressure (psi): 276

• Minimum Operating Temperature ( degree C): 0
• Minimum Operating Temperature ( degree F): 32

• Minimum Voltage (V ac): 380

• Overall Depth (cm): 46.7
• Overall Depth (in): 18.39
• Overall Depth (mm): 467

• Overall Height (cm): 151.6
• Overall Height (in): 59.69
• Overall Height (mm): 1516
• Overall Width (cm): 72.4
• Overall Width (in): 28.5
• Overall Width (mm): 724

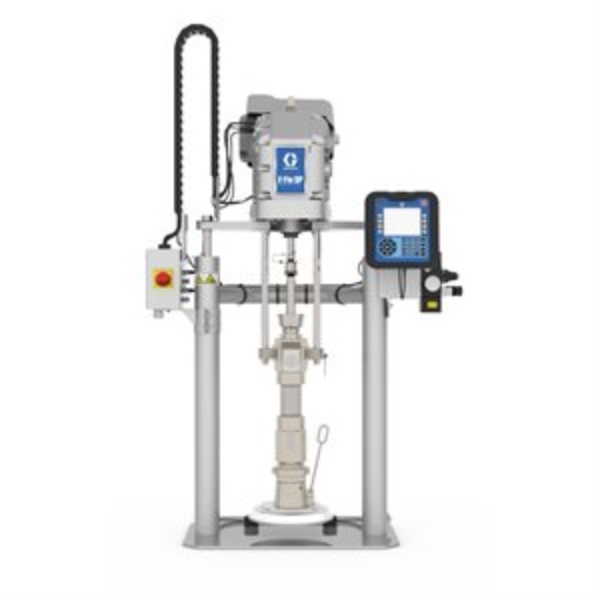

GG EMC8163

E-FLO SP SUPPLY UNIT, D60, CM200SM, SP, 240V, ADM

Graco EMC8163 E-Flo SP 20L 3 in (7.6 cm) Supply, 200cc MaxLife Check-Mate Stainless Steel, Flat Stainless Steel Platen, Single PTFE Wiper, 240V

The E-Flo SP electric supply pump is designed for industrial and automotive sealant and adhesive application. This advanced pump will drastically increase efficiency, improve system control capabilities, optimize process performance, and provide critical performance data.

• Improve process and system performance
• Advanced material control
• Significant energy savings
• Extremely quiet motor
• Prevent downtime
• Lower maintenance costs

• Display Type: ADM
• Drum Size (Gal): 5
• Drum Size (L): 20

• Maximum Working Pressure (psi): 3900

• Platen Material: Stainless Steel
• Platen Size (Gal): 5
• Platen Size (L): 20
• Platen Style: Single Wiper

• Pump Material: Stainless Steel Maxlife

• Pump Size (cc): 200
• Pump Type: Check-Mate

• Ram Post Diameter (in): 3

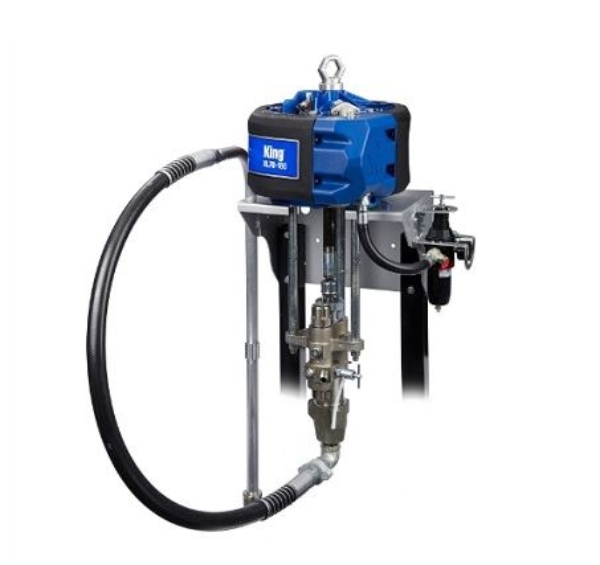

GG K25FW0

KING SPRAYER, 25:1, H-P, BF, WALL, BARE

Graco K25FW0 Discontinued: King 25:1 Sprayer, Integrated Filter, Wall Mount, Air Controls, Siphon Kit

Product replaced by newer version, see part number K30FW0

Application: High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Approved for Hazardous Locations: Yes
    • Frame Configuration: Wall Mount
    • Gun Model: No Applicator
    • Lower Type: Integrated Filter
    • Maximum Fluid Working Pressure (psi): 2375
    • Package Options: Air Controls, Siphon Kit
    • Package Pressure Ratio (Motor/Lower): 25:1 XL3400 / 290cc

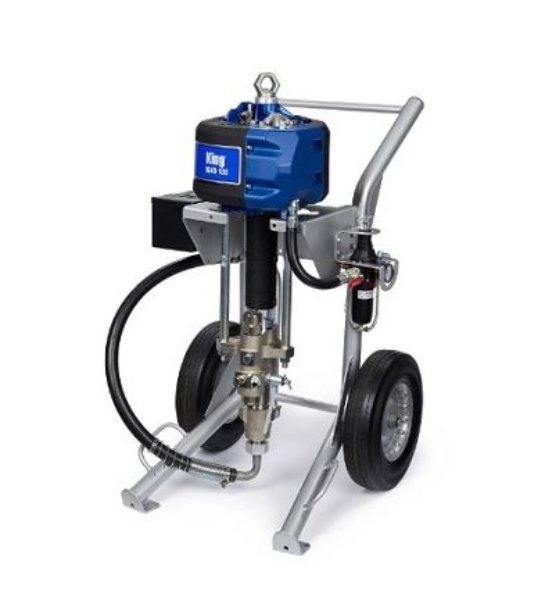

GG K40NH0

KING SPRAYER, 40:1, H-P, NF, HD, BARE

Graco K40NH0 Discontinued: King 40:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit

Product replaced by newer version, see part number K40FH0

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Approved for Hazardous Locations: Yes
    • Compatible Material: Protective Coating
    • Control Type: Fixed Ratio
    • Convertible: Non-Convertible
    • Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1/2
    • Fluid Outlet Size (mm): 12.7
    • Fluid Outlet Thread Type: NPT
    • Frame Configuration: Heavy-Duty Cart
    • Gun Model: No Applicator
    • Includes: Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit
    • Lower Type: Non-Filter
    • Material Application: Paints, Primers
    • Maximum Air Inlet Pressure (psi): 150
    • Maximum Fluid Working Pressure (psi): 3800
    • Maximum Sound Pressure Level (dB(A)): 81.48
    • Maximum Tip Size (in): Variable
    • Maximum Working Pressure (bar): 262
    • Maximum Working Pressure (kPa): 26200
    • Maximum Working Pressure (MPa): 26.2
    • Maximum Working Pressure (psi): 3800
    • Motor Type: XL High Performance
    • Number of Guns: 0
    • Package Options: Air Controls, Siphon Kit
    • Package Pressure Ratio (Motor/Lower): 40:1 XL3400 / 180cc
    • Power Source: Air
    • Product Type: Single Leg
    • Pump Mount Type: Heavy-Duty Cart
    • Pump Rod Type: MaxLife
    • Pump Type: Pneumatic Piston Pump

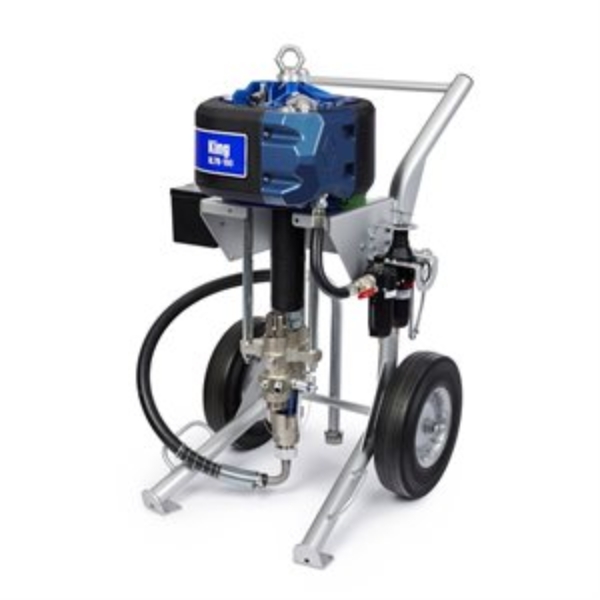

GG K45FH0

KING SPRAYER, 45:1, H-P, BF, HD, BARE

Graco K45FH0 King 45:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Approved for Hazardous Locations: Yes
    • Compatible Material: Protective Coating
    • Control Type: Fixed Ratio
    • Convertible: Non-Convertible
    • Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1/2
    • Fluid Outlet Size (mm): 12.7
    • Fluid Outlet Thread Type: NPT
    • Frame Configuration: Heavy-Duty Cart
    • Gun Model: No Applicator
    • Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit
    • Lower Type: Integrated Filter
    • Material Application: Paints, Primers
    • Maximum Air Inlet Pressure (psi): 150
    • Maximum Fluid Working Pressure (psi): 4500
    • Maximum Sound Pressure Level (dB(A)): 81.48
    • Maximum Tip Size (in): Variable
    • Maximum Working Pressure (bar): 310
    • Maximum Working Pressure (kPa): 31000
    • Maximum Working Pressure (MPa): 31
    • Maximum Working Pressure (psi): 4500
    • Motor Type: XL High Performance
    • Number of Guns: 0
    • Package Options: Air Controls, Siphon Kit
    • Package Pressure Ratio (Motor/Lower): 45:1 XL6500 / 290cc
    • Power Source: Air
    • Product Type: Single Leg
    • Pump Mount Type: Heavy-Duty Cart
    • Pump Rod Type: MaxLife
    • Pump Type: Pneumatic Piston Pump

GG K60FH1

KING SPRAYER, 60:1, H-P, BF, HD, COMP

Graco K60FH1 King 60:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit, XTR-7+, 50 ft (15 m) Hose, 6 ft (1.8 m) Whip

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Air Inlet Size (in): 1
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Approved for Hazardous Locations: Yes
    • Compatible Material: Protective Coating
    • Control Type: Fixed Ratio
    • Convertible: Non-Convertible
    • Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Inlet Thread Gender: Male
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1/2
    • Fluid Outlet Size (mm): 12.7
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Frame Configuration: Heavy-Duty Cart
    • Gun Model: XTR-7
    • Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit, Hose, Gun
    • Lower Type: Integrated Filter
    • Material Application: Paints, Primers
    • Maximum Air Inlet Pressure (psi): 150
    • Maximum Air Pressure (bar): 7
    • Maximum Air Pressure (kPa): 700
    • Maximum Air Pressure (psi): 100
    • Maximum Fluid Working Pressure (psi): 6000
    • Maximum Sound Pressure Level (dB(A)): 81.48
    • Maximum Tip Size (in): Variable
    • Maximum Working Pressure (bar): 417
    • Maximum Working Pressure (kPa): 41700
    • Maximum Working Pressure (MPa): 41.7
    • Maximum Working Pressure (psi): 6000
    • Motor Type: XL Hi

GG K60NH0

KING SPRAYER, 60:1, H-P, NF, HD, BARE

Graco K60NH0 King 60:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Approved for Hazardous Locations: Yes
    • Compatible Material: Protective Coating
    • Control Type: Fixed Ratio
    • Convertible: Non-Convertible
    • Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1
    • Fluid Outlet Size (mm): 25.4
    • Fluid Outlet Thread Type: NPT
    • Frame Configuration: Heavy-Duty Cart
    • Gun Model: No Applicator
    • Includes: Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit
    • Lower Type: Non-Filter
    • Material Application: Paints, Primers
    • Maximum Air Inlet Pressure (psi): 150
    • Maximum Fluid Working Pressure (psi): 6000
    • Maximum Sound Pressure Level (dB(A)): 81.48
    • Maximum Tip Size (in): Variable
    • Maximum Working Pressure (bar): 417
    • Maximum Working Pressure (kPa): 41700
    • Maximum Working Pressure (MPa): 41.7
    • Maximum Working Pressure (psi): 6000
    • Motor Type: XL High Performance
    • Number of Guns: 0
    • Package Options: Air Controls, Siphon Kit
    • Package Pressure Ratio (Motor/Lower): 60:1 XL6500 / 220cc
    • Power Source: Air
    • Product Type: Single Leg
    • Pump Mount Type: Heavy-Duty Cart
    • Pump Rod Type: MaxLife
    • Pump Type: Pneumatic Piston Pump

GG K70FH0

KING SPRAYER, 70:1, H-P, BF, HD, BARE

Graco K70FH0 King 70:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Application: Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings

• Simple Maintenance

  This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.

  All motor parts are easily accessible and require simple maintenance.

  • Improved Icing Performance

    The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.

    The icing potential has been reduced by up to 70%

    • Less Pulsation

      With more than 145% higher exhaust capacity in the air valve, youll achieve a faster, smoother changeover.

      Eliminating the winkin your pattern - it is a difference you will feel.

    • New Air Motor

      Multi gun capabilities Graco's powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.




    • Model: King
    • Air Inlet Size (in): 1
    • Air Inlet Thread Gender: Female
    • Air Inlet Thread Type: NPT
    • Approved for Hazardous Locations: Yes
    • Compatible Material: Protective Coating
    • Control Type: Fixed Ratio
    • Convertible: Non-Convertible
    • Features: Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    • Fluid Inlet Size (in): 1-1/4
    • Fluid Inlet Size (mm): 31.75
    • Fluid Inlet Thread Gender: Male
    • Fluid Inlet Thread Type: NPT
    • Fluid Outlet Size (in): 1/2
    • Fluid Outlet Size (mm): 12.7
    • Fluid Outlet Thread Gender: Female
    • Fluid Outlet Thread Type: NPT
    • Frame Configuration: Heavy-Duty Cart
    • Gun Model: No Applicator
    • Includes: Pump, Lower, Motor, Standard Filter, Heavy Duty Cart, Air Controls, Siphon Kit
    • Lower Type: Integrated Filter
    • Material Application: Paints, Primers
    • Maximum Air Inlet Pressure (psi): 150
    • Maximum Air Pressure (bar): 7
    • Maximum Air Pressure (kPa): 700
    • Maximum Air Pressure (psi): 100
    • Maximum Fluid Working Pressure (psi): 7250
    • Maximum Sound Pressure Level (dB(A)): 81.48
    • Maximum Tip Size (in): Variable
    • Maximum Working Pressure (bar): 500
    • Maximum Working Pressure (kPa): 50000
    • Maximum Working Pressure (MPa): 50
    • Maximum Working Pressure (psi): 7250
    • Motor Type: XL High Performance
    • Number of Guns:

GG P06LCK

DURA-FLO PUMP, 3400/1000

Graco P06LCK Dura-Flo NXT 2-Ball Piston Pump, 6:1, Low Noise Exhaust Motor, CS, UHM with Leather Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Carbon Steel Pump, Low Noise Exhaust Motor, UHMW / Leather Packings

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 17.4
• Maximum Flow Rate (L/min): 65.87

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 43
• Maximum Working Pressure (kPa): 4300
• Maximum Working Pressure (MPa): 4.3
• Maximum Working Pressure (psi): 620

• Motor Type: Low Noise NXT

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 6:1

GG P12DSA

DURA-FLO PUMP, 3400/580

Graco P12DSA Dura-Flo NXT 2-Ball Piston Pump, 12:1, De-Icing Exhaust Motor, SST, 3 UHMW / 2 PTFE Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stainless Steel Pump, De-Icing Exhaust Motor, 3 UHMWPE/2 PTFE Packings

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 9.2
• Maximum Flow Rate (L/min): 34.83

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 82
• Maximum Working Pressure (kPa): 8200
• Maximum Working Pressure (MPa): 8.2
• Maximum Working Pressure (psi): 1190

• Motor Type: De-Icing NXT

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 12:1

GG P12LCD

DURA-FLO PUMP, 3400/580

Graco P12LCD Dura-Flo NXT 2-Ball Piston Pump, 12:1, Low Noise Exhaust Motor, CS, 3 PTFE / 2 Leather Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Carbon Steel Pump, Low Noise Exhaust Motor, 3 PTFE/2 Leather Packings

• Material: Carbon Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 9.2
• Maximum Flow Rate (L/min): 34.83

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 82
• Maximum Working Pressure (kPa): 8200
• Maximum Working Pressure (MPa): 8.2
• Maximum Working Pressure (psi): 1190

• Motor Type: Low Noise NXT

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 12:1

GG P15ESB

DURA-FLO PUMP, 3400/430

Graco P15ESB Dura-Flo NXT 2-Ball Piston Pump, 15:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stainless Steel Pump, De-Icing Exhaust Motor, DataTrak Monitor, 3 UHMWPE/2 Tuff-Stack Packings

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 6.9
• Maximum Flow Rate (L/min): 26.12

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 109
• Maximum Working Pressure (kPa): 10900
• Maximum Working Pressure (MPa): 10.9
• Maximum Working Pressure (psi): 1580

• Motor Type: De-Icing NXT with DataTrak

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 15:1

GG P25MSE

DURA-FLO PUMP, 3400/290

Graco P25MSE Dura-Flo NXT 2-Ball Piston Pump, 25:1, Low Noise Exhaust Motor, DataTrak, SST, 4 Leather / 1 PTFE Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1
• Fluid Outlet Size (mm): 25.4
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stainless Steel Pump, Low Noise Exhaust Motor, DataTrak Monitor, 4 Leather/1 PTFE Packings

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 4.6
• Maximum Flow Rate (L/min): 17.41

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 328
• Maximum Working Pressure (kPa): 32800
• Maximum Working Pressure (MPa): 32.8
• Maximum Working Pressure (psi): 4750

• Motor Type: Low Noise NXT with DataTrak

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 25:1

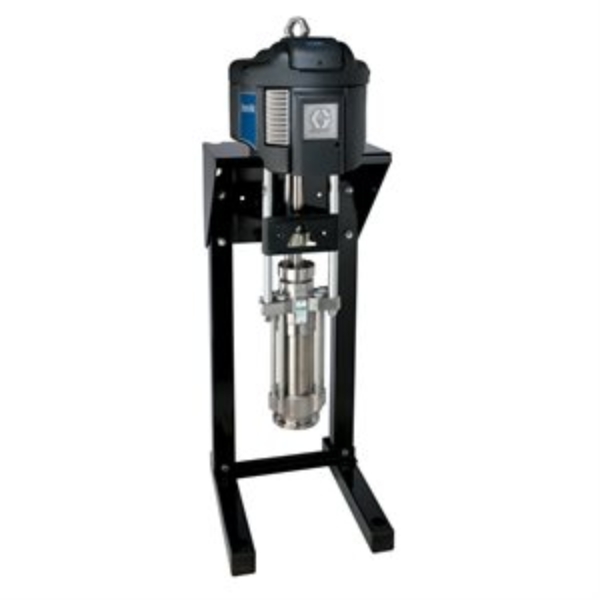

GG P32ESB

DURA-FLO PUMP, 6500/430

Graco P32ESB Dura-Flo NXT 2-Ball Piston Pump, 32:1, De-Icing Exhaust Motor, DataTrak, SST, 3 UHMW / 2 Tuffstack Packings

Graco's Dura-Flo pumps with NXT technology provide uniform and easy to control delivery. Ideal for supply applications, these durable pumps feature an NXT motor and can now achieve an even higher range of pressures without compromising flow.

• Positive displacement, 2 ball piston design provides uniform and easily controlled delivery
• High pump pressure and flow performance to handle a broad range of paints and coatings
• Improved serviceability with fewer parts, faster repairs and lower ownership cost

• Model: Dura-Flo
• Series: 2-Ball

• Air Inlet Size (in): 0.7506
• Air Inlet Size (mm): 19.05

• Application: Supply

• Compatible Material: Solvent borne, High Solids, Xirallic, CARC, Metallics, Stains, Varnish

• Fluid Outlet Size (in): 1-1/2
• Fluid Outlet Size (mm): 38.1
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: NPT
• Fluid Section Type: 2-Ball

• Includes: Stainless Steel Pump, De-Icing Exhaust Motor, DataTrak Monitor, 3 UHMWPE/2 Tuff-Stack Packings

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Continuous Cycle Rate (CPM): 60

• Maximum Flow Rate (GPM): 6.9
• Maximum Flow Rate (L/min): 26.12

• Maximum Operating Temperature ( degree C): 66
• Maximum Operating Temperature ( degree F): 150

• Maximum Working Pressure (bar): 168
• Maximum Working Pressure (kPa): 16800
• Maximum Working Pressure (MPa): 16.8
• Maximum Working Pressure (psi): 2430

• Motor Type: De-Icing NXT with DataTrak

• Mount Type: Wall or Stand Mount

• Portable: Non-Portable

• Pump Ratio: 32:1

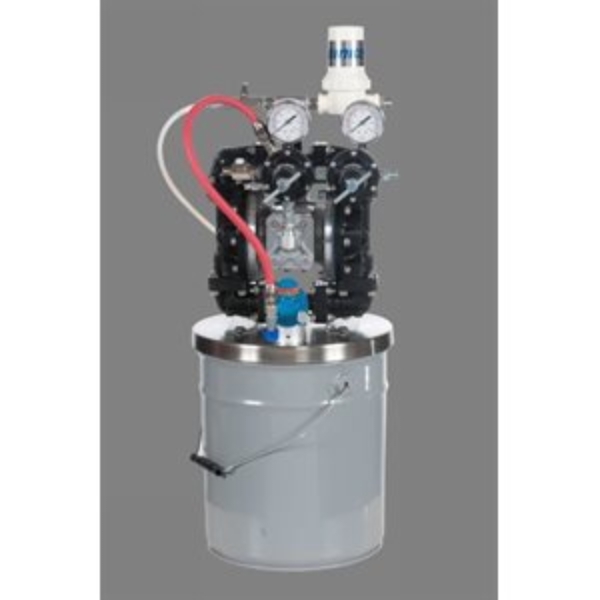

BB 98-3200

Gemini Ii Pail Mount Pkg

BB 98-3217

Gemini Ii Pail Mount Pkg
