Torque Management

IR QCXM13-FM

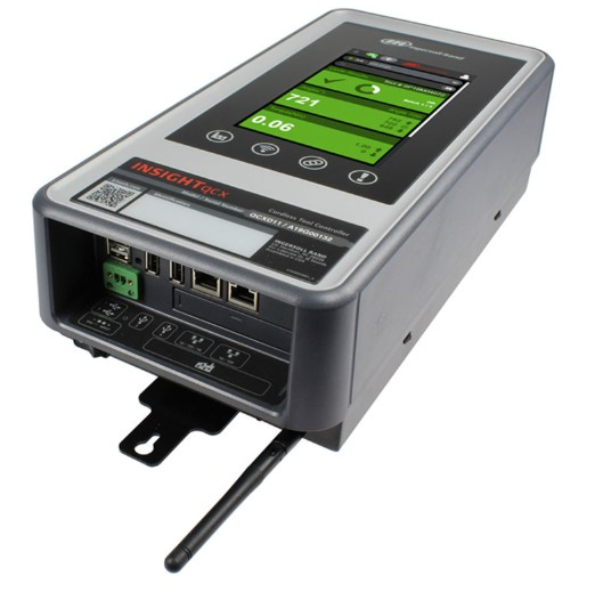

INSIGHTqcx Cordless Controller, Standard plus DEVICENET Hardware, No Display

Description: When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn't have to be complicated. Ingersoll Rand INSIGHTqcx is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits:

• SIMPLE: Expertise not required: Save on selection, training & installation costs, Reduce errors and downtime, Remove user dependencies, Intuitive, visual programming interface, Plug and play accessories and protocols, Integrated backup and recovery, Bundled controller options, Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs, Easy line integration, Remove device dependency, Web-based programming, use any operating system via any browser, Meets current industry communication needs, Integrated logic controls, Easy hardware and software upgrades, Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time, Assurance via traceability, Optimize your productivity, Touch screen interface, Industry-leading cycle data storage (500,000 with MTC options), Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: No Display
• Warranty: 1-year

IR TR20S4

IR TR250S12

IR TR75S6

IR YETC-200ETB

IR YETC-200ETB-4

NTT 130517

NTT 130520

SCS 123 21 9009

SCS 123229004

SCS 133 30 0048

SCS 197 12 0010

SCS 197 12 0250

STR 10012

Torque Transducers: L Series

Product Description

• Built-in L-bracket for mounting perpendicular to your surface
• Requires detachable cable Part: 10293
• Mounting holes drilled for 5/16 bolts, 3.25 on center

STR 10021

STR 10026

Torque Transducers: TT and STT Series

Product Description

• Traditional SR hex flange style
• Can be mounted to ML 250 and ML 600 Mechanical Loaders
• Can be Mounted to Quad Plate for multiple mounting on ML 250
• Detachable cable (Part No: 10293) is required for all transducers
• TT25IO, TT1000 and TT2000 include detachable cable (Part No: 10293)
• Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket
• Smaller sizes (up to 400 in. oz. capacity) can be mounted to SSMB, STMB, or UMB brackets

STR 10027

Torque Transducers: TT and STT Series

Product Description

• Traditional SR hex flange style
• Can be mounted to ML 250 and ML 600 Mechanical Loaders
• Can be Mounted to Quad Plate for multiple mounting on ML 250
• Detachable cable (Part No: 10293) is required for all transducers
• TT25IO, TT1000 and TT2000 include detachable cable (Part No: 10293)
• Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket
• Smaller sizes (up to 400 in. oz. capacity) can be mounted to SSMB, STMB, or UMB brackets

STR 10167

Mechanical Loaders: Mechanical Loaders, ft-lb

Product Description

• Allows operators to precisely test and calibrate torque wrenches

STR 10168

Mechanical Loaders: Mechanical Loaders, ft-lb

Product Description

• Allows operators to precisely test and calibrate torque wrenches

STR 10691

Torque Testers: Torq-Tronics 2 Digital Torque Testers, in-lb

Product Description

• Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
• Meets or exceeds requirements of ASME B107.300-2010
• Tests in both clockwise and counterclockwise directions
• Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
• Units of measure include English, Standard International, and metric
• Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
• Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
• Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
• Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
• Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
• Runs on four AA NiMH rechargeable batteries
• Batteries are sold separately
• Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
• Includes a free blow-molded plastic box for storage and transit
• Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
• An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
• One end of the strap is screwed into the power outlet where your test instrument is plugged in
• Other end of the strap attaches to the base of your test instrument
• Anti-static strap is an integral part of your calibration instrument operation and is required for operation
• 10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
• 10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870778

STR SRT12011

SUM EAA-CTDS
