Torque Management

AIM AUET/MTM-10-100

AIM AUET/MTM-50-250

CL CTA0414

ETA EL306-RAV-AMSA-RS2

IR IQCTT-30

IR IQI11-FM

IQI Series Controller with Fieldbus and MES

Description: Ingersoll Rand IQi Series, is an inline low torque electric screwdriver offering available in transducerized and current control configurations. Customers will experience increased efficiency with faster set up, automated workflows and remote system access, while improving quality through advanced fastening strategies, real-time data traceability and the industry's first tilt angle control. From high-volume assembly to quality-critical manufacturing, IQi Series delivers unmatched efficiency, precision and reliability at a reduced total cost of ownership.

Features And Benefits:

• Increase Efficiency: Reduce setup time up to 50% by reducing costly workflow interruptions with an intuitive web-based interface that eliminates the need for manual controller adjustments. Rapid deployment ensures seamless operational readiness. Seamless MES and Fieldbus integration automates tool and job selection, reducing manual errors and improving uptime. Operators can focus on high-value tasks for increased efficiency.
• Maximize Productivity: With real-time traceability, live access to production data enhances continuous quality control, enabling quick issue identification and resolution to improve productivity and compliance. Program, troubleshoot, and monitor systems remotely. Real-time adjustments from anywhere reduce the on-site presence and operational costs while enhancing scalability for production teams.
• Improve Quality: Achieve fastening precision with ±3.5% accuracy on transducerized models to minimize assembly errors and significantly lower rework costs with precise torque and angle control, ensuring consistent, high-quality results. Improve assembly quality with the industry-leading tilt angle control that ensures precise tool alignment, prevents cross-threading, and maintains optimal joint integrity.
• Reduce Total Cost: Designed to withstand over 1 million maintenance-free cycles, reducing maintenance frequency and downtime for long-term operational efficiency. The robust design and durable brushless motors extend tool lifespan, minimizing replacement needs and lowering total cost of ownership.

Product Application and Uses:

For use with all Ingersoll Rand IQI Series Screwdrivers.

• Includes: Controller with power cable
• Anvil Length: Standard

• Color: Black

• Power Source: Electric
• Product Length (in): 7.68

• Product Weight (lb): 2.97

• Warranty: 1-year
• Wireless Tool Tracking: No Wireless Functionality

• Accessories: IQI-CABLE-2M
• Accessories: IQI-CABLE-5M
• Accessories: IQI-PS-1
• Accessories: IQI-PS-2

• For Use With: IQI2LC0017PM4
• For Use With: IQI2LC0017PQ4
• For Use With: IQI2LC0017TM4
• For Use With: IQI2LC0017TQ4
• For Use With: IQI2LC0050PQ4
• For Use With: IQI2LC0050TQ4
• For Use With: IQI2LC0100PQ4
• For Use With: IQI2LC0100TQ4
• For Use With: IQI2LC0200PQ4
• For Use With: IQI2LC0200TQ4
• For Use With: IQI2LC0250PQ4
• For Use With: IQI2LC0250TQ4
• For Use With: IQI2LT0017PM4
• For Use With: IQI2LT0017PQ4
• For Use With: IQI2LT0017TM4
• For Use With: IQI2LT0017TQ4
• For Use With: IQI2LT0050PQ4
• For Use With: IQI2LT0050TQ4
• For Use With: IQI2LT0100PQ4
• For Use With: IQI2LT0100TQ4
• For Use With: IQI2LT0200PQ4

• For Use With: IQI2LT0200TQ4
• For Use With: IQI2LT0250PQ4
• For Use With: IQI2LT0250TQ4
• For Use With: I

IR MS-SW-OPT-1

IR MS-SW-OPT-2

IR MTC-SW-BS-1

MTC Activation, 1 Tool Add-on

• For Use With: RTS025PQ4-K2
• For Use With: RTS060PH6-K2
• For Use With: RTS060PH8-K2
• For Use With: RTS060PS6-K2
• For Use With: RTS060PS8-K2
• For Use With: RTS140PH8-K2
• For Use With: RTS140PS8-K2
• For Use With: RTS225PH8-K2
• For Use With: RTS225PS8-K2

IR MTC-SW-OPT10

IR QCD11

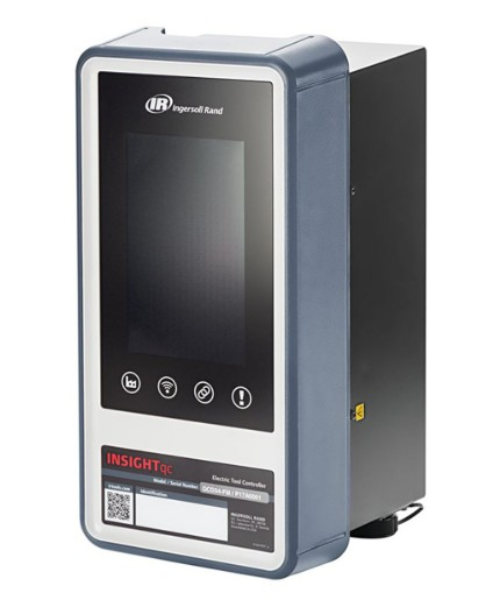

INSIGHTqc Controller, 120V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES option.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

IR QCD11-M

INSIGHTqc Controller, 120V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

IR QCD12-F

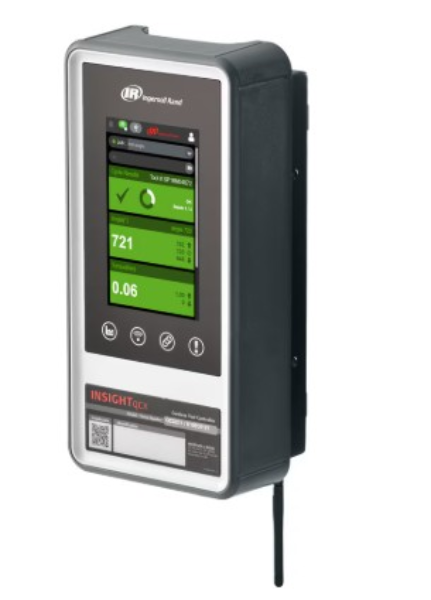

INSIGHTqc Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

IR QCD12-FM

INSIGHTqc Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

IR QCD13-F

INSIGHTqc Controller, 120V AC, Display, Standard Plus DeviceNet Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, DeviceNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

IR QCD13-FM

INSIGHTqc Controller, 120V AC, Display, Standard Plus DeviceNet Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 120
• Warranty: 1-year

IR QCD21-F

INSIGHTqc Controller, 230V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

IR QCD21-M

INSIGHTqc Controller, 230V AC, Display, Standard Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

IR QCD22-F

INSIGHTqc Controller, 230V AC, Display, Standard Plus ProfiBus Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

IR QCD22-FM

INSIGHTqc Controller, 230V AC, Display, Standard Plus ProfiBus Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

IR QCD23-F

INSIGHTqc Controller, 230V AC, Display, Standard plus DeviceNet Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, DeviceNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

IR QCD23-FM

INSIGHTqc Controller, 230V AC, Display, Standard plus DeviceNet Card Hardware

Description: The INSIGHTqc controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren't required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors' products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits:

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs, reduce errors and downtime, & remove user dependencies. Intuitive visual programming interface, Plug & play accessories and protocols, Backwards compatibility, Context specific Integrated HELP, Bundled controller options, Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser, Meets current industry communication needs, Adjustable to meet any tightening control requirements, Integrated logic controls and easy hardware, Software upgrades.
• CAPABLE: Touch screen interface, Industry leading cycle data storage, Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls, Preventative maintenance alarms, Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, DeviceNET Fieldbus options.

Product Application and Uses:

The INSIGHTqc Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 230
• Warranty: 1-year

IR QCXD11-F

INSIGHTqcx Cordless Controller, Standard Hardware, Display

Description: When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn't have to be complicated. Ingersoll Rand INSIGHTqcx is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits:

• SIMPLE: Expertise not required: Save on selection, training & installation costs, Reduce errors and downtime, Remove user dependencies, Intuitive, visual programming interface, Plug and play accessories and protocols, Integrated backup and recovery, Bundled controller options, Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs, Easy line integration, Remove device dependency, Web-based programming, use any operating system via any browser, Meets current industry communication needs, Integrated logic controls, Easy hardware and software upgrades, Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time, Assurance via traceability, Optimize your productivity, Touch screen interface, Industry-leading cycle data storage (500,000 with MTC options), Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls

Product Application and Uses:

These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Voltage DC: 24
• Warranty: 1-year

IR QCXD12-F

INSIGHTqcx Cordless Controller, Standard plus PROFIBUS Hardware, Display

Description: When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn't have to be complicated. Ingersoll Rand INSIGHTqcx is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits:

• SIMPLE: Expertise not required: Save on selection, training & installation costs, Reduce errors and downtime, Remove user dependencies, Intuitive, visual programming interface, Plug and play accessories and protocols, Integrated backup and recovery, Bundled controller options, Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs, Easy line integration, Remove device dependency, Web-based programming, use any operating system via any browser, Meets current industry communication needs, Integrated logic controls, Easy hardware and software upgrades, Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time, Assurance via traceability, Optimize your productivity, Touch screen interface, Industry-leading cycle data storage (500,000 with MTC options), Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Warranty: 1-year

IR QCXD12-FM

INSIGHTqcx Cordless Controller Standard plus PROFIBUS Hardware, Display

Description: When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn't have to be complicated. Ingersoll Rand INSIGHTqcx is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits:

• SIMPLE: Expertise not required: Save on selection, training & installation costs, Reduce errors and downtime, Remove user dependencies, Intuitive, visual programming interface, Plug and play accessories and protocols, Integrated backup and recovery, Bundled controller options, Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs, Easy line integration, Remove device dependency, Web-based programming, use any operating system via any browser, Meets current industry communication needs, Integrated logic controls, Easy hardware and software upgrades, Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time, Assurance via traceability, Optimize your productivity, Touch screen interface, Industry-leading cycle data storage (500,000 with MTC options), Robust audit and system logs, Advanced tightening strategies and features, Onboard diagnostics, Integrated statistical process controls

• Includes: Bare tool only, batteries and charger sold separately.

• Color: Grey
• Data Storage Capacity: 500000 cycles

• User Interface: Display
• Warranty: 1-year
