Torque Management

AIM ATC-150F

Torque Cube Auditor 15-150 ft lb / 20-20Nm 1/2 Dr

AIM ATC-250

Torque Cube, Auditor 2.83-28.3 NM, 3/8" Drive

AIM AUET-100DC

Torque Tester DC W/Software USB, 10-100 In lbs, 1/4 In Drive

AIM AUET-500DC

Torque Tester DC W/Software USB, 50-500 In Lbs, 3/8 In Drive

CL CJK38

Female Stationary Joint Kit 3/8

IR MS-SW-OPT-3

Multi Spindle Software License, OPT-3

IR TR180S8

ROTARY TRANSDUCER

IR TSD270S8

TRANSDUCER, STATIONARY

SCS 123 23 0008

Freedom RMC 180 BT (Torque Only)

SCS 123 25 0010

Freedom SMC 10

SCS 123 25 0250

Freedom SMC 250

SCS WARII

Working Std. Angle Calibration

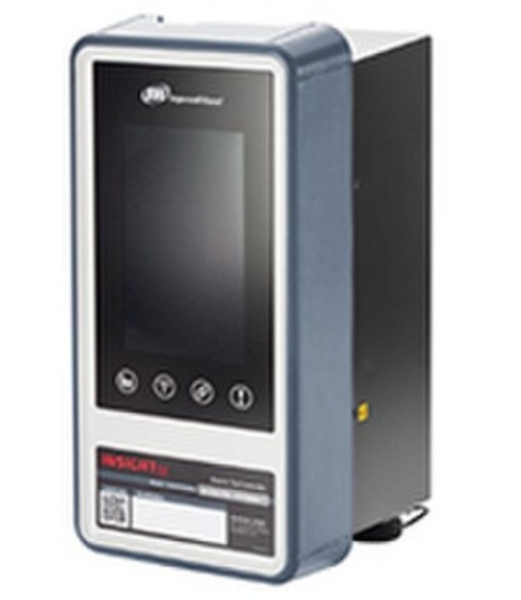

IR QCD11

INSIGHTqc™ Controller, 120V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES option.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

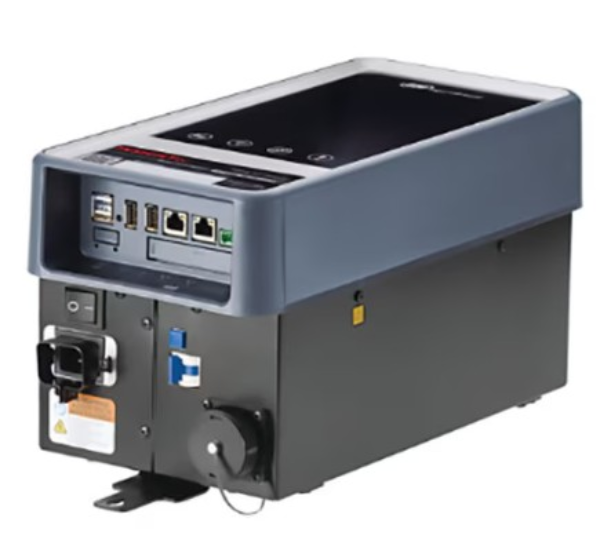

IR QCD12-F

INSIGHTqc™ Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

IR QCD12-FM

INSIGHTqc™ Controller, 120V AC, Display, Standard Plus ProfiBus Card Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 120
Warranty: 1-year

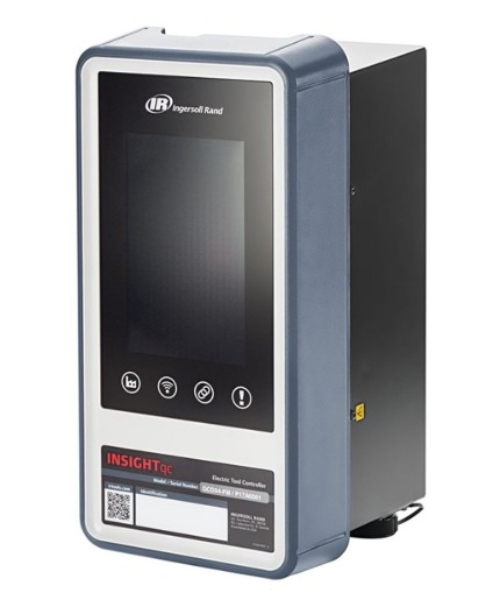

IR QCD21-M

INSIGHTqc™ Controller, 230V AC, Display, Standard Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year

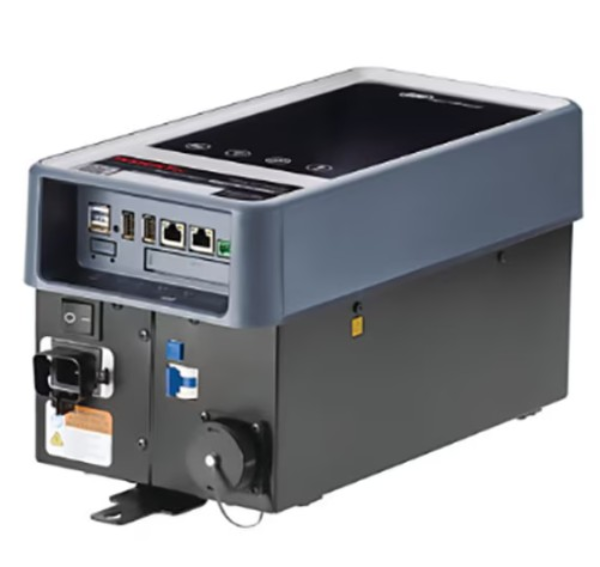

IR QCD22-FM

INSIGHTqc™ Controller, 230V AC, Display, Standard Plus ProfiBus Card Hardware

The INSIGHTqc™ controller is designed to be easy to use, easy to integrate, and provides a common platform to meet the global assembly needs of our customers. Simple enough that experts aren’t required, flexible enough that you can easily implement change, and capable enough that it will meet your requirements. This controller offers advanced tightening control and a simple user experience to improve efficiency on production lines, and get the job done right, every time. The INSIGHTqc™ Controller is 100% compatible with our QE and QM tools. With the INSIGHTqc™, these tools will have 50K tightening records and 50K tightening traces– compared to 10 to 30K in competitors’ products– which will let users understand all facets of the tightening process– torque, angle, time and date.

Features And Benefits

• SIMPLE: Experts not required. Users will save on selection, training, and installation costs; reduce errors and downtime; & remove user dependencies. Intuitive visual programming interface; Plug & play accessories and protocols; Backwards compatibility; Context specific Integrated HELP; Bundled controller options; Integrated backup & recovery.
• FLEXIBLE: Easily Implement Change. Users will reduce line rebalancing costs, experience easy line integration, & remove device dependency. Web Based Programming- use any operating system via any browser; Meets current industry communication needs; Adjustable to meet any tightening control requirements; Integrated logic controls and easy hardware; Software upgrades.
• CAPABLE: Touch screen interface; Industry leading cycle data storage; Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls; Preventative maintenance alarms; Configurable email alerts.
• Optional accessories enhance the control and interaction between the operator and controller, including a barcode scanners, socket trays, USB-serial adapters, IO box, & light towers.
• System Options: Standard IR Ethernet EOR MES, Atlas Copco Open Protocol MES, ToolsNet MES, VW XML 2.1 MES, Nissan Serial EOR MES, Ethernet I/P Fieldbus, ProfiNET Fieldbus, ProfiBUS Fieldbus options.

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: The INSIGHTqc™ Controller is 100% compatible with all Ingersoll Rand QE and QM Series tools.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 230
Warranty: 1-year

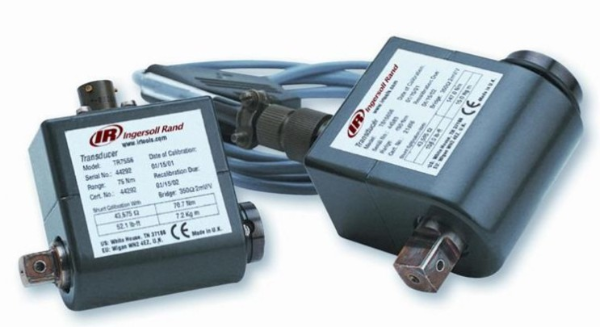

IR TR75S6

Rotary Transducer

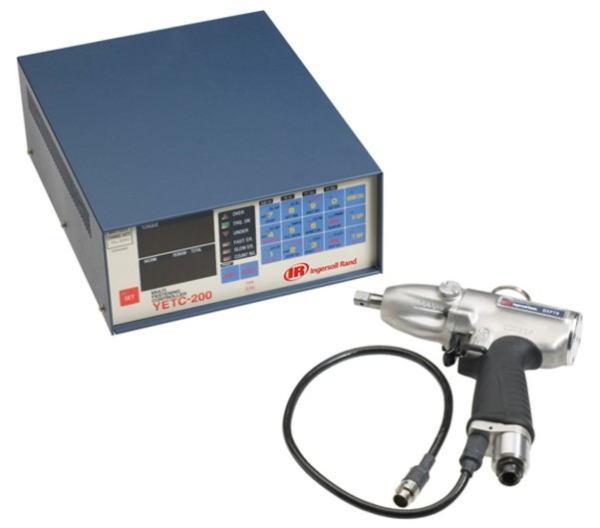

IR YETC-200ETB

CONTROLLER

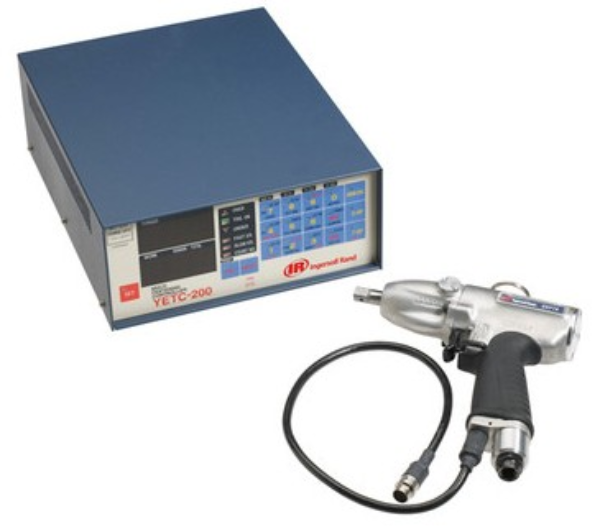

IR YETC-200ETB-4

CONTROLLER

STR 10012

Torque Transducers: L Series

Model	:		TT 250IO
Torque Range (cNm)	:		17.7 - 177 cNM
Torque Range (in-oz)	:		25 - 250 ozf.in
Square	:		1/4 in

Product Description

• Built-in L-bracket for mounting perpendicular to your surface
• Requires detachable cable Part: 10293
• Mounting holes drilled for 5/16 bolts, 3.25 on center

STR 10026

Torque Transducers: TT and STT Series

Model	:		TT 1000
Torque Range (ft-lb)	:		100-1000 lbf-ft
Torque Range (nm)	:		135.6-1355.8 Nm
Torque Range (kgf-m)	:		14-138.2 kgf cm
Square	:		1 in

Product Description

• Traditional SR hex flange style
• Can be mounted to ML 250 and ML 600 Mechanical Loaders
• Can be Mounted to Quad Plate for multiple mounting on ML 250
• Detachable cable (Part No: 10293) is required for all transducers
• TT25IO, TT1000 and TT2000 include detachable cable (Part No: 10293)
• Larger sizes (500 ft. lbs. and above) can be mounted on UMB L-bracket
• Smaller sizes (up to 400 in. oz. capacity) can be mounted to SSMB, STMB, or UMB brackets

STR 10167

Mechanical Loaders: Mechanical Loaders, ft-lb

Model	:		ML 1000
Capacity (Nm)	:		1355 Nm
Capacity (ft.lb)	:		1000 lbf-ft

Product Description

• Allows operators to precisely test and calibrate torque wrenches

STR 10168

Mechanical Loaders: Mechanical Loaders, ft-lb

Model	:		ML2000
Capacity (Nm)	:		2710 Nm
Capacity (ft.lb)	:		2000 lbf-ft

Product Description

• Allows operators to precisely test and calibrate torque wrenches

CL CTA0414

0.4-4 NM CLECO TORQUE ANALYZER
