Torque Management

IR QC-SSD-32-K

SSD Assembly

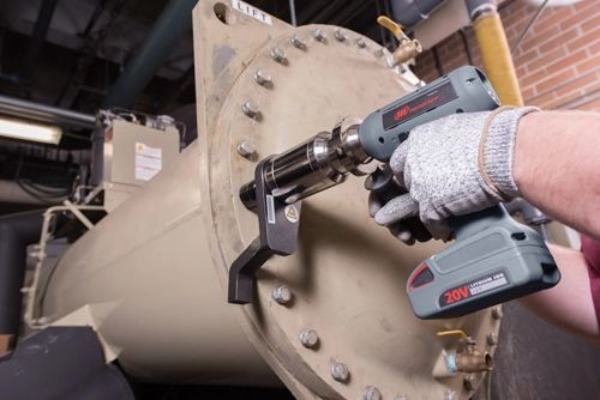

IR QXX2A52T0880PS12

QX WIRELESS 40V MULTIPLIED 880 NM 3/4"

IR QXX5A45T0270PS12

3/4" 40V Cordless Angle Torque Wrench, 2390 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 77
Max Torque (ft-lb): 200
Max Torque (in-lb): 2390
Max Torque (nm): 270
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 40-200
Recommended Forward Torque Range (in-lb): 478-2390
Recommended Forward Torque Range (nm): 54-270
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

STR SRT12053

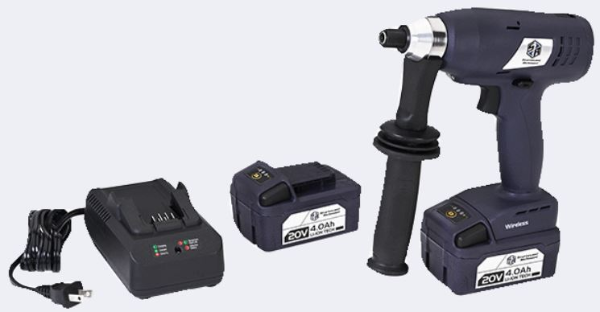

Power Tools Kits: 20V Trasducerized Wireless Precision Tool, Kit, 24 Nm

Product Group	:		20V Trasducerized Wireless Precision Tool, Kit, 24 Nm
Model	:		2200PTP-24K
Capacity	:		6-24 NM
Speed (RPM)	:		1/4 in

Product Description

• Ability to accommodate multiple torque and angle values
• 4 power tools can operate simultaneously with each control unit
• Multiple speed strategy to ergonomically assist the operator
• Communicates in clockwise and counter clockwise
• Compatible with Global 400 / 400MP torque controllers
• All torque and angle measurements are programmable using the Global 400, Global 400MP or Global Manager Software
• Clear view of target value of the tightening
• Good or bad result as value hit with OK/NOK on OLED display
• Good or bad fastening indication with red or green LED display
• Battery life indicator on the battery module
• Batch count and batch size
• Accuracy of +/- 10%
• Kits include tool, 2 batteries, charger and side handle tool

STR SRT810855

Wireless Click-Type Torque Wrenches: Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb

Product Group	:		Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb
Model	:		SLTC 300 I - Hardwired
Torque Range (Nm)	:		6.8-34 Nm
Torque Range (in.lb)	:		60-300 in.lbf
Head Type	:		Dovetail

Product Description

• Accuracy of +/- 4% of the preset value from 20% to 100% of capacity
• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Preset from the factory includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Five of seven models use the incredibly strong SR dovetail and can be used with any of over 100 SR Interchangeable Heads
• Tamper-resistant torque setting mechanism design facilitates setting and discourages unauthorized torque setting changes
• Excellent audible and tactile impulse when preset torque is achieved
• Lightweight and cushion grip provides excellent ergonomics
• Slender body facilitates use in constrained-access applications
• Microswitch closes when the tool clicks and opens immediately when pressure is released
• Separate cable with a connector (required) facilitates replacement if damaged.

AIM AUET/MTM-100-1000

Torque Tester, Universal

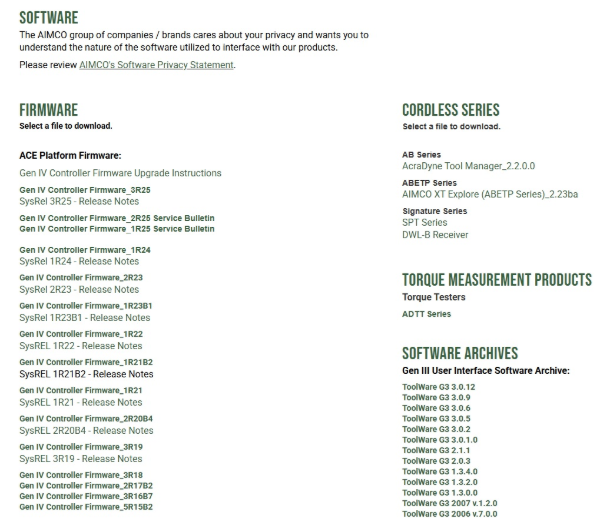

AIM SMD TOOLS SOFTWARE

SQL Database App Tools V2.07, Software Digi AISI Transducers

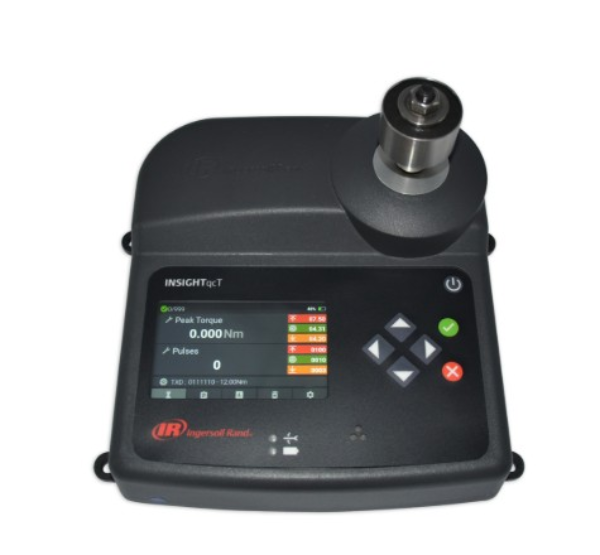

IR IQCTT-30

Torque Tester, Bench Mount, 3.0 - 30 NM

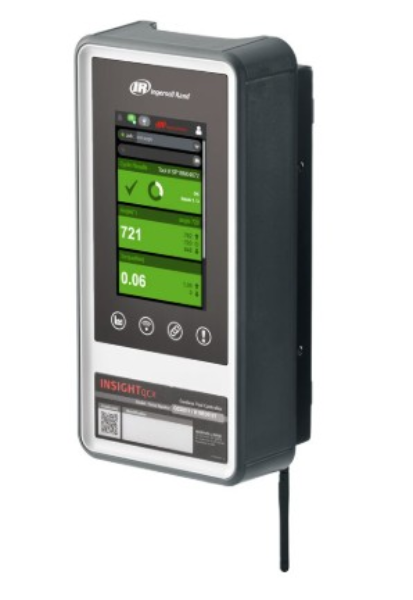

IR QCXD11-M

INSIGHTqcx Cordless Controller, Standard Hardware, Display

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the Multi-Tool Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller.

Features And Benefits

• SIMPLE: Expertise not required: Save on selection, training & installation costs; Reduce errors and downtime; Remove user dependencies; Intuitive, visual programming interface; Plug and play accessories and protocols; Integrated backup and recovery; Bundled controller options; Easy Wireless Pairing (up to 6 tools with MTC options)
• FLEXIBLE: Easily implement change: Reduce line re-balancing costs; Easy line integration; Remove device dependency; Web-based programming, use any operating system via any browser; Meets current industry communication needs; Integrated logic controls; Easy hardware and software upgrades; Onboard wireless energy scan
• CAPABLE Meet your requirements: Get the job done right, every time; Assurance via traceability; Optimize your productivity; Touch screen interface; Industry-leading cycle data storage (500,000 with MTC options); Robust audit and system logs; Advanced tightening strategies and features; Onboard diagnostics; Integrated statistical process controls

Includes: Bare tool only; batteries and charger sold separately.
Product Application and Uses: These cordless tool controllers are designed to communicate process data and signals between specific Ingersoll Rand equipment and compatible user equipment such as PLCs , bar code scanners and printers.
Color: Grey
Data Storage Capacity: 500000 cycles
User Interface: Display
Voltage DC: 24
Warranty: 1-year

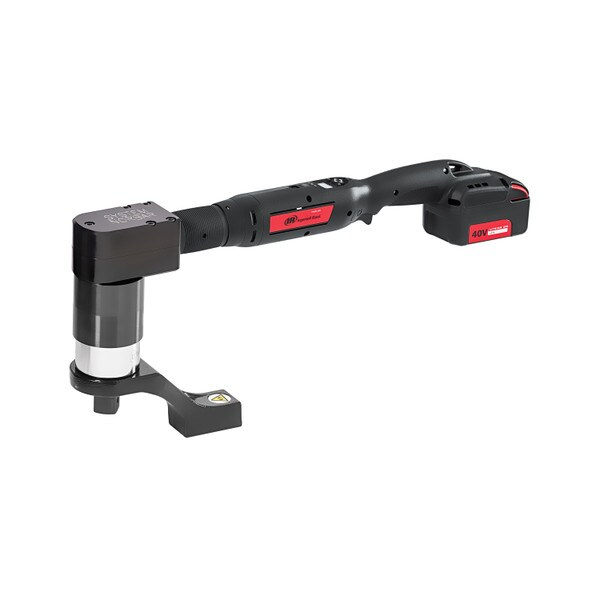

IR QXX5A72T1080PS16

1" 40V Cordless Angle Torque Wrench, 9559 in-lb, Bare Tool, Bluetooth/802.15.4

Meet the tool that’s taking torque to the next level - the QX Series™ 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before. A highly evolved 40V addition to the QX Series, QX Series™ 40V Cordless Torque Multiplier is more rugged, powerful, and twice as fast as its 20V QX Series counterpart while still offering premium accuracy, comfort, and control. An on-board persistent clock automatically timestamps, an advanced cooling fan extends runtime, and an ergonomic handle maximizes support. But next-gen torque demands next-gen tech, which is why the 40V seamlessly integrates with the INSIGHT Connect app and INSIGHTqcx Controller to easily log tightening data, program tool functions, and so much more. Unmatched speed, unbound accessibility, unmistakable data - only with the uncompromising QX Series™ 40V Cordless Torque Multiplier.

Features And Benefits

• Closed-loop transducer delivers a torque accuracy of +/- 5%
• Enhanced quantitative feedback – displaying the actual measured torque or angle result
• Integrated gearbox provides premium quality and accuracy
• Brushless Motor offers maximum durability
• Intuitive qualitative feedback using Green, Red, and Yellow indicators
• 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
• Standard or custom reaction arms available to match your application needs
• Optional wireless communication for process control with I/O and data collections (USB connection standard)
• 1,200 cycles of onboard tightening data storage
• Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller; Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software; Through On Board Tool Display/ Key
• Offer option for Insight Connect Android APP

Includes: Bare tool only; batteries and charger sold separately.
Actuation/Throttle Type/Switch Type: Trigger
Anvil Length: Standard
Built-in Light: No
Color: Grey
Configuration/Handle Type: Right Angle
Data Storage Capacity: 1200 cycles
Drive Size (in): 1
Drive Type: Square
Duty Rating: Heavy Duty
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Max Free Speed (rpm): 19
Max Torque (ft-lb): 797
Max Torque (in-lb): 9559
Max Torque (nm): 1080
Motor: Brushless Motor
Power Source: Battery Powered
Reaction Bar: Yes
Recommended Forward Torque Range (ft-lb): 159-797
Recommended Forward Torque Range (in-lb): 1912-9559
Recommended Forward Torque Range (nm): 216-1080
Retainer Type: Thru-hole
Reversible: Reversible
Tether Style: Tether Included
User Interface: No Display
Voltage DC: 40
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4

NTT PRESET AND CERTIFY

PRESET AND CERTIFY CHARGE

NTT SQ2222

Preset and Certify Charge for P Type

SCS WTRI-1000

Torque Working Std Calibration

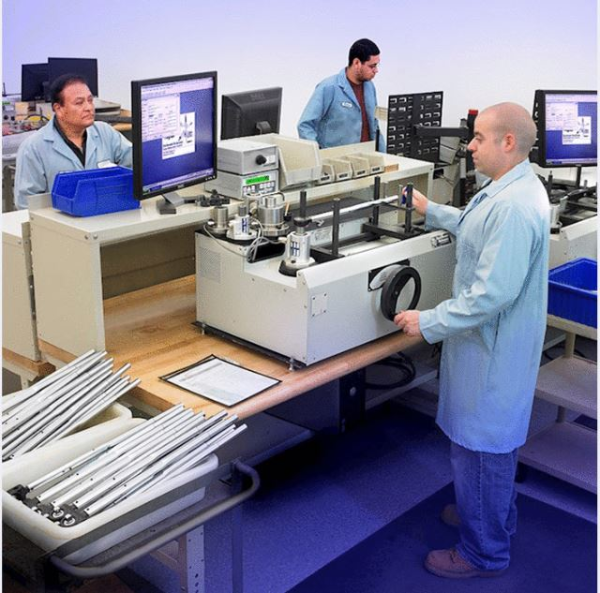

STR 10160

Mechanical Loaders: Mechanical Loaders, ft-lb

Model	:		ML 250
Capacity (Nm)	:		338 Nm
Capacity (ft.lb)	:		250 lbf-ft

Product Description

• Allows operators to precisely test and calibrate torque wrenches

STR 10431

Mechanical Loaders: Mechanical Loaders, ft-lb

Model	:		ML 600
Capacity (Nm)	:		813 Nm
Capacity (ft.lb)	:		600 lbf-ft

Product Description

• Allows operators to precisely test and calibrate torque wrenches

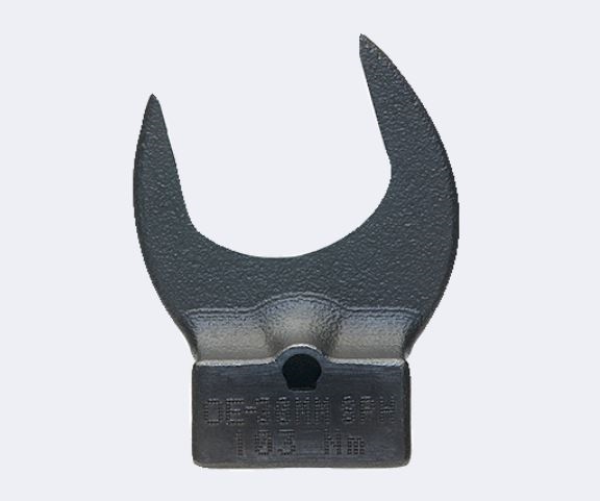

STR 853872

OE 22MM SPH

STR 853874

OE 27MM SPH

STR 853875

OE 30MM SPH

STR 853876

OE 36MM SPH

STR 853877

OE 41MM SPH

STR 853912

OE 12MM SPH

STR 853913

OE 17MM SPH

STR 853914

OE 32MM SPH

STR 853923

OE 50MM SPH

STR SRT816793

Calibration Kit
