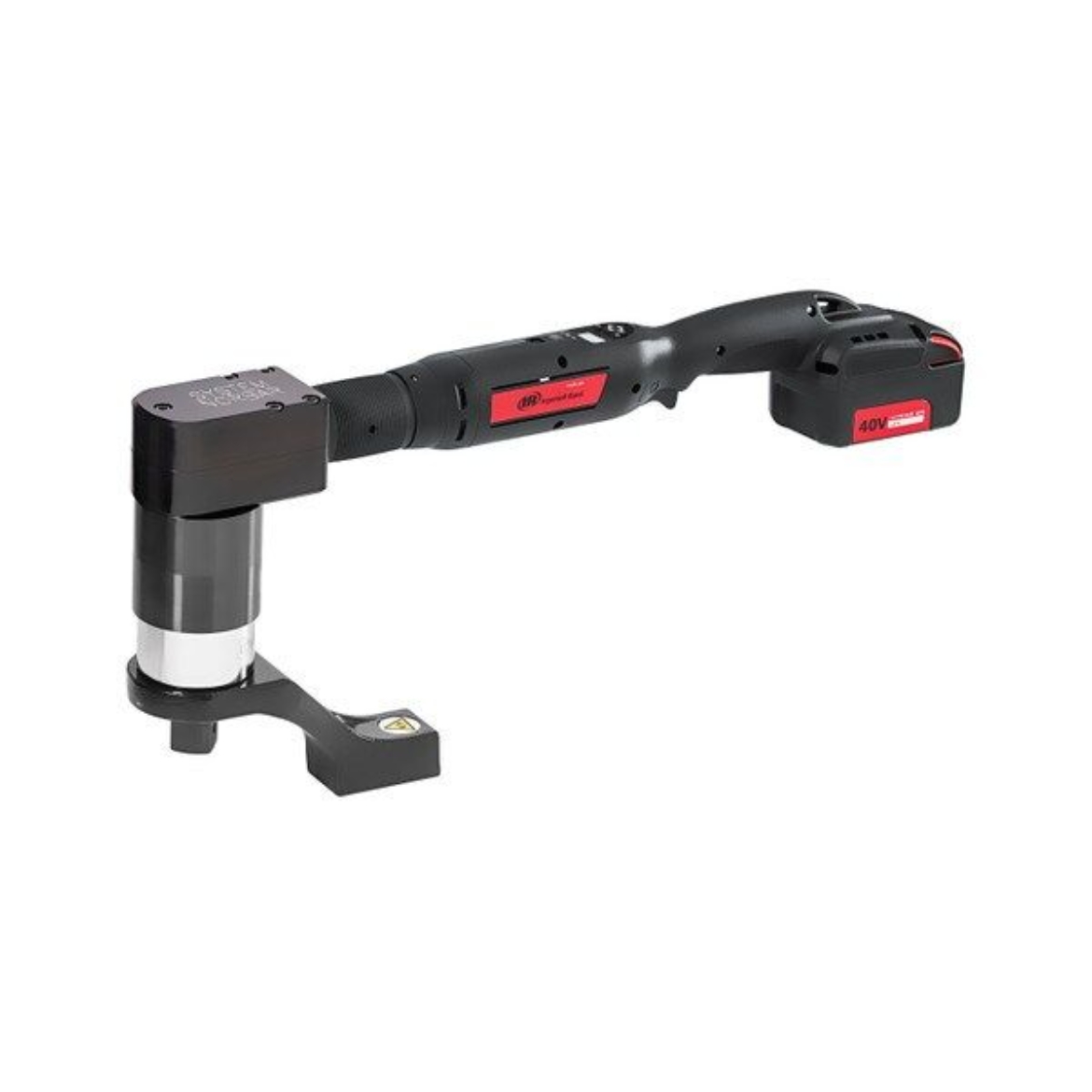

    Qx Wireless 20V Multiplied 395 Nm 3/4"

    IR QXX2A52T0396PS12

    3/4" 20V Cordless Angle Torque Wrench, 3496 in-lb, Bare Tool, Bluetooth/802.15.4

    Description: The innovative QX Series Cordless Angle Torque Multiplier will reduce your bolting time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium Norbar gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity. Offer option for Insight Connect Android APP Link

    Features And Benefits:

    • Closed-loop transducer delivers a torque accuracy of +/- 5%
    • Enhanced quantitative feedback – displaying the actual measured torque or angle result
    • Integrated gearbox provides premium quality and accuracy
    • Brushless Motor offers maximum durability
    • Intuitive qualitative feedback using Green, Red, and Yellow indicators
    • 360° adjustable handle, with 6 mm threaded port for eye hooks or other tethering points, provides operator comfort, flexibility and safety options
    • Standard or custom reaction arms available to match your application needs
    • Optional wireless communication for process control with I/O and data collections (USB connection standard)
    • 1,200 cycles of onboard tightening data storage
    • Multiple Programming Methods: Wirelessly Through INSIGHTqcx Controller, Through USB with INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key
    • Includes: Bare tool only, batteries and charger sold separately.
    • Actuation/Throttle Type/Switch Type: Trigger
    • Anvil Length: Standard
    • Built-in Light: No
    • Color: Grey
    • Configuration/Handle Type: Right Angle
    • Data Storage Capacity: 1200 cycles
    • Drive Size (in): 3/4
    • Drive Type: Square
    • Duty Rating: Heavy Duty
    • Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
    • Max Free Speed (rpm): 21
    • Max Torque (ft-lb): 291
    • Max Torque (in-lb): 3496
    • Max Torque (nm): 395
    • Motor: Brushless Motor
    • Power Source: Battery Powered
    • Reaction Bar: Yes
    • Recommended Forward Torque Range (ft-lb): 58-291
    • Recommended Forward Torque Range (in-lb): 699-3496
    • Recommended Forward Torque Range (nm): 79-395
    • Retainer Type: Thru-hole
    • Reversible: Reversible
    • Tether Style: Tether Included
    • User Interface: No Display
    • Voltage DC: 20
    • Warranty: 1-year Tool, 2-year Battery, 3-year Charger
    • Wireless Tool Tracking: Bluetooth
    • Wireless Tool Tracking: 802.15.4
    • Accessories: BC1161
    • Accessories: BL4011
    • Parts: NSP-299-CIR72
    • Parts: NSP-299-M5X45
    • Parts: NSP-766-W2222
    • Parts: NSP-A48
    • Parts: VP2-364
    • Parts: VP2-377A
    • Parts: VP2-400-T
    • Parts: VP2-405
    • Parts: VP2-405-2
    • Parts: VP2-49
    • Parts: VP2-49-2
    • Parts: VP2-667
    • Parts: VP2-78
    • Parts: VP2-981
    • Parts: VP2-A48
    SKU: IR QXX2A52T0396PS12
    Availability:
    Price: Call for pricing
    *
    *
    *
