Torque Control

NTT W1817.I15D

15/16 Deep Socket Cup Kit

NTT W1817.I18D

1-1/8 Deep Socket Cup Kit

NTT W1817.I20

1-1/4 Cup Kit

UT TS-35

Torque Wrench

ETA B250-0

ETA Base w/Welded Mounting Flange

ETA EL306-TUV

EL306-UV Tool Arm with Tool Holder

ETA SP-EL815-SRA-NOTCH

Heavy Duty Tool Arm, 13 LB Tooling Max, Includes Modified SRA-TH Tool Holder With Notch For Weber Trigger Bar

ETA TA45-A5

Tap Arm, 1Hp Motor, Bilz Tap Chuck, Tap Adapters, 300 Rpm

ETA TLA-010

Tap Adapter, No. 10

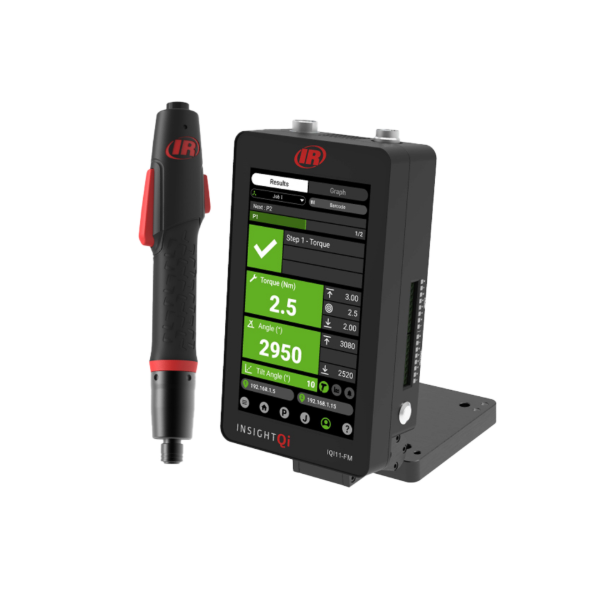

IR IQI4LT0500PQ4

IQI 1/4" Quick Change Inline Screwdriver, Transducerized Control, Push-to-Start, 900 RPM, 2-5 Nm

Ingersoll Rand® IQi Series, is an inline low torque electric screwdriver offering available in transducerized and current control configurations. Customers will experience increased efficiency with faster set up, automated workflows and remote system access, while improving quality through advanced fastening strategies, real-time data traceability and the industry’s first tilt angle control. From high-volume assembly to quality-critical manufacturing, IQi Series delivers unmatched efficiency, precision and reliability at a reduced total cost of ownership.

Features And Benefits

• Increase Efficiency: Reduce setup time up to 50% by reducing costly workflow interruptions with an intuitive web-based interface that eliminates the need for manual controller adjustments. Rapid deployment ensures seamless operational readiness. Seamless MES and Fieldbus integration automates tool and job selection, reducing manual errors and improving uptime. Operators can focus on high-value tasks for increased efficiency.
• Maximize Productivity: With real-time traceability, live access to production data enhances continuous quality control, enabling quick issue identification and resolution to improve productivity and compliance. Program, troubleshoot, and monitor systems remotely. Real-time adjustments from anywhere reduce the on-site presence and operational costs while enhancing scalability for production teams.
• Improve Quality: Achieve fastening precision with ±3.5% accuracy on transducerized models to minimize assembly errors and significantly lower rework costs with precise torque and angle control, ensuring consistent, high-quality results. Improve assembly quality with the industry-leading tilt angle control that ensures precise tool alignment, prevents cross-threading, and maintains optimal joint integrity.
• Reduce Total Cost: Designed to withstand over 1 million maintenance-free cycles, reducing maintenance frequency and downtime for long-term operational efficiency. The robust design and durable brushless motors extend tool lifespan, minimizing replacement needs and lowering total cost of ownership.

Actuation/Throttle Type/Switch Type: Push to Start
Anvil Length: Standard
Built-in Light: Yes
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 900
Max Torque (ft-lb): 3.7
Max Torque (in-lb): 44
Max Torque (nm): 5
Motor: Brushless Motor
Power Source: Electric
Product Length (in): 10.7087
Product Weight (lb): 1.9383259911894273
Recommended Forward Torque Range (ft-lb): 1.5-3.7
Recommended Forward Torque Range (in-lb): 18-44
Recommended Forward Torque Range (nm): 2-5
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): < 70
Vibration Level (m/s2): < 2.5
Warranty: 1-year
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: USB-A

IR IQI4LT1500PQ4

IQI 1/4" Quick Change Inline Screwdriver, Transducerized Control, Push-to-Start, 300 RPM, 5-15 Nm

Ingersoll Rand® IQi Series, is an inline low torque electric screwdriver offering available in transducerized and current control configurations. Customers will experience increased efficiency with faster set up, automated workflows and remote system access, while improving quality through advanced fastening strategies, real-time data traceability and the industry’s first tilt angle control. From high-volume assembly to quality-critical manufacturing, IQi Series delivers unmatched efficiency, precision and reliability at a reduced total cost of ownership.

Features And Benefits

• Increase Efficiency: Reduce setup time up to 50% by reducing costly workflow interruptions with an intuitive web-based interface that eliminates the need for manual controller adjustments. Rapid deployment ensures seamless operational readiness. Seamless MES and Fieldbus integration automates tool and job selection, reducing manual errors and improving uptime. Operators can focus on high-value tasks for increased efficiency.
• Maximize Productivity: With real-time traceability, live access to production data enhances continuous quality control, enabling quick issue identification and resolution to improve productivity and compliance. Program, troubleshoot, and monitor systems remotely. Real-time adjustments from anywhere reduce the on-site presence and operational costs while enhancing scalability for production teams.
• Improve Quality: Achieve fastening precision with ±3.5% accuracy on transducerized models to minimize assembly errors and significantly lower rework costs with precise torque and angle control, ensuring consistent, high-quality results. Improve assembly quality with the industry-leading tilt angle control that ensures precise tool alignment, prevents cross-threading, and maintains optimal joint integrity.
• Reduce Total Cost: Designed to withstand over 1 million maintenance-free cycles, reducing maintenance frequency and downtime for long-term operational efficiency. The robust design and durable brushless motors extend tool lifespan, minimizing replacement needs and lowering total cost of ownership.

Actuation/Throttle Type/Switch Type: Push to Start
Anvil Length: Standard
Built-in Light: Yes
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 1/4
Drive Type: Hex
Max Free Speed (rpm): 300
Max Torque (ft-lb): 11
Max Torque (in-lb): 133
Max Torque (nm): 15
Motor: Brushless Motor
Power Source: Electric
Product Length (in): 10.7087
Product Weight (lb): 1.9383259911894273
Recommended Forward Torque Range (ft-lb): 3.7-11
Recommended Forward Torque Range (in-lb): 44-133
Recommended Forward Torque Range (nm): 5-15
Retainer Type: Quick Change
Reversible: Reversible
Sound Pressure/Power Db(A): < 70
Vibration Level (m/s2): < 2.5
Warranty: 1-year
Wireless Tool Tracking: No Wireless Functionality
Wireless Tool Tracking: USB-A

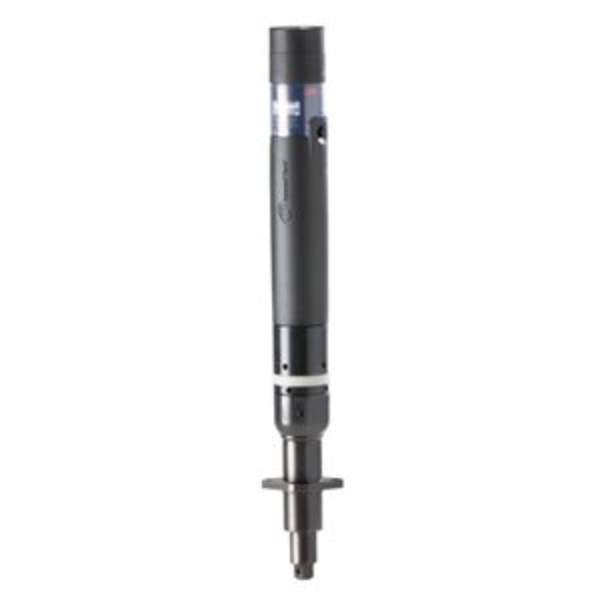

IR QE2SL002P10Q04

QE2 DC FASTENING IN-LINE LEVER. 2 NM

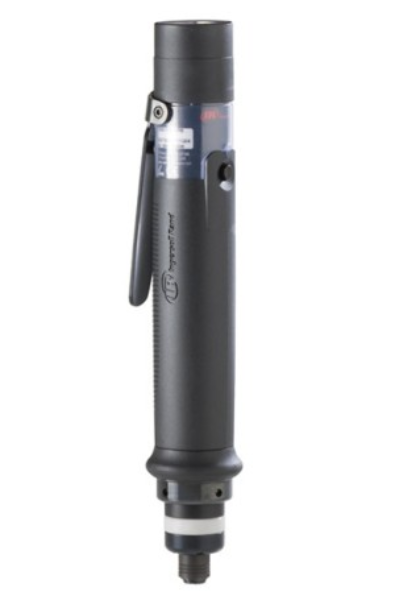

IR QE2SL010PM0

QE2 DC FASTENING IN-LINE LEVER. 10 NM

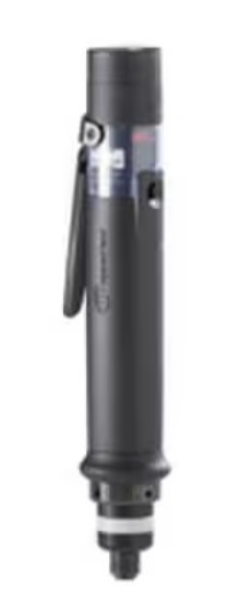

IR QE2TS002P11Q04

ASSEMBLY TOOL QE2TS002P11Q04

IR QE2TS007P11Q04

ASSEMBLY TOOL QE2TS007P11Q04

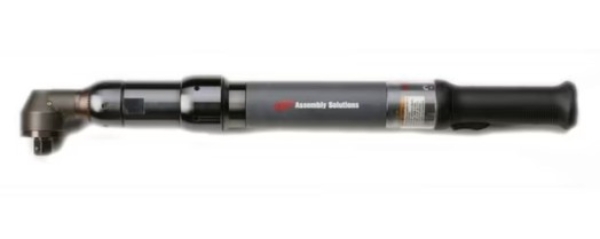

IR QE8AT150RA6S08

Assembly Tool, Trigger Start, 150NM, RXN Spline Mount

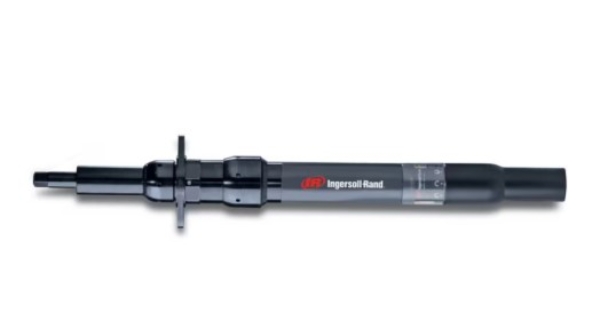

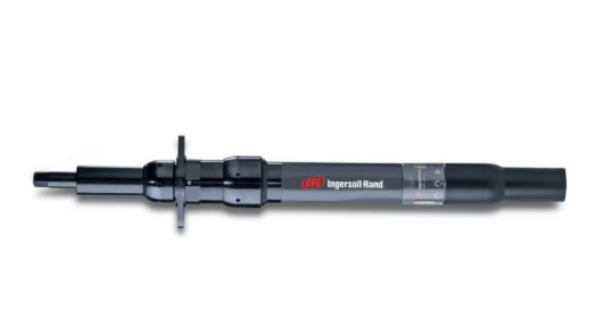

IR QE8ST230F62S12

DC Tool, 23-230 Nm, 3/4in Sq.Dr., 150 MM Spindle

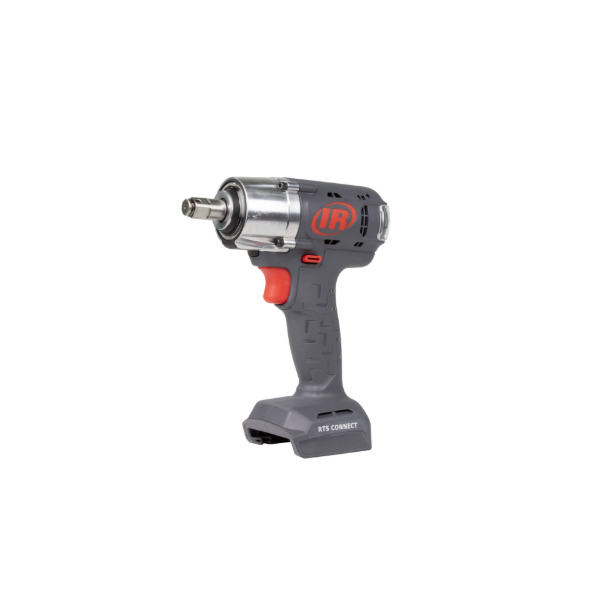

IR RTS060PH8

RTS 1/2" 20V Mechanical Cordless Pusle Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru Hole Retainer

RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT™ Connect controller or mobile app, Expert setup via INSIGHTqcx™ MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx™ MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PH8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: For use in product environments on assembly lines.
Anvil Length: Standard
Built-in Light: Yes
Color: Grey
Configuration/Handle Type: Pistol Grip
Data Storage Capacity: 1200 cycles
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Production Environment
Fastener Size: M8-M10
Housing Material: Glass-filled Nylon (PA6-GF30)
Lumens: 11
Max Free Speed (rpm): 2700
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 6.69
Product Weight (lb): 2.4
Product Weight (lb) (with Battery): 3.3
Pulses per Minute: 3600
Recommended Forward Torque Range (ft-lb): 8.9-44
Recommended Forward Torque Range (in-lb): 106-531
Recommended Forward Torque Range (nm): 12-60
Retainer Type: Friction Ring and Thru-hole
Reversible: Reversible
Sound Pressure/Power Db(A): 94 / 102
Vibration Level (m/s2): 10.5
Vibration Uncertainy K* (m/s2): 1.8
Voltage DC: 20
Warranty: 1-year Tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: Bluetooth
Wireless Tool Tracking: 802.15.4
Wireless Tool Tracking: 2.4 GHz Wi-Fi
Wireless Tool Tracking: 5 GHz Wi-Fi
Wireless Tool Tracking: USB-C

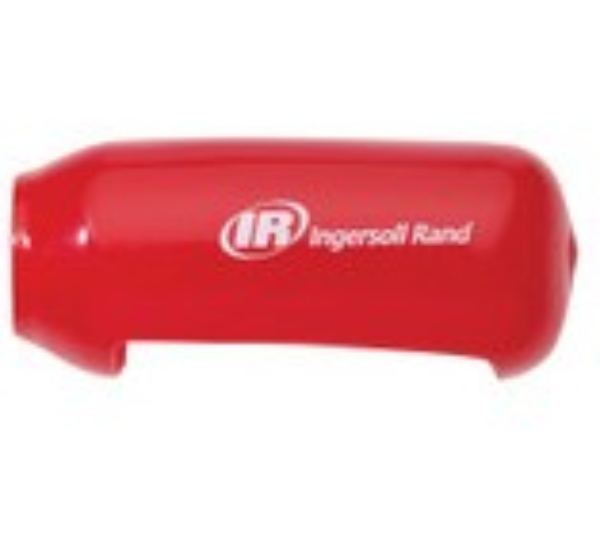

IR TK-RTS-BOOT-RD

BOOT, RED

NTT 12299

1in Sq. Dr. Assembly

NTT 13054

Model 100 Preset Torque Wrench, 1/2 Inch

NTT 181440

HT52/4.5, 1000NM; 1/2 IP, 3/4 OP

STR 10518

Digital Torque Wrenches: Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta 2 250 DT QC
Capacity (Nm)	:		338.9 Nm
Torque Range (ft.lb)	:		50-250 ft.lbf
Overall Length	:		25.2 in
Head Type	:		Bearing and Spring QS

Product Description

• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Residual mode assists the user in determining retained torque on a joint
• Actual accuracy percentage is contingent upon the joint condition and user technique
• Includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Ships in a custom, blow-molded plastic case to protect the wrench and serves as an excellent storage space for the wrench
• Large, bright display can be read at arm's length, even in shadow
• Three modes of operation: Track, Peak, and Residual
• Programmable limits with visual notification

STR 10521

Digital Torque Wrenches: Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta 2 25 QC
Capacity (Nm)	:		33.8 Nm
Torque Range (ft.lb)	:		5-25 ft.lbf
Overall Length	:		16.1 in
Head Type	:		Bearing and Spring QS

Product Description

• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Residual mode assists the user in determining retained torque on a joint
• Actual accuracy percentage is contingent upon the joint condition and user technique
• Includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Ships in a custom, blow-molded plastic case to protect the wrench and serves as an excellent storage space for the wrench
• Large, bright display can be read at arm's length, even in shadow
• Three modes of operation: Track, Peak, and Residual
• Programmable limits with visual notification

STR 10534

Digital Torque Wrenches: Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:		Exacta 2 Digital Torque Wrench, ft-lb
Model	:		Exacta 2 600 R
Capacity (Nm)	:		813.5 Nm
Torque Range (ft.lb)	:		120-600 ft.lbf
Overall Length	:		59.7 in
Head Type	:		Pin and Spring

Product Description

• Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Residual mode assists the user in determining retained torque on a joint
• Actual accuracy percentage is contingent upon the joint condition and user technique
• Includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Ships in a custom, blow-molded plastic case to protect the wrench and serves as an excellent storage space for the wrench
• Large, bright display can be read at arm's length, even in shadow
• Three modes of operation: Track, Peak, and Residual
• Programmable limits with visual notification
