Digital Torque Wrench 1200 Series Exacta

STR 10647

Wireless Digital Torque Wrenches: 1200 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Group	:	1200 Series Exacta 2 Digital Torque Wrench, ft-lb
Model	:	Exacta II 1200 Series 75 QC
Torque Range (ft.lb)	:	15-75 ft.lbf
Overall Length	:	19.4 in
Head Type	:	Pin/Spring

Product Description

Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
Torque and angle can identify changing joint conditions and prevent errors
Backlit display is easy to read in any light condition
Customizable color display change to inform the operator
Display lights upon torque application
Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
Tool emits reject tone upon reaching maximum torque
Compatible with the Global 400 and Global 400m
P-Sets are set and saved via the controller, no changes can be made at the wrench level
Provides you with another level of error proofing by preventing inadvertent changes
Can be used with the Patented Holding Tool Series
Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

$2,557.65

DTC-4 Digital Torque And Angle Wrench, 50 in Lbs

STR 10680

Digital Torque Wrenches: DTC Digital Torque and Angle Wrench, ft-lb

Product Group	:	DTC Digital Torque and Angle Wrench, ft-lb
Model	:	DTC-4
Capacity (Nm)	:	5.6 Nm
Capacity (in-lb)	:
Torque Range (ft.lb)	:	0.8-4 ft.lbf
Overall Length	:	15.81 in
Head Type	:	Dovetail Pin/Spring

Product Description

Limiting torque value to wrench capacity
Black and white display and colored light bands on the side of the wrench
Bands change yellow to green when the target values are achieved
Auditory beep and vibrating handle provide two additional modes of operator-focused error-proofing guidance
Results log large enough for even the busiest assemblies
Holds 1000 torque results and results can be downloaded
Using the mini-USB port, and DTC Connect Freeware, the results log can be uploaded to a computer in a CSV format
Can be used to set parameters in the wrench
Change units of measure, modes of operation, degrees of fastener rotation, establish a target torque, minimum torque, maximum torque, and more
DTC CONNECT is freeware and is included in the DTC

$1,191.13

Torq-Tronics 2, 12Nm - 100in-lb

STR 10693

Torque Testers: Torq-Tronics 2 Digital Torque Testers, in-lb

Model	:	TORQ-TRONICS 2 12NM-100INLB
Hexagon Size	:	3/8 in
Torque Range (nm)	:	1.2-12 Nm

Product Description

Accuracy of +/- .5% of Indicated Value in clockwise and counterclockwise directions from 10% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010
Tests in both clockwise and counterclockwise directions
Four modes of operation providing excellent versatility: Track, Peak, Initial Peak, and Power Tool
Units of measure include English, Standard International, and metric
Units of 300 inch-pound (34 Nm) capacity and below are optimized for bench mounting; larger units may be mounted vertically or horizontally, providing better safety and efficiency
Simple to operate, memory stores up to 999 records that can be downloaded to Hyper-Terminal or terminal type program to create testing reports and data storage
Four-line vacuum fluorescent display (VFD) is easy to read.- Red/Green LED indicates whether a measurement is within the target torque value
Includes FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
Includes 110-220 VAC to 6 VDC screw-on power supply for security during power tool testing
Runs on four AA NiMH rechargeable batteries
Batteries are sold separately
Industrial assembly tools use rechargeable batteries like thisA quick charge unit for batteries is available
Includes a free blow-molded plastic box for storage and transit
Power Tool mode has ten filters and will accurately test all clutch types and pulse tools
An anti-Static strap included with your TorqTronics 2 or System 8 is there to ensure limited electronic interference
One end of the strap is screwed into the power outlet where your test instrument is plugged in
Other end of the strap attaches to the base of your test instrument
Anti-static strap is an integral part of your calibration instrument operation and is required for operation
10695, 10696: Comes with .375" or 3/8 inch adapter at no additional charge - Part number 870777
10697, 10698: Comes with .5" or 1/2 inch adapter at no additional charge - Part number 870780

$2,749.06

EXACTA 1350-150

STR 10783

Wireless Digital Torque Wrenches: 1350 Series Digital Torque and Angle Wrench, ft-lb

Product Group	:	1350 Series Digital Torque and Angle Wrench, ft-lb
Model	:	1350 Series Exacta 2-150
Capacity (Nm)	:	203 Nm
Torque Range (ft.lb)	:	30-150 ft.lbf
Overall Length	:	19.75 in
Head Type	:	Pin/Spring

Product Description

Torque Accuracy: +/-2% of the indicated value from 20% to 100% of rated capacity, +/-4% of the indicated value from 5% to 19% of rated capacity in CW and CCW directions
Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque
Torque and angle can identify changing joint conditions and prevent errors
The torque-only functionality includes Track and Peak modes of operation
The backlit display is easy to read in any light condition
Customizable color display change to inform the operator
Display lights upon torque application; Turns yellow at 90% of target torque; Turns green upon reaching target torque; Turns red upon reaching maximum torque
Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
Tool emits reject tone upon reaching maximum torque
Compatible with the Global 400 and Global 400mp
P-Sets are set and saved via the controller
No changes can be made at the wrench level, this provides you with another level of error proofing by preventing inadvertent changes
Can be used with the Patented Holding Tool Series

$3,642.72

Exacta 1350-250 QC

STR 10790

Wireless Digital Torque Wrenches: 1350 Series Digital Torque and Angle Wrench, ft-lb

Product Group	:	1350 Series Digital Torque and Angle Wrench, ft-lb
Model	:	1350 Series Exacta 2-250 QC
Capacity (Nm)	:	33.9 Nm
Torque Range (ft.lb)	:	50-250 ft.lbf
Overall Length	:	27.88 in
Head Type	:	Quick Change

Product Description

Torque Accuracy: +/-2% of the indicated value from 20% to 100% of rated capacity, +/-4% of the indicated value from 5% to 19% of rated capacity in CW and CCW directions
Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque
Torque and angle can identify changing joint conditions and prevent errors
The torque-only functionality includes Track and Peak modes of operation
The backlit display is easy to read in any light condition
Customizable color display change to inform the operator
Display lights upon torque application; Turns yellow at 90% of target torque; Turns green upon reaching target torque; Turns red upon reaching maximum torque
Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
Tool emits reject tone upon reaching maximum torque
Compatible with the Global 400 and Global 400mp
P-Sets are set and saved via the controller
No changes can be made at the wrench level, this provides you with another level of error proofing by preventing inadvertent changes
Can be used with the Patented Holding Tool Series

$3,720.23

Exacta 1350

STR 10984

Wireless Digital Torque Wrenches: 1350 Series Digital Torque and Angle Wrench, ft-lb

Product Group	:	1350 Series Digital Torque and Angle Wrench, ft-lb
Model	:	1350 Series Exacta 2-250 AAQC
Capacity (Nm)	:	338.9 Nm
Torque Range (ft.lb)	:	50-250 ft.lbf
Overall Length	:	27.88 in
Head Type	:	Pin/Spring

Product Description

Torque Accuracy: +/-2% of the indicated value from 20% to 100% of rated capacity, +/-4% of the indicated value from 5% to 19% of rated capacity in CW and CCW directions
Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque
Torque and angle can identify changing joint conditions and prevent errors
The torque-only functionality includes Track and Peak modes of operation
The backlit display is easy to read in any light condition
Customizable color display change to inform the operator
Display lights upon torque application; Turns yellow at 90% of target torque; Turns green upon reaching target torque; Turns red upon reaching maximum torque
Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
Tool emits reject tone upon reaching maximum torque
Compatible with the Global 400 and Global 400mp
P-Sets are set and saved via the controller
No changes can be made at the wrench level, this provides you with another level of error proofing by preventing inadvertent changes
Can be used with the Patented Holding Tool Series

$3,667.10

Torque Wrench Hex Drive Interchangeable Head

STR 809317

Hex Drive Interchangeable Heads for Torque Wrenches

Model	:	HD 6MM
Capacity	:	37 Nm
Hex Size	:	6 mm

A	:	45.72 mm
B	:	15.24 mm
C	:	25.40 mm
D	:	20.32 mm
E	:	20.32 mm

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$121.76

TCR 3000 I 3/4

STR 810430

Click-Type Preset Torque Wrenches: LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb

Product Group	:	LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb
Model	:	LTCR 3000 I 3/4
Torque Range (Nm)	:	67.8-339 Nm
Weight (lb)	:	3.0 lb

Product Description

LTCR-Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
When we preset the torque value for you at the factory, we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
Cushioned comfort grip is lightweight and provides excellent ergonomics
Slide pin ratchet provides strength and durability
Easy to install ratchet renewal kit is available
The torque is preset and locked in with a special tool
Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
Torque can be set using any unit of measurement
Can be ordered preset from the factory or you can set the torque with your own torque tester
Wrench measures torque in the clockwise direction

$566.10

LTCS 3600 I

STR 810485

Click-Type Preset Torque Wrenches: LTCS Preset Interchangeable Head Click-Type Torque Wrenches - Fixed Square Drive, in-lb

Product Group	:	LTCS Preset Interchangeable Head Click-Type Torque Wrenches - Fixed Square Drive, in-lb
Model	:	LTCS 3600 I
Torque Range (Nm)	:	80.14-407 Nm

Product Description

LTCS Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
When we preset the tool to your requested torque value we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
The low profile of the square drive creates access where other tools cannot go, which is important with our larger square drives
Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
Cushioned comfort grip is lightweight and provides excellent ergonomics
Slide pin ratchet provides strength and durability
Easy to install ratchet renewal kit is available
The torque is preset and locked in with a special tool
Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
Torque can be set using any unit of measurement
Can be ordered preset from the factory or you can set the torque with your own torque tester
Wrench measures torque in the clockwise direction

$1,043.60

EMTSK 36/4, Adjustable Torque Screwdriver Kit

STR 810588

Adjustable Torque Screwdrivers: Adjustable Torque Screwdriver Kit, 6 Piece Kit, in-lb

Product Group	:	Adjustable Torque Screwdriver Kit, 6 Piece Kit, in-lb
Model	:	EMTSK 36/4
Torque Range	:	2-36 in.lb
Hex Drive	:	1/4 in
Overall Length	:	7.8 in
Weight	:	.5 lb
Scale	:	2 in-lb

Product Description

Bi-directional Accuracy of +/- 6% Indicated Value from 20% to 100% of capacity
Meets or exceeds ASME B107.300-2010 and ISO 6789
Operator cannot over-torque, clutch releases automatically when desired torque has been achieved
Scale on the shaft is marked in dual incrementation (in lb and Nm) on Cal 36/4, kgfcm on CAL 40
Magnifying lens improves the view of a clearly engraved scale
To operate, simply dial torque setting and insert bit
Anti-backlash design enhances repeatability
Comes with FREE calibration certificate from our ISO/IEC 17025 Accredited Calibration Laboratory
Kit includes Hex 1/4 to 1/4 Sq. Drive

$480.67

TAC 1800

STR 810715

Wireless Digital Torque Wrenches: TAC Digital Torque and Angle Wrench, in-lb

Product Group	:	TAC Digital Torque and Angle Wrench, in-lb
Model	:	TAC-1800I
Torque Range (in.lb)	:	360-1800 lbfin
Torque Range (ft.lb)	:	30-150 ft.lbf
Head Type	:	Pin/Spring Dovetail
Weight	:	1.3 lb

Product Description

Keep up with the shortest of takt times
Fully compatible with the Global 400, Global 400mp, and the TCV e2 torque controllers
Works with the Patented Holding Tool when used with the Global 400 or Global 400mp
Access to over 200 interchangeable heads that all fit on the end of the Pin and Spring Dovetail
Heads "Lock On" to the Dovetail when the head is centered on the wrench
Powered by one AAA NiMH rechargeable battery

$2,707.40

6SDR-300 Adjustable Torque Wrench

STR 810760

Micrometer Adjustable Torque Wrenches: SD Series Micrometer Adjustable Click Wrenches, ft-lb

Product Group	:	SD Series Micrometer Adjustable Click Wrenches, ft-lb
Model	:	6 SDR 300
Torque Range (in.lb)	:	50-300 lbf ft
Scale (in)	:	2.5 lbf ft
Overal Length	:	29.0 in
Weight (lb)	:	1 lb

Product Description

Torque value is adjusted by rotating the grip
Our tools change from the top of the scale to the bottom in the fewest number of turns
Grip lock makes locking in the torque value fast, easy, and secure
Ball-bearing rock-over assembly assures smooth operation, enhances repeatability, and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Design provides a strong audible and tactile pulse when the set torque is achieved
Flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb, or 300 Nm, capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate.

$1,687.18

SLTC 1501 Switch Wrench

STR 810854

Wireless Click-Type Torque Wrenches: Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb

Product Group	:	Hardwired Preset Click-Type Torque Wrenches (SLTC/SLTCR), in-lb
Model	:	SLTC 150 I - Hardwired
Torque Range (Nm)	:	3.4-17 Nm
Torque Range (in.lb)	:	30-150 in.lbf
Head Type	:	Dovetail

Product Description

Accuracy of +/- 4% of the preset value from 20% to 100% of capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Preset from the factory includes a free Certificate of Calibration from our ISO 17025 Accredited Lab
Five of seven models use the incredibly strong SR dovetail and can be used with any of over 100 SR Interchangeable Heads
Tamper-resistant torque setting mechanism design facilitates setting and discourages unauthorized torque setting changes
Excellent audible and tactile impulse when preset torque is achieved
Lightweight and cushion grip provides excellent ergonomics
Slender body facilitates use in constrained-access applications
Microswitch closes when the tool clicks and opens immediately when pressure is released
Separate cable with a connector (required) facilitates replacement if damaged.

$311.57

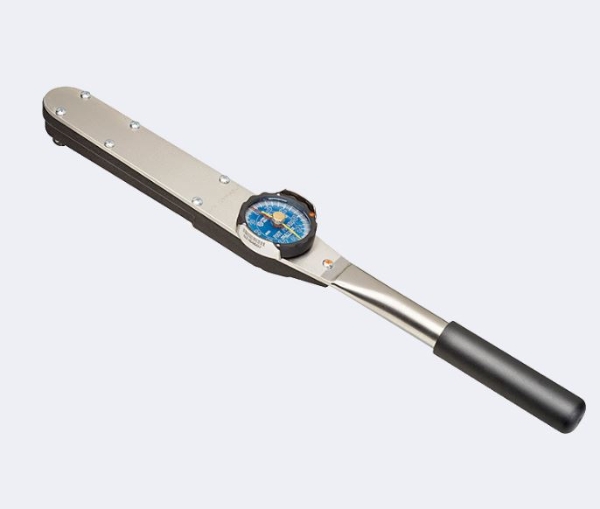

IDW 150 I 30-150 inch pounds

STR 815701

Beam & Dial Torque Wrenches: Dial Torque Wrenches, in-lb

Product Group	:	Dial Torque Wrenches, in-lb
Model	:	IDW 150I FINAL ASSY
Torque Range	:	30-150 lbf in
Scale	:	5 lbf in
Weight	:	1.2 lb
OAL	:	10.3 in

Product Description

Accuracy of +/- 3% Indicated Value from 20% to 100% of capacity
Meets or exceeds ASME B107.300-2010 and ISO 6789
Includes free Certificate of Calibration from our ISO 17025 Accredited Lab
Error Proofing By Design: Oversized dial face is extremely easy to read and helps to eliminate parallax error
Glare-resistant dial cover makes it easy to read in difficult light conditions
Error Proofing By Design: A memory indicator is provided on each wrench and remains at the maximum torque achieved for positive torque verification
Heavy-duty dial guard protects against breakage
Dial faces are color-coded: silver for inch-pounds, gold for foot-pounds, and white for Newton meters
Wrenches with a capacity of up to 50 ft-lbs have a black powder-coated handle that provides an industrial-strength finish
Wrenches with a capacity of 175 to 250 ft-lbs have a flexible PVC handle. The flexible PVC grip that comes on tools up to 250 ft. lbs. supports proper grip and provides comfort during use
Wrenches with a capacity of 600 to 1000 ft-lbs have a specially designed extension aluminum handle that is easy to grip
Each wrench comes in its own rugged, blow-molded, storage case
FREE NIST-traceable tabulated certification included.

$446.80

OE 1-5/16" Torque Wrench Open End Interchangeable Head

STR 819724

Open End Interchangeable Heads for Torque Wrenches

Model	:	OE 1 5/16
Capacity	:	4800 lbf in
Dimensions Insert	:	1-5/16 in

A	:	4-5/8 in
B	:	2-15/16 in
C	:	5/8 in
D	:	1-1/2 in
E	:	1 in

Product Description

One piece, cast, proprietary steel selection
All of our heads fit on all of our wrenches
Our smallest head fits on our largest wrench
Our largest head fits on our smallest wrench
Fewer wrenches to buy, calibrate, repair, and manage
No need to buy multiple wrenches and heads to cover different fastener sizes within the same torque range
Sturtevant Richmont interchangeable heads have two common centerlines
Typically for sizes 32 mm and below the common centerline is 365 mm
Sizes larger than 33 mm the common centerline extends to 984 mm

$591.43

Flat Beam 3/8 Sq Dr Torque Wrench

STR 850191

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 100 I
Torque Scale	:	100 lbf in
Square	:	5 lbf in
Weight	:	0.4 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$598.41

M 150

STR 850198

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, ft-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, ft-lb
Model	:	M 150
Torque Scale	:	150 lbf ft
Square	:	5 lbf ft
Weight	:	3.75 lb

Product Description

Incredibly durable design
Exceptional accuracy retention permits extended calibration intervals and extremely low ownership cost
Flat and Tapered Beam torque wrenches have a very low cost of ownership; they are virtually maintenance and repair-free
Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Bi-directional accuracy of +/- 2% of Indicated Value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Includes FREE certificate of calibration from our +/- .25% Indicated Value accuracy/ISO/IEC 17025 Accredited Calibration Laboratory

$937.14

M 1800 I

STR 850205

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 1800 I
Torque Scale	:	1800 lbf in
Square	:	50 lbf in
Weight	:	3.75 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$937.14

M 200 I

STR 850211

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 200 I
Torque Scale	:	200 lbf in
Square	:	10 lbf in
Weight	:	0.5 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$643.58

M 300 I

STR 850228

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 300 I
Torque Scale	:	300 lbf in
Square	:	10 lbf in
Weight	:	2.75 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$761.33

M 50 I

STR 850242

Beam & Dial Torque Wrenches: Flat and Tapered Beam Torque Wrenches, in-lb

Product Group	:	Flat and Tapered Beam Torque Wrenches, in-lb
Model	:	M 50 I
Torque Scale	:	50 lbf in
Square	:	2 lbf in
Weight	:	0.4 lb

Product Description

Pivoted handle concentrates load at a precise point on the lever to assure torque accuracy
Memory feature consists of pointers that follow a track on the scale and remain in place to indicate peak torque achieved
Peak torque indicated on the scale is accurate even in destructive applications
Meets or exceeds requirements for ASME B107, 300-2010 and ISO 6789
Includes certificate of calibration from our +/- 25% indicated value accuracy/ISO/IEC 17025 accredited calibration laboratory
850222, 850242, 850191: These products have a pivoted ball handle.

$517.77

3SDR 150I Torque Wrench, Knurl-Grip

STR 869751

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, in-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, in-lb
Model	:	3SDR 150I MG
Torque Range (in.lb)	:	30-150 lbf in
Scale (in)	:	2 lbf in
Overal Length	:	10.6 in
Weight (lb)	:	1.1 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$383.88

4 SDR 1800 I Torque Wrench, Knurl-Grip

STR 869755

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, in-lb

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, in-lb
Model	:	4SDR 1800I MG
Torque Range (in.lb)	:	360-1800 lbf in
Scale (in)	:	10 lbf in
Overal Length	:	19.5 in
Weight (lb)	:	2.0 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$471.00

3 SDR 20Nm, Torque Wrench, Knurl-Grip

STR 869776

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, Nm

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, Nm
Model	:	3SDR 20Nm MG
Torque Range (Nm)	:	4-20 Nm
Scale (Nm)	:	0.2 Nm
Overal Length	:	11.9 in
Weight (lb)	:	1.1 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$391.26

3 SDR 100 NM -MG

STR 869777

Micrometer Adjustable Torque Wrenches: SDR Series Micrometer Adjustable Click Wrench, Nm

Product Group	:	SDR Series Micrometer Adjustable Click Wrench, Nm
Model	:	3SDR 100Nm MG
Torque Range (Nm)	:	1 Nm
Scale (Nm)	:	0.5 Nm
Overal Length	:	15.5 in
Weight (lb)	:	1.5 lb

Product Description

Adjust torque value by rotating the grip
Grip lock makes locking in torque value fast, easy, and secure
Tool changees from one end of the scale to the other with the fewest number of turns
Ball-bearing rock-over assembly assures smooth operation enhances repeatability and increases wrench service life
Accuracy of +/- 4% of Indicated Value from 20% to 100% of rated capacity
Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
Error Proofing By Guidance design provides a strong audible and tactile impulse when the set torque is achieved
Error Proofing By Design flattened case provides the mechanism with superior support resulting in a wrench that is easier to calibrate and one that holds calibration longer
Flattened case prevents side loading during torque application or testing/calibration
Knurled grip offers an ergonomic grip that remains comfortable over long periods of use
Ratchet is built for durability
Ratchet replacement is fast and easy when needed
All tools up to 250 ft-lb capacity come with a rugged, custom-molded plastic case
Includes FREE tabulated calibration certificate from our ISO 17025 certified calibration laboratory

$419.21

Refine
