Spray Guns - Manual

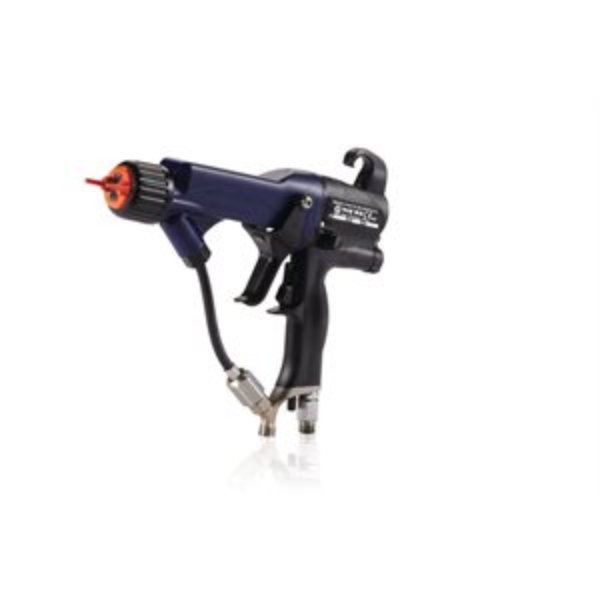

GG H85T10

PRO XP GUN, ES, 85KV, AA

Pro Xp85 Air Assist Manual Electrostatic Gun, 85 kV, with standard display, standard coatings, includes AEM or AEF tip of choicePro Xp85 kV air-assist gun maximizes transfer efficiency and lowers cost of ownership. Pro Xp85 AA gun line includes Standard and Smart models.High quality spray performance with a one-piece aircap and variety of spray tipsAlternator speed indicator light ensures your turbine speed is running at the correct levelSmart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easierIncrease transfer efficiency up to 10%Internal power supply reduces operator fatigue with no heavy cords to slow you doneRugged, dependable design supported by a three year warrantyEvery gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

GG L40T14

PRO XP GUN, ES, 40KV, GROUND POINT

Pro Xp40 Air Spray Manual Electrostatic Gun, 40 kV Booster, 0.055 in (1.5 mm) nozzle, standard displayGet the transfer efficiency of a 60 kV electrostatic air spray gun in the compact size of a 40 kV gun. The smaller and lighter ergonomics make it ideal for operators who work in tight spaces.Easily adjust gun performance with large, simple-to-use, control knobs.Durable components are backed by a three-year warranty and A+ Service.Made in the USASmooth, curved ergonomic handle fits nicely in your hand for more comfortable sprayingEvery gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

BB 2465-10HV-33S0

Trophy Gun Pressure/Siphon, 1.0Cx33Hvlp

GG 24C857

G40 Gun, Assembly, Aa Rac Tip

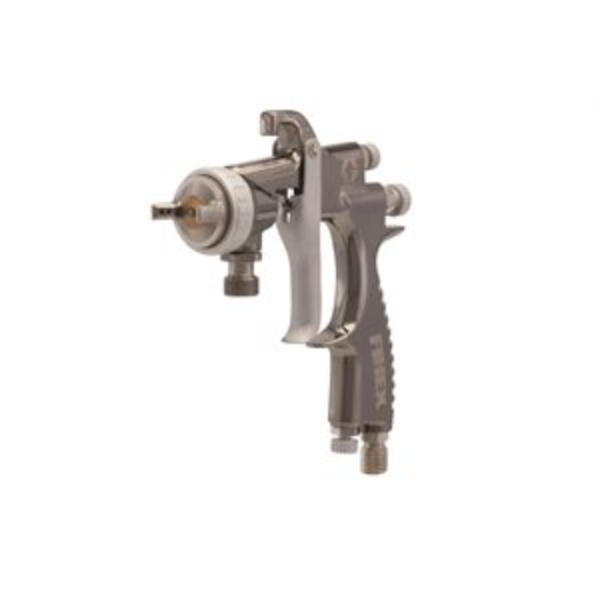

GG 289254

FINEX GUN, 2, CONV, PRESS, 1.4

Graco 289254 Finex Air Spray Pressure Feed Gun, conventional, 0.055 in (1.4 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.14
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 370
• Gun Weight (kg): 0.37
• Gun Weight (lb): 0.8
• Gun Weight (oz): 13.05

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Working Pressure (bar): 6.9
• Maximum Fluid Working Pressure (MPa): 0.69
• Maximum Fluid Working Pressure (psi): 100

• Product Type: Spray Gun

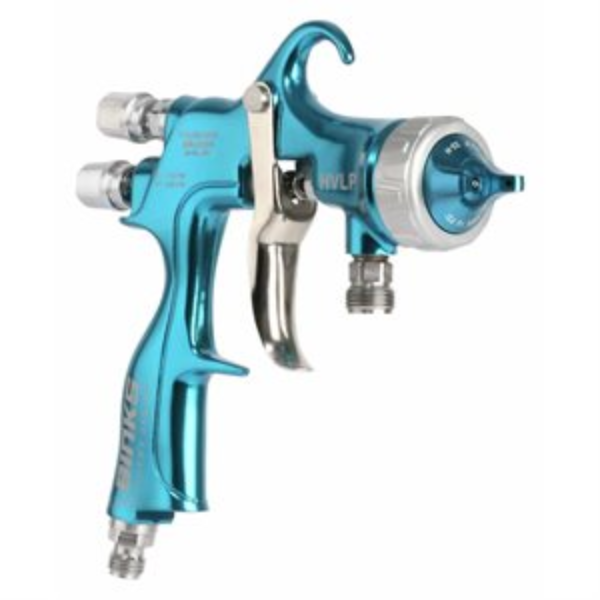

BB 2465-18HV-32S0

Trophy Gun Pressure/Siphon, 1.8X32Hvlp

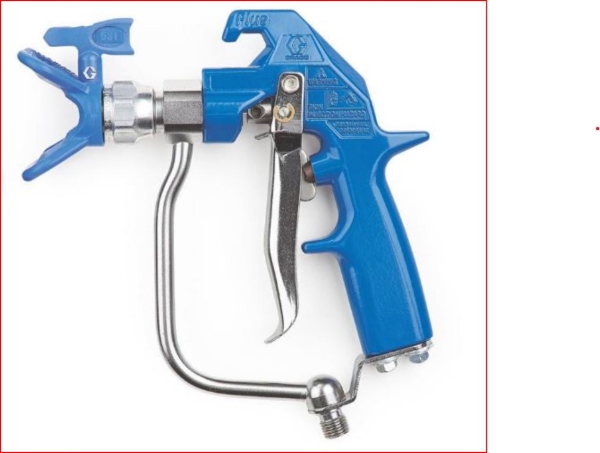

GG 241705

HEAVY DUTY GUN, SPRAY, TEXTURE

Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC XThe Heavy-Duty Blue Texture Airless Spray Gun is the ideal gun for heavy coatings and joint compounds. Includes a 4-finger trigger and a RAC X 531 SwitchTip and Guard.Oversized Fluid Path

• No-filter design offers minimal restriction and maximum flow
• Minimizes pack-out with heavy materials
• Reduces pressure drop for superior atomization

Ergonomic Design

• Form-fitting handles provide maximum control and comfort while spraying
• Optimized trigger and lightweight design allows effortless, all-day spraying

Patented Needle Design

• Factory set needle needs no adjustment – ever
• Heavy-duty design for maximum performance and long life

Jobsite Proven

• Perfect for skim coat in a Level 5 finish, drywall mud, epoxies and a whole range of paints and primers
• Contractor preferred

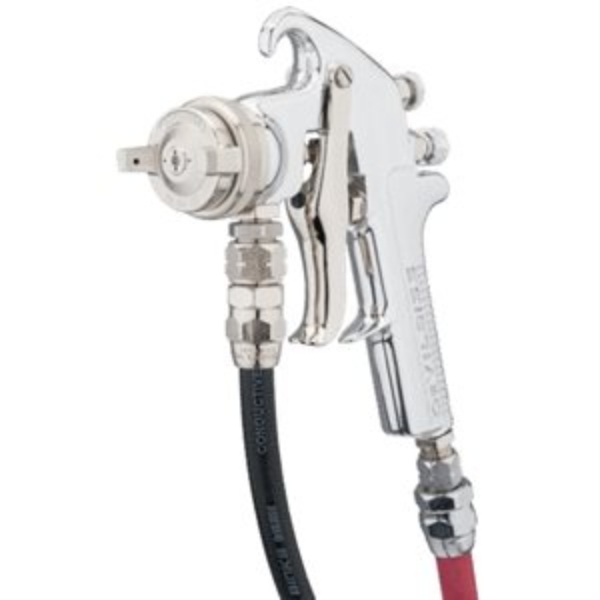

DD JGA-510-704FF

Jga Spray Gun, 704Ff (1.4)

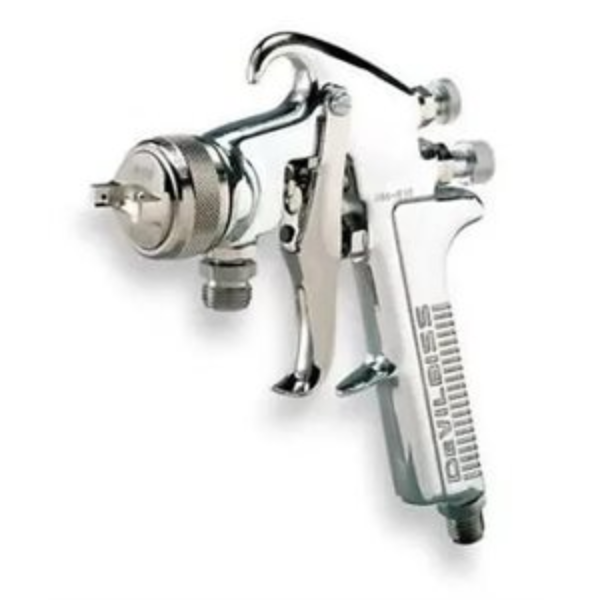

DD JGA-510-DEC

Jga Decorator Spray Gun

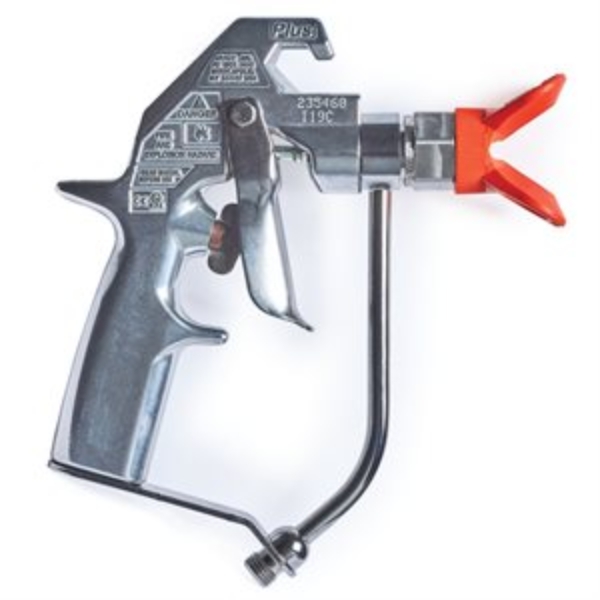

GG 235460

GUN, SILVER, FLAT TIP

Silver Plus Airless Spray Gun, 2 Finger Trigger, Flat TipThe Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a Flat Tip Guard.Rugged Design

• Durable forged aluminum withstands harsh work environments
• Lighter weight than competitive guns Polished body is easy to clean

Exclusive Needle Design

• Factory set needle needs no trigger adjustments
• Guaranteed for life against breakage
• Maximum performance and long life

Stainless Steel Fluid Tube

• Fluid flows directly to the tip through the gun fluid tube
• Provides the ability to spray heavier materials
• Including high solid coatings and mastics

Optional Light Viscosity Needle Kit

• Provides faster shut-off to reduce spitting of light viscosity material
• Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)

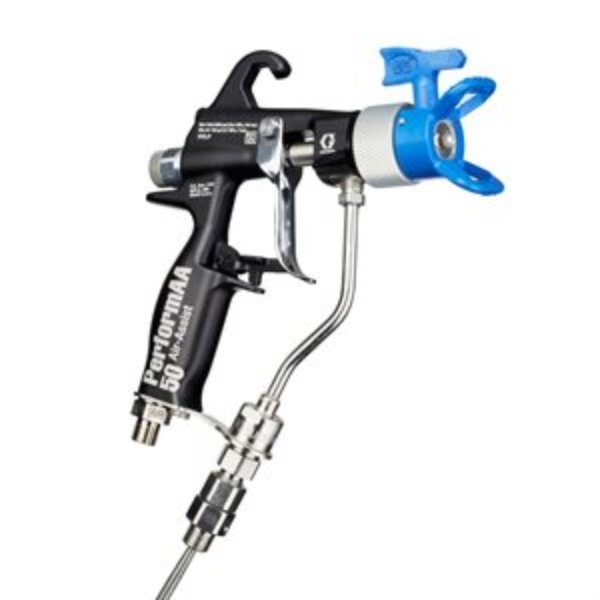

GG 26B517

PERFORMAA GUN, AA, 5000, RAC

Graco 26B517 PerformAA 5000 RAC Air Assist Gun with Reverse A Clean air cap and spray tip

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

• High quality 5000 psi RAC air assist spray gun
• Rerverse-A-Clean air cap and tip for quick cleaning
• Carbide seat and carbide ball for durability

• Model: PerformAA RAC

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Solvent borne Paints, Urethane, UV Coating, Varnish
• Compatible Spray Tip: FFLP, LTX

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: N/A
• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 453
• Gun Weight (kg): 0.45
• Gun Weight (lb): 1
• Gun Weight (oz): 16
• Gun Weight with Tip and Guard (g): 490
• Gun Weight with Tip and Guard (oz): 17.4
• Gun Weight without Tip and Guard (g): 460

• Gun Weight without Tip and Guard (oz): 16.2

• Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Overall Height (cm): 19.8
• Overall Height (in): 7.8
• Overall Height (mm): 198
• Overall Length (cm): 18.3
• Overall Length (in): 7.2
• Overall Length (mm): 183

• Product Type: Spray Gun

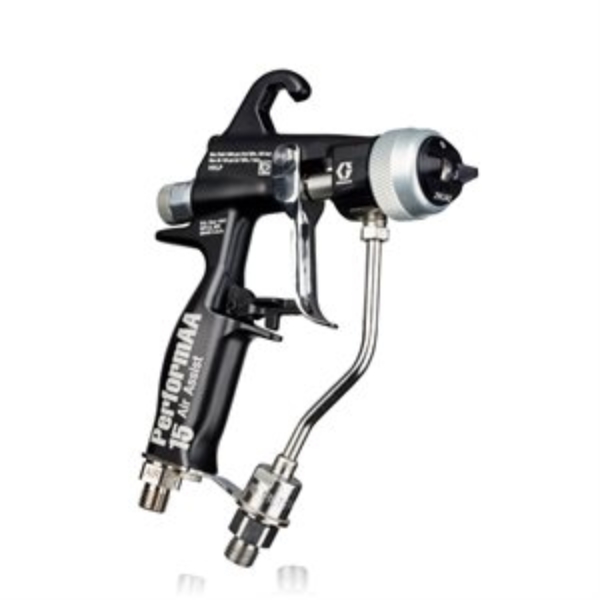

GG 26B502

PERFORMAA GUN, AA, 1500, WL

Graco 26B502 PerformAA 1500 Air Assist Gun with Wood Lacquer air cap and light trigger pull

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

• High quality 1500 psi air assist spray gun
• Wood lacquer air cap for wood finishing top coats and lacquers
• Indexing air cap for accurate spray position
• Trigger pull force is ultra-light, reducing operator fatigue and muscle stress

• Model: PerformAA 15

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Lacquer, Varnish, Latex, Plural Component Materials, Solvent borne, Solvent borne Paints, Topcoats
• Compatible Spray Tip: AXM, AXF

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Clicking
• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 453
• Gun Weight (kg): 0.45
• Gun Weight (lb): 1
• Gun Weight (oz): 16
• Gun Weight with Tip and Guard (g): 480
• Gun Weight with Tip and Guard (oz): 17.1
• Gun Weight without Tip and Guard (g): 460

• Gun Weight without Tip and Guard (oz): 16.2

• Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 105
• Maximum Fluid Pressure (kPa): 10500
• Maximum Fluid Pressure (MPa): 10.5
• Maximum Fluid Pressure (psi): 1500
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Maximum Fluid Pressure (bar): 105
• Maximum Fluid Pressure (kPa): 10500
• Maximum Fluid Pressure (MPa): 10.5
• Maximum Fluid Pressure (psi): 1500
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Overall Height (cm): 20.8
• Overall Height (in): 8.2
• Overall Height (mm): 208
• Overall Length (cm): 15.25
• Overall Length (in): 6
• Overall Length (mm): 152

• Product Type: Spray Gun

SATA 198184

Minijet 4400B HVLP 1.2SR w/RPS Cup

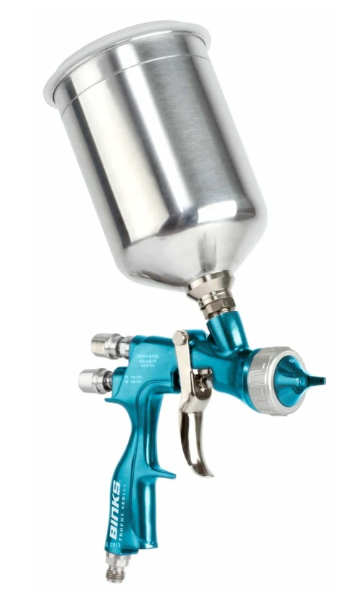

BB 2466-14HV-32SG

Trophy Grav 1.4X32 Hvlp

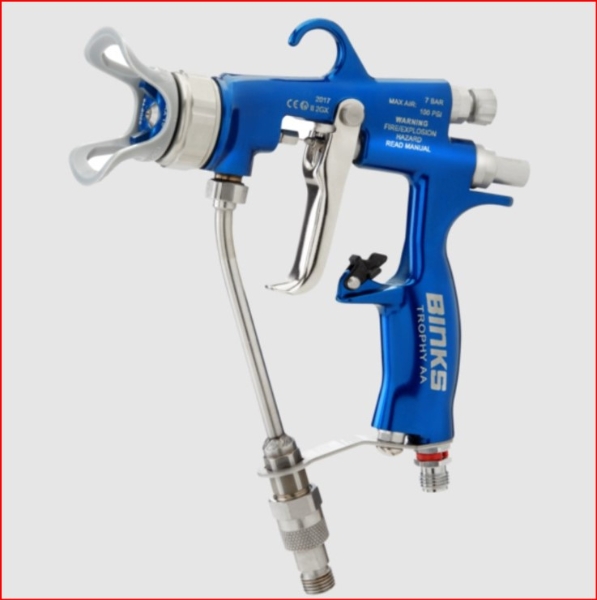

BB 0909-1600-HF0000

AA1600M Flat Tip Gun, Less Tip

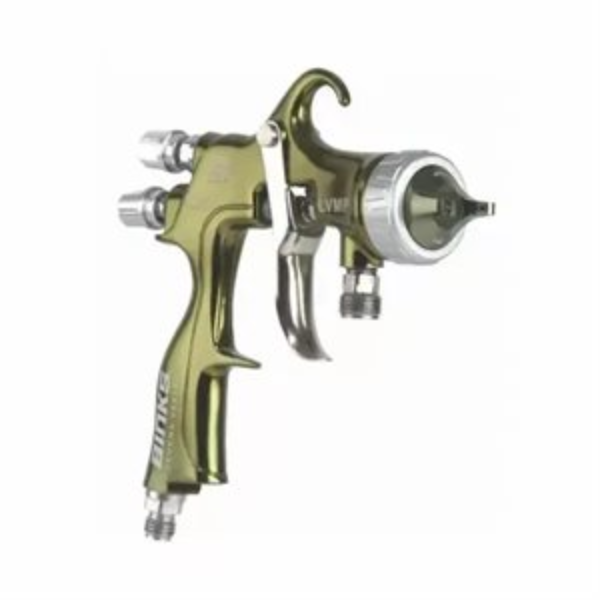

BB 2465-14LV-23S0

Trophy Gun Pressure/Siphon, 1.4X23Lvmp

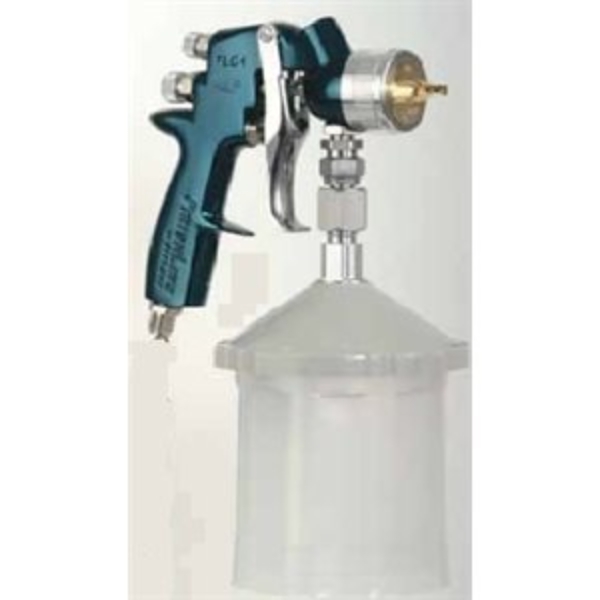

DD FLG-HVS-322

Flg4 Hvlp Siphon Gun

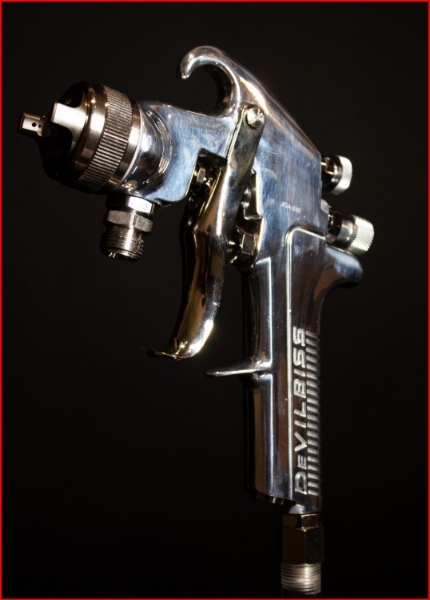

DD JGA-510-765FF

Spray Gun

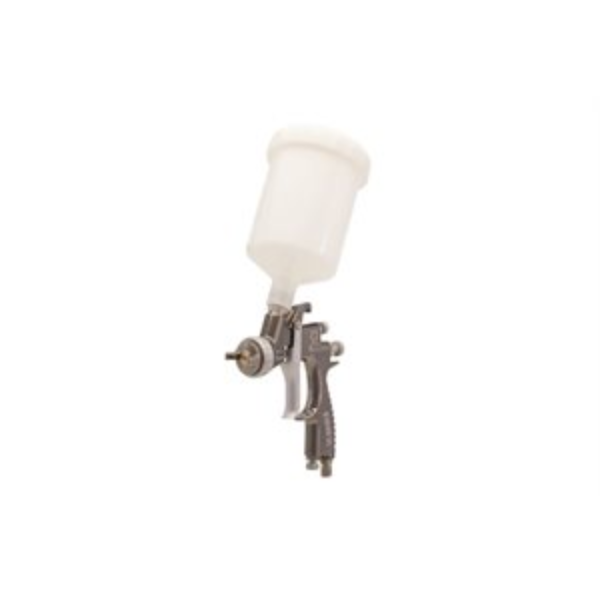

GG 289244

FINEX GUN, GRACO, 2, CONV, 1.4

Graco 289244 Finex Air Spray Gravity Feed Gun, conventional, 0.055 in (1.4 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Standard Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.14
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 540
• Gun Weight (kg): 0.54
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.05

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Working Pressure (bar): 6.9
• Maximum Fluid Working Pressure (MPa): 0.69
• Maximum Fluid Working Pressure (psi): 100

• Product Type: Spray Gun

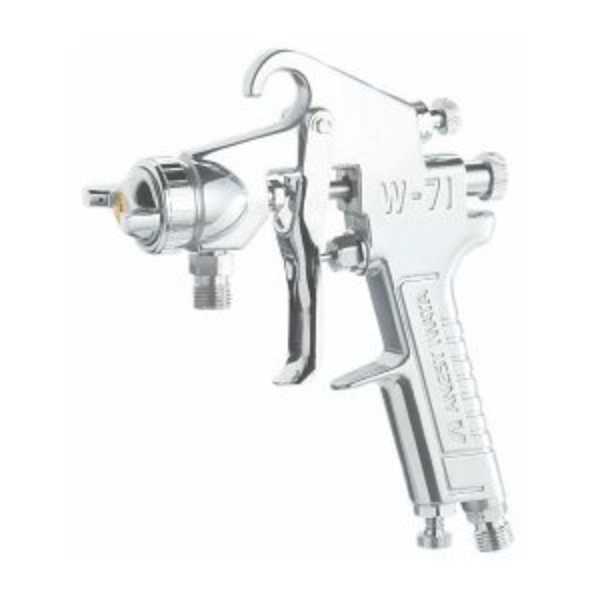

IW 3050

W71-31SN 1.5mm Siphon Spray Gun

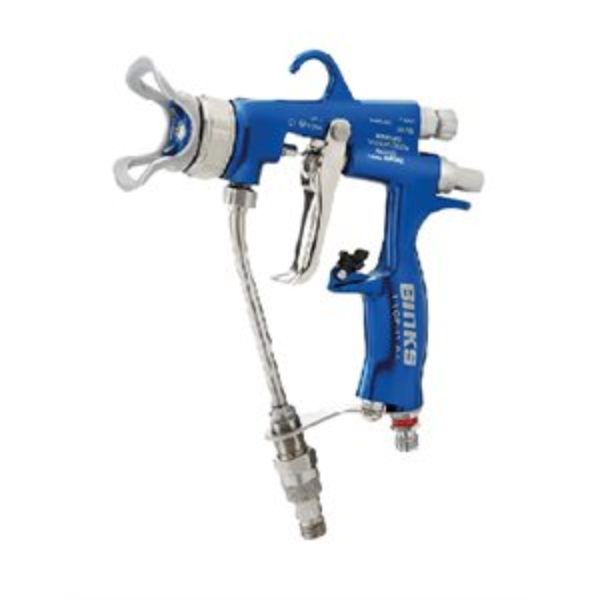

BB 1600-HF0000

Trophy Aa Handgun, 1600

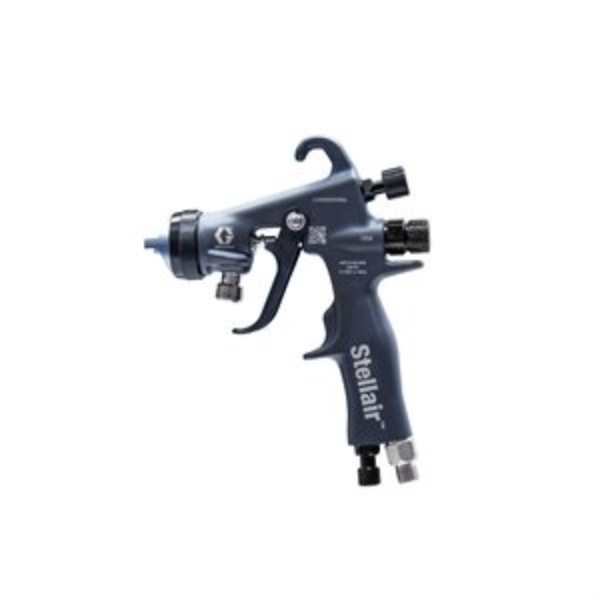

GG 2004152

STELLAIR GUN, HVLP (.055)

Stellair Air Spray Gun, HVLP, 0.055 in (1.4 mm), General Industry, PEEK TipPressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.

GG 287023

GUN, POLE, 3', DOMESTIC

Pole Gun, 3 ftExtend your range and spray more efficiently without ladders or scaffolding with the 3 foot Pole Gun.

Heavy-duty extensions are ideal for high-pressure spraying or pressure roller applications.

Airless Tip Extensions can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.

CleanShot Valve can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.

IW 5910

Supernova WS400-1401HD Gun (no cup)

IW 3025

Gravity Spraygun, W-71 1.5mm
