Spray Guns - Manual

BB 1465-14LV-B1S

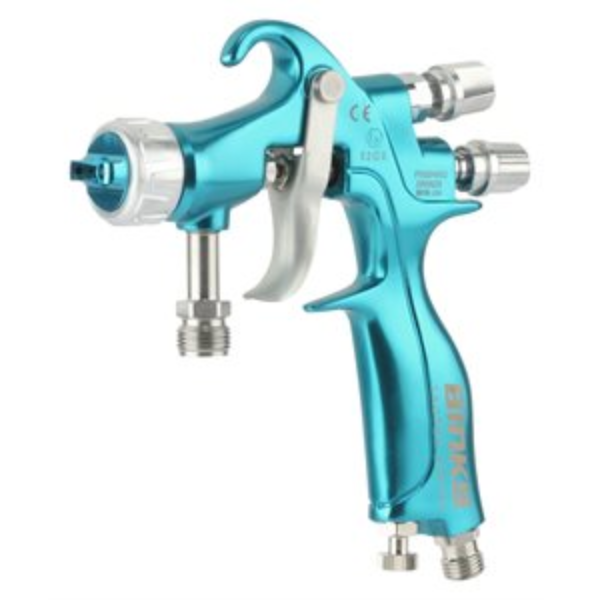

Trophy Tu Press 1.4Xblvmp

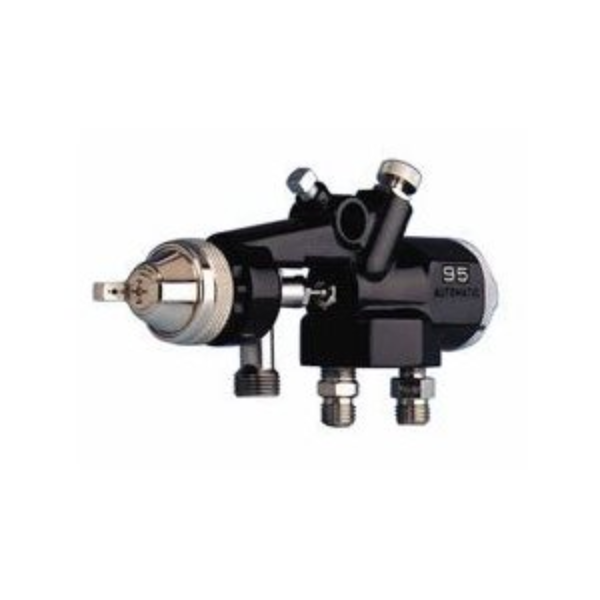

BB 6469-2800-7

95A Gun 63Bss-63Pb

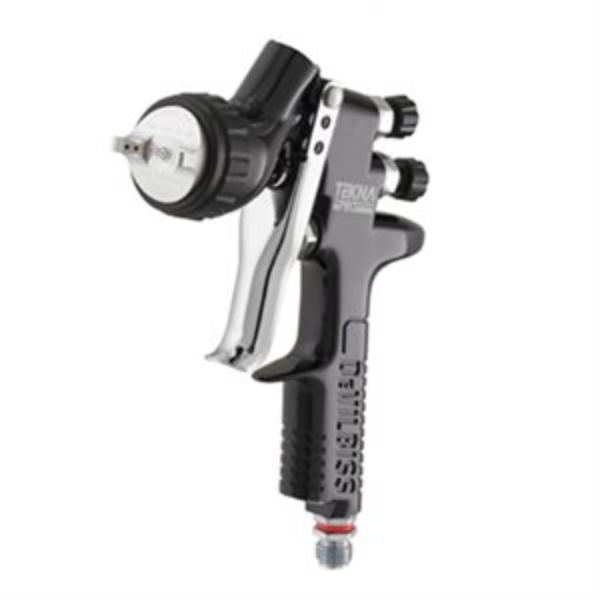

DD 303938

Tekna Prolite Gun/Cap (1.3, 1.4, 1.5.Hv30, Te20)

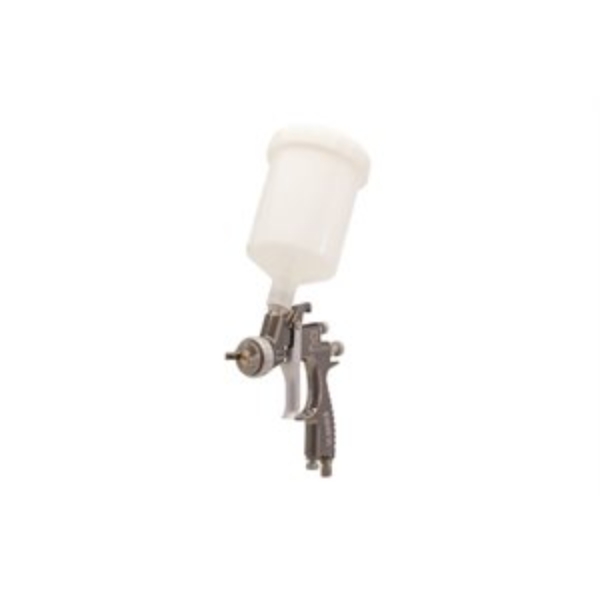

GG 289246

FINEX GUN, GRACO, 2, CONV., 1.8

Graco 289246 Finex Air Spray Gravity Feed Gun, conventional, 0.071 in (1.8 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Standard Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.071
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 540
• Gun Weight (kg): 0.54
• Gun Weight (lb): 1.2
• Gun Weight (oz): 19.05

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Working Pressure (bar): 6.9
• Maximum Fluid Working Pressure (MPa): 0.69
• Maximum Fluid Working Pressure (psi): 100

• Product Type: Spray Gun

SATA 93344

3000K RP Gun 1.3mm, Standard

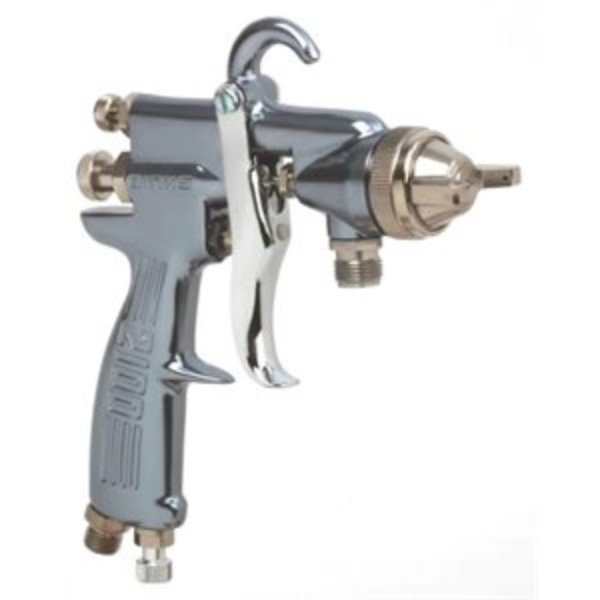

BB 2101-2808-2

2100 Gun Assembly, 63Bss-66Sd-3

BB 2465-18LV-25S0

Trophy Gun Pressure/Siphon, 1.8 X 25Lvmp

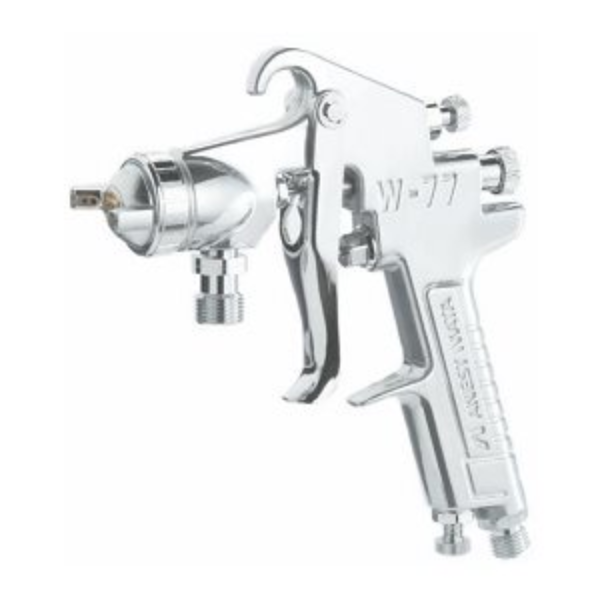

IW 3115-21

W77-2Sn/21 Spray Gun W/21 Cap

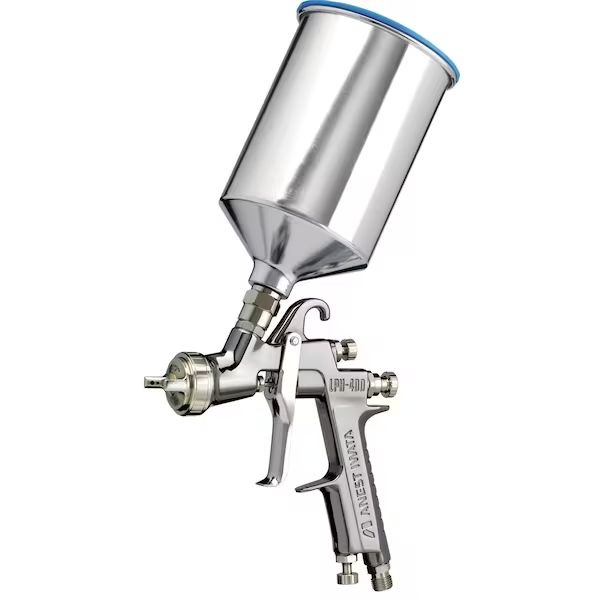

IW 5550

IWATA LPH400-144LV HVLP GRAVITY GUN (1.4) NO CUP

BB 7000-1204-4

Mach 1Sl Gun 94-94P

DD EXL-520P-14

Exl Pressure Gun Assembly

DD FLG-MGQ-700-FL

Gun & Cup, Non Bleeder

GG 247879

Hydra-Clean Gun, And Wand Assy Sst

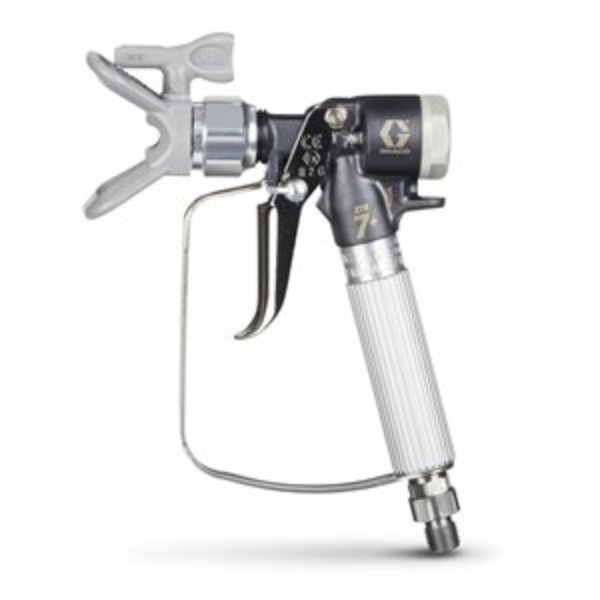

GG XTR725

XTR+ GUN, XTR7+, 1" HND, 2FNG, XHDRAC

Graco XTR725 XTR7+ Airless Spray Gun, Round Handle, 2-Finger Trigger, XHD RAC Tip

New look. New features. A self-locking needle design offers unmatched ease of breaking down for cleaning or rebuilds. Paired with a new look, youll never think twice about grabbing the correctly pressure rated XTR+ gun for your Graco sprayer.

Application: Designed to conquer the toughest protective coatings.

• Self-locking needle design for faster rebuilds
• XHD RAC tip provides exceptional life, pattern and finish
• Easily remove and clean gun filter with trigger guard integrated wrench

• Model: XTR7+

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (MPa): 50
• Maximum Working Pressure (psi): 7250

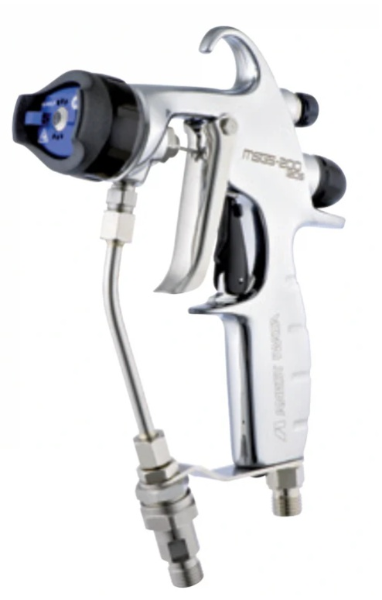

IW 7506S

Msgs200-120S Gun

DD COM-PS507B-10-00

Compact, Pressure Hvlp

DD JGA-510-FX

Spray Gun

GG 246240

GUN, SILVER

Silver Plus Airless Spray Gun, 2 Finger Trigger, RAC X 517 SwitchTipThe Silver Plus Gun is known for its durability, long life, spraying performance and comfortable design. Rated at 5000 psi (345 bar, 34.5 MPa), this is the preferred gun for high-pressure applications. Includes a 2-finger trigger and a RAC X 517 SwitchTip and Guard.Rugged Design

• Durable forged aluminum withstands harsh work environments
• Lighter weight than competitive guns Polished body is easy to clean

Exclusive Needle Design

• Factory set needle needs no trigger adjustments
• Guaranteed for life against breakage
• Maximum performance and long life

Stainless Steel Fluid Tube

• Fluid flows directly to the tip through the gun fluid tube
• Provides the ability to spray heavier materials
• Including high solid coatings and mastics

Optional Light Viscosity Needle Kit

• Provides faster shut-off to reduce spitting of light viscosity material
• Included in Silver Plus Gun (Part No. 235462), or as an optional Needle Kit (Part No. 235475)

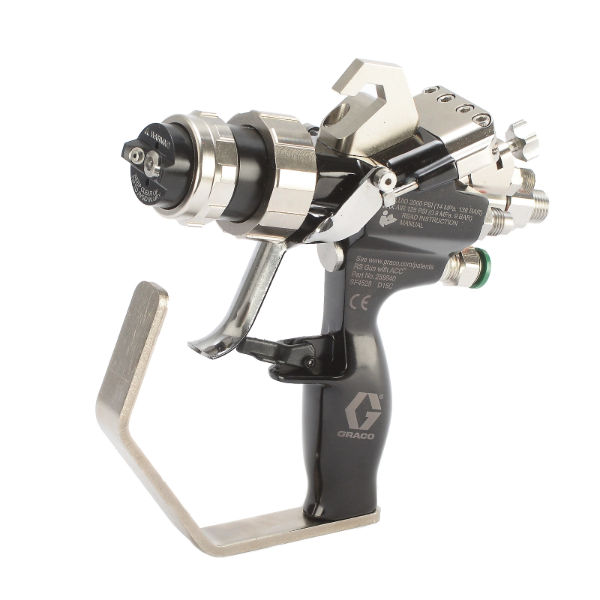

GG 258840

RS GUN, ASM, EXT MIX, GEL

RS External Mix Gel Coat Gun with Tip

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.

Makes production easier

• Simple, quick start up and shut down
• Quick tool-less blade change
• No need to adjust needle settings after maintenance

Improves product quality

• Lightweight cutter gives better chopping control
• Easy one-hand cutter speed control
• Superior spray pattern

Improves operator comfort for increased job satisfaction

• Lighter, ergonomic gun reduces fatigue
• Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
• No problems soaking the RS Gun in solvents overnight

Saves material costs

• Air Assist Containment (AAC®) standard on all RS Guns
• Lower pressure reduces overspray

BB 2101 W/52-686

Gun, 2101, w/18In Ext.(90 Deg) (63Bss x 63Pb Setup)

BB 52-4239

SC Extension 95 Auto 51 Inches, 52-3881 Needle

BB 6467-2800-7

95Ar Gun 63Bss-63Pb

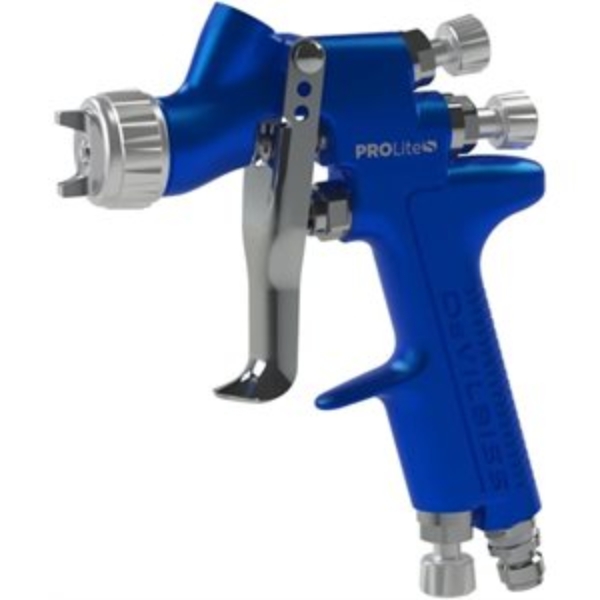

DD 905082

Prolite-S Gravity (Hv5, Te5, 1.0, Cupped)

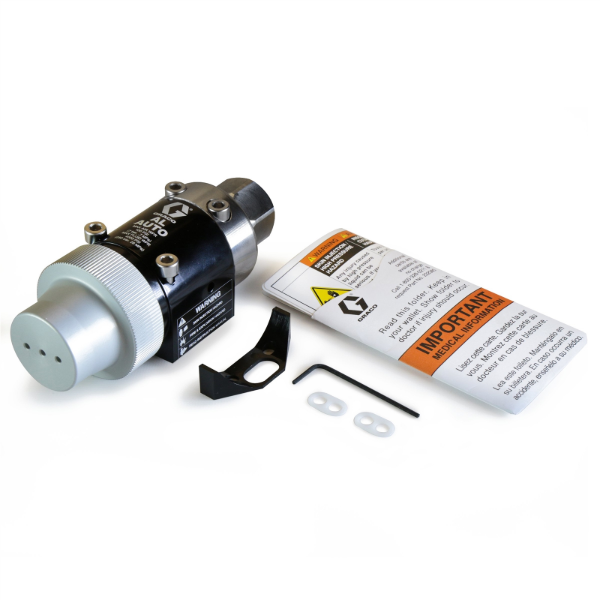

GG 288554

AUTOPLUS GUN, AIRLESS

Automatic Airless Gun

Less maintenance and more system uptime

For streaming, spray and extrusionDurable stainless steel construction, longer life needle and seat construction specifically designed to handle the toughest sealant and adhesive materialsLightweight and compact rounded gun designCapable of handling high production speedsFewer parts means an overall lower cost of repairWide range tip line for a variety of applicationsCapable of handling multiple nozzle sizes for any applicationLightweight and compact rounded gun designCapable of handling high production speedsDurable stainless steel construction handles the toughest materialsFewer parts means an overall lower cost of repairCapable of handling multiple nozzle sizes for any application

IW 5421

LPH200-182P Pressure Gun
