Gun, Pro Xp Electrostatic, 85KV,AA,Std.

GG H85T10

PRO XP GUN, ES, 85KV, AA

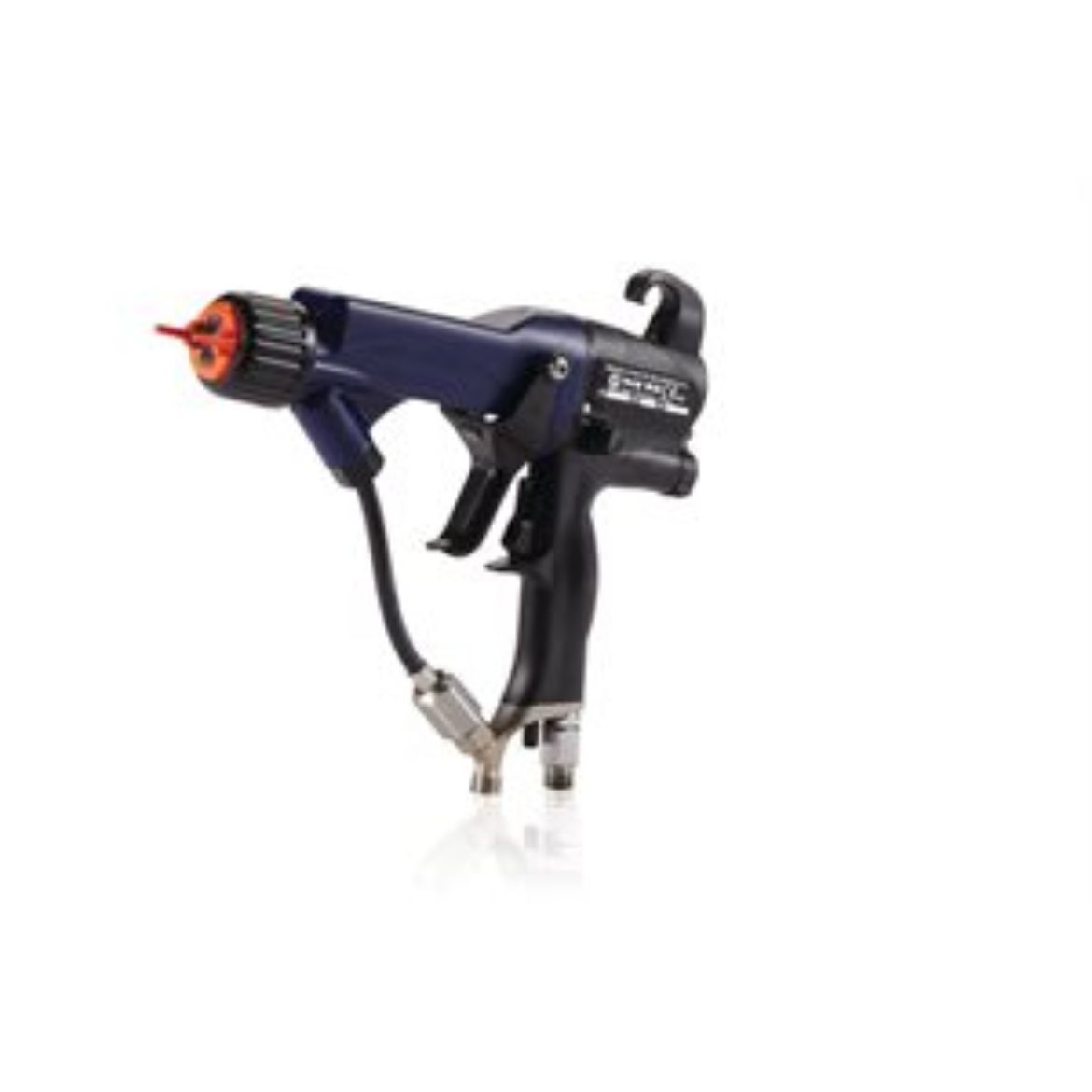

Graco H85T10 Pro Xp85 Air Assist Manual Electrostatic Gun, 85 kV, with standard display, standard coatings, includes AEM or AEF tip of choice

Pro Xp85 kV air-assist gun maximizes transfer efficiency and lowers cost of ownership. Pro Xp85 AA gun line includes Standard and Smart models.

• High quality spray performance with a one-piece aircap and variety of spray tips
• Alternator speed indicator light ensures your turbine speed is running at the correct level
• Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier
• Internal power supply reduces operator fatigue with no heavy cords to slow you done
• Rugged, dependable design supported by a three year warranty
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 85

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard

• Compatible Paint Type: Epoxy, High Solids, Lacquers, Latex, Plural Component Materials, Polyurethanes, Urethanes, UV Curing, Varnishes, Waterborne

• Display Type: Standard

• Fluid Inlet Size (in): 1/4
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 728
• Gun Weight (kg): 0.73
• Gun Weight (lb): 1.6
• Gun Weight (oz): 25.68

• Includes: Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 210
• Maximum Fluid Pressure (kg/cm²): 214.14
• Maximum Fluid Pressure (kPa): 21000
• Maximum Fluid Pressure (MPa): 21
• Maximum Fluid Pressure (psi): 3000
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 210
• Maximum Fluid Pressure (kg/cm²): 214.14
• Maximum Fluid Pressure (kPa): 21000
• Maximum Fluid Pressure (MPa): 21
• Maximum Fluid Pressure (psi): 3000
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 3

• Overall Length (cm): 27.18
• Overall Length (in): 10.7
• Overall Length (mm): 271.8
