Spray Guns - Manual

GG 24J600

FINEX GUN, GRACO

Graco 24J600 Finex Air Spray Gravity Feed Side Cup Gun, HVLP, 0.055 in (1.4 mm) needle/ nozzle size

The Finex Side Cup Gun has a cup that swivels - ideal for end users spraying in tight spaces. Available in either HVLP or conventional technologies.

Application: Easily spray small spaces and corners with the Finex gravity feed gun with swivel cup

• Aluminum cup is included with the gun
• Cup swivels for spraying in small spaces
• Light trigger pull for operator comfort
• Integrated air inlet adjustment (cheater) valve

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Side-Cup Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.14
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: HVLP Gun
• Gun Weight (kg): 0.54
• Gun Weight (lb): 1.2

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 24X636

P2 EXTREME GUN,AUTOMATIC

Graco 24X636 Automatic Probler P2 Extreme Dispense Gun

The Probler P2 Extreme Gun is lightweight and easy to mount to automation platforms - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of mix chamber movement. The Probler P2 Extreme reduces maintenance, increases spraying uptime and is easy to use in high production environments.

Application: For high output spray polyurethane foam and polyurea applications

• The P2 Extreme elite:

  • Extreme wear stainless steal side blox and mix chamber housings
  • Alternate side block hose routings
  • Allows filters to be easily removed

• Easy daily maintenance

• Easy-to-replace mix chamber insert

  Anti-crossover design virtually eliminates possibility of material entering the air piston

• Application: Foam, Polyurea

• Compatible Material: Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC

GG 258853

RS GUN, ASM, INT MIX, GEL

RS Internal Mix Gel Coat Gun with Tip

Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.

Makes production easier

• Simple, quick start up and shut down
• Quick tool-less blade change
• No need to adjust needle settings after maintenance

Improves product quality

• Lightweight cutter gives better chopping control
• Easy one-hand cutter speed control
• Superior spray pattern

Improves operator comfort for increased job satisfaction

• Lighter, ergonomic gun reduces fatigue
• Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
• No problems soaking the RS Gun in solvents overnight

Saves material costs

• Air Assist Containment (AAC®) standard on all RS Guns
• Lower pressure reduces overspray

GG 26B516

PERFORMAA GUN, AA, 5000, LV, SWIVEL

Graco 26B516 PerformAA 5000 Air Assist Gun with Low Viscosity air cap and fluid swivel

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

• High quality 5000 psi air assist spray gun
• Low viscosity air cap for even dispersion of light materials
• Includes a low profile fluid swivel
• Clicking fan pattern adjustment knob for accurate adjustment

• Model: PerformAA 50

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Stains, Sealer, Solvent borne, Solvent borne Paints, Toner
• Compatible Spray Tip: AXM, AXF

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Clicking
• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 453
• Gun Weight (kg): 0.45
• Gun Weight (lb): 1
• Gun Weight (oz): 16
• Gun Weight with Tip and Guard (g): 490
• Gun Weight with Tip and Guard (oz): 17.4
• Gun Weight without Tip and Guard (g): 460

• Gun Weight without Tip and Guard (oz): 16.2

• Includes: Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Maximum Fluid Pressure (bar): 345
• Maximum Fluid Pressure (kPa): 34500
• Maximum Fluid Pressure (MPa): 34.5
• Maximum Fluid Pressure (psi): 5000
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Overall Height (cm): 20.8
• Overall Height (in): 8.2
• Overall Height (mm): 208
• Overall Length (cm): 17.25
• Overall Length (in): 6.8
• Overall Length (mm): 173

• Product Type: Spray Gun

GG 288430

FTX GUN, RAC X(PKGD)

Contractor FTx Airless Spray Gun, 4 Finger Trigger, RAC X 515 SwitchTipThe Contractor FTx Airless Spray Gun is the economical choice for everyday use while delivering the reliability and performance to achieve a professional finish. Includes a 4-finger trigger and a RAC X 515 SwitchTip and Guard.Exclusive FlexSeal Needle

• Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
• Fluid pushes on seal to quickly shut off needle and reduce spitting
• Spring is located outside fluid path for better flow
• Helps eliminate pack out and slow needle shut-off

Reduced Gun Spitting

• Repositioned seat is closer to the tip, eliminating 60% of the dead space
• Less paint left between needle and tip results in less spitting

Ergonomic Design

• Form-fitted handle provides maximum control and comfort
• Detachable trigger guard swings clear of gun handle for easy filter access
• Lightweight design reduces operator fatigue

Trigger Lock

• Smooth, lightweight trigger pull with simple, thumb-engaged safety lock

Modular Needle Design

• Simply remove the trigger cross pin and unthread front housing to change out needle

EasyGlide Swivel

• Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!

Easy Out Gun Filter

• Filters from the inside out to prevent filter from collapsing
• Interchangeable with all Contractor series guns

GG 288942

AIRPRO GUN, PRESSURE, COMPLIANT, .020

Graco 288942 AirPro Air Spray Pressure Feed Gun, Compliant, 0.020 inch (0.5 mm) Nozzle, for General Metal Applications

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Metal
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.05
• Fluid Orifice Size (in): 0.020
• Fluid Orifice Size (mm): 0.5

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Compliant Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Minimum Flow Rate @ PSI (oz/min): 4

• Product Type: Spray Gun

GG 288943

AIRPRO GUN, PRESSURE, COMPLIANT, .030

Graco 288943 AirPro Air Spray Pressure Feed Gun, Compliant, 0.030 inch (0.8 mm) Nozzle, for General Metal Applications

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Metal
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.08
• Fluid Orifice Size (in): 0.030
• Fluid Orifice Size (mm): 0.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Compliant Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 288949

AIRPRO GUN, SST TIP, AIR SPRAY, .042

Graco 288949 AirPro Air Spray Pressure Feed Gun, Conventional, 0.042 inch (1.1 mm) Nozzle, SST Tip, for General Metal Applications

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Metal
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.11
• Fluid Orifice Size (in): 0.042
• Fluid Orifice Size (mm): 1.1

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289003

AIRPRO GUN, CONV, .070

Graco 289003 AirPro Air Spray Gravity Feed Gun, Conventional, 0.070 inch (1.8 mm) Nozzle, without Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.070
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289018

AIRPRO GUN, ASSY, COMP, GRAVITY W/CUP

Graco 289018 AirPro Air Spray Gravity Feed Gun, Compliant, 0.070 inch (1.8 mm) Nozzle, Plastic Gravity Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.070
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Compliant Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289027

AIRPRO GUN, ASSY, COMP, GRAV, PPS, .070

Graco 289027 AirPro Air Spray Gravity Feed Gun, Compliant, 0.070 inch (1.8 mm) Nozzle, 3M PPS Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.070
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Compliant Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289029

AIRPRO GUN, SIPHON, CONV, .070

Graco 289029 AirPro Air Spray Siphon Feed Gun, Conventional, 0.070 inch (1.8 mm) Nozzle, Metal Siphon Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Siphon Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.070
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289031

AIRPRO GUN, SIPHON, HVLP, .070

Graco 289031 AirPro Air Spray Siphon Feed Gun, HVLP, 0.070 inch (1.8 mm) Nozzle, Metal Siphon Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Siphon Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.18
• Fluid Orifice Size (in): 0.070
• Fluid Orifice Size (mm): 1.8

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: HVLP Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289245

FINEX GUN, GRACO, 2, CONV., 1.5

Graco 289245 Finex Air Spray Gravity Feed Gun, conventional, 0.059 in (1.5 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Standard Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.15
• Fluid Orifice Size (in): 0.059
• Fluid Orifice Size (mm): 1.5

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (kg): 0.54
• Gun Weight (lb): 1.2

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289316

Gun, 500, 2 Finger, Asm, Packaged

GG 289605

GUN, SPRAY, TEXTURE

GG CS02RD

FUSION CS GUN, RD0202

Fusion CS Gun, Round Spray Pattern, 0.052 in (1.3 mm) Mix Chamber

ClearShot Technology sets the Fusion CS gun apart from every other applicator. With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance. Flexible for polyurea and foam applications, this gun provides you with versatile advantages.

For high output spray polyurethane foam and polyurea applications.New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot CartridgeRemoves foam and keeps mix chamber clearSaves almost an hour of maintenance time each spray dayFirst-ever liquid purge – reduces purge air by 75% and minimizes foam blowbackEasy-to-insert cartridge fits into ergonomic handle

Variable flow - an industry first

• First plural-component gun with variable flow
• Switch from large to small spray patterns in seconds
• Gives you more maneuverability to spray in small, tight areas
• Ten different settings

Quick-change front - simpler and cleaner

• Swap out fluid heads in seconds
• Non-stick polymer cover keeps gun head cleaner
• "Air knife" reduces material build-up
• Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

GG H60T10

PRO XP GUN, ES, 60KV, AA

Pro Xp60 Air Assist Manual Electrostatic Gun, 60 kV, with standard display, standard coatings, includes AEM or AEF tip of choicePro Xp60 kV air-assist gun is the smallest and lightest electrostatic air-assist gun on the market – delivering a consistent, high quality finish every time you spray. Pro Xp60 AA gun line includes Standard, Smart and Waterborne models.High quality spray performance with a one-piece aircap and variety of spray tipsTransfer efficiency is improved over conventional air-assist gunsMade in the USAThe smallest profile gun with internal power supply on the market – 1 inch (2.5 cm) shorter and 4 oz (110 g) lighterFan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you moneyEvery gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

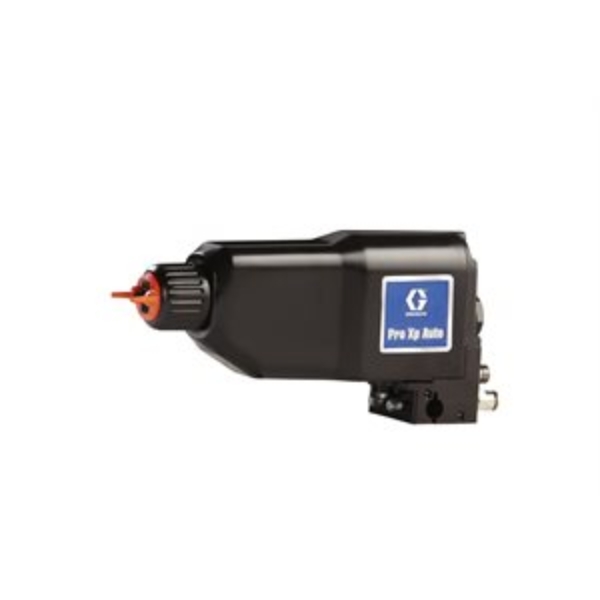

GG HA1T10

PRO XP GUN, ES, AUTO REAR, AA

Pro Xp Auto Air-Assist Electrostatic Spray Gun, standard model, with rear manifold, 85 kV, includes AEM or AEF tip of choicePro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Standard gun models always run at 85 kV power and include an alternator speed indicator to display electrostatic performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a high quality finish.Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne gunsManifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting85 kV power supply and internal power so there's no electrical cord to worry about damaging or replacingHigher transfer efficiency equals less waste, saving you money on materialDurable components reduce cost of ownership, supported by a three year warranty

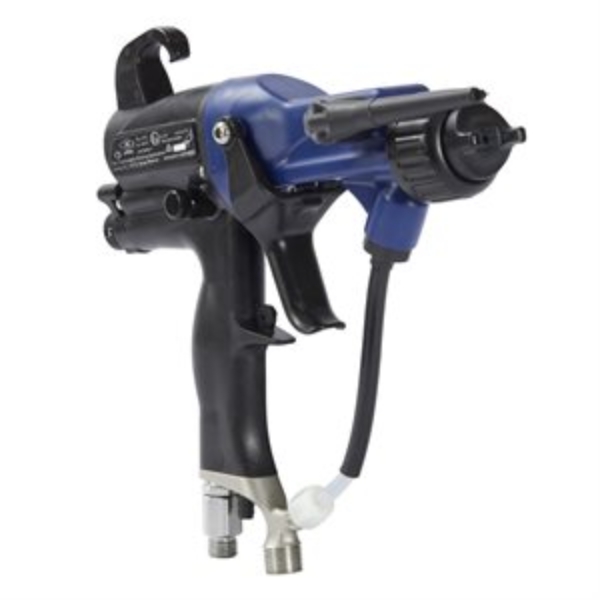

GG L40T28

PRO XP GUN, ES, 40KV, WBX

Pro Xp WBx Air Spray Manual Waterborne External Charge Electrostatic Gun, 40 kV, standard displayExternally charged waterborne air spray gun reduces material and environmental costs without the expense and limitations of an electrostatic isolation system.For spraying conductive, waterborne fluids – no isolation system neededWaterborne material stays grounded in the gun and is charged at the tip of the electrostatic spray gun with the assistance of a probe.Two probe options meet different needs. The long probe provides the best transfer efficiency and wrap. The shorter probe is for low profile electrostatic charging.

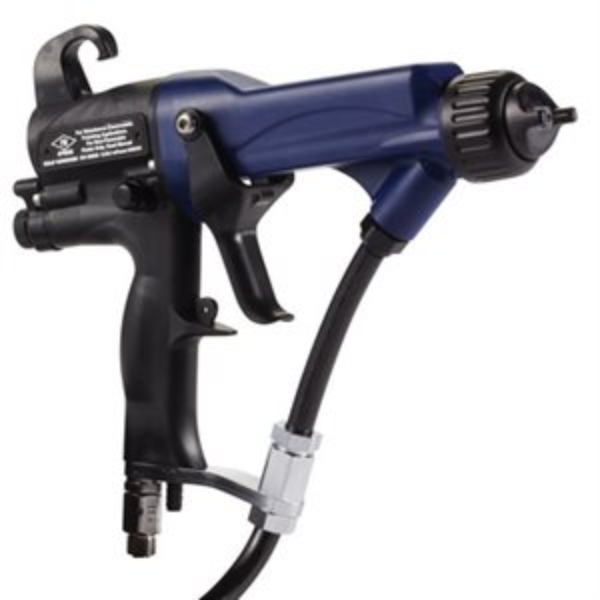

GG L60M19

PRO XP GUN, ES, 60KV, MOLD RELEASE

Graco L60M19 Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, smart display, for mold release applications

Superior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material.

Application: For spraying waterborne mold release materials with an isolation system

• Model for spraying mold release materials delivers fine atomized particles in a low-pressure spray with a fine finish tip.
• Available in 60 kV, it's the smallest profile gun with an internal power supply on the market.
• Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator.
• Made in the USA

• Model: Pro Xp
• Series: 60

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Waterborne, Mold Release
• Applicator Type: Manual

• Coating Type: Waterborne, Mold Release

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Smart

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 670
• Gun Weight (kg): 0.67
• Gun Weight (lb): 1.48
• Gun Weight (oz): 23.63

• Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Paint Resistivity (megohm/cm): 1

• Minimum Paint Resistivity (megohm/cm): 0

• Overall Length (cm): 24.13
• Overall Length (in): 9.5
• Overall Length (mm): 241.3

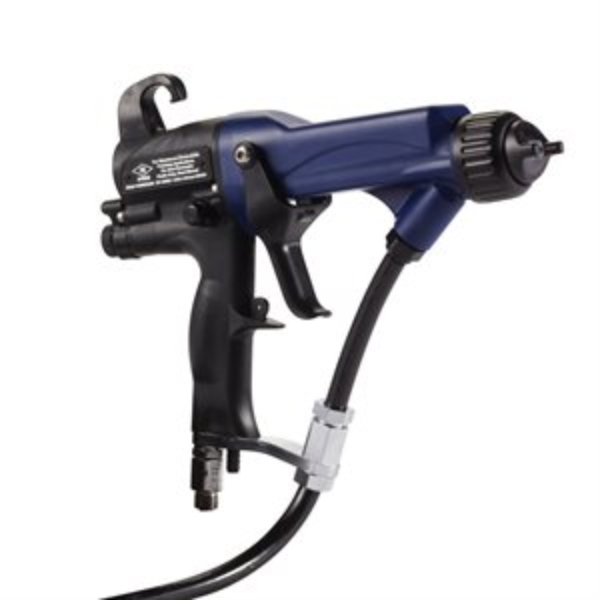

GG L60T18

PRO XP GUN, ES, 60KV, WB

Pro Xp60 WB Air Spray Manual Electrostatic Gun, 60 kV, 0.055 in (1.5 mm) nozzle, standard display, for waterborne coatingsSuperior quality air spray consistently achieves high quality, Class A or decorative finishes with waterborne material.For spraying conductive, waterborne fluids with an isolation systemAvailable in 60 kV, it’s the smallest profile gun with an internal power supply on the market.Painters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight applicator.Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easierEvery gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements.Made in the USA

GG L60T32

PRO XP GUN, ES, 60KV, ROUND MEDIUM

Graco L60T32 Pro Xp60 Air Spray Manual Electrostatic Gun, 60 kV, standard display, round spray nozzle/air cap medium pattern

The round spray nozzle and medium pattern air cap boost the transfer efficiency of this 60 kV electrostatic spray gun.

Application: For round spray applications that require a medium pattern

• Bell-like round spray and electrostatics maximize wrap around cylindrical objects.
• Round spray components form small to medium patterns at lower fluid flow rates with less airflow. This improves finish quality on small, light objects.

• Model: Pro Xp
• Series: 60
• Product Series: A

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 600
• Gun Weight (kg): 0.6
• Gun Weight (lb): 1.32
• Gun Weight (oz): 21.16

• Includes: Round Spray air cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Overall Length (cm): 24.13
• Overall Length (in): 9.5
• Overall Length (mm): 241.3

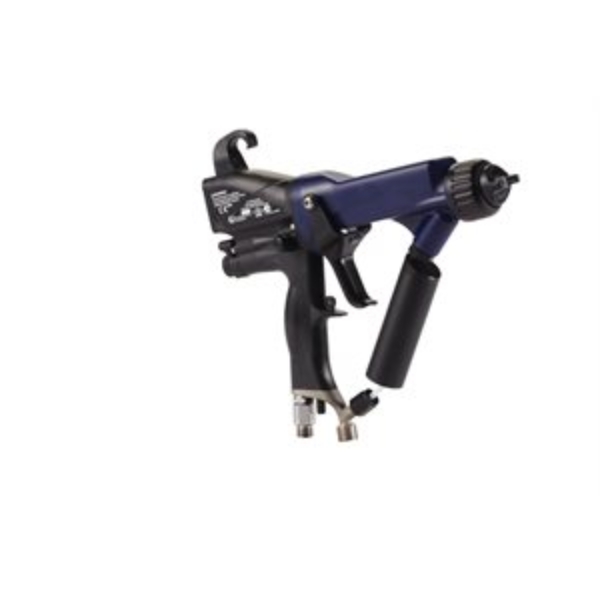

GG L85M16

PRO XP GUN, ES, 85KV, SMART, HC

Pro Xp85 Air Spray Manual Electrostatic High Conductivity Gun, 85 kV, 0.055 in (1.5 mm) precision high wear nozzle, smart displayThe ergonomic design and efficiency of this 85 kV high conductivity model can help you save money and improve quality.For spraying low resistivity materials, such as abrasives and metallic coatingsMetal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity.Smart controls help you analyze performance, adapt voltage needs and troubleshoot easily.Alternator speed indicator light ensures turbine speed is running at the correct level.Internal power supply reduces operator fatigue with no heavy cords to slow painters down.Rugged, dependable design supported by a three year warrantyEvery gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

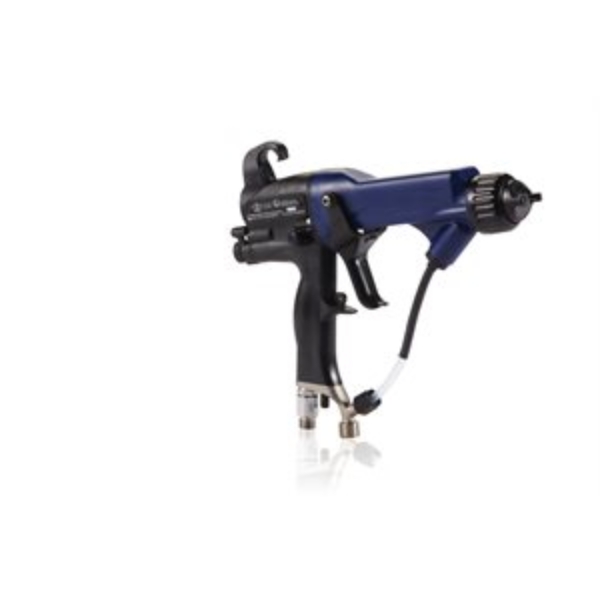

GG L85T71

PRO XP GUN, ES, 85KV, SOFT SPRAY

Pro Xp85 Air Spray Manual Electrostatic Gun, 85 kV, 0.039 in (1.0 mm) nozzle, standard display, soft spray air capSoft spray air cap and nozzle are ideal for small, lightweight parts that need a fine finish with minimal paint flow.Lower atomizing airflow and fluid flow help keep the part in place while it’s being sprayed. This improves transfer efficiency and finish quality on anything that’s small and lightweight.
