Spray Gun Maintenance

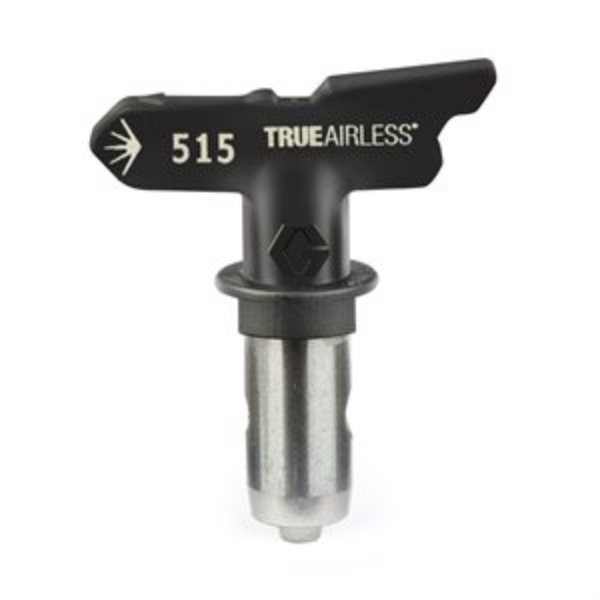

TRUEAIRLESS TIP, SPRAY, (515)
GG TRU515
TRUEAIRLESS TIP, SPRAY, (515)
Graco TRU515 TrueAirless 515 Spray Tip
The TrueAirless Spray Tip with SoftSpray Technology delivers a softer spray pattern to make it easier to deliver a professional quality finish. Achieve greater control and less overspray on different surfaces with a wide range of coatings, from stains to exterior paints.
Application: 10 inch spray pattern ideal for larger surfaces such as houses/buildings, walls and ceilings. The .015 inch hole size is best choice for spraying interior/exterior paints, primers and enamels. Less overspray shortens cleanup time with less wasted material.- Graco-exclusive SoftSpray Technology provides better control to easily blend each spray pass for a superior finish
- Reversible feature quickly clears spray tip clogs by simply twisting the spray tip and spraying in the reverse position
- Intuitive design provides quick identification of spray direction
- Includes replacement Single Seal
- Model: TrueAirless
- Series: Spray Tip
- Compatible Material: Interior Paint, Interior Primer, Paint & Primer, Exterior Paint, Exterior Primer
- For Units: Project Painter Plus, X5, X7, ProX17, ProX19, ProX21
- For Use With: Project Painter Plus, X5, X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 254
- Orifice Diameter (in): 0.015
XHD RAC TIP, SPRAY, CYLINDER, 413
GG XHD413
XHD RAC TIP, SPRAY, CYLINDER, 413
Graco XHD413 XHD RAC SwitchTip, .413
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.18
- Maximum Flow Rate (L/min): 0.68
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.013
XHD RAC TIP, SPRAY, CYLINDER, 415
GG XHD415
XHD RAC TIP, SPRAY, CYLINDER, 415
XHD RAC SwitchTip, .415With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 561
GG XHD561
XHD RAC TIP, SPRAY, CYLINDER, 561
Graco XHD561 XHD RAC SwitchTip, .561
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 30.5
- Maximum Fan Width (in): 12
- Maximum Fan Width (mm): 305
- Maximum Flow Rate (GPM): 4.00
- Maximum Flow Rate (L/min): 15.14
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 10
- Minimum Fan Width (mm): 254
- Orifice Diameter (in): 0.061
XHD RAC TIP, SPRAY, CYLINDER, 619
GG XHD619
XHD RAC TIP, SPRAY, CYLINDER, 619
Graco XHD619 XHD RAC SwitchTip, .619
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 0.38
- Maximum Flow Rate (L/min): 1.44
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.019
XHD RAC TIP, SPRAY, CYLINDER, 631
GG XHD631
XHD RAC TIP, SPRAY, CYLINDER, 631
Graco XHD631 XHD RAC SwitchTip, .631
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 1.03
- Maximum Flow Rate (L/min): 3.90
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.031
XHD RAC TIP, SPRAY, CYLINDER, 645
GG XHD645
XHD RAC TIP, SPRAY, CYLINDER, 645
Graco XHD645 XHD RAC SwitchTip, .645
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 2.17
- Maximum Flow Rate (L/min): 8.21
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.045
XHD RAC TIP, SPRAY, CYLINDER, 655
GG XHD655
XHD RAC TIP, SPRAY, CYLINDER, 655
Graco XHD655 XHD RAC SwitchTip, .655
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 35.6
- Maximum Fan Width (in): 14
- Maximum Fan Width (mm): 356
- Maximum Flow Rate (GPM): 3.25
- Maximum Flow Rate (L/min): 12.30
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 12
- Minimum Fan Width (mm): 305
- Orifice Diameter (in): 0.055

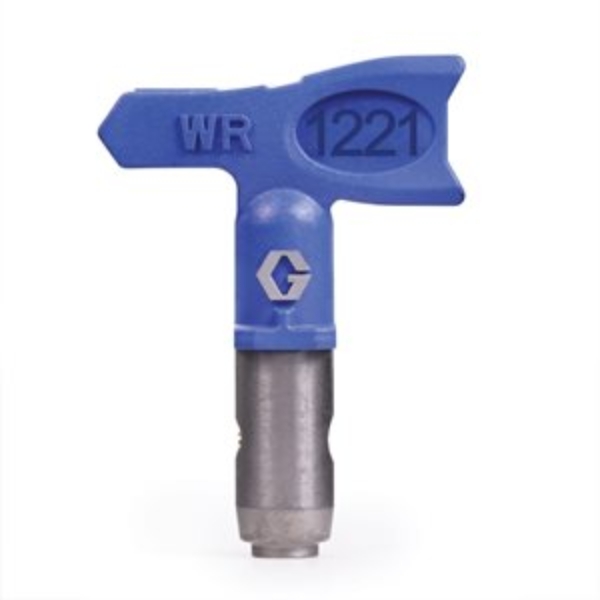

RAC X WIDE RAC TIP, SPRAY, 1221
GG WR1221
RAC X WIDE RAC TIP, SPRAY, 1221
Graco WR1221 RAC X Wide RAC SwitchTip, 1221
The Reverse-A-Clean (RAC) 1221 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.
- RAC X - Wide RAC
The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
- Superior Tip Design
Locking tab ensures tip stays securely in guard
&Prime, Snaps&Prime, tip in spray or reverse position
OneSeal tip installs with no tools
Solvent seal available when using extremely hot solvents
- Easy to Identify Tip Size
Large raised tip size numbers are always legible - even when covered with paint
- Model: RAC X
- Series: Wide RAC SwitchTip
- For Use With: RAC X HandTite Tip Guard
- Maximum Fan Width (cm): 61.0
- Maximum Fan Width (in): 24
- Maximum Fan Width (mm): 610
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 24
- Minimum Fan Width (mm): 610
- Orifice Diameter (in): 0.021
- Pattern Size (in): 24
- Pattern Size (mm): 609.6
RAC X WIDE RAC TIP, SPRAY, 1229
GG WR1229
RAC X WIDE RAC TIP, SPRAY, 1229
RAC X Wide RAC SwitchTip, 1229 The Reverse-A-Clean (RAC) 1229 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.029 inch orifice. Reverse the SwitchTip to easily clear clogs. RAC X - Wide RAC- The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
- Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
- Locking tab ensures tip stays securely in guard
- “Snaps” tip in spray or reverse position
- OneSeal tip installs with no tools
- Solvent seal available when using extremely hot solvents
- Large raised tip size numbers are always legible - even when covered with paint

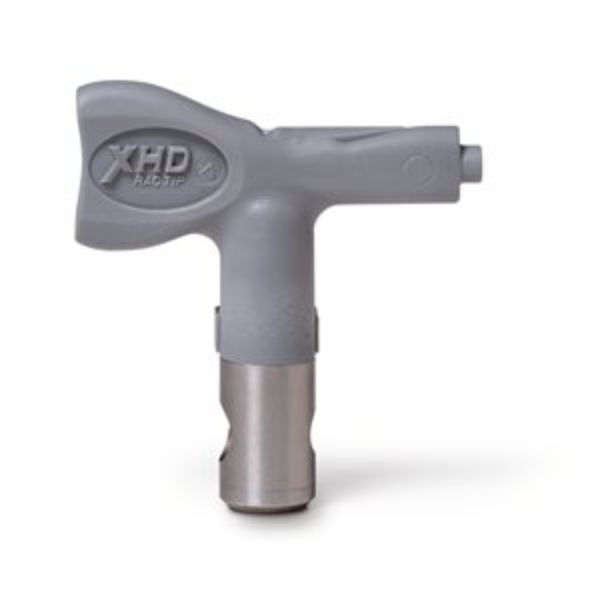

XHD RAC TIP, SPRAY, CYLINDER, 217
GG XHD217
XHD RAC TIP, SPRAY, CYLINDER, 217
XHD RAC SwitchTip, .217With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 221
GG XHD221
XHD RAC TIP, SPRAY, CYLINDER, 221
Graco XHD221 XHD RAC SwitchTip, .221
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 15.2
- Maximum Fan Width (in): 6
- Maximum Fan Width (mm): 152
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 4
- Minimum Fan Width (mm): 102
- Orifice Diameter (in): 0.021
XHD RAC TIP, SPRAY, CYLINDER, 313
GG XHD313
XHD RAC TIP, SPRAY, CYLINDER, 313
XHD RAC SwitchTip, .313With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 317
GG XHD317
XHD RAC TIP, SPRAY, CYLINDER, 317
XHD RAC SwitchTip, .317With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 319
GG XHD319
XHD RAC TIP, SPRAY, CYLINDER, 319
XHD RAC SwitchTip, .319With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 323
GG XHD323
XHD RAC TIP, SPRAY, CYLINDER, 323
XHD RAC SwitchTip, .323With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 325
GG XHD325
XHD RAC TIP, SPRAY, CYLINDER, 325
XHD RAC SwitchTip, .325With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
XHD RAC TIP, SPRAY, CYLINDER, 411
GG XHD411
XHD RAC TIP, SPRAY, CYLINDER, 411
Graco XHD411 XHD RAC SwitchTip, .411
With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.- Saves time – no screwdriver required, change tip sizes in seconds
- For heavy-duty applications up to 7250 psi (500 bar)
- Recommended for use with Xtreme Sprayers and XTR Guns
- Model: XHD RAC
- Series: SwitchTip
- Compatible Material: Solvent borne Paints, Water-Based Paint
- For Use With: Xtreme Sprayers, XTR Airless Spray Guns
- Maximum Fan Width (cm): 25.4
- Maximum Fan Width (in): 10
- Maximum Fan Width (mm): 254
- Maximum Flow Rate (GPM): 0.12
- Maximum Flow Rate (L/min): 0.45
- Maximum Working Pressure (bar): 500
- Maximum Working Pressure (kPa): 50000
- Maximum Working Pressure (psi): 7250
- Minimum Fan Width (in): 8
- Minimum Fan Width (mm): 203
- Orifice Diameter (in): 0.011
XHD RAC TIP, SPRAY, CYLINDER, 435
GG XHD435
XHD RAC TIP, SPRAY, CYLINDER, 435
XHD RAC SwitchTip, .435With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.
High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip
