Spray Gun Maint

GG XHD421

XHD RAC TIP, SPRAY, CYLINDER, 421

Graco XHD421 XHD RAC SwitchTip, .421

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 25.4
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.78

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.021

GG XHD513

XHD RAC TIP, SPRAY, CYLINDER, 513

Graco XHD513 XHD RAC SwitchTip, .513

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.18
• Maximum Flow Rate (L/min): 0.68

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.013

GG XHD519

XHD RAC TIP, SPRAY, CYLINDER, 519

Graco XHD519 XHD RAC SwitchTip, .519

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.38
• Maximum Flow Rate (L/min): 1.44

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.019

GG XHD521

XHD RAC TIP, SPRAY, CYLINDER, 521

Graco XHD521 XHD RAC SwitchTip, .521

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.78

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.021

GG XHD635

XHD RAC TIP, SPRAY, CYLINDER, 635

Graco XHD635 XHD RAC SwitchTip, .635

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 35.6
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 1.31
• Maximum Flow Rate (L/min): 4.96

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.035

GG 24N646

GG 24N649

GG XHD429

XHD RAC TIP, SPRAY, CYLINDER, 429

Graco XHD429 XHD RAC SwitchTip, .429

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 25.4
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.90
• Maximum Flow Rate (L/min): 3.41

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.029

GG XHD627

XHD RAC TIP, SPRAY, CYLINDER, 627

Graco XHD627 XHD RAC SwitchTip, .627

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 35.6
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 0.74
• Maximum Flow Rate (L/min): 2.80

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.027

RR 79529-00-K5

DD DSG-4003

GG 16C085

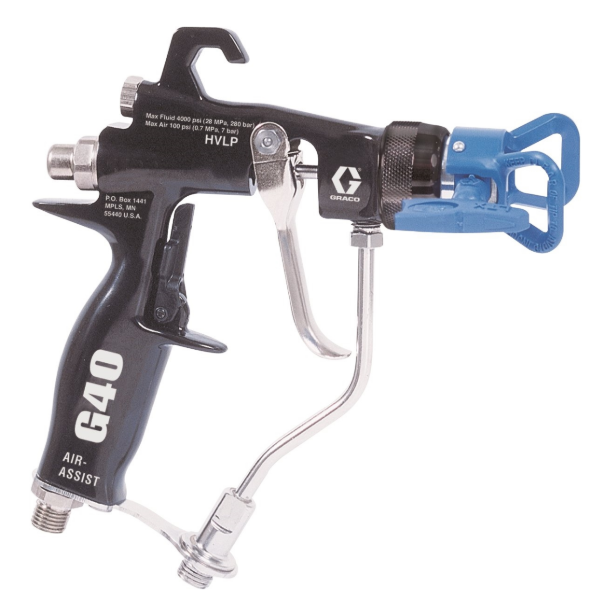

GG 262929

G40 GUN, ASSY, AA, RAC TIP

Graco 262929 G40 Air-Assisted Airless Gun

Designed to maximize efficiency and quality, G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.

• High quality air-assisted spraying in a variety of applications
• All tips have a ring to retain the tip in the aircap
• Designed to minimize wear of replacement parts
• Trigger pull force is ultra-light, reducing operator fatigue and muscle stress

• Model: G40

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish, Waterborne

• Feed Type: Pressure Feed

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 16
• Gun Weight (oz): 16

• Includes: RAC X FF LP Spray Tip

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28.0
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Maximum Fluid Pressure (bar): 280
• Maximum Fluid Pressure (kPa): 28000
• Maximum Fluid Pressure (MPa): 28.0
• Maximum Fluid Pressure (psi): 4000
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Minimum Flow Rate @ PSI (oz/min): 5

• Product Type: Spray Gun

GG XHD321

XHD RAC TIP, SPRAY, CYLINDER, 321

Graco XHD321 XHD RAC SwitchTip, .321

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 20.3
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 203

• Maximum Flow Rate (GPM): 0.47
• Maximum Flow Rate (L/min): 1.78

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 6
• Minimum Fan Width (mm): 152

• Orifice Diameter (in): 0.021

GG XHD419

XHD RAC TIP, SPRAY, CYLINDER, 419

Graco XHD419 XHD RAC SwitchTip, .419

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 25.4
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.38
• Maximum Flow Rate (L/min): 1.44

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.019

DD DPC-44

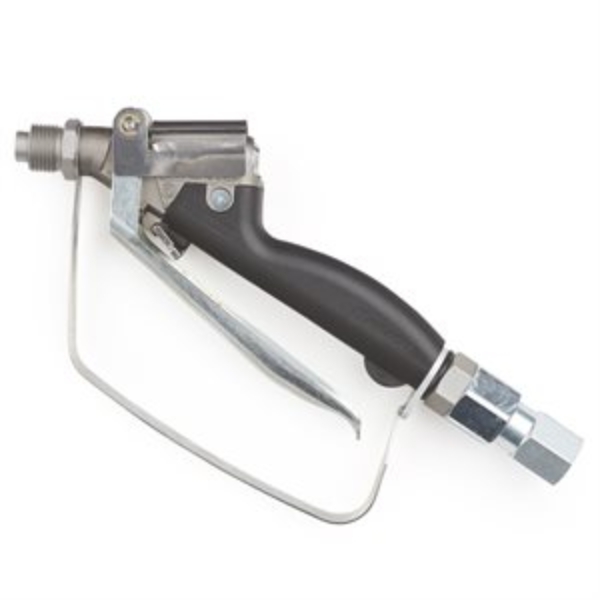

GG 245820

KIT, ACCY, GUN

Graco 245820 Inline Heavy-Duty Texture Airless Spray Gun, 4 Finger Trigger

The Inline Heavy-Duty Texture Airless Spray Gun with the Full Hand trigger is the ideal gun for spraying heavy coatings and joint compounds all day.

• Oversized Fluid Path


  No-filter design offers minimal restriction and maximum flow

  Minimizes pack-out with heavy materials

  Reduces pressure drop for superior atomization

• Ergonomic Design


  Form-fitting handle design provides maximum control and comfort

  Full Hand trigger and lightweight design allows effortless, all-day spraying





• Patented Needle Design


  Factory set needle needs no adjustment - ever

  Heavy-duty design for maximum performance and long life

• Model: Graco

• For Use With: Electric Airless Sprayer

• Gun Weight (oz): 33.79

• Includes: RAC 5 SwitchTip

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4000

• Overall Height (cm): 14.22
• Overall Height (in): 5.60
• Overall Height (mm): 142.24
• Overall Length (cm): 28.96
• Overall Length (in): 11.40
• Overall Length (mm): 289.56

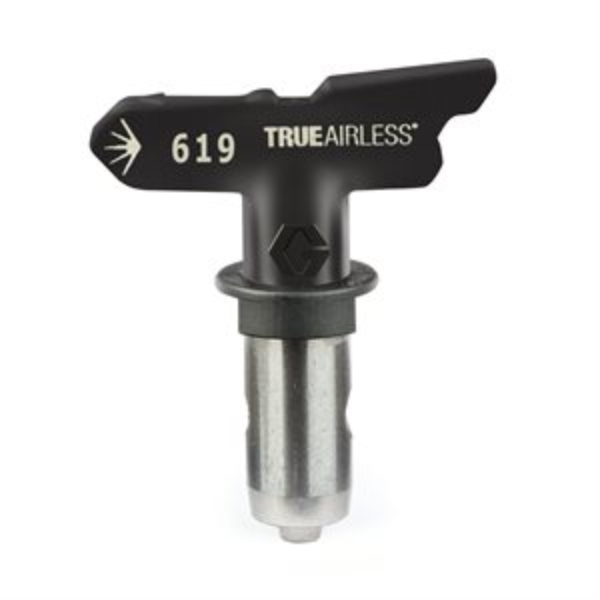

GG TRU619

TRUEAIRLESS TIP, SPRAY, (619)

Graco TRU619 TrueAirless 619 Spray Tip

The TrueAirless Spray Tip with SoftSpray Technology delivers a softer spray pattern to make it easier to deliver a professional quality finish. Achieve greater control and less overspray on different surfaces with a wide range of coatings, from stains to exterior paints.

• Graco-exclusive SoftSpray Technology provides better control to easily blend each spray pass for a superior finish
• Reversible feature quickly clears spray tip clogs by simply twisting the spray tip and spraying in the reverse position
• Intuitive design provides quick identification of spray direction
• Includes replacement Single Seal

• Model: TrueAirless
• Series: Spray Tip

• Compatible Material: Exterior Paint, Exterior Primer

• For Units: ProX19, ProX21
• For Use With: ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Orifice Diameter (in): 0.019

GG XHD515

XHD RAC TIP, SPRAY, CYLINDER, 515

Graco XHD515 XHD RAC SwitchTip, .515

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.24
• Maximum Flow Rate (L/min): 0.91

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.015

GG XHD545

XHD RAC TIP, SPRAY, CYLINDER, 545

Graco XHD545 XHD RAC SwitchTip, .545

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 2.17
• Maximum Flow Rate (L/min): 8.21

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.045

GG XHD617

XHD RAC TIP, SPRAY, CYLINDER, 617

Graco XHD617 XHD RAC SwitchTip, .617

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 35.6
• Maximum Fan Width (in): 14
• Maximum Fan Width (mm): 356

• Maximum Flow Rate (GPM): 0.31
• Maximum Flow Rate (L/min): 1.17

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 12
• Minimum Fan Width (mm): 305

• Orifice Diameter (in): 0.017

RR 72558-02-K5

SATA 6007

BB 54-4994

DD GC-100-K4
