GG WR1221
RAC X WIDE RAC TIP, SPRAY, 1221

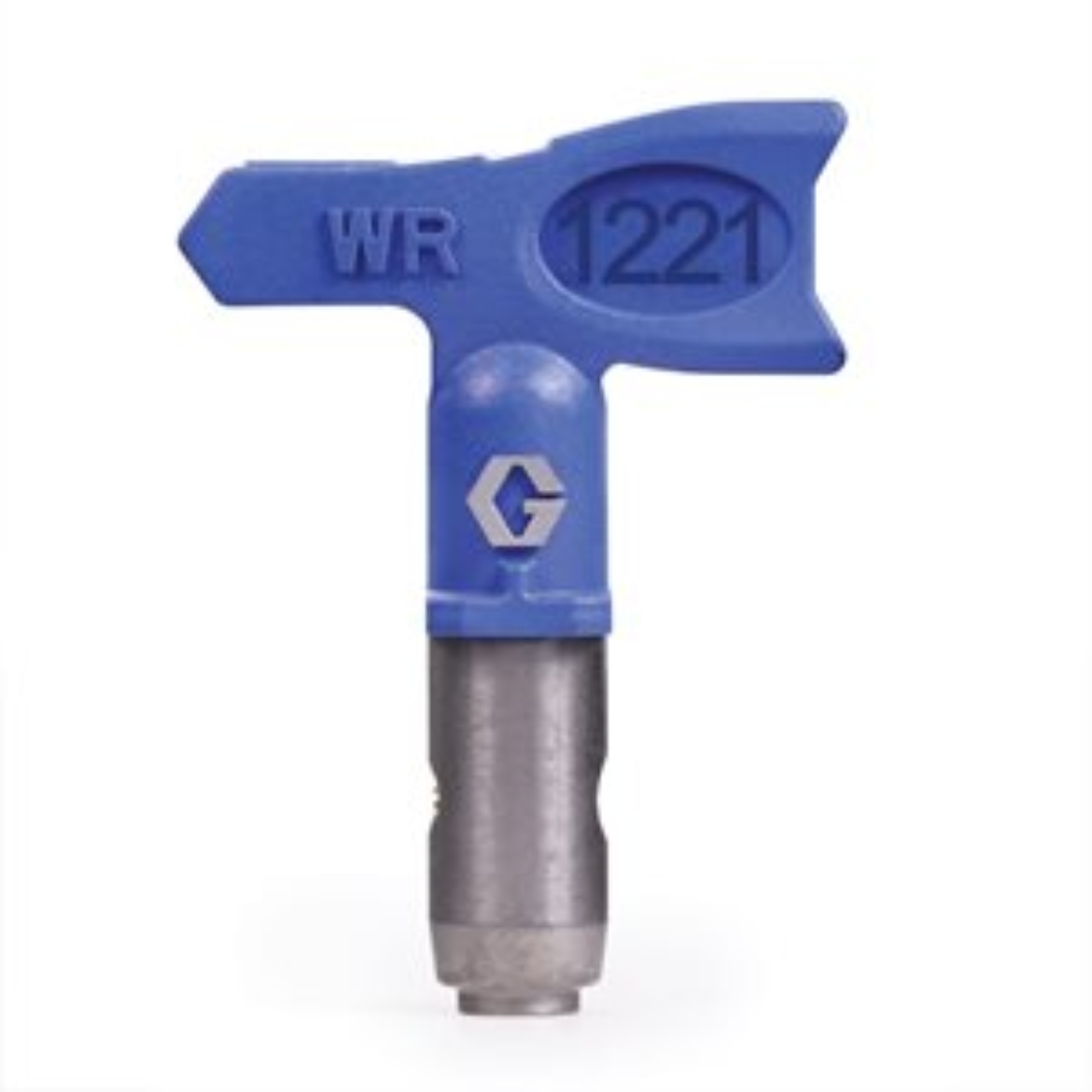

Graco WR1221 RAC X Wide RAC SwitchTip, 1221
The Reverse-A-Clean (RAC) 1221 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.
- RAC X - Wide RAC
The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers
- Superior Tip Design
Locking tab ensures tip stays securely in guard
&Prime, Snaps&Prime, tip in spray or reverse position
OneSeal tip installs with no tools
Solvent seal available when using extremely hot solvents
- Easy to Identify Tip Size
Large raised tip size numbers are always legible - even when covered with paint
- Model: RAC X
- Series: Wide RAC SwitchTip
- For Use With: RAC X HandTite Tip Guard
- Maximum Fan Width (cm): 61.0
- Maximum Fan Width (in): 24
- Maximum Fan Width (mm): 610
- Maximum Flow Rate (GPM): 0.47
- Maximum Flow Rate (L/min): 1.78
- Maximum Working Pressure (bar): 280
- Maximum Working Pressure (kPa): 28000
- Maximum Working Pressure (psi): 4050
- Minimum Fan Width (in): 24
- Minimum Fan Width (mm): 610
- Orifice Diameter (in): 0.021
- Pattern Size (in): 24
- Pattern Size (mm): 609.6
