Spray Gun Maint

GG 24N622

KIT, NOZZLE, HIGH WEAR, 1.20 M

Graco 24N622 High Wear Fluid Nozzle for Abrasive Materials, 1.2 mm (.047 inch) Orifice Size, Blue

GG 24C183

BB 6-429

GG 24C309

GG 24B539

KIT, AIR CAP

Graco 24B539 Air Cap, with locating pin, for AirPro Automatic HVLP Guns, General Metal

GG 24D177

GG 24N613

GG 24C199

GG 24C204

GG 24N279

KIT, AIR CAP

Graco 24N279 Air Cap, Black, optimized for medium and heavy viscosity and high solid coatings at standard production rates, round end

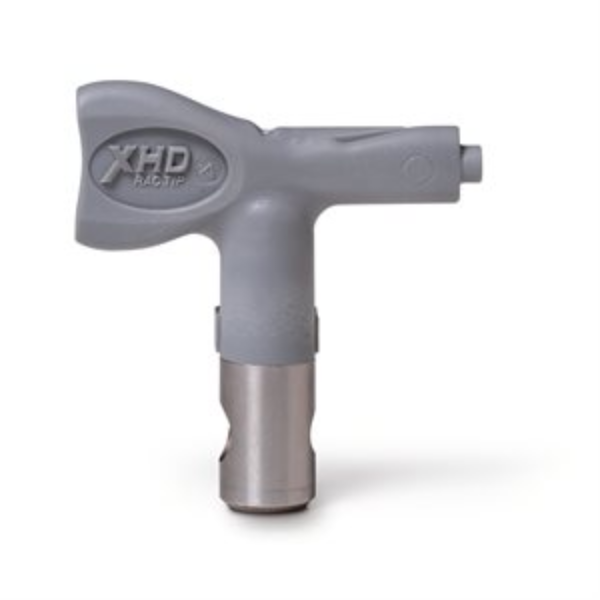

GG XHD417

XHD RAC TIP, SPRAY, CYLINDER, 417

Graco XHD417 XHD RAC SwitchTip, .417

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 25.4
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 254

• Maximum Flow Rate (GPM): 0.31
• Maximum Flow Rate (L/min): 1.17

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 8
• Minimum Fan Width (mm): 203

• Orifice Diameter (in): 0.017

GG XHD531

XHD RAC TIP, SPRAY, CYLINDER, 531

Graco XHD531 XHD RAC SwitchTip, .531

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 1.03
• Maximum Flow Rate (L/min): 3.90

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.031

GG 15E088

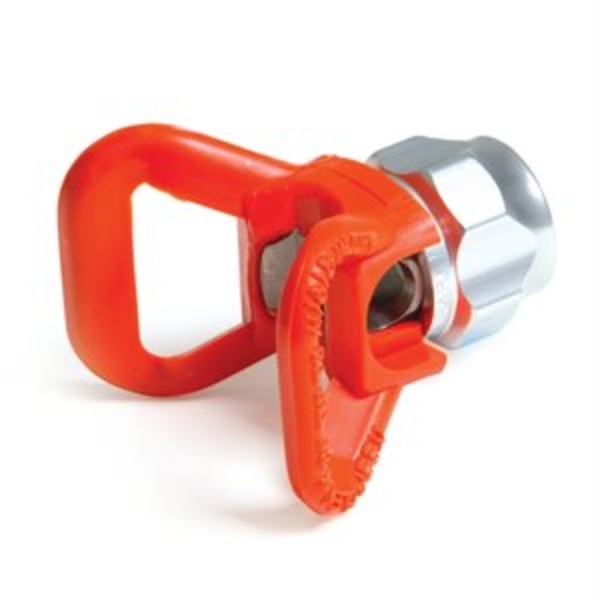

GG 237859

GUARD, RAC IV

Graco 237859 Spray Tip Guard

The Spray Tip Guard helps to eliminate paint build-up, dripping and spitting. It also helps to provide safer spraying at higher pressures. Its finger grip design makes it easy to attach or remove without the need for tools.

• Model: Graco
• Series: Tip Guard

• For Units: Project Painter Plus, X5, X7, ProX17, ProX19, ProX21, A10 PRO COMPACT, A100 PRO PLUS, A20 PLUS, A30 PRO PLUS, A45 PRO PLUS, A60 PRO PLUS, A80 PRO PLUS
• For Use With: Project Painter Plus, X5, X7, ProX17 Stand, ProX17 Cart, ProX19 Stand, ProX19 Cart, ProX21 Stand, ProX21 Cart

• Maximum Working Pressure (bar): 279
• Maximum Working Pressure (kPa): 27905
• Maximum Working Pressure (psi): 4050

GG 249423

GG 24D299

GG 24D303

KIT,NEEDLE,NOZZLE,.028,HVLP

Graco 24D303 Needle/Nozzle Kit for AirPro EFX HiTEch Guns with 0.028 inch (0.7 mm) Nozzle

GG 24N318

GG XHD315

XHD RAC TIP, SPRAY, CYLINDER, 315

Graco XHD315 XHD RAC SwitchTip, .315

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 20.3
• Maximum Fan Width (in): 8
• Maximum Fan Width (mm): 203

• Maximum Flow Rate (GPM): 0.24
• Maximum Flow Rate (L/min): 0.91

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 6
• Minimum Fan Width (mm): 152

• Orifice Diameter (in): 0.015

GG XHD517

XHD RAC TIP, SPRAY, CYLINDER, 517

Graco XHD517 XHD RAC SwitchTip, .517

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 30.5
• Maximum Fan Width (in): 12
• Maximum Fan Width (mm): 305

• Maximum Flow Rate (GPM): 0.31
• Maximum Flow Rate (L/min): 1.17

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.017

RR 80395-00-k10

DD OMX-88

GG 24C184

KIT,AIR CAP,COMPLIANT

Graco 24C184 Air Cap (Brown), includes pin, for AirPro EFX LVMP Guns, 0.020-0.059 inch (0.5-1.5 mm) Nozzle

GG 24C308

GG XHD225

XHD RAC TIP, SPRAY, CYLINDER, 225

Graco XHD225 XHD RAC SwitchTip, .225

With its Reverse-A-Clean (RAC) Tip, it's easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds - without removing the tip guard and housing.

• Saves time - no screwdriver required, change tip sizes in seconds
• For heavy-duty applications up to 7250 psi (500 bar)
• Recommended for use with Xtreme Sprayers and XTR Guns

• Model: XHD RAC
• Series: SwitchTip

• Compatible Material: Solvent borne Paints, Water-Based Paint

• For Use With: Xtreme Sprayers, XTR Airless Spray Guns

• Maximum Fan Width (cm): 15.2
• Maximum Fan Width (in): 6
• Maximum Fan Width (mm): 152

• Maximum Flow Rate (GPM): 0.67
• Maximum Flow Rate (L/min): 2.54

• Maximum Working Pressure (bar): 500
• Maximum Working Pressure (kPa): 50000
• Maximum Working Pressure (psi): 7250

• Minimum Fan Width (in): 4
• Minimum Fan Width (mm): 102

• Orifice Diameter (in): 0.025
