GG 262929
G40 GUN, ASSY, AA, RAC TIP

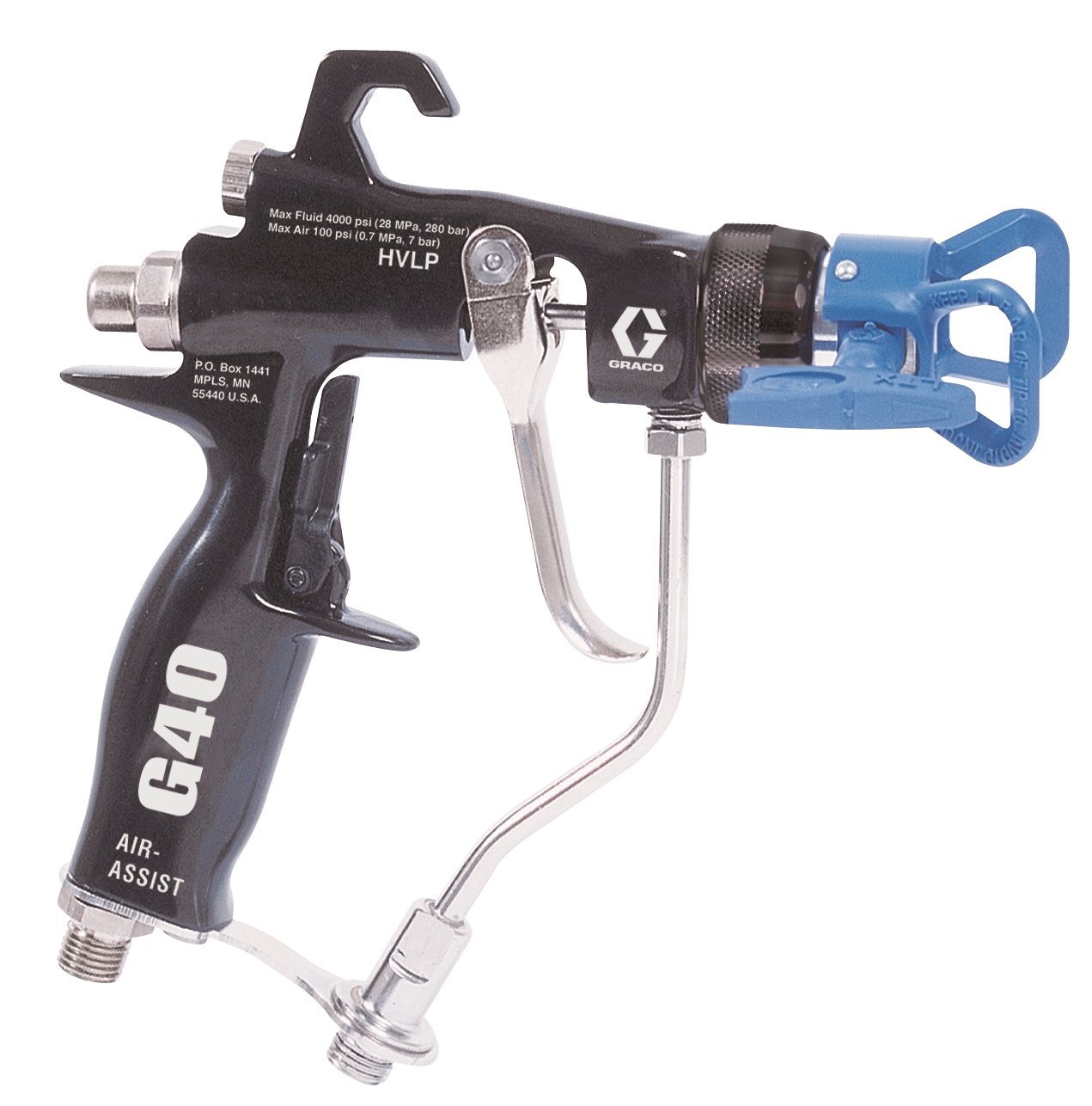

Graco 262929 G40 Air-Assisted Airless Gun
Designed to maximize efficiency and quality, G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.
- High quality air-assisted spraying in a variety of applications
- All tips have a ring to retain the tip in the aircap
- Designed to minimize wear of replacement parts
- Trigger pull force is ultra-light, reducing operator fatigue and muscle stress
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPSM
- Compatible Material: Lacquer, Latex, Plural Component Materials, Polyurethane, Solvent borne, Urethane, UV Coating, Varnish, Waterborne
- Gun Activation: Manual
- Gun Included: 1
- Gun Type: Air-Assisted Gun
- Gun Weight (g): 16
- Gun Weight (oz): 16
- Includes: RAC X FF LP Spray Tip
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (MPa): 0.7
- Maximum Air Inlet Pressure (psi): 100
- Maximum Air Pressure (bar): 7
- Maximum Air Pressure (kPa): 700
- Maximum Air Pressure (MPa): 0.7
- Maximum Air Pressure (psi): 100
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28.0
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature ( degree C): 43
- Maximum Fluid Temperature ( degree F): 110
- Maximum Fluid Pressure (bar): 280
- Maximum Fluid Pressure (kPa): 28000
- Maximum Fluid Pressure (MPa): 28.0
- Maximum Fluid Pressure (psi): 4000
- Maximum Fluid Temperature ( degree C): 43
- Maximum Fluid Temperature ( degree F): 110
- Minimum Flow Rate @ PSI (oz/min): 5
