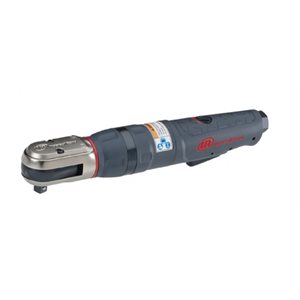

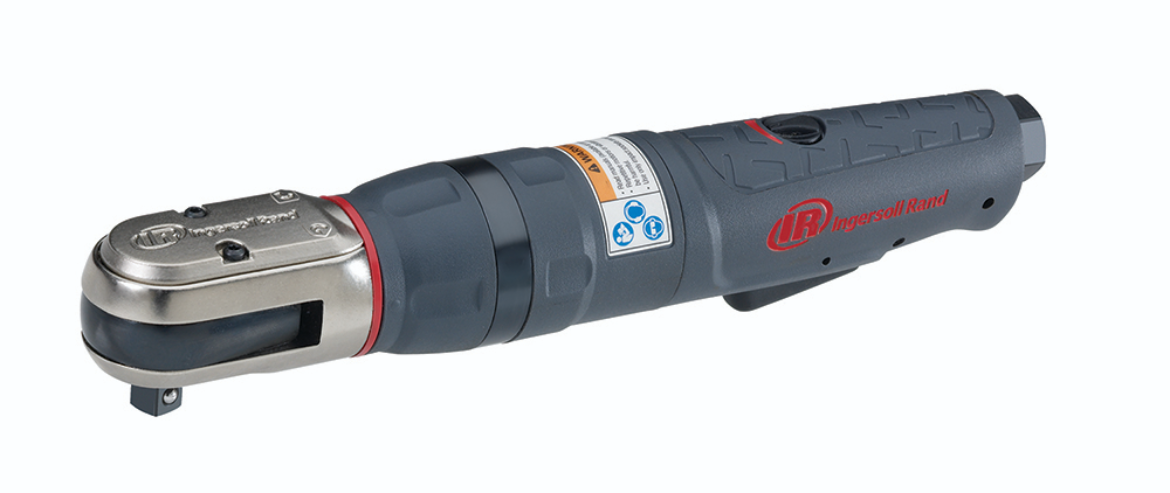

IR 1207MAX-D3
3/8" Air Ratchet Wrench, 65 ft-lb Torque, 220 RPM
The Ingersoll Rand MAX line — including the 1207MAX Series of air ratchet wrenches — delivers best-in-class performance with a number of premium features. You can choose between a ½” or ⅜” drive, but you’ll never have to sacrifice comfort or power with this line.
Features And Benefits
- Patent-pending forward/reverse collar provides unrestricted access to easily change the direction of the tool, which is critical in tight spaces where traditional tools get jammed.
- Nickel-plated housing provides enhanced corrosion resistance.
- 65 ft-lbs. of maximum torque ensures enough power for tough applications
- Innovative variable-speed power regulator and adjustable exhaust offers unprecedented control.
Includes: Bare Tool
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 23
Air Consumption (l/min): 651
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Black
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum core with composite sleeve
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
Max Free Speed (rpm): 220
Max Pressure (bar): 6.2
Max Torque (ft-lb): 65
Max Torque (in-lb): 779
Max Torque (nm): 88
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Power Source: Air Powered
Product Length (in): 10.85
Product Width (in): 1.89
Product Height (in): 1.91
Product Weight (lb): 3.14
Recommended Forward Torque Range (ft-lb): 10-60
Recommended Forward Torque Range (in-lb): 124-717
Recommended Forward Torque Range (nm): 14-81
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.95
Side to Center Distance (mm): 24
Sound Pressure/Power Db(A): 85.0 / 96.0
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 3.2
Warranty: 1-year
