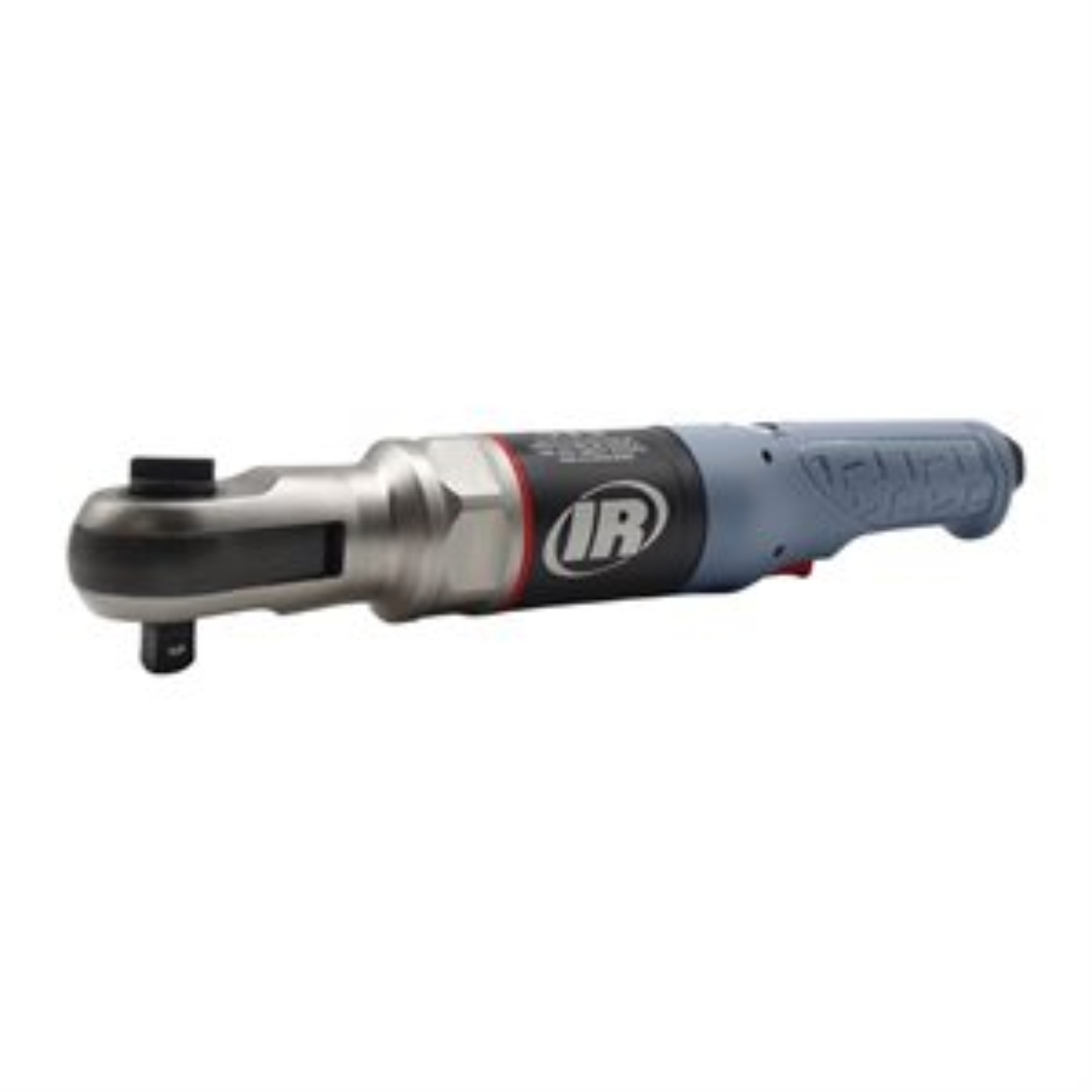

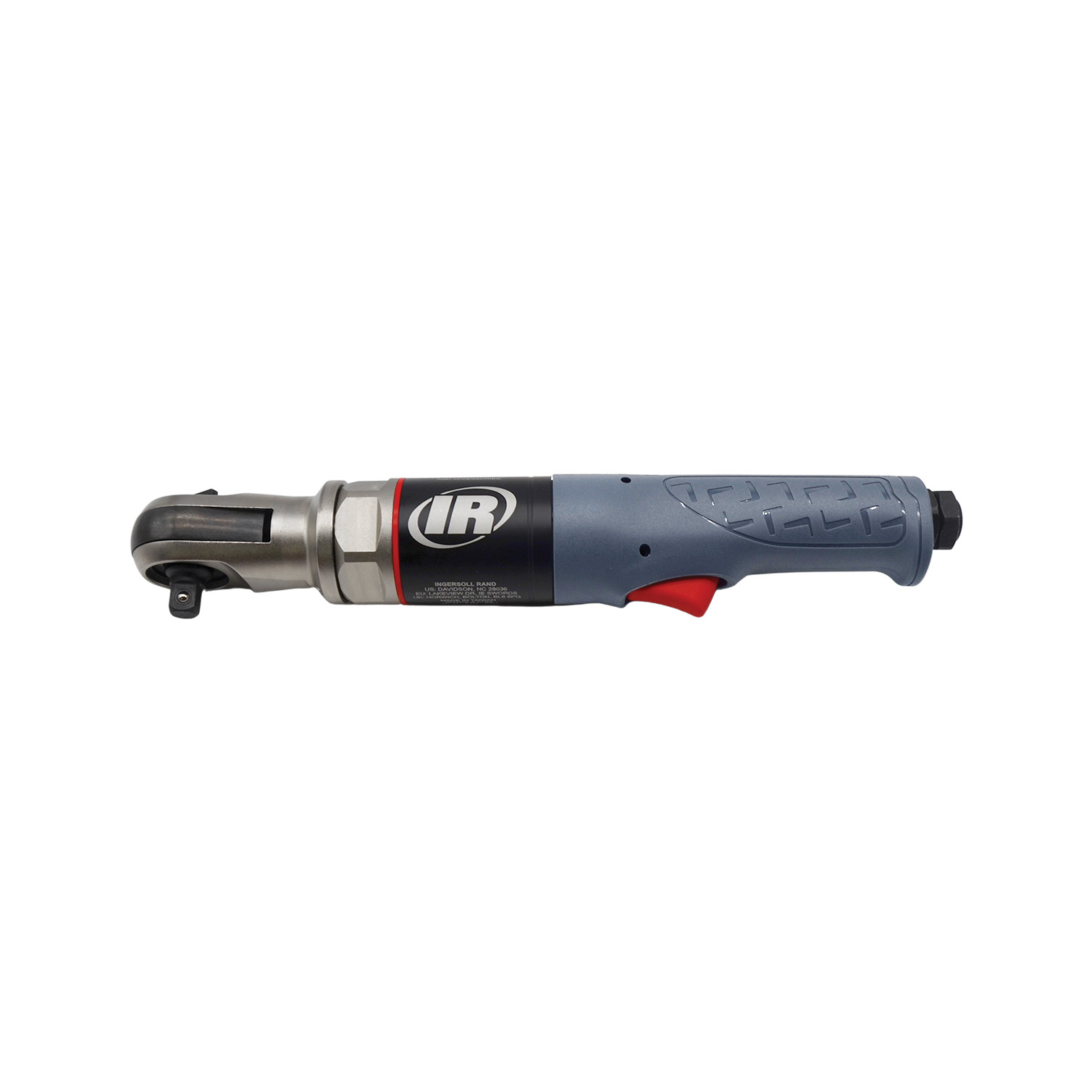

IR 1211MAX-D3
3/8" High Speed Air Ratchet Wrench, 80 ft-lb Torque, 625 RPM
The Ingersoll Rand MAX line- including the 1211MAX Series of air ratchet wrenches- delivers best-in-class performance with a number of premium features. You can choose between a 1/2” or 3/8” drive, but you’ll never have to sacrifice comfort or power with this line.
Features And Benefits
- Our MAX line of tools is known for having a high torque output you can rely on. The 1211MAX Series features 80 ft-lb of nut busting torque from a reactionless impact mechanism.
- High Speed 625 RPM Free Speed lets you get more done, faster.
- Nickel-plated housing provides enhanced corrosion resistance.
- True ratchet mechanism delivers powerful manual break loose ability and final tighten capabilities.
Product Application and Uses: To remove and install threaded fasteners.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption (cfm): 13.7
Air Consumption (l/min): 388
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Average Air Consumption (cfm): 4
Average Air Consumption (l/min): 113
Color: Grey
Configuration/Handle Type: Straight
Drive Size (in): 3/8
Duty Rating: Industrial Duty
Exhaust Location: Front
Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impacting Sound Pressure/Power Db(A): 90.6
Max Bolt Capacity Sae Grade 5 Bolt Diameter (in): 7/16
Max Free Speed (rpm): 625
Max Pressure (bar): 6.2
Max Torque (ft-lb): 66
Max Torque (in-lb): 788
Max Torque (nm): 89
Min Hose Size (in): 3/8
Number of Power Settings: Continuous
Nut-busting/Breakaway Torque (ft-lb): 80
Nut-busting/Breakaway Torque (in-lb): 956
Nut-busting/Breakaway Torque (nm): 108
Power Source: Air Powered
Product Length (in): 11.89
Product Width (in): 1.38
Product Height (in): 1.9
Product Weight (lb): 3.03
Recommended Forward Torque Range (ft-lb): 10-60
Recommended Forward Torque Range (in-lb): 124-717
Recommended Forward Torque Range (nm): 14-81
Retainer Type: Ball
Reversible: Reversible
Side to Center Distance (in): 0.92
Side to Center Distance (mm): 23
Speed Setting: Variable Speed
Standards/Certifications: All Gov Regulations And Fda Certified
Vibration Level (m/s2): 12.7
Warranty: 1-year
