Pressure Pots

BB 183S-1513

BB 183S-221

DD QS-108

GG 236153

TANK, HIGH PRESS, AGIT 10 GAL

Graco 236153 10 Gallon High Pressure (HVLP) Pot with Agitator, Regulated to 100 psi, ASME Rated, 33.9 in (88 cm), 85 lbs (39 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Includes: Agitator
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 10
• Maximum Volume Capacity (L): 38

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 86.0
• Overall Height (in): 33.87
• Overall Height (mm): 860
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

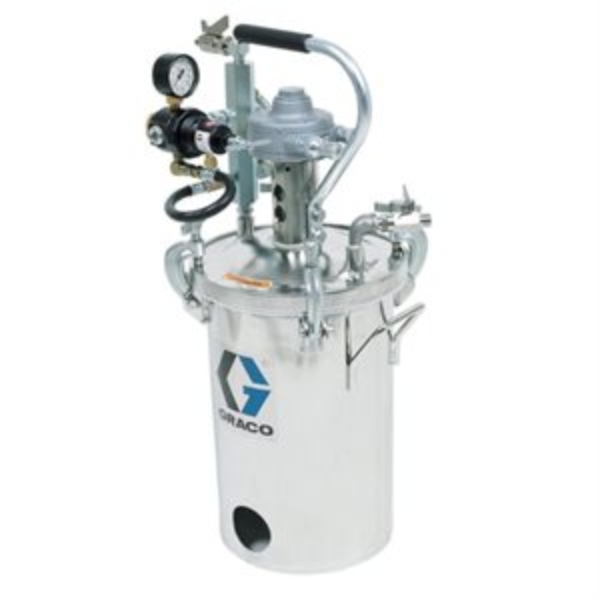

GG 236157

TANK, HIGH PRESS, 2 GALLON SST

Graco 236157 2 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 25.4 in (64.5 cm), 30 lbs (14 kg), SST

Designed with electroplated surfaces thatprevent debris build-up and keep youroperation free of contaminants, Gracopressure pots are precision welded andsurfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

BB 183S-1510

BB 183G-221

BB 183S-1023

BB 83Z-210

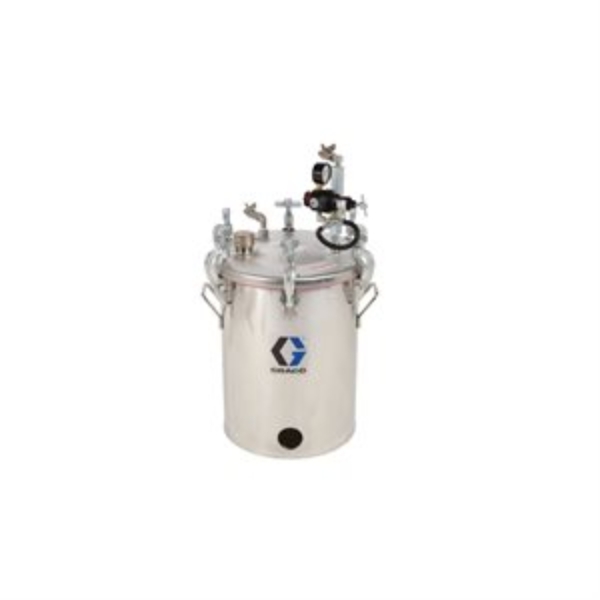

GG 236149

TANK, HIGH PRESSURE 5 GAL

Graco 236149 5 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 30.5 in (77.5 cm), 65 lbs (30 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 5
• Maximum Volume Capacity (L): 19

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 77.5
• Overall Height (in): 30.5
• Overall Height (mm): 775
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

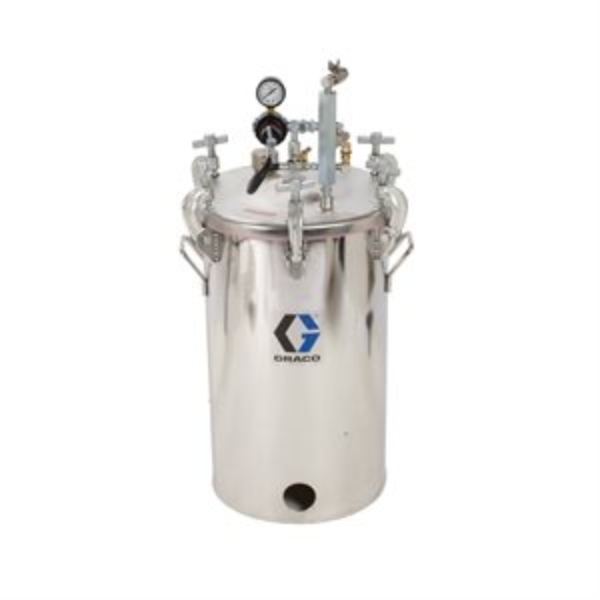

GG 236150

TANK, HIGH PRESSURE 10 GAL

Graco 236150 10 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 33.9 in (88.0 cm), 76 lbs (35 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 10
• Maximum Volume Capacity (L): 38

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 86.0
• Overall Height (in): 33.87
• Overall Height (mm): 860
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

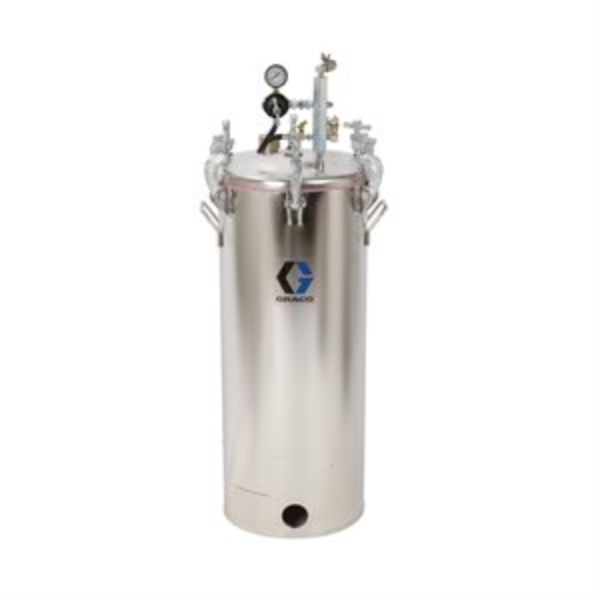

GG 236151

TANK, HIGH PRESSURE 15 GAL

Graco 236151 15 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 44.6 in (113.2 cm), 92 lbs (42 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 15
• Maximum Volume Capacity (L): 57

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (MPa): 0.7
• Maximum Working Pressure (psi): 100

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 113.2
• Overall Height (in): 44.57
• Overall Height (mm): 1132
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

BB 83-5807

DD KB-4006

DD QMS-3

IW 6003B

BB 183-3000

BB 183G-1010

BB 183G-210

BB 183G-213

BB 183G-220

BB 183G-510

BB 183S-1010

BB 183S-223

BB 80-355-72
