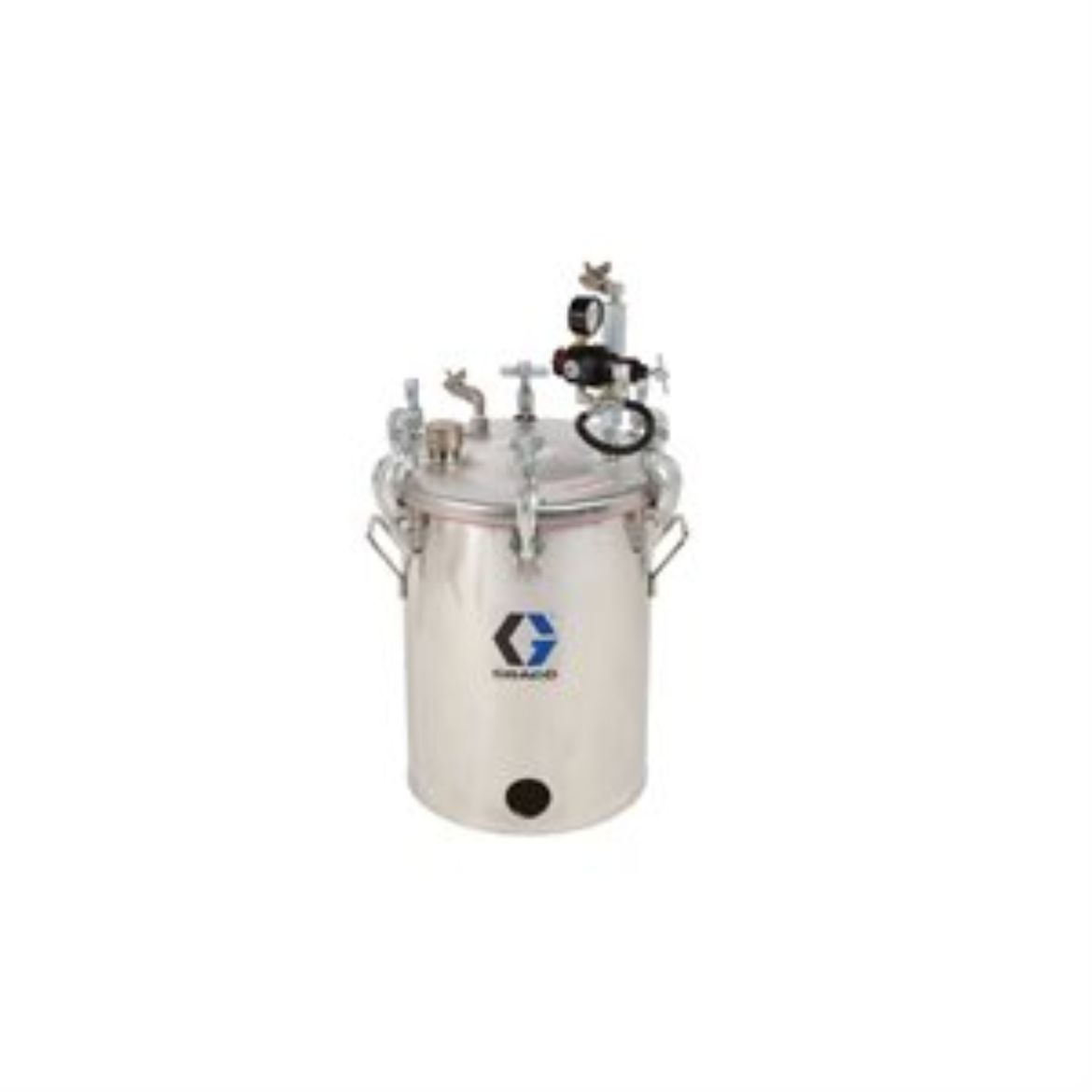

GG 236149
TANK, HIGH PRESSURE 5 GAL
Graco 236149 5 Gallon High Pressure (HVLP) Pot, Regulated to 100 psi, ASME Rated, 30.5 in (77.5 cm), 65 lbs (30 kg), SST
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Male
- Inlet Thread Type: NPT
- Maximum Volume Capacity (gal): 5
- Maximum Volume Capacity (L): 19
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (MPa): 0.7
- Maximum Working Pressure (psi): 100
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPSM
- Overall Height (cm): 77.5
- Overall Height (in): 30.5
- Overall Height (mm): 775
- Overall Width (cm): 48.3
- Overall Width (in): 19
- Overall Width (mm): 483
