IR 61H150L6

Cone and Plug Air Grinder, 15,000 RPM, 1.33 HP, 3/8"-24 Thread, Side Exhaust

Ingersoll Rand Pro Series grinder are tough, easy to handle and ready to tackle any project you need them to. Specifically designed for heavy duty production applications. With their superior output, they are best suited for big tasks involving heavy material removal in foundries, welding shops, fabrication facilities, steel mills or shipyard.

Features And Benefits

• POWER: With a powerful vane motor, 1.33HP and 15000 RPM output, these grinders remove materials at top speed for maximum efficiency.
• RELIABILITY: The 61 Pro Series Cone and Plug Grinders come with a built-in mist lubricator, motor controller and grit rejection system to prolong the life of your tools.
• DURABILITY: The metal housing on these grinders ensures a strong tool that can withstand harsh environments and repeated drops.

Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 40
Air Consumption @ Load (l/min): 1133
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Side
Grinder Type: Horizontal Grinder
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 15000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 14.75
Product Weight (lb): 4.25
Rated Power (hp): 1.33
Sound Pressure/Power Db(A): 86.8 / 97.8
Vibration Level (m/s2): <2.5
Warranty: 1-year
Wheel Type: Cone

IR 728-99-KC8

Keyless 1/2-Inch Chuck, 3/8"-24 Thread

IR 7810-1B

Inline Multi-Vane Air Motor, 1/2" Keyed Spindle, 450 RPM, 0.7 HP, 39.8 NM, Reversible

Air Consumption at Max HP (scfm): 37.3
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Drive Size (in): 1/2
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 450
Max Pressure (bar): 6.2
Max Torque (ft-lb): 29
Max Torque (in-lb): 352
Max Torque (nm): 39.8
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 5.67
Rated Power (hp): 0.7
Rated Power (kW): 0.52
Reversible: Reversible
Sound Level dB(A): 85
Speed at Max Power (rpm): 240
Torque Output @ Max HP (ft-lb): 15
Torque Output @ Max HP (nm): 21
Warranty: 1-year

IR 8206-A

Inline Multi-Vane Air Motor, 7/8" Keyed Shaft, 275 RPM, 1.9 HP, 142.3 NM, Reversible

Air Consumption at Max HP (scfm): 93.5
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 7/8
Drive Type: Round Keyed
Exhaust Location: Exterior Muffler
Finish: Black Oxide
Gear Ratio: 49:1
Gear Reduction: Double
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 275
Max Pressure (bar): 6.2
Max Torque (ft-lb): 105
Max Torque (in-lb): 1259
Max Torque (nm): 142.3
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 4
Power Source: Air Powered
Product Weight (lb): 18.24
Rated Power (hp): 1.9
Rated Power (kW): 1.42
Reversible: Reversible
Sound Level dB(A): 95
Speed at Max Power (rpm): 150
Torque Output @ Max HP (ft-lb): 66
Torque Output @ Max HP (nm): 90.1
Warranty: 1-year

IR 89940811

NEEDLE HOLDER 2B, 3MM

IR 89940829

SPRING COMPRESSION 2B

IR 8SL-42-5

VANE PACK (03665346)

IR 910-706

WASHER

IR 92RB029

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 327 RPM, 7.9 HP, 545 NM, Reversible

Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 327
Max Pressure (bar): 6.2
Max Torque (ft-lb): 402
Max Torque (in-lb): 4824
Max Torque (nm): 545
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Speed at Max Power (rpm): 160
Starting Torque (ft-lb): 280
Starting Torque (nm): 380
Warranty: 1-year

IR 92RB045

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 210 RPM, 7.9 HP, 849 NM, Reversible

Air Consumption at Max HP (scfm): 225
Air Inlet: 1" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Aluminum
Max Free Speed (rpm): 210
Max Pressure (bar): 6.2
Max Torque (ft-lb): 626
Max Torque (in-lb): 7514
Max Torque (nm): 849
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 78
Rated Power (hp): 7.9
Rated Power (kW): 5.89
Reversible: Reversible
Speed at Max Power (rpm): 103
Starting Torque (ft-lb): 440
Starting Torque (nm): 597
Warranty: 1-year

IR 95LA3

Digger, 1 x 4-1/4" Hex Shank, 1850 BPM, 4" Stroke Length, 1.69" Bore

The 95 Series diggers are meant for heavy duty work, from foundation work, to piping, to break demolition. With a 4 inch piston stroke, and a steel cone, these diggers will not let you down.

Features And Benefits

• Weight: With a die cast aluminum handle and housing, the 95 Series is as lightweight as it is powerful, making hard work easy.
• Durability: Built with premium materials, the 95 Series can withstand harsh conditions and repeated drops without affecting its performance.
• Reliability: The 95 Series is equipped with rubber buffer retainers to absorb shock and prolong the life of your tool.

Product Application and Uses: Foundation work, piping, break demolition
Actuation/Throttle Type/Switch Type: Inside Trigger
Air Consumption @ Load (cfm): 47
Air Consumption @ Load (l/min): 1331
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Blows per Min: 1850
Bore Diameter (in): 1.69
Collar Type: Round
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Product Length (in): 21.88
Product Weight (lb): 30
Retainer Type: Latch
Shank SIze (in): 1 x 4-1/4
Shank Type: Hex
Stroke Length (in): 4
Vibration Level (m/s2): 29.5 / 6.6
Warranty: 1-year

Similar IR

• 95LA1
• 95A1
• 93LA1

IR 9644-1421

Spring

IR ATC040-1C

ANGLE TOOL CLAMP

IR BCT-2

Beam Clamp, 2 Ton Capacity

The BCT Series 1-10 metric ton capacity beam clamps provide a temporary or permanent mount to a wide range of tapered or flat beams. They are the ideal rigging device for lifting, pulling or suspending loads. These units have been designed and verified to achieve a minimum design factor of 5:1 for vertical lifting with powered or manual hoists or winches, meeting ASME B30.16 and ASME B30.7. Quick and simple installation is achieved without tools. Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom. The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge.

Product Application/Uses:

Ideal rigging device for lifting, pulling or suspending loads.

Features and Benefits:

• Quick installation by hand
• Designed and verified to achieve a minimum design factor of 5:1 for vertical lifting with powered or manual hoists or winches, meeting ASME B30.16 and ASME B30.7.
• Metric rated for vertical lifting or in-line pulling at 2200 lbs (1000 kg) per ton.
• Each unit is serialized, supplied with a test certificate and manual.
• Ideal rigging devices for lifting, pulling or suspending loads.
• Units accommodate hook-mounted hoist or load blocks with minimal loss of headroom.
• Low-headroom design adjusts to fit a wide range of flat or tapered beams
• The clamp jaws are designed to reduce beam stress by applying the load inside of the flange edge.

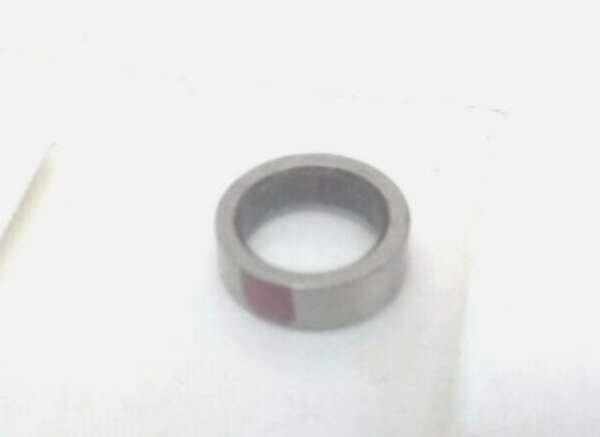

IR DG10-65-5

Spacer (49440-15)

IR DXS2SH12L

DXS2 1/2" SAE Deep Impact Socket

Never lose power from worn sockets and square drive anvils with Drive Xchange System™ Sockets and enjoy easier access into tight spaces with up to ¾” shorter tool length when use with Ingersoll Rand DXS™ impact wrenches. DXS™ direct drive sockets fit tighter and have more load bearing surface compared to traditional square drives to deliver up to 15% better torque transfer and 20% longer wear life.

Features And Benefits

• DXS Drive delivers up to 15% better torque efficiency compared to square drive sockets and reduces overall tool length by up to 3/4" compared to square drive sockets.
• Up to 20% longer life compared to traditional square driven sockets.
• Impact-grade toughness chrome-molybdenum (CR-MO) alloy steel with manganese phosphate finish to resist corrosion.
• Ball nose retention pin for quick, tool-free installation and removal.
• High visibility laser etched markings to easily identify the size you need.
• Relieved 6 point Hex corners help reduce faster rounding.
• Square retention pin conversion kit available for secure connection.
• Complies with ASME B107.110
• Backed by a lifetime limited warranty for peace of mind with proven reliability.
• For use with all Ingersoll Rand DXS2 drive Impacts.

Product Application and Uses: Vehichle Repair and General Industry. For use with all Ingersoll Rand DXS2 Drive Impacts.
Drive Size (in): DXS2
Drive Type: DXS
Finish: Chrome-molybdenum steel
Insulated: No
Non Sparking: No
Number of Points: 6
Product Length (in): 0.85
Product Width (in): 0.85
Product Height (in): 2.95
Product Weight (lb): 0.32
Socket Bit Type: Hex
Socket Depth: Deep
Socket Measurement Type: SAE
Socket Size: 1/2in
Standards/Certifications: ASME B107.110
Warranty: Lifetime Limited
Fastener Holding Magnet: No

For Use With

• 2236QPTIMAX
• 2236QTIMAX
• 2236QTIMAX-2
• 2236QTIMAX-G
• 2236QTIMAX-O
• 2236QTIMAX-R
• W7153
• W7153-AP
• W7153-K22
• W7153-K22-CN
• W7153-K22-IN
• W7153-K22-JP
• W7153-K22-KR
• W7153-K22-SGHK
• W7153-K22B-AN
• W7153-K22B-EU
• W7253-TL

Similar IR

• DXS2SH12
• DXSK2H14L
• DXSK2H14
• DXSK2M15
• DXSK2M15L

IR DXSK2M15

DXS2 Drive Hex Metric Impact Socket Set, 15-Piece

Never lose power from worn sockets and square drive anvils with Drive Xchange System™ Sockets and enjoy easier access into tight spaces with up to ¾” shorter tool length when use with Ingersoll Rand DXS™ impact wrenches. DXS™ direct drive sockets fit tighter and have more load bearing surface compared to traditional square drives to deliver up to 15% better torque transfer and 20% longer wear life.

Features And Benefits

• DXS Drive delivers up to 15% better torque efficiency compared to square drive sockets and reduces overall tool length by up to 3/4" compared to square drive sockets.
• Up to 20% longer life compared to traditional square driven sockets.
• Impact-grade toughness chrome-molybdenum (CR-MO) alloy steel with manganese phosphate finish to resist corrosion.
• Ball nose retention pin for quick, tool-free installation and removal.
• High visibility laser etched markings to easily identify the size you need.
• Relieved 6 point Hex corners help reduce faster rounding.
• Square retention pin conversion kit available for secure connection.
• Complies with ASME B107.110
• Backed by a lifetime limited warranty for peace of mind with proven reliability.
• For use with all Ingersoll Rand DXS2 drive Impacts.
• Includes 15 sockets (12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm, 22mm, 24mm, 27mm, 30mm, 32mm, 33mm) and foam organizer shadowboard tray.

Includes: 15 sockets (12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm, 22mm, 24mm, 27mm, 30mm, 32mm, 33mm) and Foam Organizer Shadowboard Tray
Product Application and Uses: Vehichle Repair and General Industry. For use with all Ingersoll Rand DXS2 Drive Impacts.
Drive Size (in): DXS2
Drive Type: DXS
Finish: Chrome-molybdenum steel
Insulated: No
Non Sparking: No
Number of Points: 6
Product Length (in): 16.38
Product Width (in): 5.44
Product Height (in): 2.5
Product Weight (lb): 4.38
Socket Bit Type: Hex
Socket Depth: Standard
Socket Measurement Type: Metric
Socket Size: 12mm
Socket Size: 13mm
Socket Size: 14mm
Socket Size: 15mm
Socket Size: 16mm
Socket Size: 17mm
Socket Size: 18mm
Socket Size: 19mm
Socket Size: 21mm
Socket Size: 22mm
Socket Size: 24mm
Socket Size: 27mm
Socket Size: 30mm
Socket Size: 32mm
Socket Size: 33mm
Standards/Certifications: ASME B107.110
Warranty: Lifetime Limited

For Use With

• 2236QPTIMAX
• 2236QTIMAX
• 2236QTIMAX-2
• 2236QTIMAX-G
• 2236QTIMAX-O
• 2236QTIMAX-R
• W7153
• W7153-AP
• W7153-K22
• W7153-K22-CN
• W7153-K22-IN
• W7153-K22-JP
• W7153-K22-KR
• W7153-K22-SGHK
• W7153-K22B-AN
• W7153-K22B-EU
• W7253-TL

Similar IR

• DXSK2H14
• DXSK2H14L
• DXSK2M15L

IR DXSK2M15L

DXS2 Drive Hex Deep Metric Impact Socket Set, 15-Piece

Never lose power from worn sockets and square drive anvils with Drive Xchange System™ Sockets and enjoy easier access into tight spaces with up to ¾” shorter tool length when use with Ingersoll Rand DXS™ impact wrenches. DXS™ direct drive sockets fit tighter and have more load bearing surface compared to traditional square drives to deliver up to 15% better torque transfer and 20% longer wear life.

Features And Benefits

• DXS Drive delivers up to 15% better torque efficiency compared to square drive sockets and reduces overall tool length by up to 3/4" compared to square drive sockets.
• Up to 20% longer life compared to traditional square driven sockets.
• Impact-grade toughness chrome-molybdenum (CR-MO) alloy steel with manganese phosphate finish to resist corrosion.
• Ball nose retention pin for quick, tool-free installation and removal.
• High visibility laser etched markings to easily identify the size you need.
• Relieved 6 point Hex corners help reduce faster rounding.
• Square retention pin conversion kit available for secure connection.
• Complies with ASME B107.110
• Backed by a lifetime limited warranty for peace of mind with proven reliability.
• For use with all Ingersoll Rand DXS2 drive Impacts.
• Includes 15 deep sockets (12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm, 22mm, 24mm, 27mm, 30mm, 32mm, 33mm) and foam organizer shadowboard tray.

Includes: 15 deep sockets (12mm, 13mm, 14mm, 15mm, 16mm, 17mm, 18mm, 19mm, 21mm, 22mm, 24mm, 27mm, 30mm, 32mm, 33mm) and Foam Organizer Shadowboard Tray
Product Application and Uses: Vehichle Repair and General Industry. For use with all Ingersoll Rand DXS2 Drive Impacts.
Drive Size (in): DXS2
Drive Type: DXS
Finish: Chrome-molybdenum steel
Insulated: No
Non Sparking: No
Number of Points: 6
Product Length (in): 16.38
Product Width (in): 9.38
Product Height (in): 2
Product Weight (lb): 8.47
Socket Bit Type: Hex
Socket Depth: Deep
Socket Measurement Type: Metric
Socket Size: 12mm
Socket Size: 13mm
Socket Size: 14mm
Socket Size: 15mm
Socket Size: 16mm
Socket Size: 17mm
Socket Size: 18mm
Socket Size: 19mm
Socket Size: 21mm
Socket Size: 22mm
Socket Size: 24mm
Socket Size: 27mm
Socket Size: 30mm
Socket Size: 32mm
Socket Size: 33mm
Standards/Certifications: ASME B107.110
Warranty: Lifetime Limited

For Use With

• 2236QPTIMAX
• 2236QTIMAX
• 2236QTIMAX-2
• 2236QTIMAX-G
• 2236QTIMAX-O
• 2236QTIMAX-R
• W7153
• W7153-AP
• W7153-K22
• W7153-K22-CN
• W7153-K22-IN
• W7153-K22-JP
• W7153-K22-KR
• W7153-K22-SGHK
• W7153-K22B-AN
• W7153-K22B-EU
• W7253-TL

Similar IR

• DXSK2H14
• DXSK2H14L
• DXSK2M15

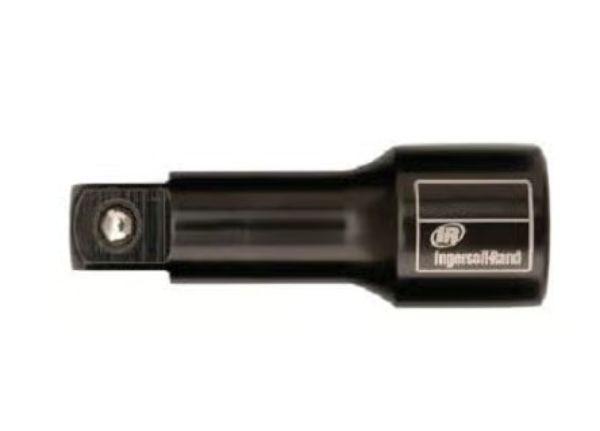

IR E610H

3/4" DRIVE, 10" EXTENSION

IR E63H

3/4" DRIVE, 3" EXTENSION

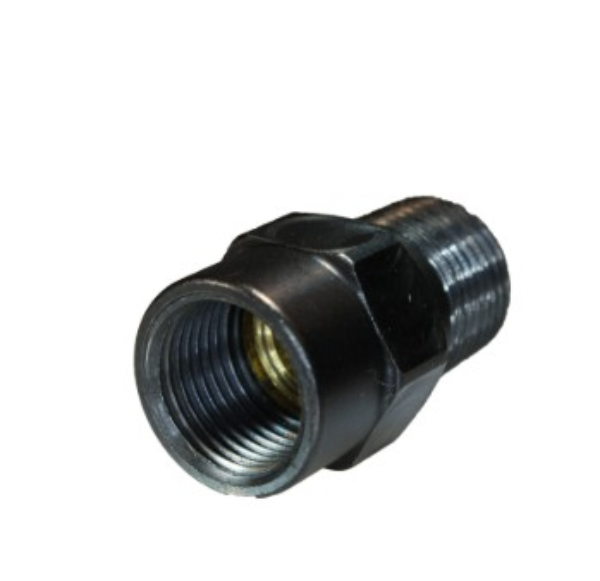

IR H-282-12

BUSHING

IR H3R-214-12

12" Chipping Hammer Blank Steel, Hex Shank Round Collar

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Suitable for a wide range of applications, our chipping hammer steels are available with round or hex shanks and oval or round collars.

Includes: (5) Blank Steels
Product Application and Uses: Designed for making customized points. For use with Ingersoll Rand W1A1, W2A1, W3A1, W4A1 chipping hammers.
Chisel Style: Blank
Collar Type: Round
Collar Width (in): 1.125
Housing Material: Steel
Length Under Collar (in): 9.5
Product Length (in): 12
Product Weight (lb): 1.75
Shank Length (in): 2.5
Shank SIze (in): 0.58
Shank Type: Hex

For Use With

• W1A1
• W2A1
• W3A1
• W4A1

IR H80-82A

BUSHING

IR HH1-1191

QUICK CHANGE RETAINER FITS GRVD, QTY 1

IR HH1-1191-4

INSERT SPRING
